Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

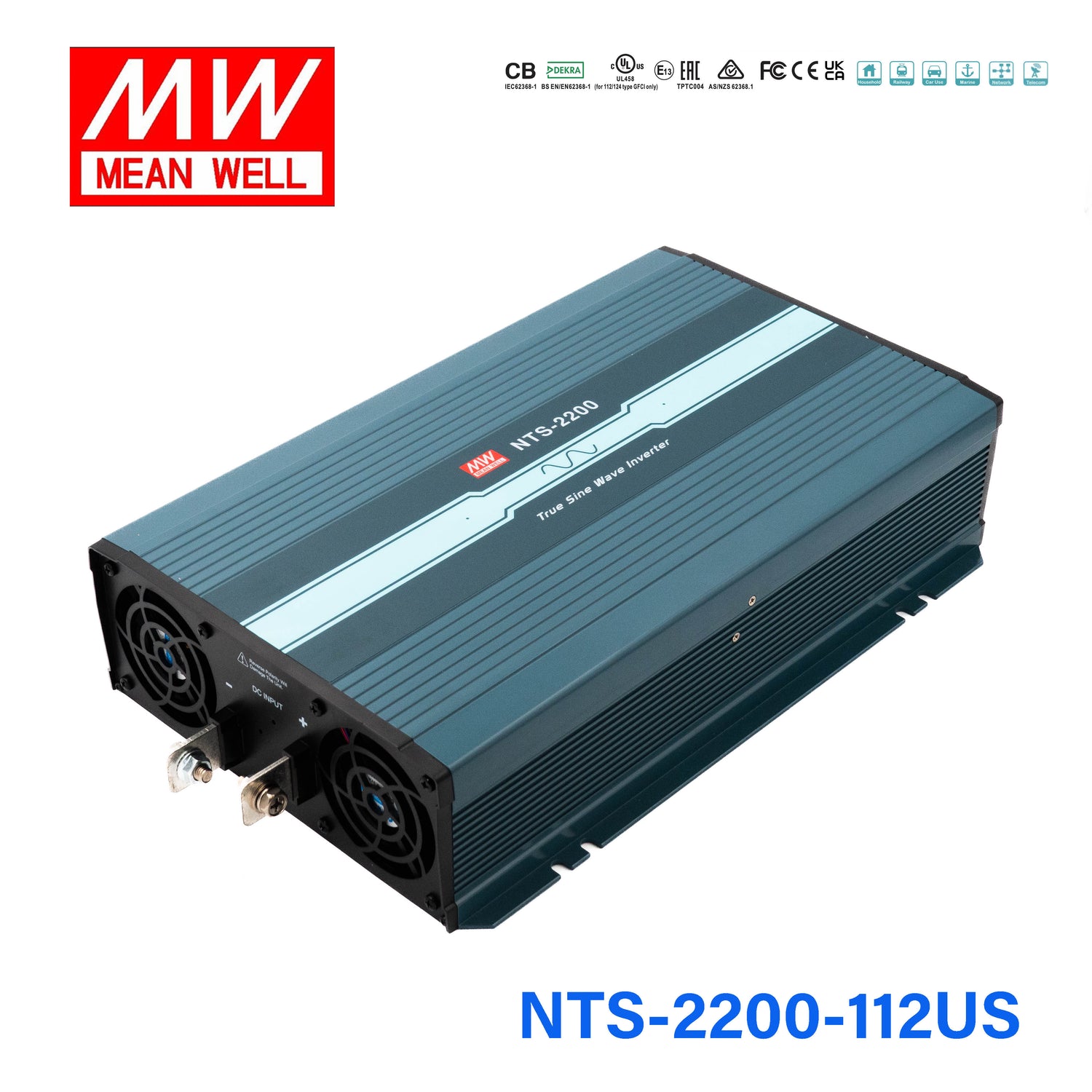

Mean Well NTS-2200-112US True Sine Wave DC-AC Inverter 2200W 110V out 12V in with US Socket
fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode
SKU:
NTS-2200-112US
$789.00 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTS-2200-112US True Sine Wave DC-AC Inverter 2200W 110V o...
$789.00 USD
Unit price /
Unavailable
The NTS-2200 is a 2200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, UL62368-1, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating2200 Watt
-
Output Voltage110 Volt
-
Input Voltage10V~16.5V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length16.54 in
-
Width10.63 in
-
Height3.86 in
-
Weight18.96 lb
::specification::
