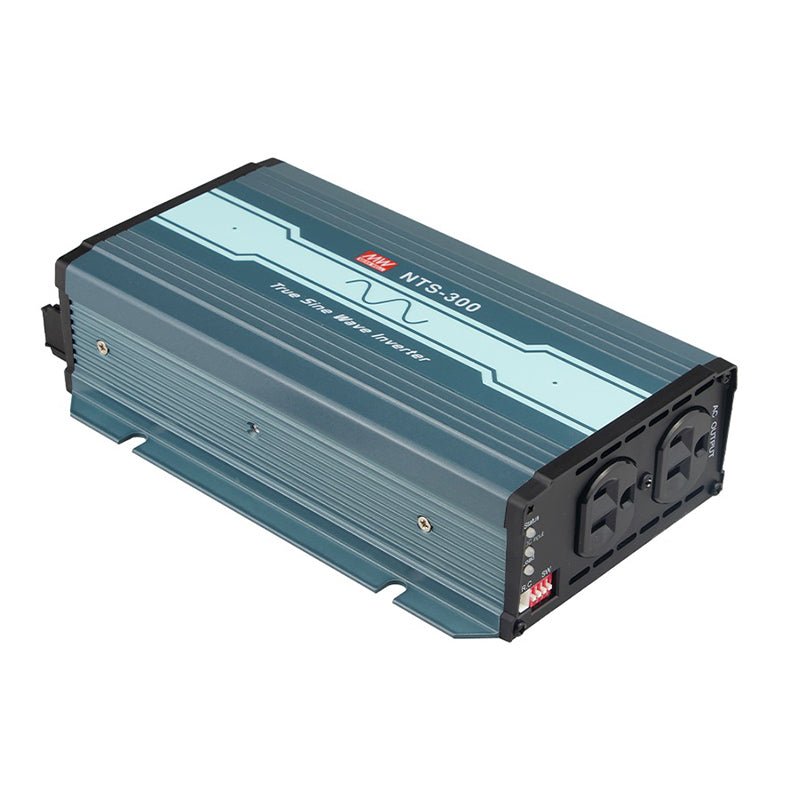

Mean Well NTS-300-148US True Sine Wave DC-AC Inverter 300W 100V out 48V in with US Socket

fanless design, high efficiency up to 93%, 200% peak power capability, built-in dip switch to adjust AC output voltage, frequency and work mode
$125.83 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Compact size and lightweight
True sine wave output (THD<3%)
High surge power up to 600W
Fanless design
AC output voltage and frequency selectable by DIP S.W
No load disspation < 1.5W max. at standby saving mode
-25℃~+65℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections: Short circuit / Overload / Over voltage
Battery over-discharge protection(Low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Carry handle accessory available(Order NO.: DS-Carry handle, sold separately
Conformal coating
3 years warranty

General Specification

AC output voltage range 100/110/115/120VAC;200/220/230/240VAC selectable by DIP S.W
AC output waveform True sine wave, THD<3.0%
Overload temperature Shut down o/p voltage, re-power on to recover
Overload 105~115% load for 180s, 115~150% load for 10s
Withstand voltage DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
Working temperature -25~+65°C (refer to output derating curve )
Safety standards CB IEC62368-1,Dekra BS EN/EN62368-1,E13,EAC TP TC 004 approved;Design refer to AS/NZS 62368.1
EMC standards EN55032 class A, BS En/EN61000-4-2,3,8
Dimension (LxWxH) 210x130x55mm
Packing 8pcs / 11.4Kg

Specifications

  • Brand
    Mean Well
  • Series
    MeanWell NTS Series
  • Power Rating
    300 Watt
  • Output Voltage
    110 Volt
  • Input Voltage
    40V~66V
  • No of Output
    1
  • Standards Met
    CB,CE,cUL,E13,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~65°C
  • Warranty
    3 Year
  • Length
    8.27 in
  • Width
    5.12 in
  • Height
    2.17 in
  • Weight
    2.87 lb
