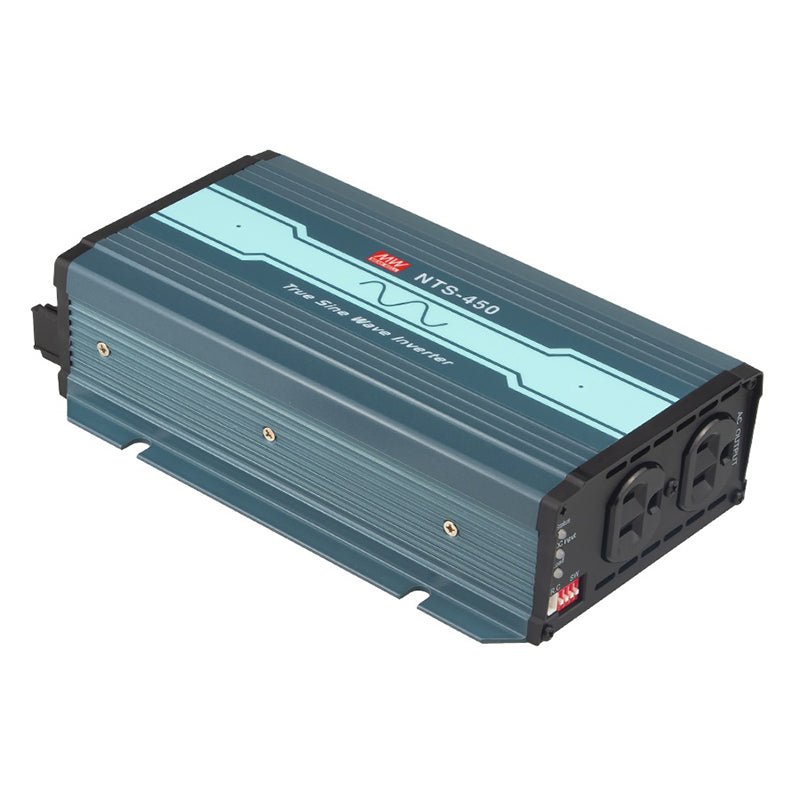

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well NTS-450-224US True Sine Wave DC-AC Inverter 450W 110V out 24V in with US Socket
fanless design, high efficiency up to 93%, 200% peak power capability, built-in dip switch to adjust AC output voltage, frequency and work mode
SKU:
NTS-450-124US
Datasheet:
$125.63 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTS-450-224US True Sine Wave DC-AC Inverter 450W 110V out...
$125.63 USD
Unit price /
Unavailable
Description
Description
Features
| Compact size and lightweight |
| True sine wave output (THD<3%) |
| High surge power up to 900W |
| Temperature-controlled cooling fan |
| AC output voltage and frequency selectable by DIP S.W |
| No load disspation < 1.5W max. at standby saving mode |
| -25℃~+70℃ wide operating temperature |
| Power ON-OFF remote control |
| Protections: Short circuit / Overload / Over voltage |
| Battery over-discharge protection(Low voltage disconnect) |
| Suitable for lead-acid or li-ion batteries |
| Carry handle accessory available(Order NO.: DS-Carry handle, sold separately |
| Conformal coating |
| 3 years warranty |
General Specification
| AC output voltage range | 100/110/115/120VAC;200/220/230/240VAC selectable by DIP S.W |
| AC output waveform | True sine wave, THD<3.0% |
| Overload temperature | Shut down o/p voltage, re-power on to recover |
| Overload | 105~115% load for 180s, 115~150% load for 10s |
| Withstand voltage | DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC |
| Working temperature | -25~+70°C (refer to output derating curve ) |
| Safety standards | CB IEC62368-1,Dekra BS EN/EN62368-1,E13,EAC TP TC 004 approved;Design refer to AS/NZS 62368.1 |
| EMC standards | EN55032 class A, BS En/EN61000-4-2,3,8 |
| Dimension (LxWxH) | 210x130x55mm |
| Packing | 8pcs / 11.4Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMeanWell NTS Series
-
Power Rating450 Watt
-
Output Voltage110 Volt
-
Input Voltage20V~33V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length8.27 in
-
Width5.12 in
-
Height2.17 in
-
Weight2.87 lb
File Downloads
File Downloads
Specification Sheet
