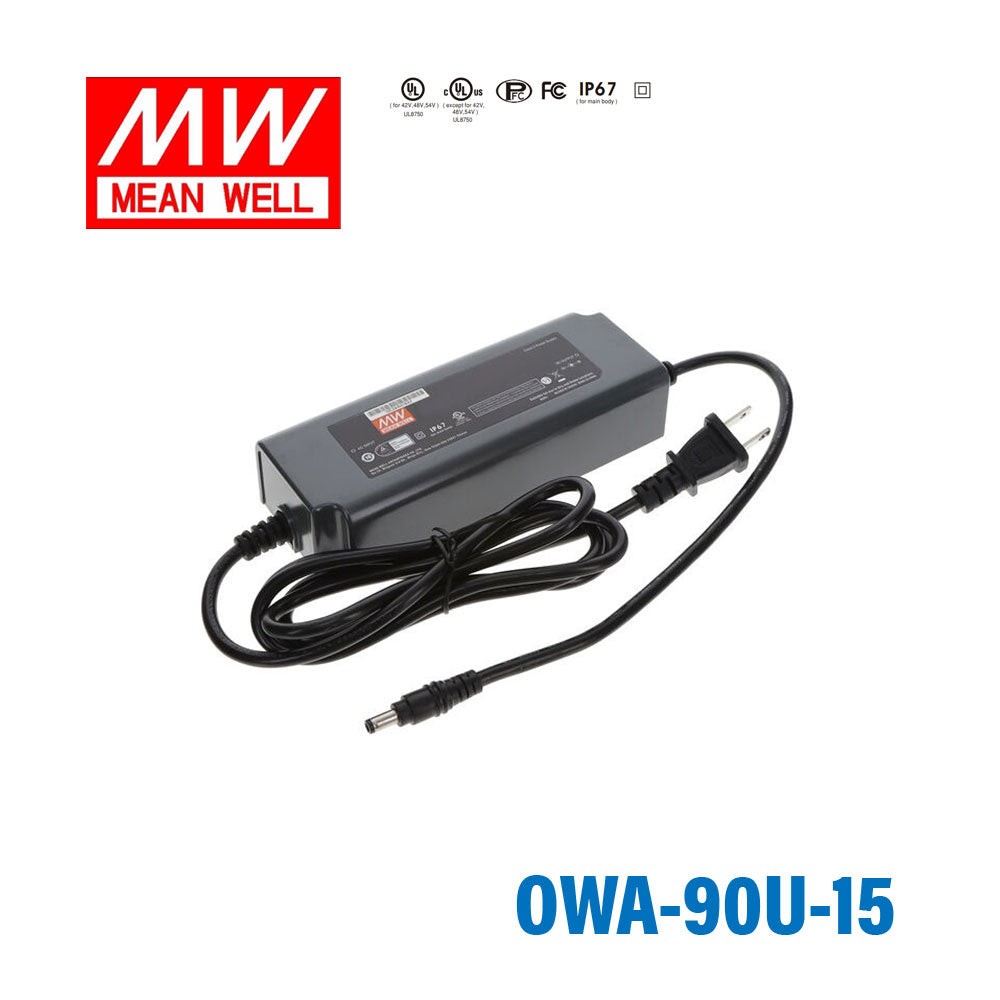

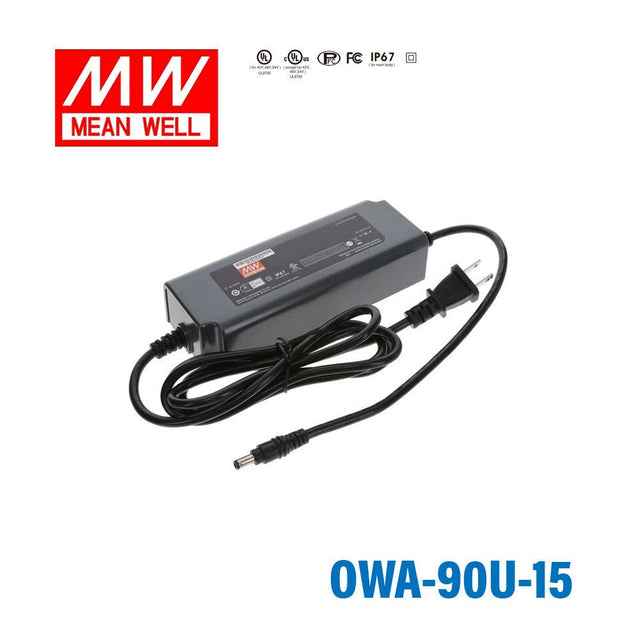

Mean Well OWA-90U-15 Power Supply Moistureproof 90W 15V 6A

Name: Mean Well OWA-90U-15 Power Supply Moistureproof 90W 15V 6A
Brand: Mean Well
SKU: OWA-90U-15
Price: 31.82 USD
Availability: InStock

no load consumption < 0.15Wenergy efficieny level VIhigh efficiency up to 91%UL listed with North American type input

SKU OWA-90U-15

$31.82 USD

Shipping calculated at checkout.

Select model — 3 in this family

OWA-90U-15

OWA-60U-15 15V 60W Backorder $28.36 USD

OWA-90U-15 15V 90W Backorder $31.82 USD

OWA-120U-15 15V 120W Backorder $53.15 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

OWA-90U-15 is the 15V output model of this series: rated current 6A, rated power 90W, typical efficiency 89%. Type Blank: Plug for 12V~54V,power DIN 4P with lock type.

OWA-90U is one 90W single-output external LED power supply series. Pairing the North American type of AC plug and the prevailing DC connectors, OWA-90U, working like an adaptor, simplifies the connection with LED lighting fixtures without extra wiring efforts. The entire series is certified with the "UL LISTED" for dry and damp locations. As a class II (without earth pin) design, the enclosure of OWA-90U is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation. With the working efficiency up to 91%, OWA-90U is cooled by free air convection; the working temperature ranges from -40℃ to +70℃.

Features

Universal AC input / Full range
Built-in active PFC function
Class 2 power unit (except OWA-90U-12/15)
High efficiency up to 91%
Protections: Short circuit / Over current / Over voltage / Over temperature
Class Ⅱ power unit, no FG
Fanless design, cooling by free air convection
No load power consumption <0.15W
Energy efficiency Level VI
Comply with EISA 2007 DoE and NRCan
UL LISTED, suitable for dry and damp locations
Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
5 years warranty

Specifications

OWA-90U-15Specifications from the official datasheet (2024-10-16 edition)

OUTPUT

DC VOLTAGE: 15V
CONSTANT CURRENT REGION: 9 ~ 15V
RATED CURRENT: 6A
RATED POWER: 90W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE TOLERANCE^Note.3: ±4.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.4: 500ms, 80ms at 95% load 115VAC / 230VAC
HOLD UP TIME (Typ.): 16ms at full load 115VAC / 230VAC

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.96/230VAC at full load
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧60% at 115VAC/230VAC
EFFICIENCY (Typ.) 115VAC: 89%
EFFICIENCY (Typ.) 230VAC: 90%
AC CURRENT (Typ.): 0.95A / 115VAC 0.5A / 230VAC
INRUSH CURRENT (Typ.): COLD START 30A (twidth=550μs measured at 50% Ipeak) at 115VAC COLD START 60A (twidth=550μs measured at 50% Ipeak) at 230VAC
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.125mA / 120VAC <0.25mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.5 ~ 21V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul8750 listed, CSA C22.2 No. 250.13-12(except for 42V, 48V, 54V); IP67 (for main body ) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC Part15

OTHERS

MTBF: 3044.3K hrs min. Telcordia SR-332 (Bellcore) 292.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 171*63*37.5mm
PACKING: 0.83Kg; 16pcs/14.3Kg/1.01CUFT

MODEL ENCODING

Blank (this model): Plug for 12V~54V,power DIN 4P with lock type
P1M: Plug for 20V~54V only,2.5Φx5.5Φx11mm,c+,tuning fork type

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

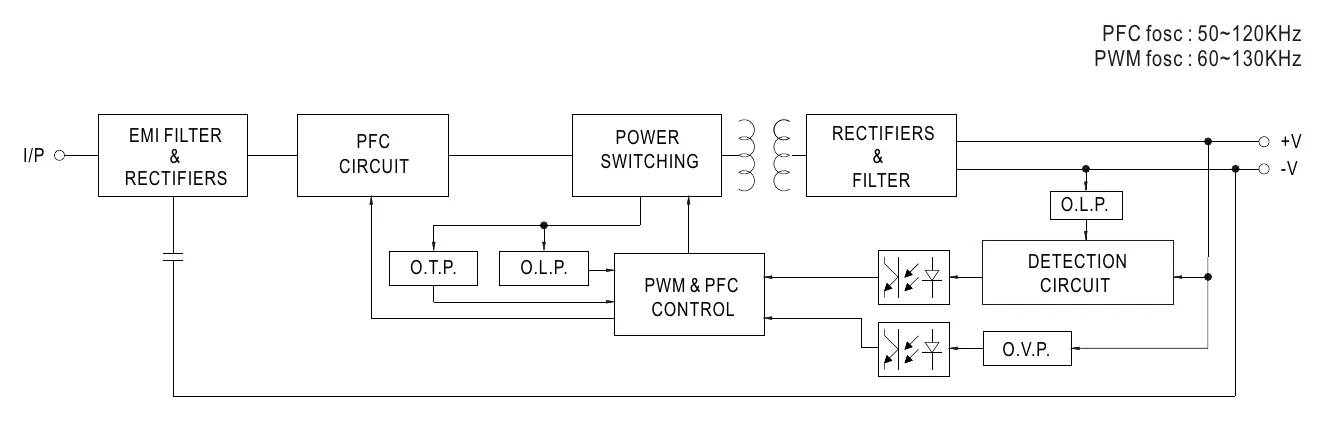

OWA-90U-15 Block Diagram — Block Diagram

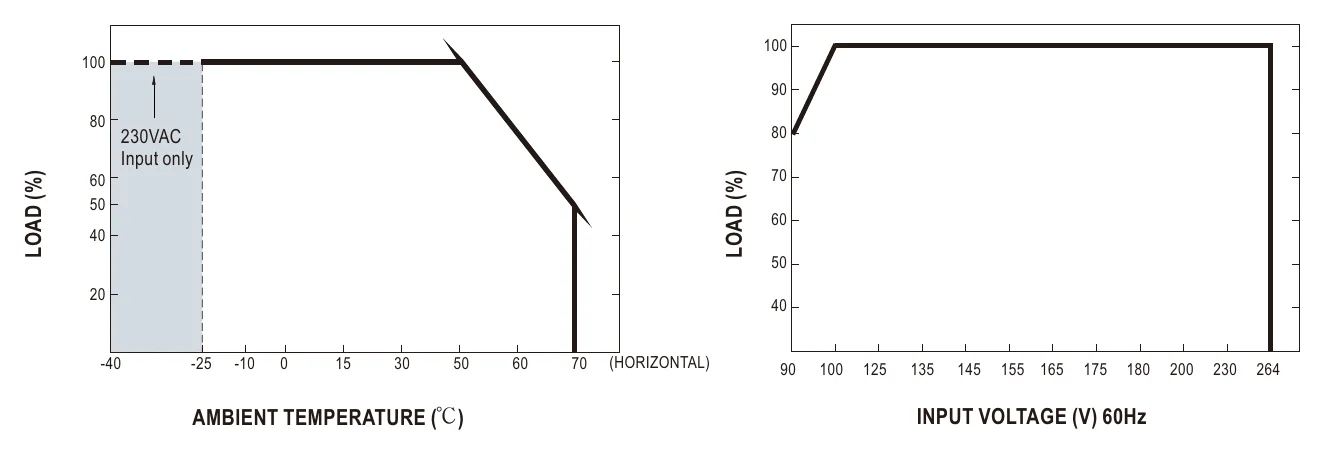

OWA-90U-15 Derating Curve — Derating Curve

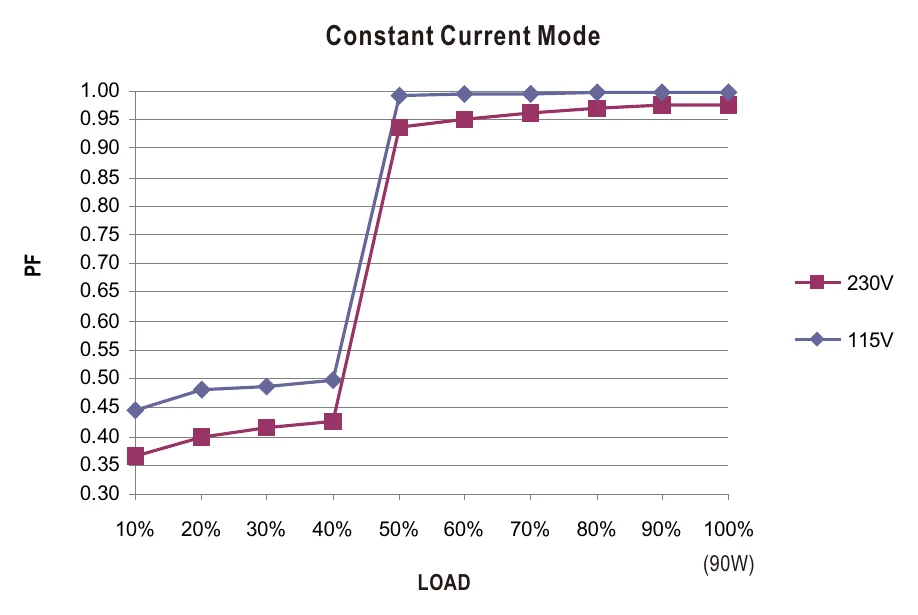

OWA-90U-15 Power Factor Characteristic — Power Factor Characteristic

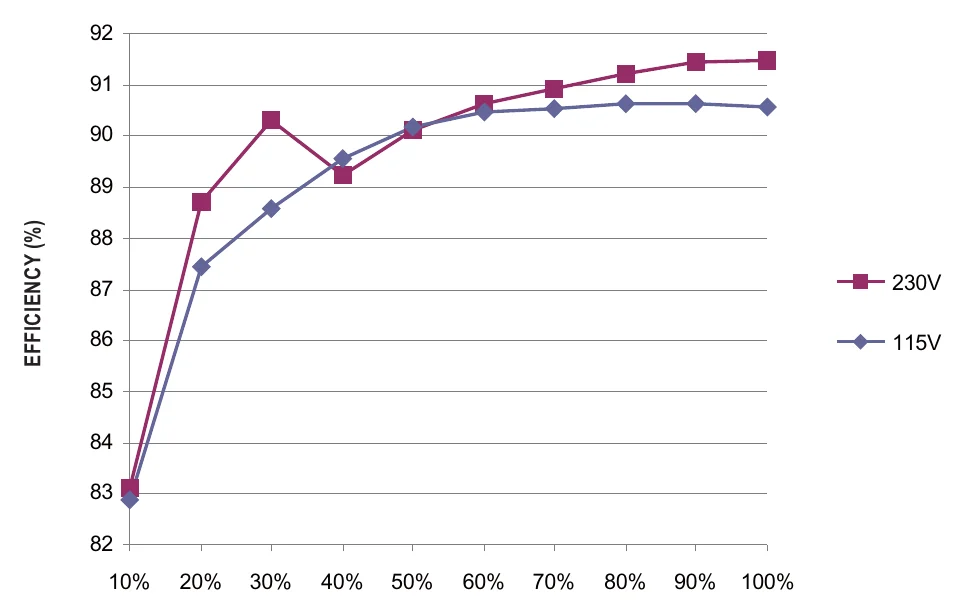

OWA-90U-15 EFFICIENCY(%) — EFFICIENCY(%)

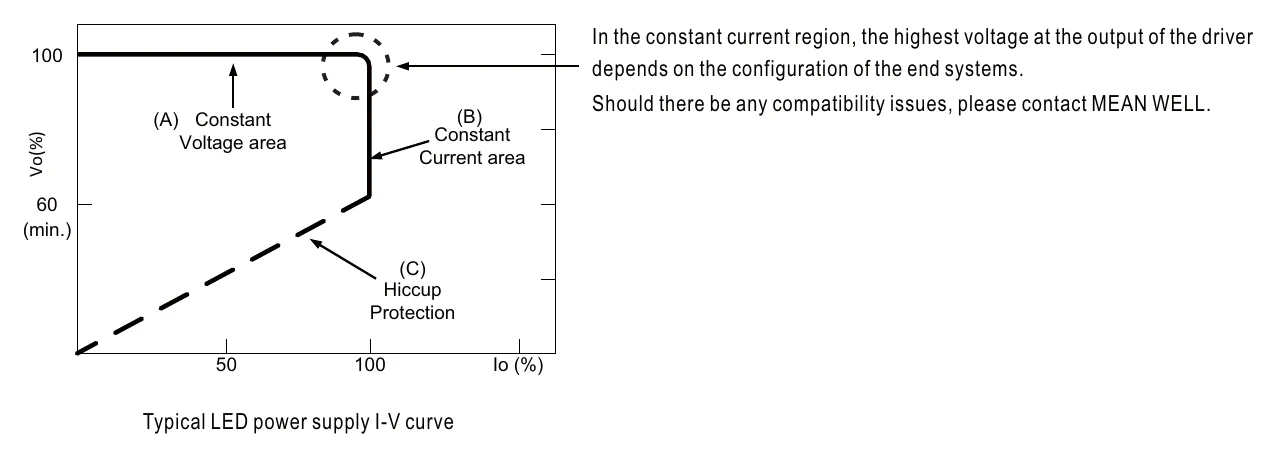

OWA-90U-15 EFFICIENCY(%) (3) — EFFICIENCY(%) (3)

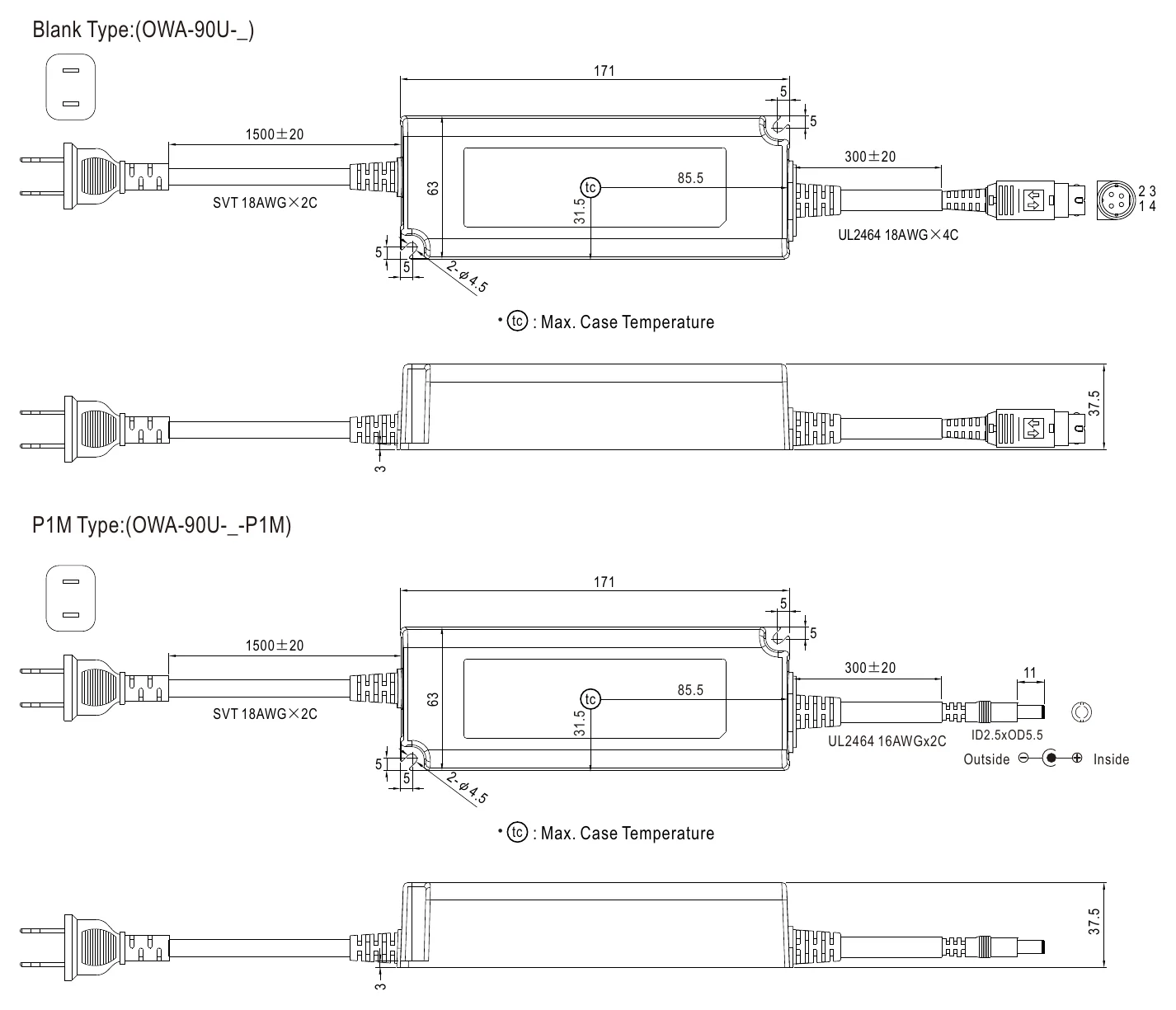

OWA-90U-15 Mechanical Specification — Mechanical Specification

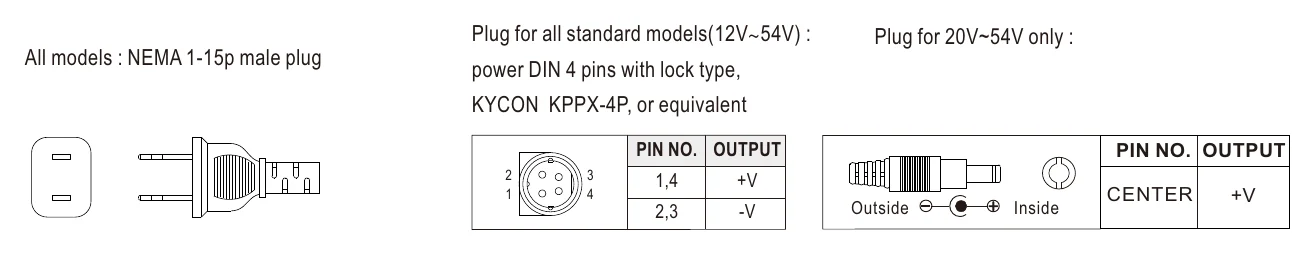

OWA-90U-15 Input Plug Type — Input Plug Type

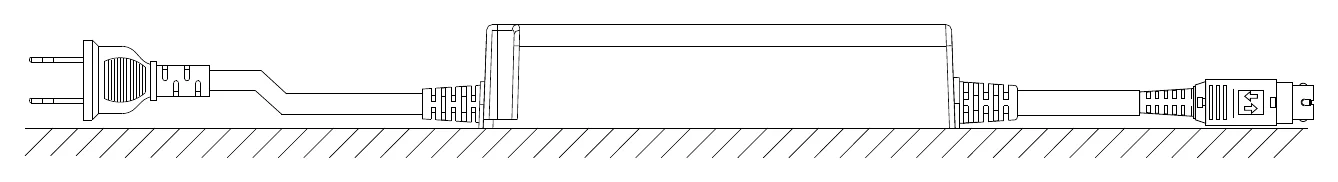

OWA-90U-15 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED lighting fixture
LED decorative lighting
LED office lighting
General electronic products in dry or damp environment
