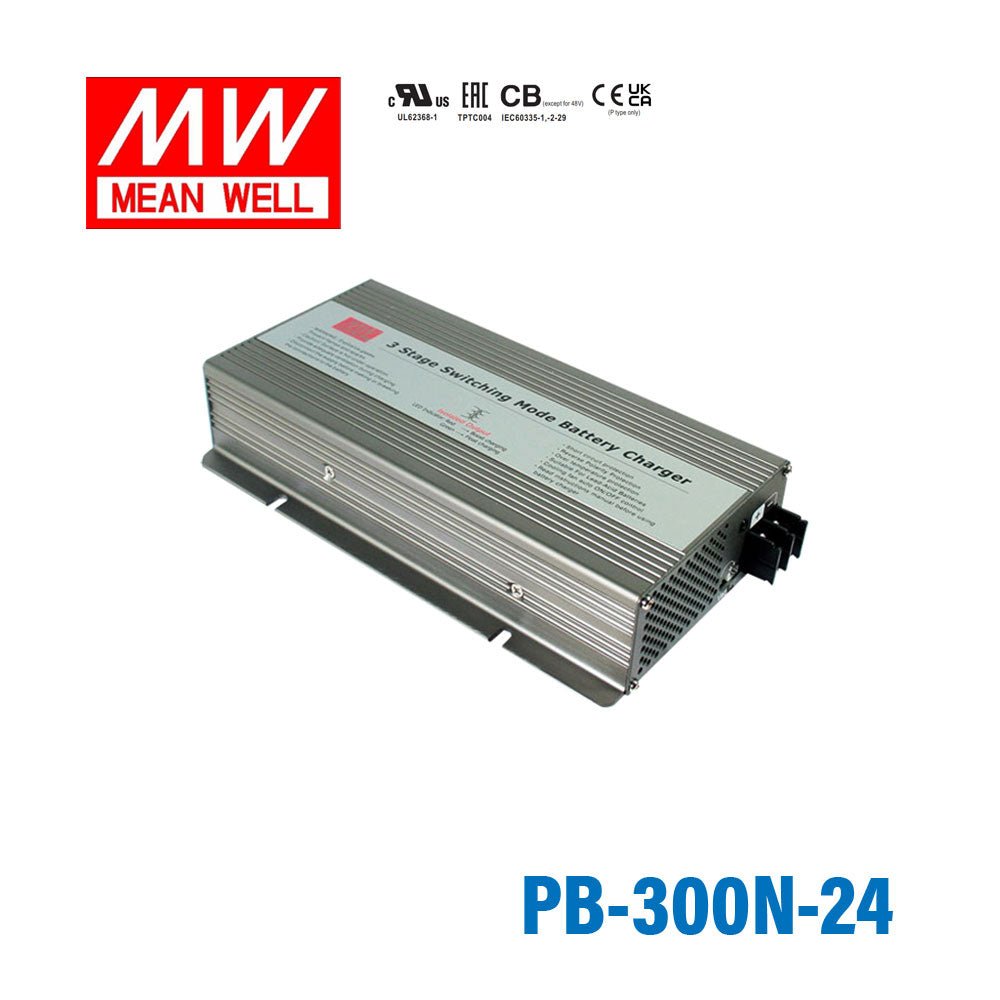

Mean Well PB-300N-24 Battery Charger Non-PFC 300W 24V

$87.98 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
3 stage charging
AC 115/230VAC selected by switch
Built-in passive PFC function compliance to BS EN/EN61000-3-2 Class A (option)
Protection: Short circuit / Reverse polarity / Over voltage / Over temperature
2 color LED loading indicator
Low cost, High reliability
2 color LED loading indicator
FAN on/off control (Depends on charging current
3 years warranty

General Specification

AC input voltage range 90 ~ 132VAC / 180 ~ 264VAC selected by switch; 127 ~ 187VDC / 254 ~ 370VDC
AC inrush current (max.) COLD START 60A
Over-voltage protection Protection type: Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -10~+50ºC(refer to output derating curve)
Safety standards IEC60335-2-29 CB approved by TUV(except for 48V), UL62368-1, CSA C22.2 No. 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 for P-type only
EMC standards

EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024

Dimension (LxWxH) (mm) 253 x 135 x 48.5mm
Packing 1.45Kg; 6pcs/9.7Kg/1.03CUFT

Specifications

  • Brand
    Mean Well
  • Series
    PB Series
  • Power Rating
    300 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    6.25 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    BSMI,CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~60°C
  • Warranty
    3 Year
  • Length
    9.96 in
  • Width
    5.32 in
  • Height
    1.91 in
  • Weight
    3.2 lb

File Downloads
