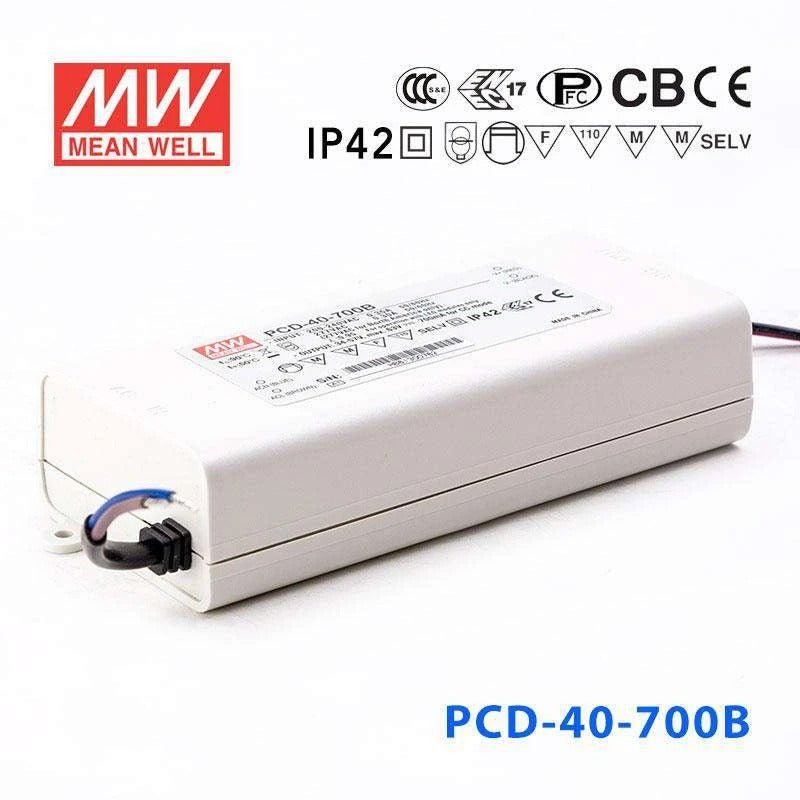

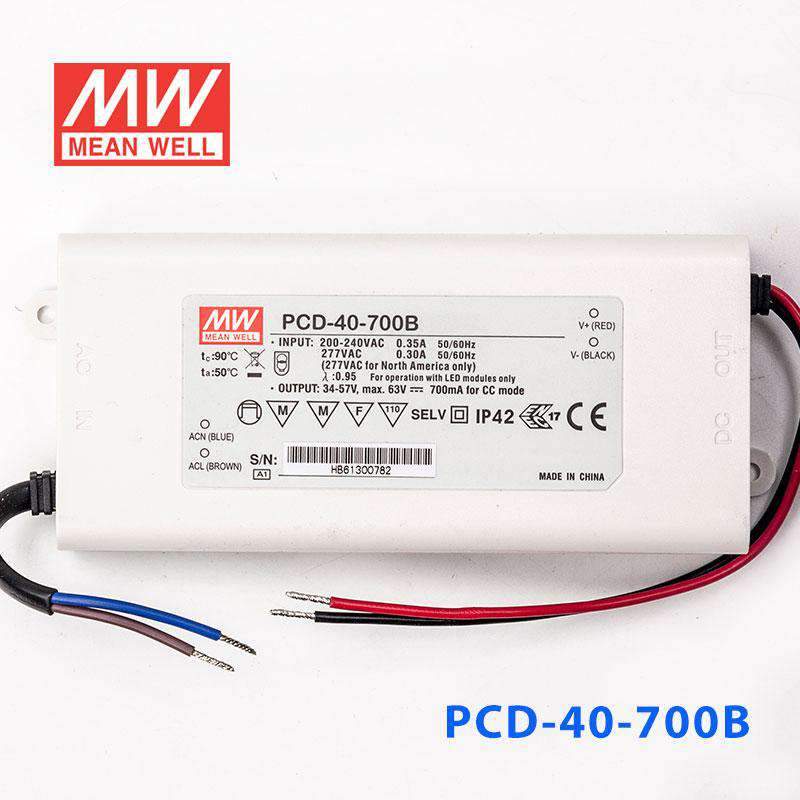

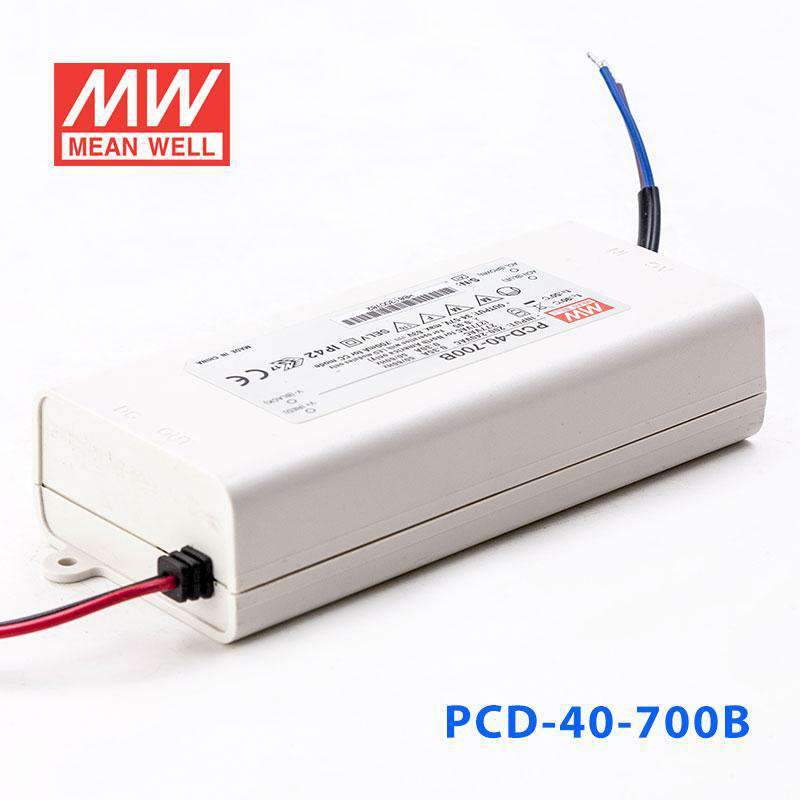

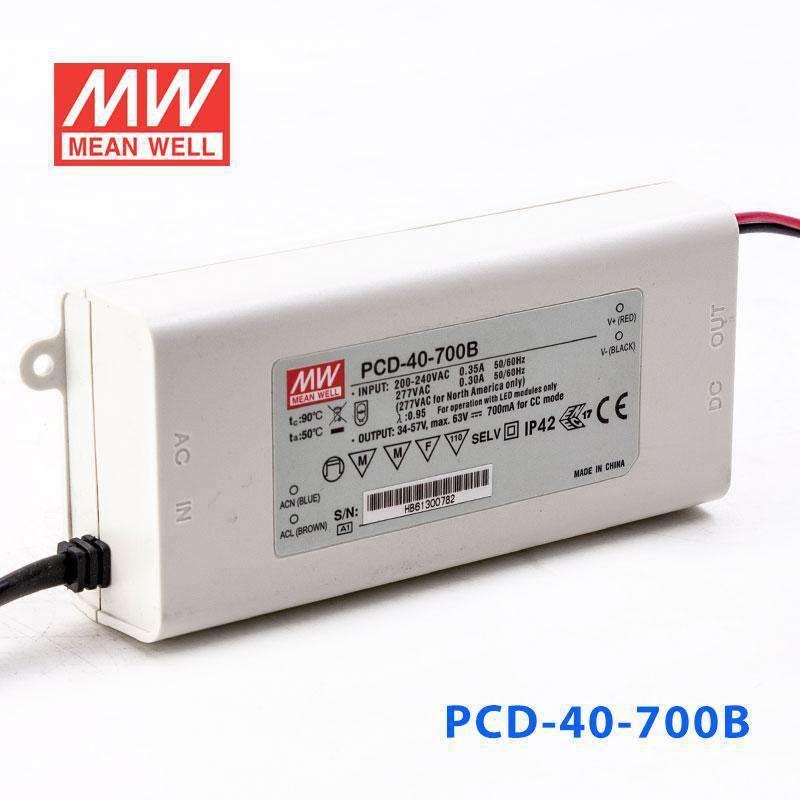

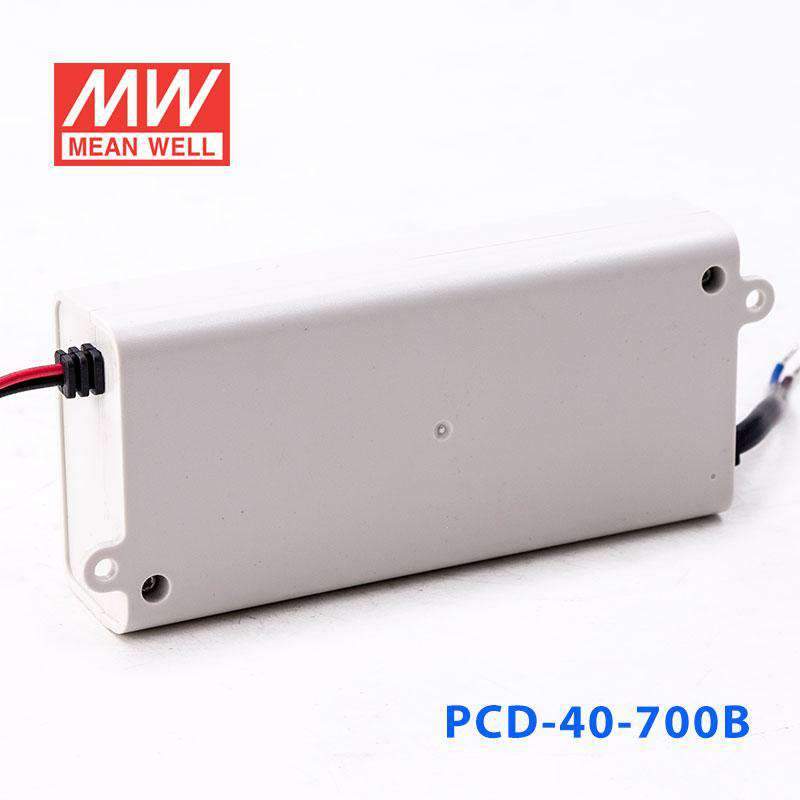

Mean Well PCD-40-700B Power Supply 40W 700mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PCD-40-700B Power Supply 40W 700mA
Description
Description
The PCD-40 is a 40W Mean Well power converter (input range: 70~108V, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 70~108V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating39.9 Watt
-
Output Voltage57 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetCB,CE,EAC,ENEC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty3 Year
-
Length5.04 in
-
Width2.36 in
-
Height1.24 in
-
Weight0.51 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PCD-40-700B for 700mA LED downlights?
Yes, this driver is designed for constant current LED loads at 700mA. It is a match for LED downlights that need a constant current source and operate within the 34-57V constant current output range, up to 39.9W. It is not for constant voltage fixtures.
Is the PCD-40-700B suitable for LED signage modules?
It can be used for signage modules only if the module assembly is specified for constant current operation at 700mA. The connected load also needs to stay within the 34-57V constant current range and within the 39.9W output rating. Constant voltage signage products are not compatible with this type of driver.
Can this driver run a small LED array for architectural or display lighting?
Yes, it can power a small LED array when the array is built for constant current operation at 700mA. The total forward voltage of the array must fall within 34-57V, and the total load must remain within the 39.9W rating. The exact number of LEDs depends on the forward voltage of each LED.
How do I know if my LED load is compatible with the PCD-40-700B?
Check that the LED load requires a constant current driver rated at 700mA, not a constant voltage power supply. The total LED forward voltage must be within the 34-57V constant current range. The number of LEDs that can be driven depends on the forward voltage of each LED.
Is the PCD-40-700B okay for damp or exposed outdoor locations?
This model has an IP42 plastic case, so it is better suited to protected indoor environments rather than exposed outdoor or washdown areas. Its operating temperature range is -30°C to +50°C, but the enclosure rating is still limited to IP42. Environmental protection should match the installation location.
Other PCD-40 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PCD-40-500B Power Supply 40W 500mA | 40W | 80V | 0.5A | Indoor | $23.66 | View |
| Mean Well PCD-40-350B Power Supply 40W 350mA | 37.8W | 108V | 0.35A | Indoor | $22.55 | View |
| Mean Well PCD-40-1750B Power Supply 40W 1750mA | 40.25W | 23V | 1.75A | Indoor | $21.32 | View |
| Mean Well PCD-40-1400B Power Supply 40W 1400mA | 40.6W | 29V | 1.4A | Indoor | $20.87 | View |
| Mean Well PCD-40-1050B Power Supply 40W 1050mA | 39.9W | 38V | 1.05A | Indoor | $25.78 | View |
