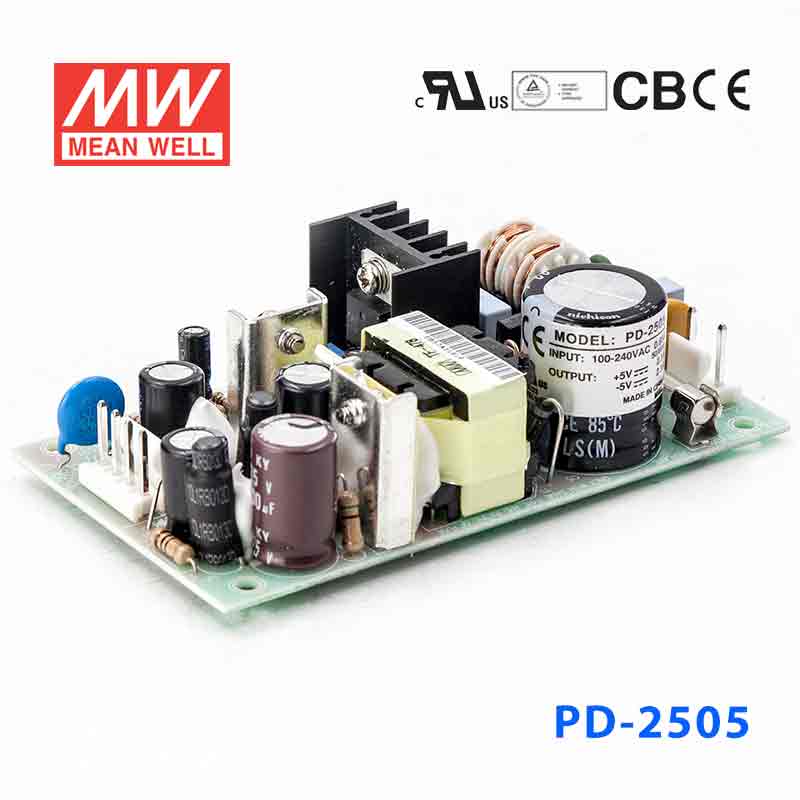

Mean Well PD-2505 Power Supply 25W 5V -5V
$17.15 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Low leakage current < 0.5mA |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |
| 100% full load burn-in test |
| Fixed switching frequency at 100KHz |
| Low cost |
| High reliability |
| 2 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current | Cold start 32A |
| Leakage current | <0.5mA/240VAC |
| Overload protection | Above 105% rated output power |
| Over voltage protection | 115%~135% rated output voltage |
| Setup, rise, hold up time | 250ms, 50ms, 100ms |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Working temperature | -10~+60°C |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | UL,TUV 62368-1 |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5 |
| Connection | I/P: 3 Pin Molex 41791-03, O/P: 4 Pin Molex 41791-03 |
| Dimension (LxWxH) | 107x61x28 |
| Packing | 96pcs / 15.9kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPD Series
-
Power Rating25 Watt
-
Output Voltage5 Volt
-
Rated Current2.5 Ampere
-
Input Voltage85V~264V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length4.21 in
-
Width2.4 in
-
Height1.1 in
-
Weight0.33 lb
