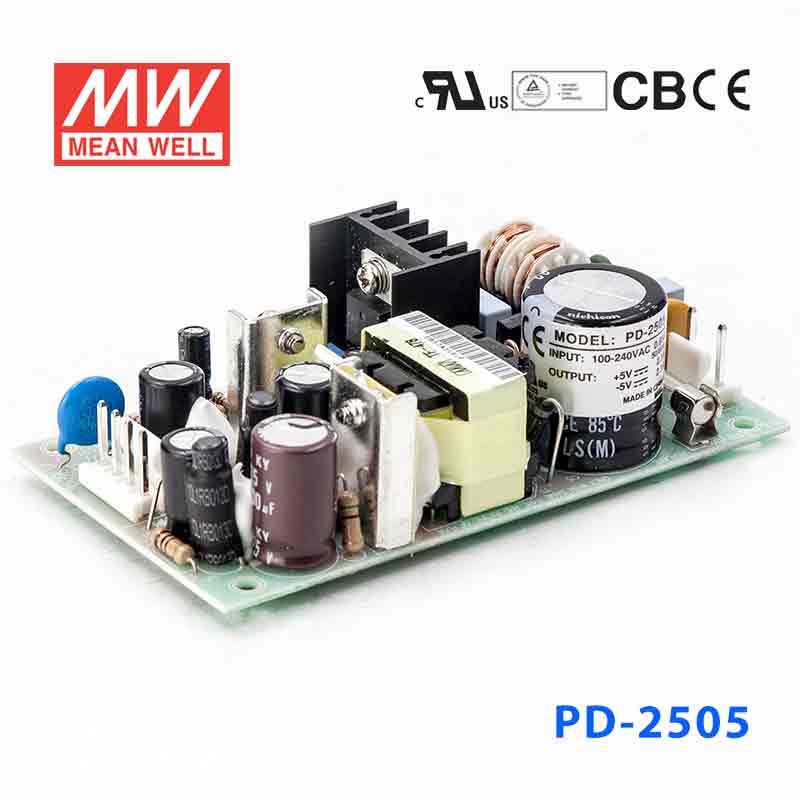

Mean Well PD-2505 Power Supply 25W 5V -5V 2.5A
Overview
PD-2505 is the 5V / -5V output model of this series: rated current 2.5A / 2.5A, rated power 25W, typical efficiency 73%.
Features
- Universal AC input / Full range
- Low leakage current<0.5mA
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 100KHz
- Low cost
- High reliability
- 2 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 / CH2
- DC VOLTAGE
- 5V / -5V
- RATED CURRENT
- 2.5A / 2.5A
- CURRENT RANGE
- 0.1 ~ 3A / 0.1 ~ 2.5A
- RATED POWER
- 25W
- RIPPLE & NOISE (max.)Note.2
- 50mVp-p / 50mVp-p
- VOLTAGE TOLERANCENote.3
- ±6.0% / ±6.0%
- LINE REGULATION
- ±1.0% / ±1.0%
- LOAD REGULATION
- ±4.0% / ±4.0%
- SETUP, RISE TIME
- 250ms, 50ms/230VAC 250ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 100ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 73%
- AC CURRENT (Typ.)
- 0.65A/115VAC 0.4A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 32A
- LEAKAGE CURRENT
- <0.5mA / 240VAC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1: 5.75 ~ 6.75V, CH2: -5.75 ~ -6.75V Protection type : Shut off o/p voltage, clamping by zener diode
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃) ON CH1 output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1(for PD-25A only ) approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 5363.3K hrs min. Telcordia SR-332 (Bellcore) ; 707.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 107*61*28mm (L*W*H)
- PACKING
- 0.15Kg; 96pcs/15.9Kg/1.2CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. Heat Sink HS1,HS2,HS3 can not be shorted.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Datasheet1
Certificates9
Test reports1
Catalogues1
FAQ
Can I use the PD-2505 for 5V industrial control boards or embedded controllers?
Yes, it is a dual-output constant-voltage supply providing +5V and -5V, each rated 2.5A, with 25W total. That makes it suitable for 5V control electronics, embedded boards, and other low-power industrial logic loads that stay within those output limits.
Is the PD-2505 a good fit for 5V automation sensors and interface modules?
It can be a fit for 5V automation accessories that need regulated constant-voltage input and draw no more than 2.5A per rail (+5V up to 3A peak range). With 25W total, it is better suited to small 5V sensor, interface, and signaling loads than higher-current 5V assemblies.
Can the PD-2505 power compact 5V HMI, communication, or monitoring electronics in a panel?
It is intended for low-power ±5V electronics where a constant-voltage output is required, with 25W total and 2.5A rated per channel. For compact monitoring, communication, or panel-control devices, the key check is that the load stays within each channel's rating.
Is the PD-2505 suitable for outdoor or harsh-environment use?
The listed specs show an operating temperature of -10°C to +60°C with derating per the derating curve, but they do not include an IP rating. That means the data supports temperature planning, but it does not state outdoor, washdown, or weather-exposed suitability.
How does the PD-2505 compare with other Mean Well PD series models?
Within the PD-25 series, PD-2505 is 25W with +5V/-5V at 2.5A each. The other models are PD-2512 at 24W 12V/-12V 1A each, PD-2515 at 24W 15V/-15V 0.8A each, PD-25A at 24.9W 5V 2.1A/12V 1.2A, and PD-25B at 25.2W 5V 1.2A/24V 0.8A.
