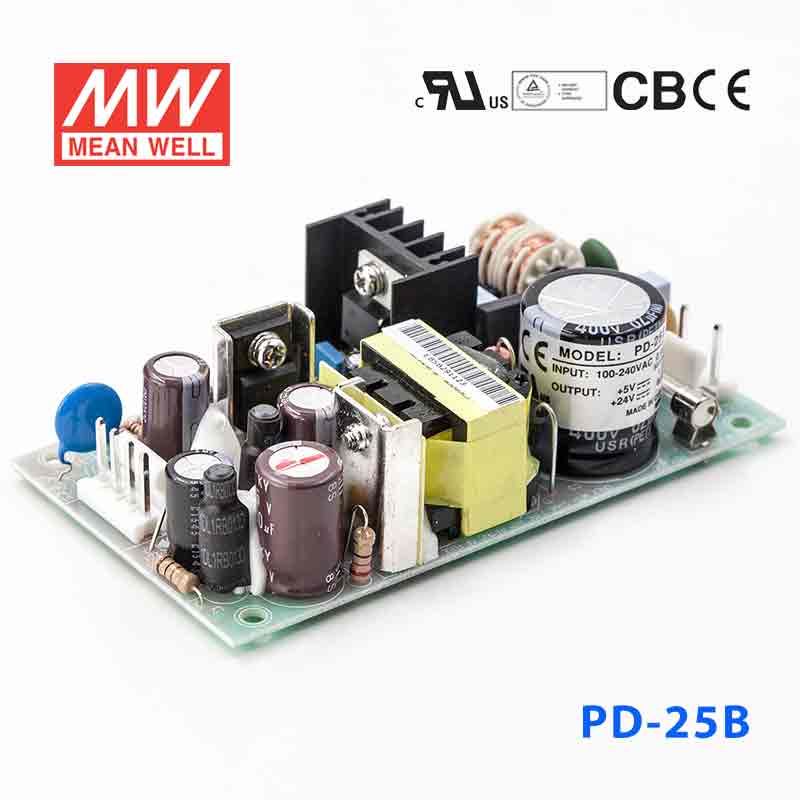

Mean Well PD-25B Power Supply 25W 5V 24V 1.2A
Overview
PD-25B is the 5V / 24V output model of this series: rated current 1.2A / 0.8A, rated power 25.2W, typical efficiency 77%.
Features
- Universal AC input / Full range
- Low leakage current<0.5mA
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 100KHz
- Low cost
- High reliability
- 2 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 / CH2
- DC VOLTAGE
- 5V / 24V
- RATED CURRENT
- 1.2A / 0.8A
- CURRENT RANGE
- 0.2 ~ 2A / 0.1 ~ 1A
- RATED POWER
- 25.2W
- RIPPLE & NOISE (max.)Note.2
- 50mVp-p / 200mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0% / ±6.0%
- LINE REGULATION
- ±0.5% / ±2.0%
- LOAD REGULATION
- ±1.0% / ±4.0%
- SETUP, RISE TIME
- 250ms, 50ms/230VAC 250ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 100ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 77%
- AC CURRENT (Typ.)
- 0.65A/115VAC 0.4A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 32A
- LEAKAGE CURRENT
- <0.5mA / 240VAC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1: 5.75 ~ 6.75V, CH2: 27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃) ON CH1 output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1(for PD-25A only ) approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 5363.3K hrs min. Telcordia SR-332 (Bellcore) ; 707.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 107*61*28mm (L*W*H)
- PACKING
- 0.15Kg; 96pcs/15.9Kg/1.2CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. Heat Sink HS1,HS2,HS3 can not be shorted.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Datasheet1
Certificates9
Test reports1
Catalogues1
FAQ
Can I use the PD-25B for a 5V embedded controller or industrial logic circuit?
Yes, this unit provides 5V constant voltage at 1.2A rated (2A max) plus a 24V 0.8A output, and is appropriate for embedded controllers, logic boards, or industrial electronics. Its total output power is 25.2W, so the connected loads need to stay within that limit.
Is the PD-25B suitable for powering a small 5V communication or monitoring module?
It can be a fit for compact 5V communication, monitoring, or interface modules that require regulated constant voltage. The 5V output is rated 1.2A, alongside a 24V 0.8A output, which is aimed at lighter-duty loads.
Can the PD-25B be used in a compact automation enclosure for low-power 5V electronics?
Yes, for low-power 5V electronics in automation equipment, the PD-25B can be used if the 5V load does not exceed 1.2A rated. It also accepts a wide 85-264VAC input range, which supports use with common AC supply conditions.
Is the PD-25B rated for exposed outdoor conditions?
The specs show an operating temperature range of -10°C to +60°C with derating per the derating curve, but no IP rating is listed. Without a stated IP rating, it is better treated as a power supply for indoor or protected installations.
How does the PD-25B compare with nearby PD series options?
The PD-25B is rated at 25.2W with 5V 1.2A and 24V 0.8A. The other PD-25 series models are PD-25A at 24.9W, 5V 2.1A/12V 1.2A; PD-2505 at 25W, 5V/-5V 2.5A each; PD-2512 at 24W, 12V/-12V 1A each; and PD-2515 at 24W, 15V/-15V 0.8A each.
