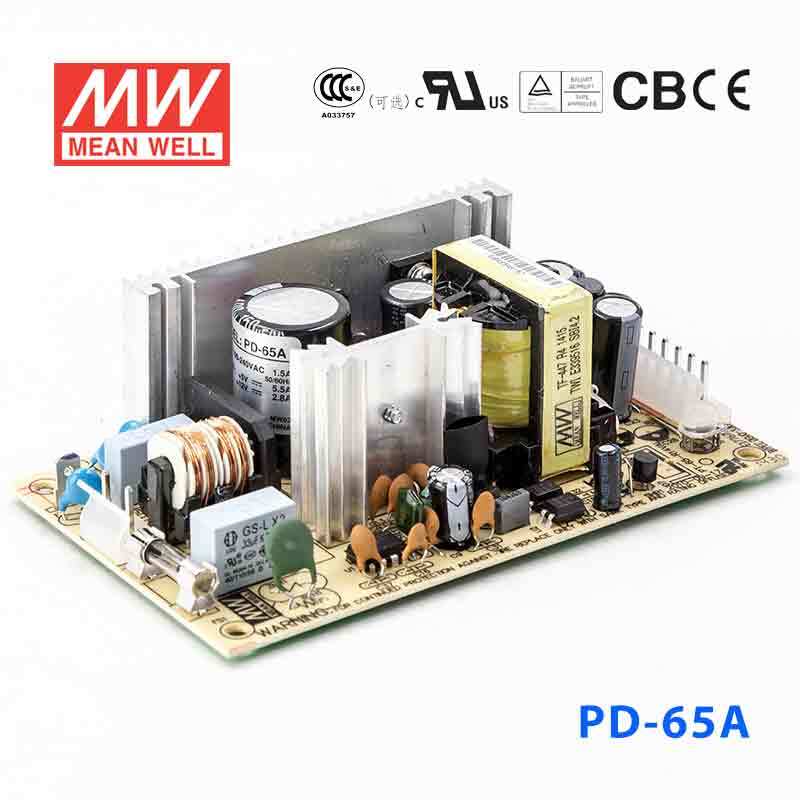

Mean Well PD-65A Power Supply 65W 5V 12V 5.5A
Overview
PD-65A is the CH1: 5V / CH2: 12V output model of this series: rated current CH1: 5.5A / CH2: 2.8A, rated power 61.1W, typical efficiency 78%.
Features
- Universal AC input / Full range
- Low leakage current<0.5mA
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 65KHz
- 2 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 / CH2
- DC VOLTAGE
- CH1: 5V / CH2: 12V
- RATED CURRENT
- CH1: 5.5A / CH2: 2.8A
- CURRENT RANGE
- CH1: 0.4 ~ 7A / CH2: 0.2 ~ 3.2A
- RATED POWER
- 61.1W
- OUTPUT POWER (max.)
- Rated output power for convection; 72W with 18CFM min. Forced air
- RIPPLE & NOISE (max.)Note.2
- CH1: 50mVp-p / CH2: 120mVp-p
- VOLTAGE ADJ. RANGE
- CH1:4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- CH1: ±4.0% / CH2: ±7.0%
- LINE REGULATION
- CH1: ±1.0% / CH2: ±2.0%
- LOAD REGULATION
- CH1: ±3.0% / CH2: ±4.0%
- SETUP, RISE TIME
- 800ms, 20ms at full load
- HOLD UP TIME (Typ.)
- 60ms at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~370VDC
- FREQUENCY RANGE
- 47 ~ 440Hz
- EFFICIENCY(Typ.)
- 78%
- AC CURRENT (Typ.)
- 1.5A/115VAC 0.9A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 20A/115VAC 40A/230VAC
- LEAKAGE CURRENT
- <0.75mA
PROTECTION
- OVERLOAD
- 73 ~ 105W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed.
- OVER VOLTAGE
- CH1: 5.75 ~ 6.75VDC on CH1 Protection type : Hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ (0 ~ 50℃) on +5V output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 3814.3K hrs min. Telcordia SR-332 (Bellcore) ; 498.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 127*76*42mm (L*W*H)
- PACKING
- 0.24Kg; 54pcs/15Kg/1.28CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
- 6. Heat Sink HS1,HS2 can not be shorted.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Datasheet1
Certificates9
Test reports1
Catalogues1
FAQ
Can I use the PD-65A for a 5V controller board with 12V auxiliary loads in an industrial cabinet?
Yes, this model is suited to constant-voltage systems that use the 5V and 12V outputs indicated by the model name. It provides 61.1W total power, a 5V output rated at 5.5A, and accepts 90-264VAC input, which fits small industrial control or embedded assemblies that need those rails.
Is the PD-65A a good fit for embedded test fixtures or automation jigs that need stable 5V power?
It can be a fit where the main requirement is regulated 5V power for embedded electronics, with 61.1W total available and 5.5A on the 5V output. Because it is a constant-voltage supply with 90-264VAC input, it suits bench or factory test equipment designed around those limits.
Can I use the PD-65A in a small PLC or relay control panel that mixes low-voltage logic and support circuits?
Yes, for compact control panels that need a constant-voltage supply and stay within 61.1W total load. The 5V output is rated at 5.5A, and the model name identifies a 12V rail as well, so it is better aligned to mixed-voltage control hardware than a single-output-only unit.
Is the PD-65A suitable for outdoor or harsh-environment use?
The supplied specs do not list an IP rating, so outdoor exposure is not established from this data. Its operating temperature range is -10°C to +60°C, so it is better suited to protected indoor equipment or an enclosure that keeps the unit within that range.
How does the PD-65A compare with other PD series models?
On the PD-65 series sheet, the PD-65A sits alongside the PD-65B. The PD-65A delivers 61.1W from 5V 5.5A and 12V 2.8A outputs with 78% typical efficiency, while the PD-65B delivers 65.5W from 5V 3.5A and 24V 2A outputs with 81% efficiency. Both share the 90-264VAC input and 127*76*42mm size.
