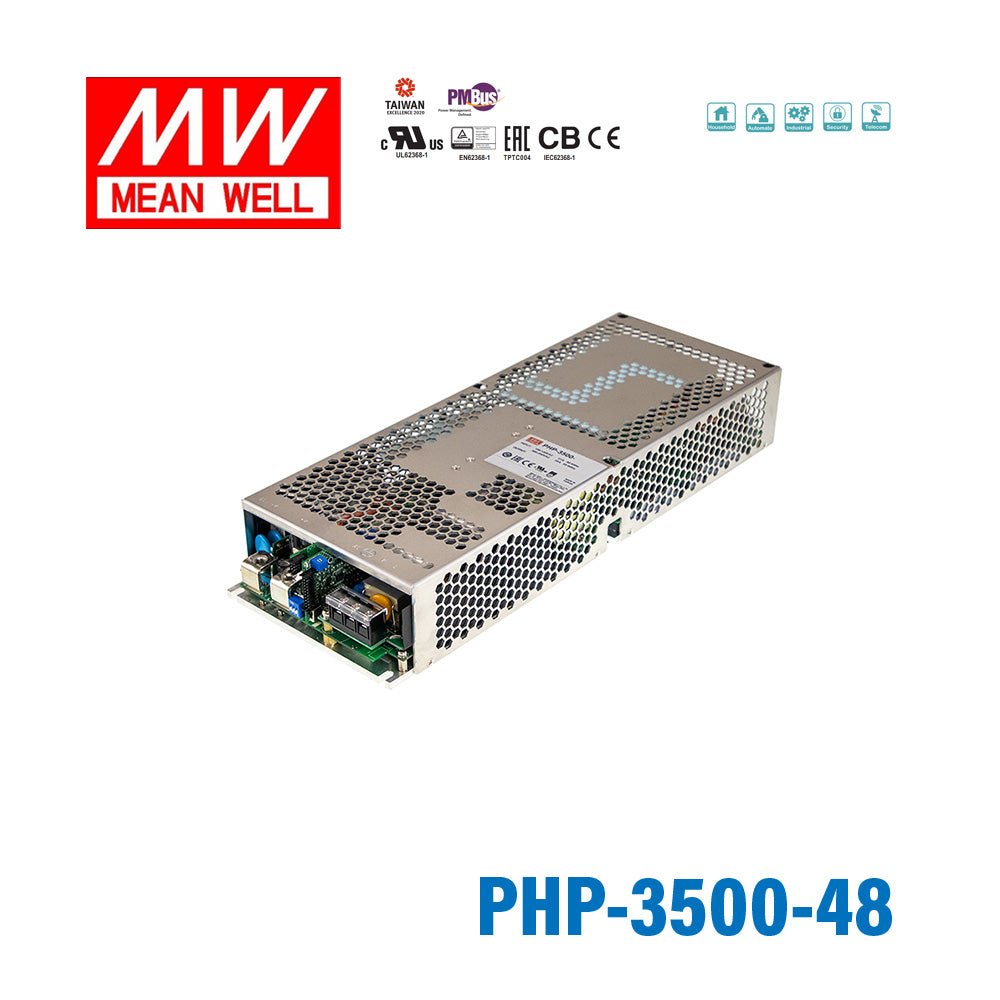

Mean Well PHP-3500-48 power supply 3500W 48V 73A
slim and low profile(60mm), fanless, cooling by water conduction, output voltage and constant current level programmable, high efficiency up to 96%, active current sharing up to 14000W(3+1)
SKU:
PHP-3500-48
$1,234.28 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PHP-3500-48 power supply 3500W 48V 73A
$1,234.28 USD
Unit price /
Unavailable
Description
Description
Features
| Slim and Low profile (60mm) |
| Fanless design, cooling by water conduction |
| Built-in PMBus communication protocol, CANBus optional |
| Built-in active PFC function |
| -30~+70℃working temperature |
| Output voltage and constant current level programmable |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in remote ON-OFF control |
| DC OK active signal |
| Operating altitude up to 3000 meter |
| High efficiency up to 96% |
| Active current sharing up to 14000W(3+1) |
| LED indicator for power on |
|
5 years warranty |
General Specification
| AC input voltage range | 90~264VAC 250~370VDC |
| AC inrush current | Cold start :30A/115VAC 80A/230VAC |
| Overload protection | 105~115% rated output power Protection type : Constant current limiting with delay shutdown after 5 seconds,re-power on to recover |
| Over voltage protection | 24V:30~36V, 48V:60~72V Protection type :Shut down O/P voltage,re-power on to recover |
| Over temperature protection | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down |
| Setup, rise, hold up time | 1000ms,50ms/230VAC/115VAC at full load; 12ms/115VAC，230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC |
| Working temperature | -30~+70℃ |
| Safety standards | UL62368-1,TUV EN62368-1,EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1 |
| EMC standards | EN55032 (CISPR32) Class B ;EN61000-3-2,3;EN61000-4-2,3,4,6,8,11 |
| Dimension (LxWxH) | 380×141.4×60mm |
| Packing | 4.5Kg;4pcs/19Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPHP Series
-
Power Rating3504 Watt
-
Output Voltage48 Volt
-
Rated Current73 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length14.96 in
-
Width5.57 in
-
Height2.36 in
-
Weight9.92 lb
