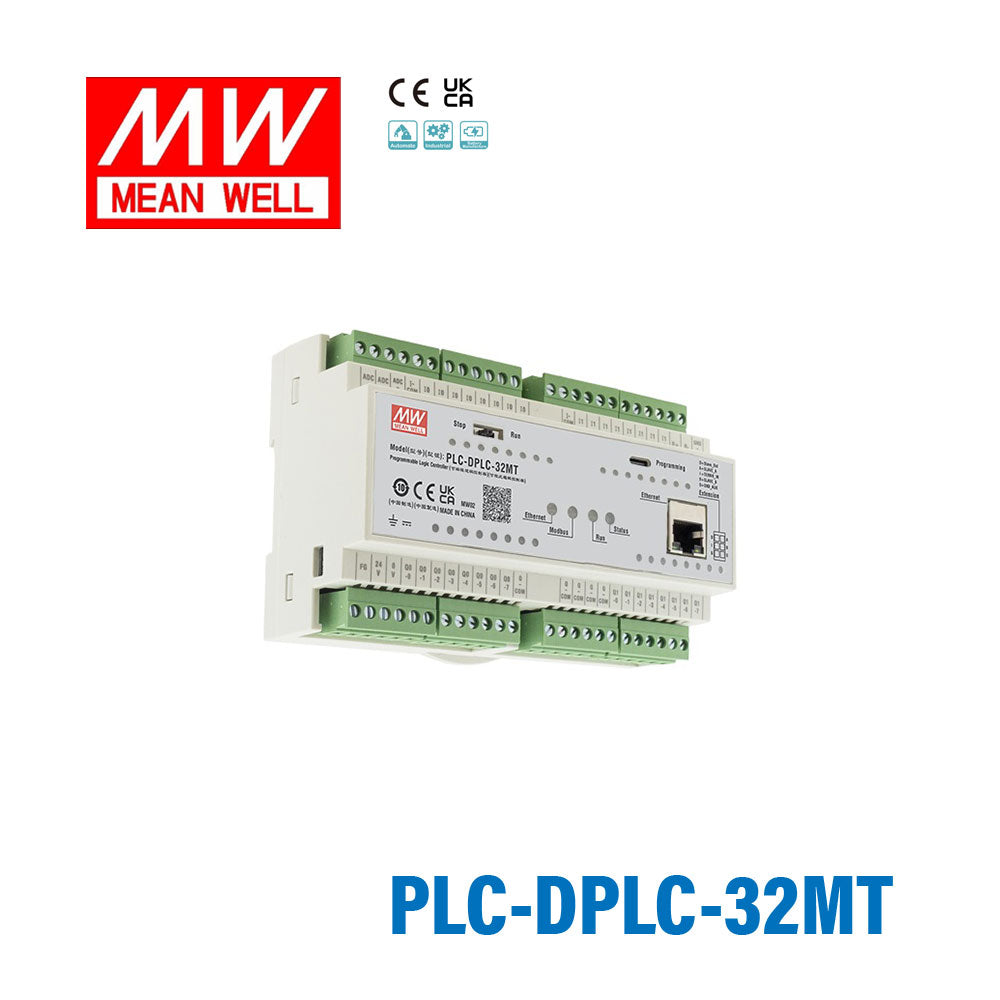

Mean Well PLC-DPLC-32MT Programmable Logic Controller with Open PLC Architecture
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLC-DPLC-32MT Programmable Logic Controller with Open PLC...
Overview
The PLC-DPLC is a new-generation Programmable Logic Controller manufactured by MEAN WELL. Its highly modular design allows users to customize functionality by adding expansion modules as needed. It is programmed with the OpenPLC Editor, which offers diverse function libraries for easy calling. This platform provides excellent versatility, program portability, and reusability, enabling rapid project deployment and simplified equipment maintenance. With support for the Modbus communication interface, it enables remote monitoring of on-site equipment and seamless integration with other devices.
Features
- Cost-effective Programmable Logic Controller
- Scalable through a wide range of compatible expansion modules
- Supports MODBus Communication protocol
- Easy DIN rail installation
- Compliant with the IEC 61131-3 international PLC standard
Specifications
POWER SUPPLY
- RATED VOLTAGE
- 20.4~28.8VDC
- POWER
- 15W
ENVIRONMENT
- WORKING TEMP.
- 0 ~ +55℃
- STORAGE TEMP.
- -40 ~ +70℃
- AMBIENT HUMIDITY
- 5 ~ 95% RH non-condensing
- VIBRATION
- 5 ~ 150Hz, 2G 12min./1cycle, each along X, Y, Z axes according to EN50090-2-2
FUNCTION
- DIGITAL INPUT
- 16 CHANNEL(4 CHANNEL,I1.0~I1.3, can be used as HIGH SPEED COUNTER/DIGIT INPUT)
- ANALOG INPUT
- 2 CHANNEL
- DIGITAL OUTPUT
- 16 CHANNEL(4 CHANNEL,Q0.0~Q0.3, can be used as HIGH SPEED PWM OUTPUT/DIGIT OUTPUT)
- CLOCK/CALENDAR
- 7 DAYS
- PROGRAM LANGUAGE
- IEC 61131-3(LD, FBD, IL, ST, SFC)
- SAFETY & EMC
- 512K BYTES
- PROGRAM CAPACITY
- MODBUS
COMMUNICATION PROTOCOL
- SAFETY & STANDRDS
- EN 61010-1:2010/A1:2019, EN IEC 61010-2-201:201
- WITHSTAND VOLTAGE
- 500 VAC FOR 1 MINUTE DIGIT INPUT AND OUTPUT TERMINALS POWER AND DIGIT INPUT FUNCTIONAL GROUND TERMINALS POWER AND OUTPUT FUNCTIONAL GROUND TERMINALS
- ISOLATION RESISTANCE
- TEST VOLTAGE: 500 VDC 100 MΩ OR MORE DIGIT INPUT AND OUTPUT TERMINALS POWER AND DIGIT INPUT FUNCTIONAL GROUND TERMINALS POWER AND OUTPUT FUNCTIONAL GROUND TERMINALS
- EMC EMISSION
-
Parameter Standard Test Level Conducted IEC61131-2 Class A Radiated IEC61131-2 Class A - EMC IMMUNITY
-
IEC61131-2
Parameter Standard Test Level ESD IEC61131-2 Level 3,8KV air;Level 2,4KV,contact Radiated IEC61131-2 Level 3,3V/m EFT / Burst IEC61131-2 Level 3,2KV Surge IEC61131-2 Level 2,1KV/Line-Earth;Level 2, 0.5KV/Line-Line Conducted IEC61131-2 Level 3,10V Magnetic Field IEC61131-2 Level 4,30A/m
OTHERS
- MTBF
- 200.9K hrs min. Telcordia SR-332 (Bellcore) ; 78.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 144*90*60.3mm (L*W*H)
- PACKING
- 0.36Kg; 30pcs/12Kg/1.35CUFT
DIGITAL INPUT SPECIFICATION
- NUMBER OF DIGITAL INPUTS
- 16 CHANNEL(4 CHANNEL,I1.0~I1.3, can be used as HIGH SPEED COUNTER/DIGIT INPUT)
- INPUT FORM
- SOURCE/SINK
- INPUT CURRENT
- 2.1mA
- RATED VALUE
- 24VDC
- ACTION LEVEL OFF → ON
- >15VDC
- ACTION LEVEL ON → OFF
- <5VDC
- HIGH SPEED COUNTER
- I1.0~I1.3(100KHz/4 groups、200KHz/single group)
- RESPONSE TIME
- I1.0~I1.3 (HIGH SPEED COUNTER): 5μs/4 groups, 2.5μs/single group; I0.0~I0.7, I1.4~I1.7(DIGITAL INPUT): One scan cycle (10ms~100ms depending on the number of expansion units)
ANALOG INPUT SPECIFICATION
- NUMBER OF ANALOG INPUTS
- 2
- INPUT RANGES
- 0 ~ +10VDC
- INPUT RESISTANCE
- ≧100KΩ
- RESOLUTION
- 12BIT
DIGITAL OUTPUT SPECIFICATION
- NUMBER OF DIGITAL OUTPUT
- 16 CHANNEL(4 CHANNEL,Q0.0~Q0.3, can be used as HIGH SPEED PWM OUTPUT/DIGIT OUTPUT)
- RATED VALUE
- 24VDC
- MAXIMUM LOAD
- 0.5A
- HIGH SPEED PWM OUTPUT
- Q0.0~Q0.3(100KHz)
Certifications & ratings
- Certification marks
- CE, UKCA
Technical drawings
Typical applications
- Industrial Automation
- SMT Production Line Automation
- Smart Agriculture
- Elevator Control
- Building Automation Systems
