Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

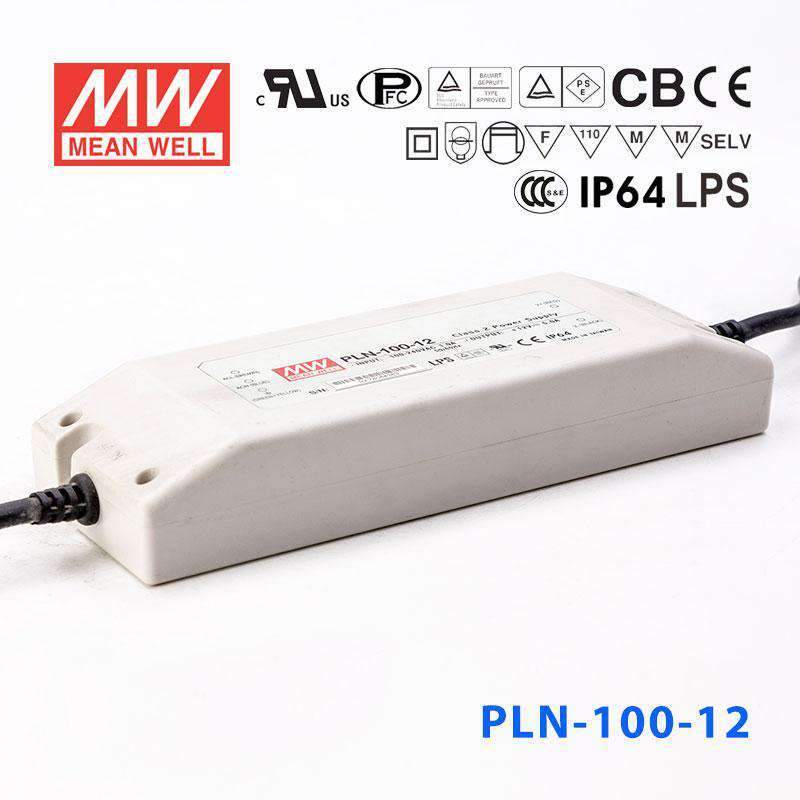

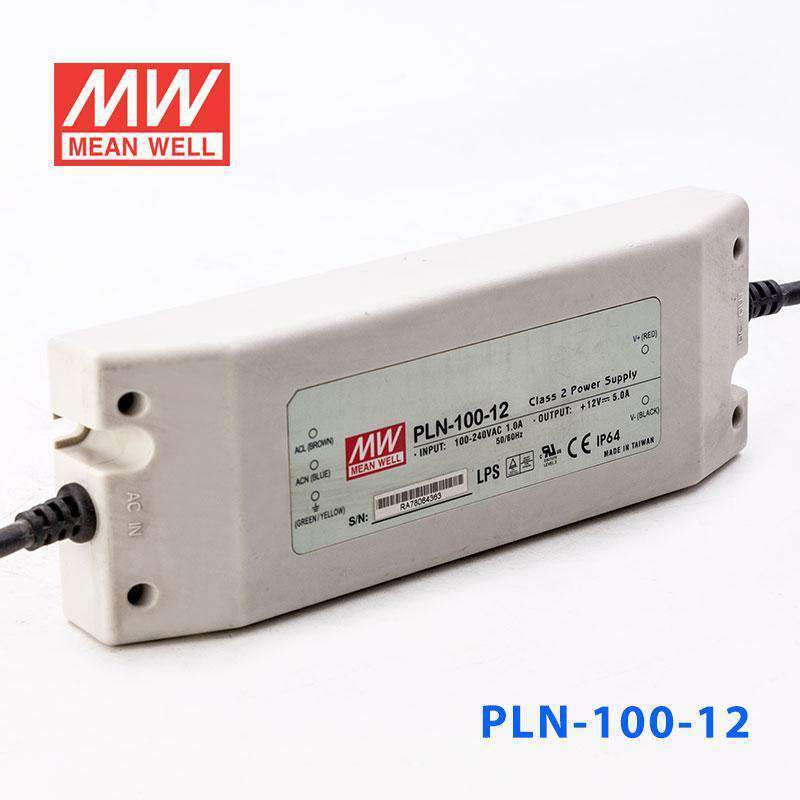

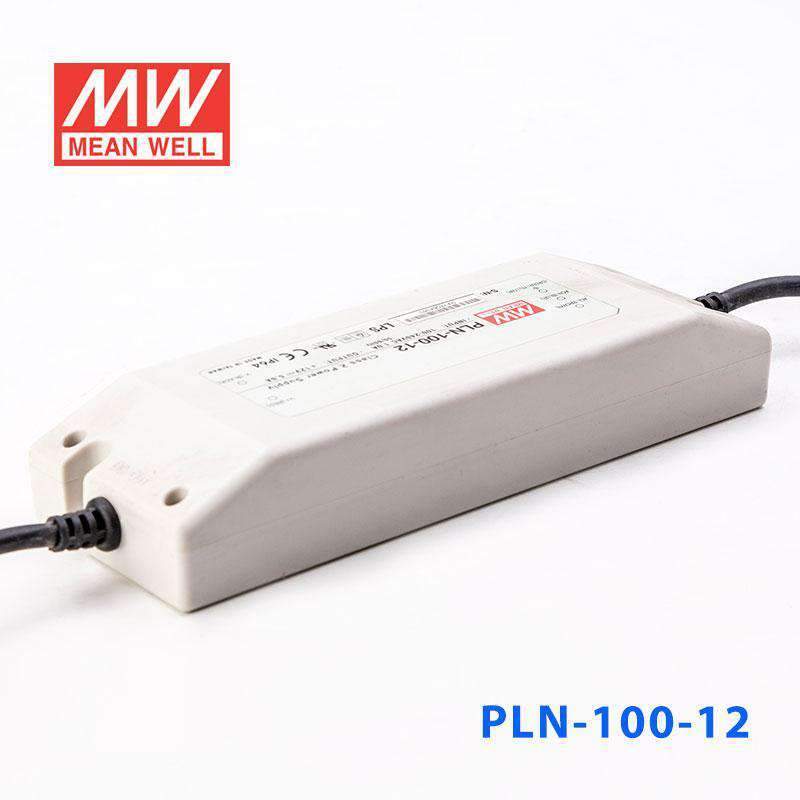

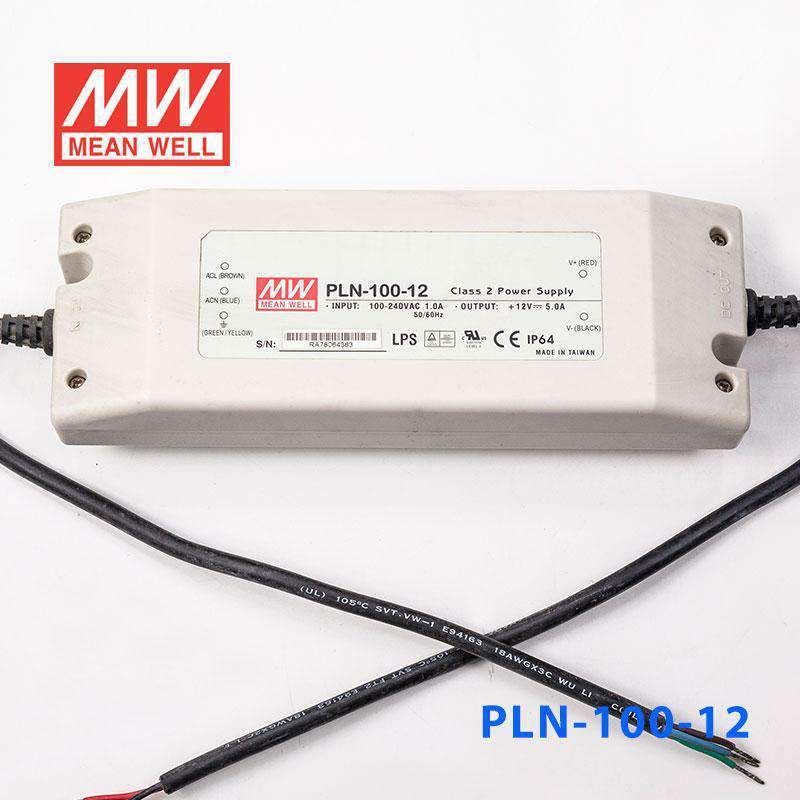

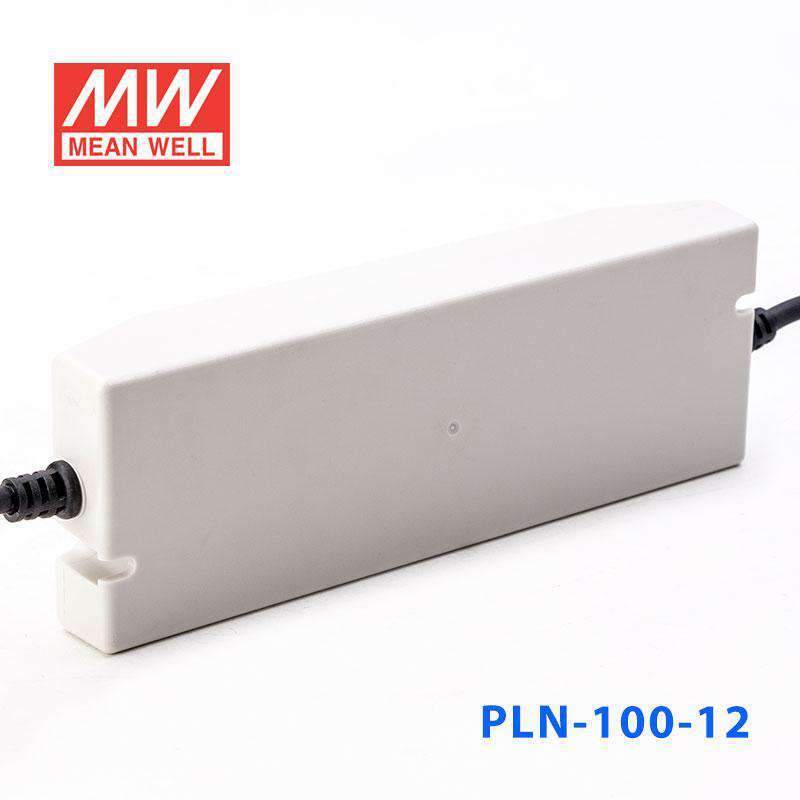

Mean Well PLN-100-12 Power Supply 60W 12V - IP64

fully isolated plastic case, IP64, suitable for signage applications

SKU:

PLN-100-12

$48.14 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF>0.9 for 75% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

User adjustable output voltage and current protection level

Cooling by free air convection

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~295VAC ; 127~417VDC
AC inrush current (max.)	Cold start, 40A at 230VAC
DC adjustment range	85%~100% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~102% constant current limiting, auto-recovery
Over voltage protection	107%~135% rated output voltage
Setup, rise, hold up time	1200ms, 80ms, 60ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 0.5kVAC
Working temperature	-30~+50ºC (refer to output derating curve)
Safety standards	UL879, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, EN60950-1, PSE J61347-1, J61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SVT 18AWGx3C (31cm)
Connection Output	UL rated, SVT 18AWGx2C (31cm)
Dimension (LxWxH) (mm)	200x 70.5x 35

Specifications

Brand

Mean Well
Series

PLN Series
Power Rating

60 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

7.87 in
Width

2.78 in
Height

1.38 in
Weight

1.15 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the Mean Well PLN-100-12 for 12V LED signage?

Yes, this model is suitable for 12V LED signage as long as the load matches its 12V output and stays within 60W and 5A. Its IP64 rating and fully isolated plastic case also make it a practical option for signage applications where dust and splashing water are a concern.

Is the PLN-100-12 a good fit for 12V outdoor lighting?

It can be used for 12V lighting in environments where an IP64 power supply is appropriate. IP64 means protection against dust ingress and splashing water, so it is better suited to protected outdoor or damp locations than fully exposed wet conditions.

Can this power supply run 12V LED strip lighting?

It can power 12V LED strip lighting if the strip's total load does not exceed 60W or 5A and the strip's electrical requirements match this 12V output model. For sizing, maximum strip length = 60W divided by your strip's rated watts per meter, so check your strip rated power per meter before choosing the total length.

Is the PLN-100-12 suitable for signage or lighting in cold or hot environments?

This unit is rated for operation from -30°C to +50°C, so it can be used across a wide temperature range if the installation stays within those limits. That makes it more suitable for challenging indoor or sheltered outdoor conditions than products with narrower temperature ratings.

Can I use this for a 12V lighting load that needs up to 5A?

Yes, this model is rated for 12V output at up to 5A, with 60W total output power. That means it fits 12V lighting applications whose total demand is at or below 60W, and you should keep the connected load within that limit.

Is the IP64 rating enough for wet or exposed outdoor locations?

IP64 means the unit is protected against dust and splashing water, but it is not the same as a higher waterproof rating. It is better suited to protected outdoor use, signage, or damp environments where direct water exposure is limited.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PLN-100-24 Power Supply 100W 24V - IP64	96W	24V	4A	IP64	$49.62	View
Mean Well PLN-100-48 Power Supply 100W 48V - IP64	96W	48V	2A	IP64	$49.62	View
Mean Well PLN-100-36 Power Supply 100W 36V - IP64	95.4W	36V	2.65A	IP64	$48.14	View
Mean Well PLN-100-27 Power Supply 100W 27V - IP64	95.85W	27V	3.55A	IP64	$49.62	View
Mean Well PLN-100-20 Power Supply 100W 20V - IP64	96W	20V	4.8A	IP64	$48.14	View
Mean Well PLN-100-15 Power Supply 75W 15V - IP64	75W	15V	5A	IP64	$48.14	View
