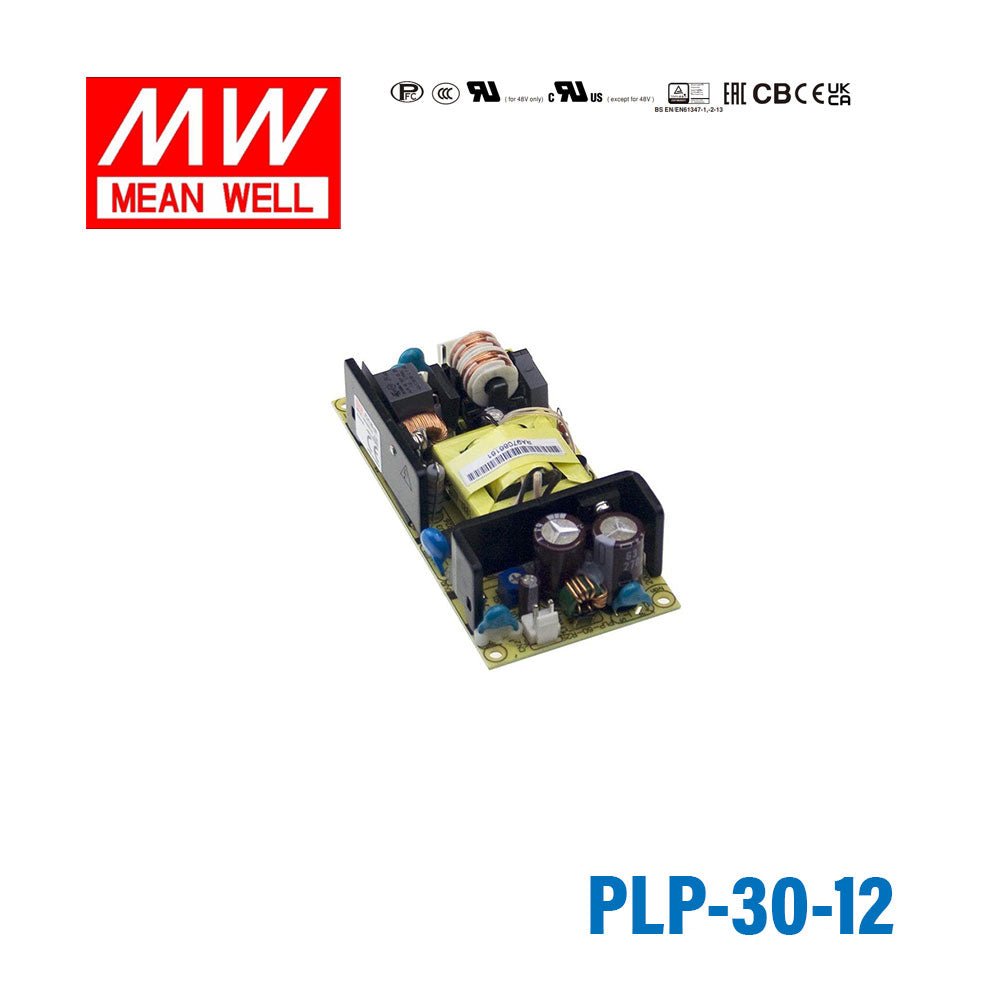

Mean Well PLP-30-12 Single Output LED Driver 30W
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLP-30-12 Single Output LED Driver 30W
The PLP-30 is a 30W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: GB19510.1,GB19510.14,UL8750, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLP Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.05 in
-
Weight0.26 lb
::specification::
Frequently Asked Questions
What is the Mean Well PLP-30-12 used for?
The Mean Well PLP-30-12 is a 30W single-output LED driver intended for built-in LED lighting applications. It provides a 12V output and is suited to commercial or OEM use where a compact, reliable power unit is needed.
What are the main electrical ratings of the PLP-30-12?
This model is rated for 30W total output power with a 12V output and 2.5A rated current. It accepts a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input.
Is the PLP-30-12 dimmable?
No, the PLP-30-12 is a non-dimmable LED driver. It is intended for applications that need fixed-output performance rather than integrated dimming control.
Does the PLP-30-12 include protection features?
Yes, this model includes protection for short circuit, overload, and over voltage conditions. These built-in protections help support reliability in LED lighting applications.
Can the output current be adjusted on the PLP-30-12?
Yes, the output current level is adjustable on this model. The listed DC adjustment range is 75% to 100% of rated current.
What operating temperatures can the PLP-30-12 handle?
The PLP-30-12 is specified for operation from -30°C to 70°C. That range makes it suitable for a wide variety of indoor equipment and enclosed lighting applications, provided the overall system is designed within the product limits.
How does the PLP-30-12 support long-term reliability?
This model features free air convection cooling, active PFC, and 100% full load burn-in testing. It is also backed by a 2-year warranty and is described by Mean Well as a high-reliability design for LED lighting use.
