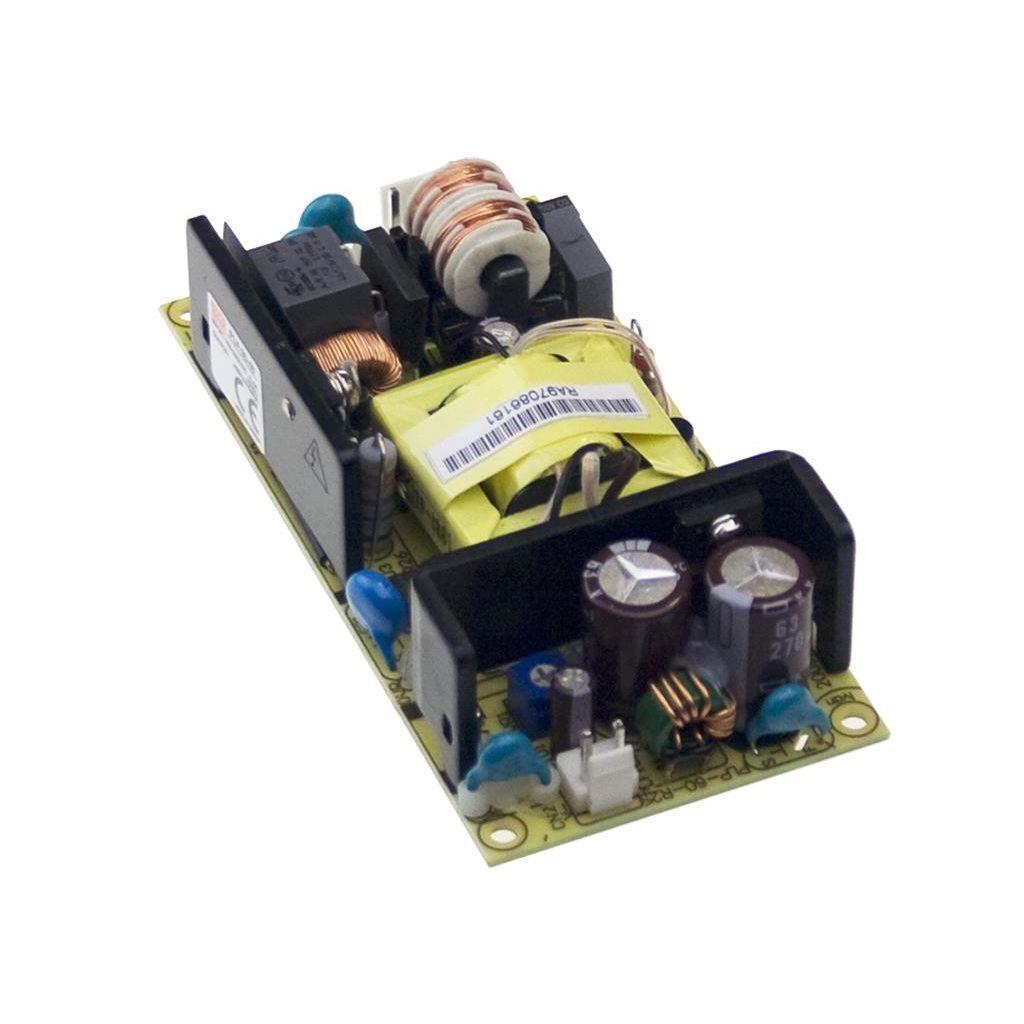

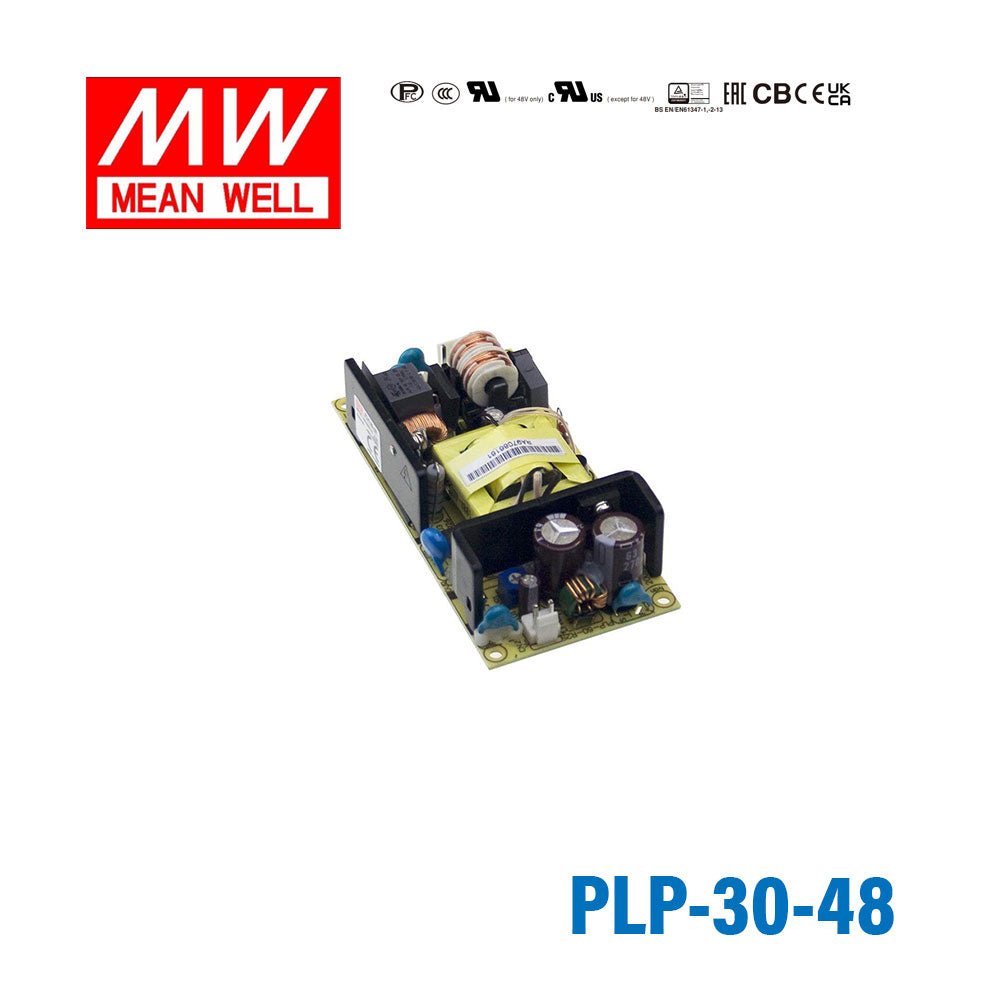

Mean Well PLP-30-48 Single Output LED Driver 30W
PCB type, Class 2 power unit, output current adjustable, suitable for built-in applications
SKU:
PLP-30-48
$26.57 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLP-30-48 Single Output LED Driver 30W
$26.57 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input/Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage |
| Cooling by free air convection |
| Class 2 power unit |
| Output current level adjustable |
| 100% full load burn-in test |
| High reliability |
| Suitable for built-in applications of LED lighting |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC 127~370VDC |
| AC inrush current (max.) | Cold start, 25A at 230VAC |
| DC adjustment range | 75%~100% rated current |
| Over current protection | 100%~110% |
| Over voltage protection | upto 150% rated voltage |
| Short circuit protection | Hiccup mode |
| Withstand voltage | I/P - O/P: 3.75kVAC, I/P - FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C |
| Safety standards | BS EN/EN61347-1, BS EN/EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11, |
| Connection | JST B3P/B2P |
| Dimension (LxWxH) | 101.6x50.8x26.6 |
| Packing | 108pcs/13Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPLP Series
-
Power Rating30 Watt
-
Output Voltage48 Volt
-
Rated Current0.63 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.05 in
-
Weight0.26 lb
