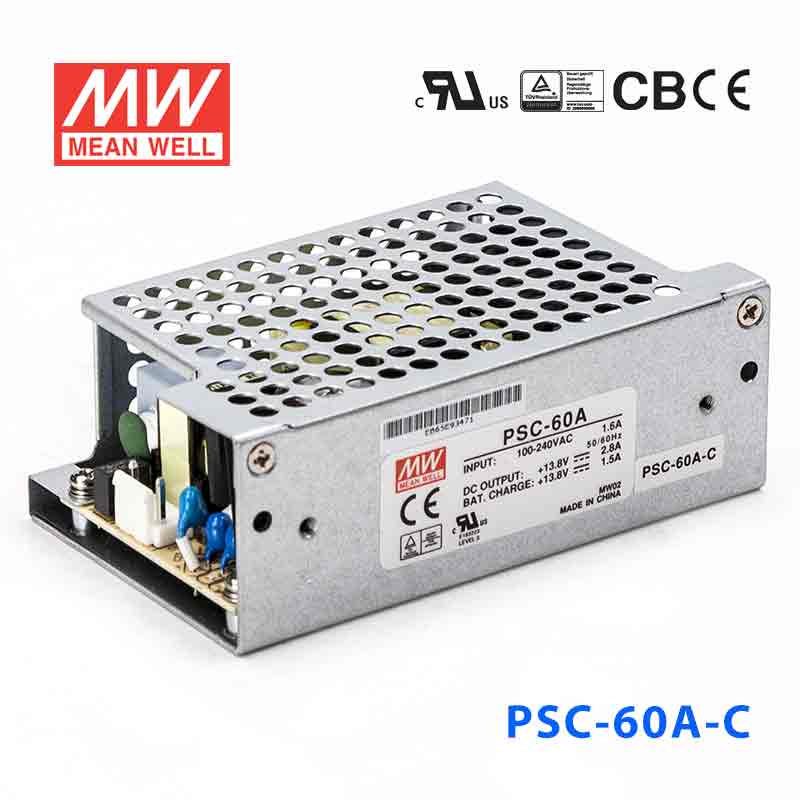

Mean Well PSC-60A-C Battery Chargers 59.34W 13.8V 2.8A - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PSC-60A-C Battery Chargers 59.34W 13.8V 2.8A - PFC
Description
Description
Features
| Universal AC input / Full range |
| Models with L-Bracket and cover available(PSC-60x-C, x=A,B) |
| Protections: Short circuit/Overload/Over voltage |
| Battery low protection/Battery reverse polarity protection by fuse |
| Alarm signal for AC OK and Battery reverse low |
| Cooling by free convection |
| 100% full load burn-in test |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | COLD START 30A/115VAC; 60A/230VAC |
| Leakage current | <1mA / 240VAC |
| Overload protection | 105%~150% rated output power |
| Over-voltage protection | 105%~135% rated output voltage |
| Setup, rise, hold up time | 800ms, 50ms/230VAC; 1600ms, 50ms/115VAC at full load; 50ms/230VAC; 10ms/115VAC at full load |
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -20 ~ +70℃ (Refer to "Derating Curve") |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 101.6x50.8x29 mm |
| Packing | 96pcs / 13.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating59.34 Watt
-
Output Voltage13.8 Volt
-
Rated Current2.8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.46 in
-
Weight0.64 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PSC-60A-C for a 12V battery-backed PLC or HMI cabinet?
The PSC-60A-C provides 13.8V constant-voltage output at up to 2.8A, with 59.34W total output power. That makes it a fit for lower-power 12V-class PLC, HMI, or control-panel backup applications that stay inside those electrical limits.
Is the PSC-60A-C appropriate for embedded automation or monitoring equipment that needs backup power?
It can be used where the equipment expects a 13.8V source and the total draw does not exceed 2.8A or 59.34W. The built-in UPS function is relevant for systems that need charging and backup behavior from the same unit.
Can the PSC-60A-C support a compact 12V security or communications enclosure?
Electrically, it is the 13.8V, 2.8A, 59.34W version in the PSC range, so it suits smaller 12V-class backup applications within that output envelope. Mechanically, this -C version measures 103.4 × 62.0 × 37.0 mm and weighs 0.29 kg, which matters when enclosure space is limited.
Can the PSC-60A-C be used outdoors or in unconditioned spaces?
Its operating range is -20°C to +70°C, so temperature capability is broader than basic room-only equipment. However, no IP rating is provided in the listed specs, so outdoor exposure should not be assumed from the available data.
What are the main PSC series choices around the PSC-60A-C?
For 13.8V outputs, the listed options are PSC-35A and PSC-35A-C at 35.88W and 1.7A, PSC-60A and PSC-60A-C at 59.34W and 2.8A, PSC-100A and PSC-100A-C at 100.05W and 4.75A, PSC-100A-CWE at 100.5W and 4.75A, and PSC-160A and PSC-160A-C at 160W and 7.6A. For 27.6V outputs, the family includes PSC-35B and PSC-35B-C at 35.88W and 0.85A, PSC-60B and PSC-60B-C at 59.34W and 1.4A, PSC-100B and PSC-100B-C at 100.74W and 2.4A, and PSC-160B and PSC-160B-C at 160W and 3.8A; PSC-60-CWE, PSC-60A-CWE, and PSC-100-CWE are listed separately without full specs in this dataset.
