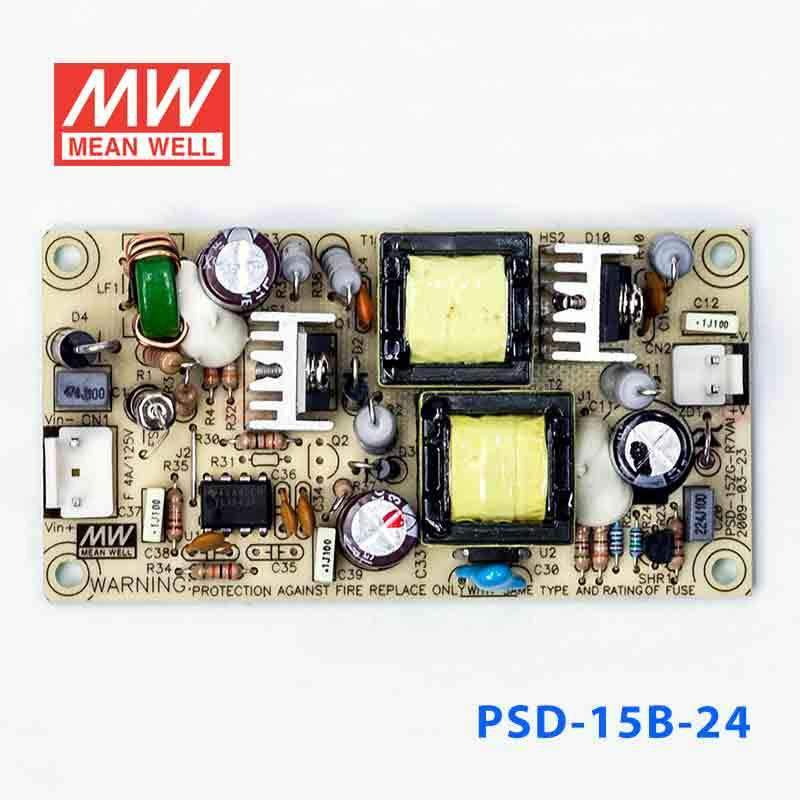

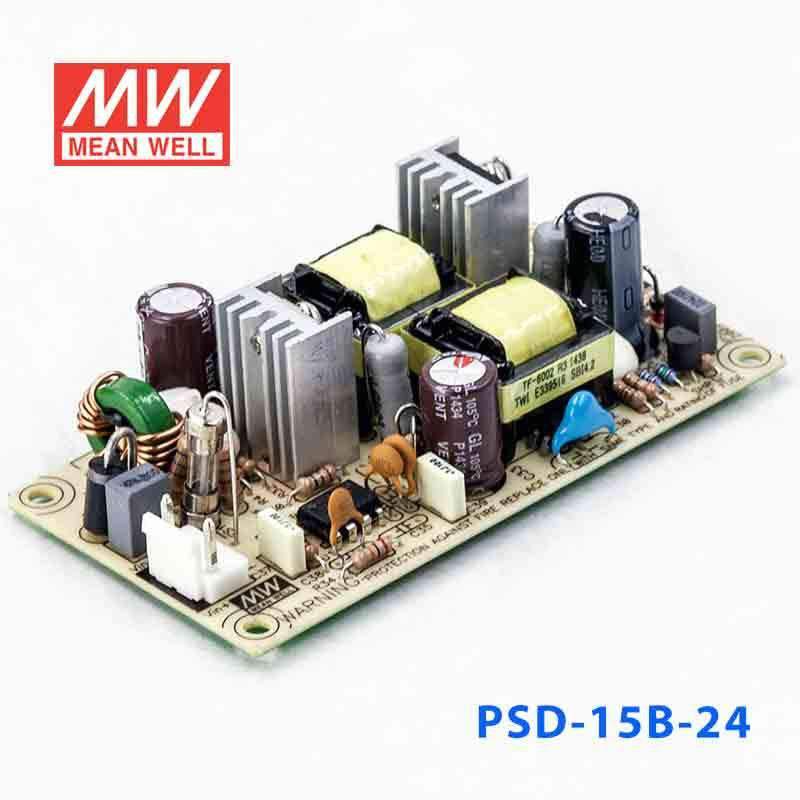

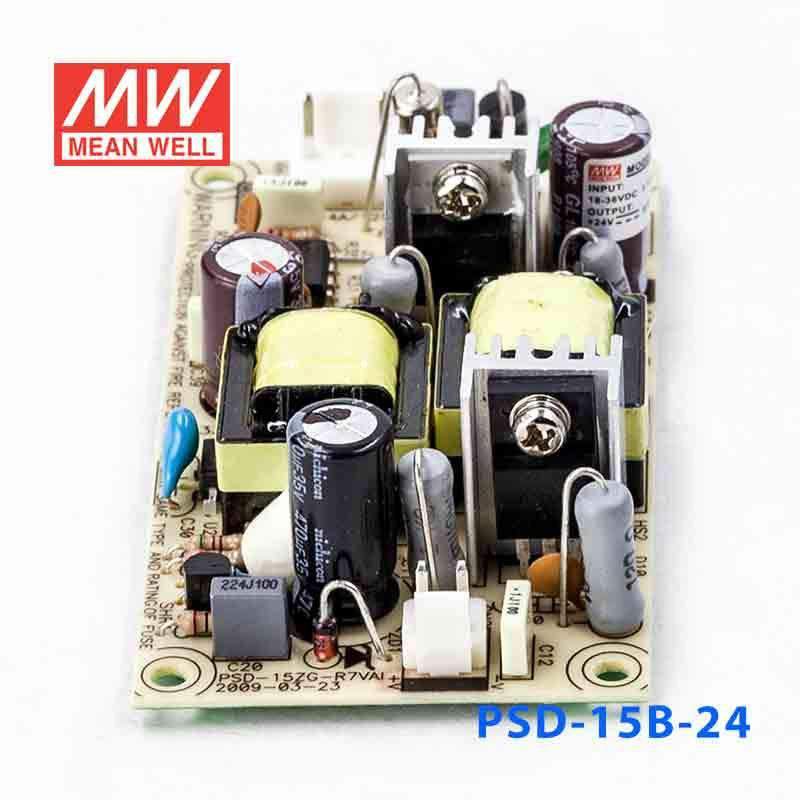

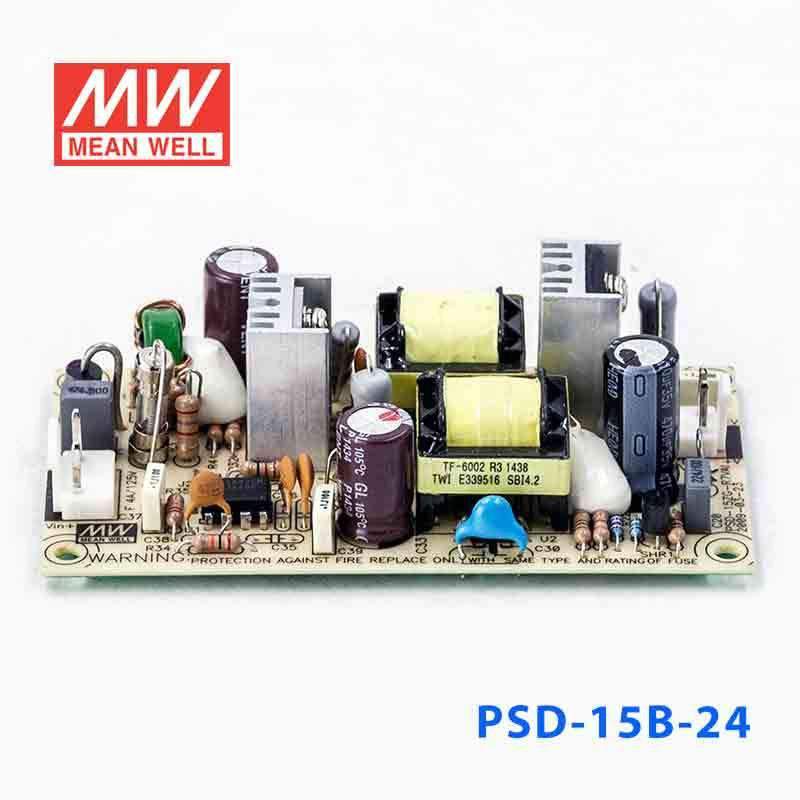

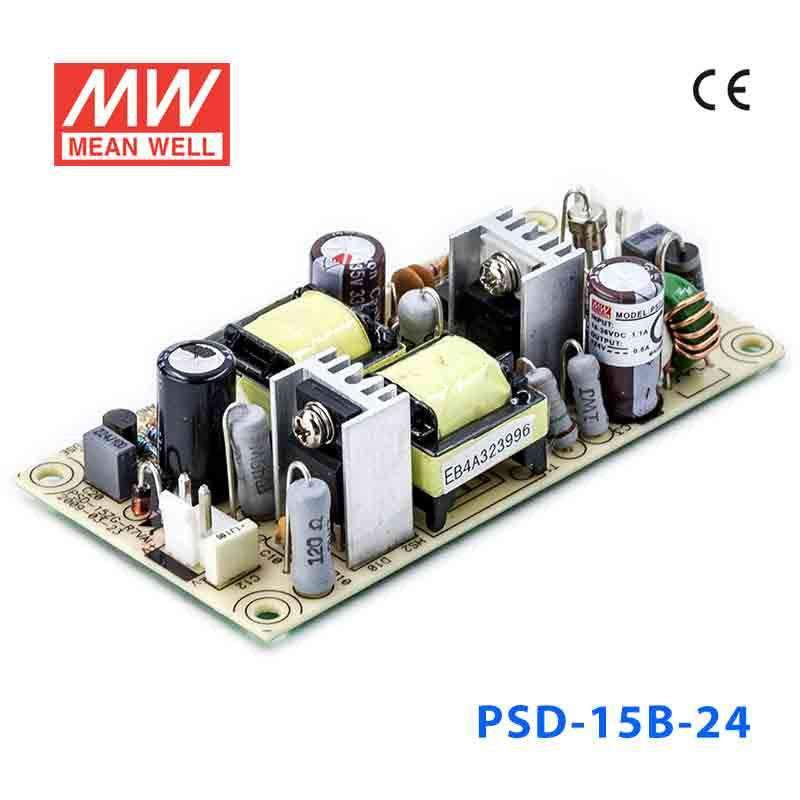

Mean Well PSD-15B-24 DC-DC Converter - 14.4W - 18~36V in 24V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

PSD-15B-24

$10.39 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

2: 1 wide input range

2000VAC I / O isolation

Built-in EMI filter, low ripple noise

Protections: Short circuit / Overload / Over voltage / Polarity

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 1.0% (max.)
Overload protection	105% ~ 150% hiccup mode, auto-recovery
Over voltage protection	115% ~ 135% rated output voltage
Withstand voltage	I / PO / P: 2 k VAC, I / P-FG: 1.5 k VAC, 1 minute
Isolation resistance	100MQ(min.)@500VDC
Working temperature	-10 ~ + 60°C
Safety standards	Meet LVD
SEMC standards	EN55022 class B, EN61000-4-2, 3, 4, 6, 8
Connection	3P, 2P / 3.96mm pitch, JST B3P / B2P-VH
Packing	0.081 kg; 120 pcs / 10.72 kg
Dimension (LxWxH) (mm)	94x 49x 25 mm

Specifications

Brand

Mean Well
Series

PSD Series
Power Rating

14.4 Watt
Output Voltage

24 Volt
Rated Current

0.66 Ampere
Input Voltage

18V~36V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,EMC,RCM
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

3.7 in
Width

1.93 in
Height

0.98 in
Weight

0.18 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PSD-15B-24 to power a 24V industrial sensor or relay circuit from a fluctuating DC source?

It can fit low-power 24V industrial loads when the required power stays within 14.4W and the source is within the stated 18-36VAC input range. Because it is a constant voltage 24V converter, it is better suited to fixed-voltage control and interface circuits than to loads that need more than the rated output capacity.

Is the PSD-15B-24 suitable for embedded 24V control electronics inside a compact machine enclosure?

This model is sized for compact embedded use with a 94.0 x 49.0 x 25.0 mm housing and 0.081 kg weight. Its 24V constant voltage output and 14.4W rating make it a better match for light-duty control electronics than for larger 24V actuators or higher-draw subsystems.

Can the PSD-15B-24 be used in automation panels that need isolated 24V power?

The feature list states 1.5~2KVAC isolation by models, which makes it relevant for automation and industrial control designs where isolation is part of the power strategy. It also offers a 2:1 wide input range, with this version specified at 18-36VAC input and 24V output.

Is the PSD-15B-24 a fit for 24V telecom or network cabinet accessories?

It can suit low-power 24V accessories in IT or communications cabinets when the load stays within 14.4W and the available source matches the 18-36VAC input range. For larger 24V equipment, the limited 14.4W output means capacity should be checked carefully against the device requirement.

What is the difference between the PSD-15B output-voltage versions?

Within the PSD-15B group, the 5V version is rated at 15W and 3A, the 12V version is rated at 15W and 1.25A, and the 24V version is rated at 14.4W and 666A. All three share the same B-series form factor and are part of the same PSD family, but the output ratings differ by model.

Is the PSD-15B-24 suitable for outdoor or harsh-environment use?

The listed operating temperature is -10C to +60C, so temperature suitability should be checked against that range. No IP rating is provided in the specs, so this listing does not establish outdoor or washdown suitability.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PSD-15B-5 Switching Power Supply 15W 5V	15W	5V	3A	Indoor	$11.56	View
Mean Well PSD-15B-12 DC-DC Converter - 15W - 18~36V in 12V out	15W	12V	1.25A	Indoor	$10.39	View
Mean Well PSD-15B-05 DC-DC Converter - 15W - 18~36V in 5V out	15W	5V	3A	Indoor	$10.33	View
