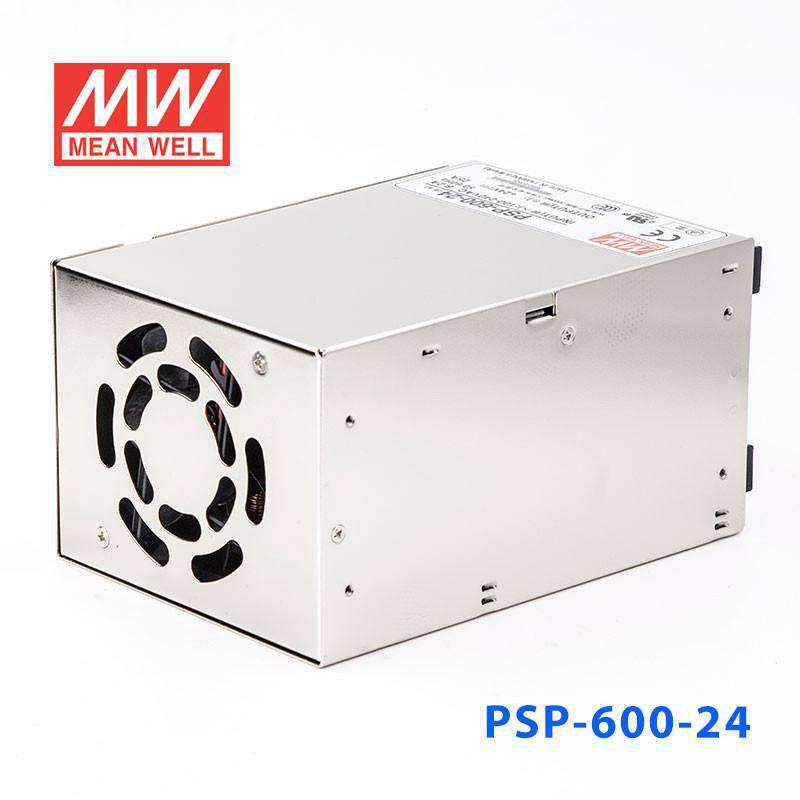

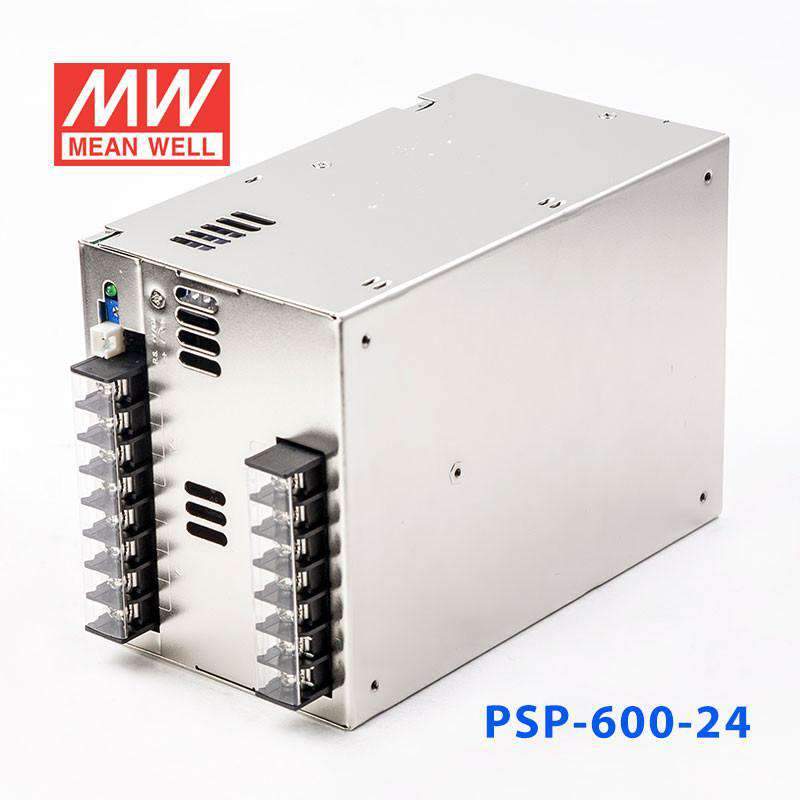

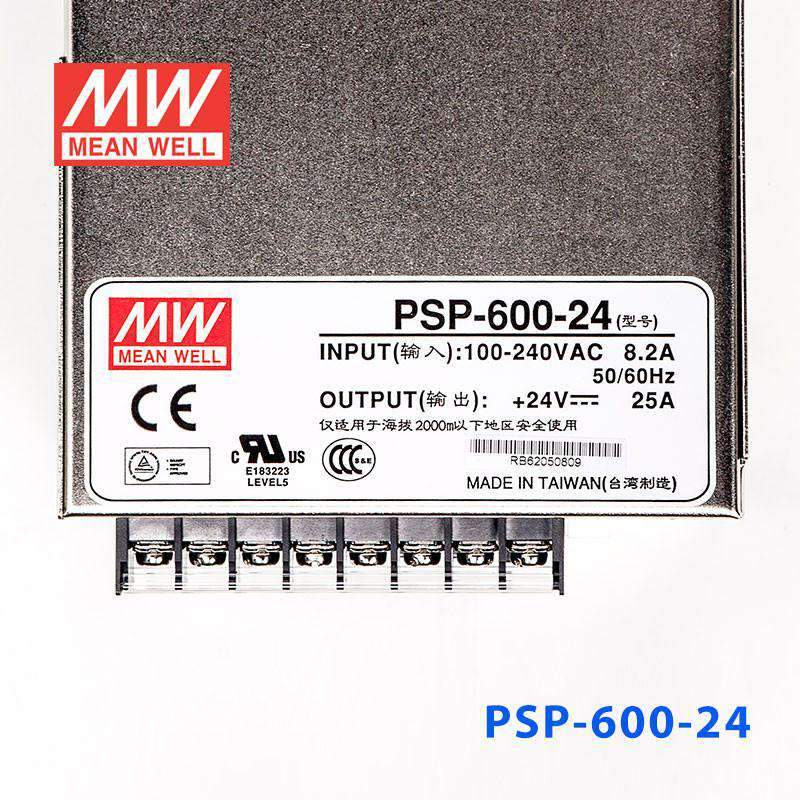

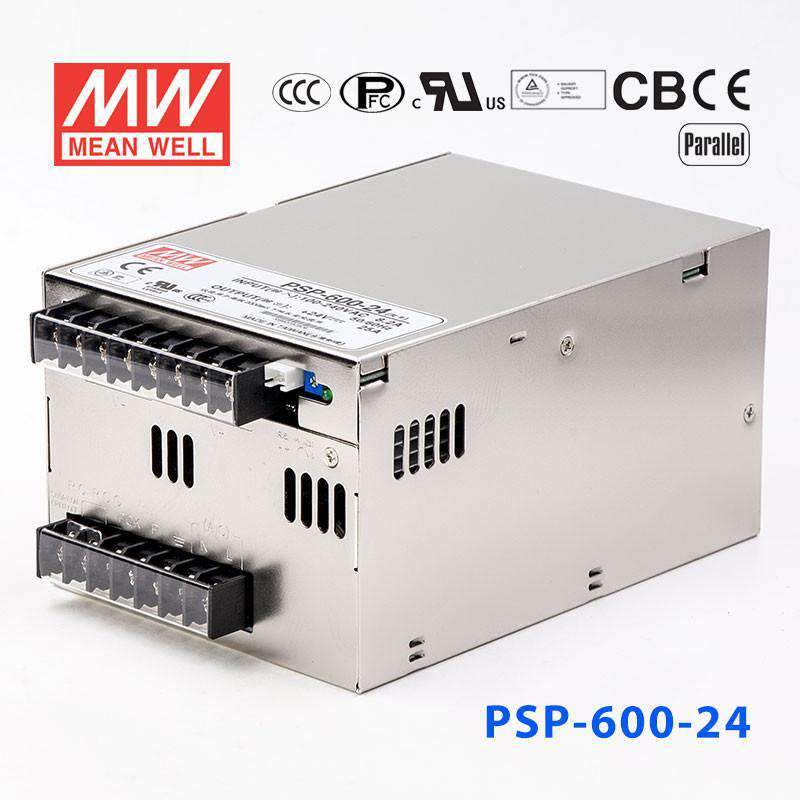

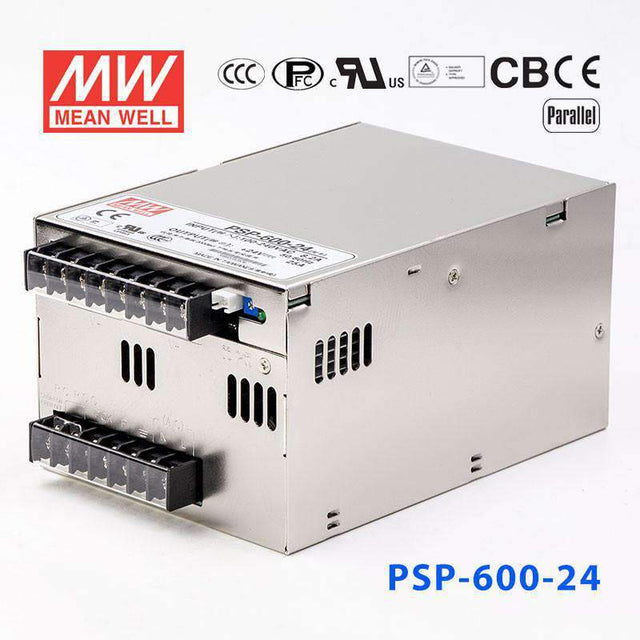

Mean Well PSP-600-24 Power Supply 600W 24V

built-in active PFC, current sharing up to 2400W(3+1)

SKU:

PSP-600-24

Model

600W 24V

$152.76 USD

SKU: PSP-600-24

1000W 24V

$220.65 USD

SKU: PSPA-1000-24

Product variants

$152.76 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC fan

Built-in remote sense function and ON/OFF control

Current sharing up to 2400W (3+1)

With DC OK signal output

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range	88~264VAC
AC inrush current (max.)	Cold start, 40A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection Range	105%~135%
Overload protection Type	Constant current limiting, auto-recovery
Over voltage protection	115%~140%
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC(short for SP-480), 1 minute
Working temperature	-20~+60°C
Safety standards	UL60950-1, TUV EN60950-1 approved; GB4943 approved also for SP-320 (expect for 3.3V/ 5PNC/ 36V)
EMC standards	EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3

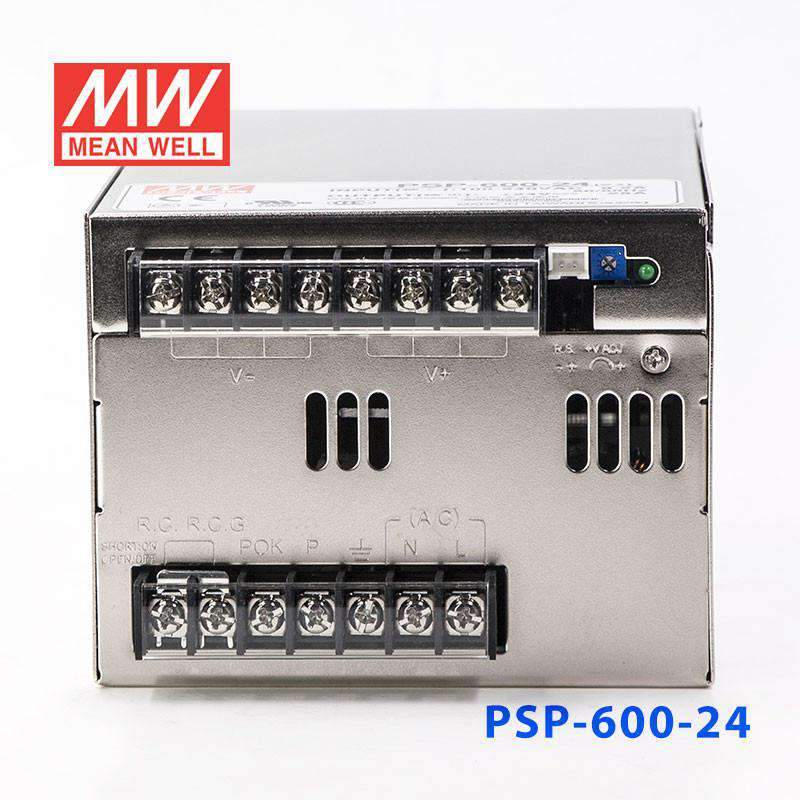

Connection	7+8P / 9.5mm pitch terminal block with cover
Dimension (LxWxH)	170x120x93
Case No.	910A
Packing	8pcs / 15.5kg

Specifications

Brand

Mean Well
Series

PSP Series
Power Rating

600 Watt
Output Voltage

24 Volt
Rated Current

25 Ampere
Input Voltage

88V~264V
No of Output

1
Standards Met

BSMI,CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~60°C
Warranty

3 Year
Length

6.69 in
Width

4.72 in
Height

3.66 in
Weight

4.19 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PSP-600-24 for a 24V PLC or automation cabinet?

Yes, if the PLC cabinet and its devices are designed for a constant 24V DC source. This model provides 600W at 24V with up to 25A, which aligns with higher-power 24V automation loads within those limits.

Is the PSP-600-24 suitable for 24V industrial sensors, controllers, and HMIs?

It is appropriate for 24V DC equipment when the combined demand does not exceed 25A or 600W. The constant voltage output is intended for systems that require a fixed 24V supply rather than a variable output.

Can this 24V model power a larger embedded or factory-control system?

Yes, if the system is built around 24V DC and its total load stays within 600W. The feature list also states current sharing up to 2400W (3+1), which is relevant for larger 24V systems using multiple units.

Is the PSP-600-24 suitable for outdoor automation enclosures?

The published specs include an operating temperature range of -20°C to +60°C, but they do not include an IP rating. That means temperature capability is stated, while outdoor exposure resistance is not established by the listed data.

How does the PSP-600-24 differ from other PSP family power supplies?

Related models listed in the series are PSP-1000-24 at 1000W, 24V, 37.6A; PSP-1500-24 at 1500W, 24V, 56.4A; PSP-500-13.5 at 499.5W, 13.5V, 37A; PSP-500-15 at 495W, 15V, 33A; PSP-500-24 at 499.2W, 24V, 20.8A; and PSP-500-27 at 499.5W, 27V, 18.5A. The other 600 series siblings are PSP-600-12 at 600W, 12V, 50A; PSP-600-13.5 at 600.75W, 13.5V, 44.5A; PSP-600-15 at 600W, 15V, 40A; PSP-600-27 at 599.4W, 27V, 22.2A; PSP-600-48 at 600W, 48V, 12.5A; and PSP-600-5 at 400W, 5V, 80A.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PSP-600-15 Power Supply 600W 15V	600W	15V	40A	Indoor	$142.02	View
Mean Well PSP-600-5 Power Supply 400W 5V	400W	5V	80A	Indoor	$152.76	View
Mean Well PSP-600-48 Power Supply 600W 48V	600W	48V	12.5A	Indoor	$152.76	View
Mean Well PSP-600-27 Power Supply 600W 27V	599.4W	27V	22.2A	Indoor	$144.73	View
Mean Well PSP-600-13.5 Power Supply 600W 13.5V	600.75W	13.5V	44.5A	Indoor	$156.98	View
Mean Well PSP-600-12 Power Supply 600W 12V	600W	12V	50A	Indoor	$152.76	View
