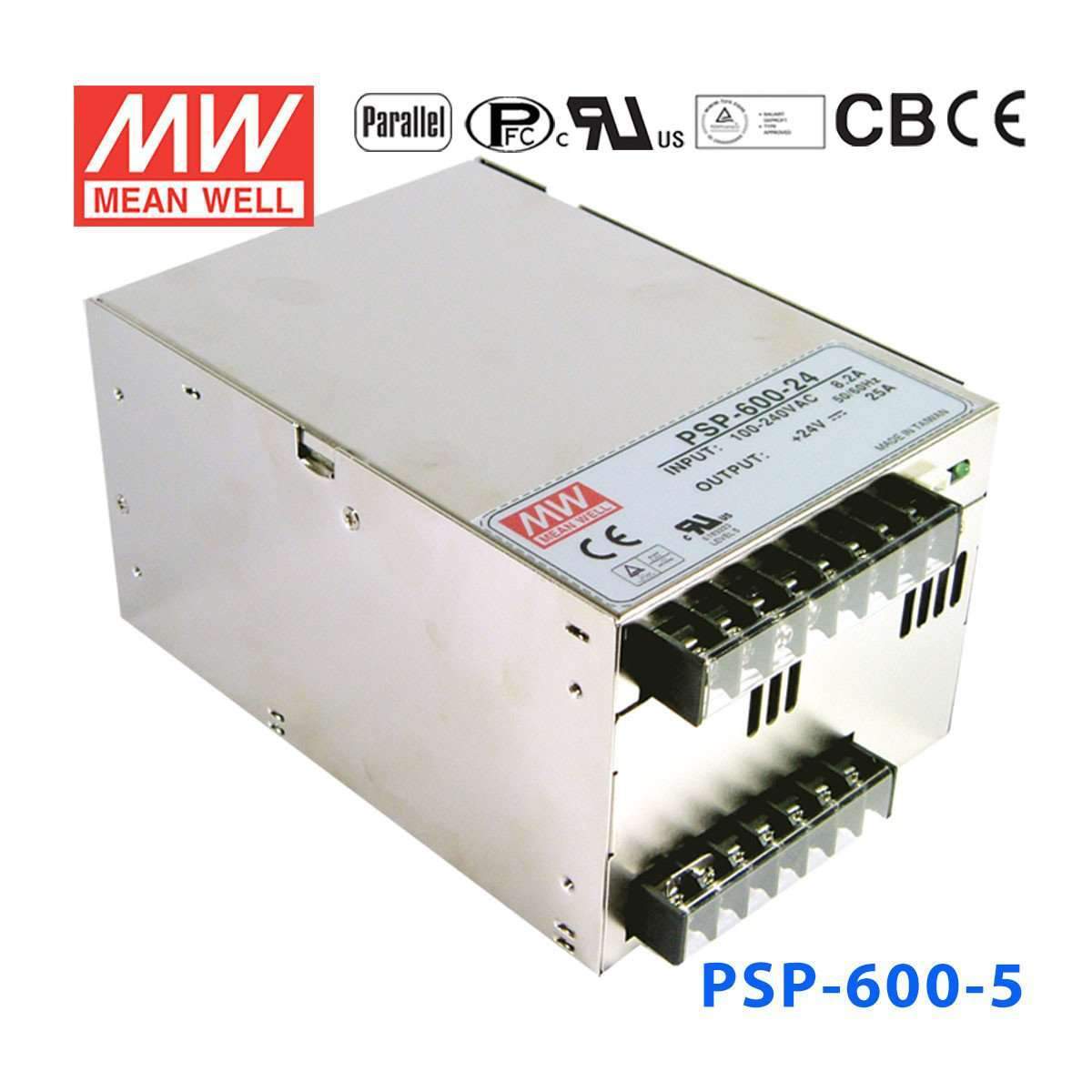

Mean Well PSP-600-5 Power Supply 400W 5V 80A
Overview
PSP-600-5 is the 5V output model of this series: rated current 80A, rated power 400W, typical efficiency 79%.
Features
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan
- With DC OK Signal output
- Current sharing up to 2400W(3+1)
- Built-in remote ON-OFF control
- Built-in remote sense function
- Fixed switching frequency at PFC:88KHz PWM:100KHz
- Operating altitude up to 3000 meters (Note.6)
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 80A
- CURRENT RANGE
- 0 ~ 80A
- RATED POWER
- 400W
- RIPPLE & NOISE (max.)Note.2
- 180mVp-p
- VOLTAGE ADJ. RANGE
- 4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 1500ms, 50ms at full load
- HOLD UP TIME (Typ.)
- 20ms at full load
INPUT
- VOLTAGE RANGENote.5
- 88 ~ 264VAC 124 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- 0.95/230VAC 0.99/115VAC at full load
- EFFICIENCY(Typ.)
- 79%
- AC CURRENT (Typ.)
- 6.8A/115VAC 3.4A/230VAC
- INRUSH CURRENT (Typ.)
- 20A/115VAC 40A/230VAC
- LEAKAGE CURRENT
- <1.3mA/240VAC
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
FUNCTION
- REMOTE CONTROL
- RC+/RC-: Short = power on ; Open = power off
- POK SIGNAL
- PSU turn on: 3.3V ~ 5.6V PSU turn off: 0V ~ 1V
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9245, GB17625.1, BSMI CNS15936, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 1132.9K hrs min. Telcordia SR-332 (Bellcore) ; 142.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 170*120*93mm (L*W*H)
- PACKING
- 1.9Kg; 8pcs/15.5Kg/1.00CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 6. The operating altitude is 2000 meters for CCC, 3000 meters for UL,TUV. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m (6500ft).
Technical drawings
Downloads
Datasheet1
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the PSP-600-5 for a 5V industrial control cabinet with high current draw?
Yes, this model is a constant voltage 5V supply rated for 400W and up to 80A output. That combination suits 5V control electronics, logic-heavy industrial assemblies, and other low-voltage loads that need substantial current from one supply.
Is the PSP-600-5 suitable for powering 5V embedded computing or backplane systems?
It can fit 5V embedded platforms that require a regulated constant voltage source and very high current availability. With 5V output and 80A capacity, it is better matched to dense 5V loads than higher-voltage models in the same family.
Can this 5V power supply support automation equipment that runs only on 5V DC?
Yes, if the automation equipment is specified for 5V DC constant voltage input. The unit provides 400W total output and is designed for AC input from 88-264VAC, which is useful in industrial power environments with varying mains standards.
Is the PSP-600-5 a good fit for high-current 5V test fixtures or bench systems?
It is a practical option for 5V bench or production fixtures that need a single supply with high current headroom. The 80A output rating and 400W power limit make it more appropriate for heavy 5V loads than lower-current supplies.
Is the PSP-600-5 intended for outdoor or washdown environments?
The listed operating temperature range is -20°C to +60°C, but no IP rating is provided in these specs. Based on the available data, it is better treated as a supply for protected indoor equipment environments rather than exposed outdoor or washdown locations.
How does the PSP-600-5 compare with other Mean Well PSP series models?
Within the PSP-600 series on the same sheet, the PSP-600-5 is 400W at 5V and 80A. Its siblings are PSP-600-12 at 600W, 12V, 50A; PSP-600-13.5 at 600.75W, 13.5V, 44.5A; PSP-600-15 at 600W, 15V, 40A; PSP-600-24 at 600W, 24V, 25A; PSP-600-27 at 599.4W, 27V, 22.2A; and PSP-600-48 at 600W, 48V, 12.5A.
