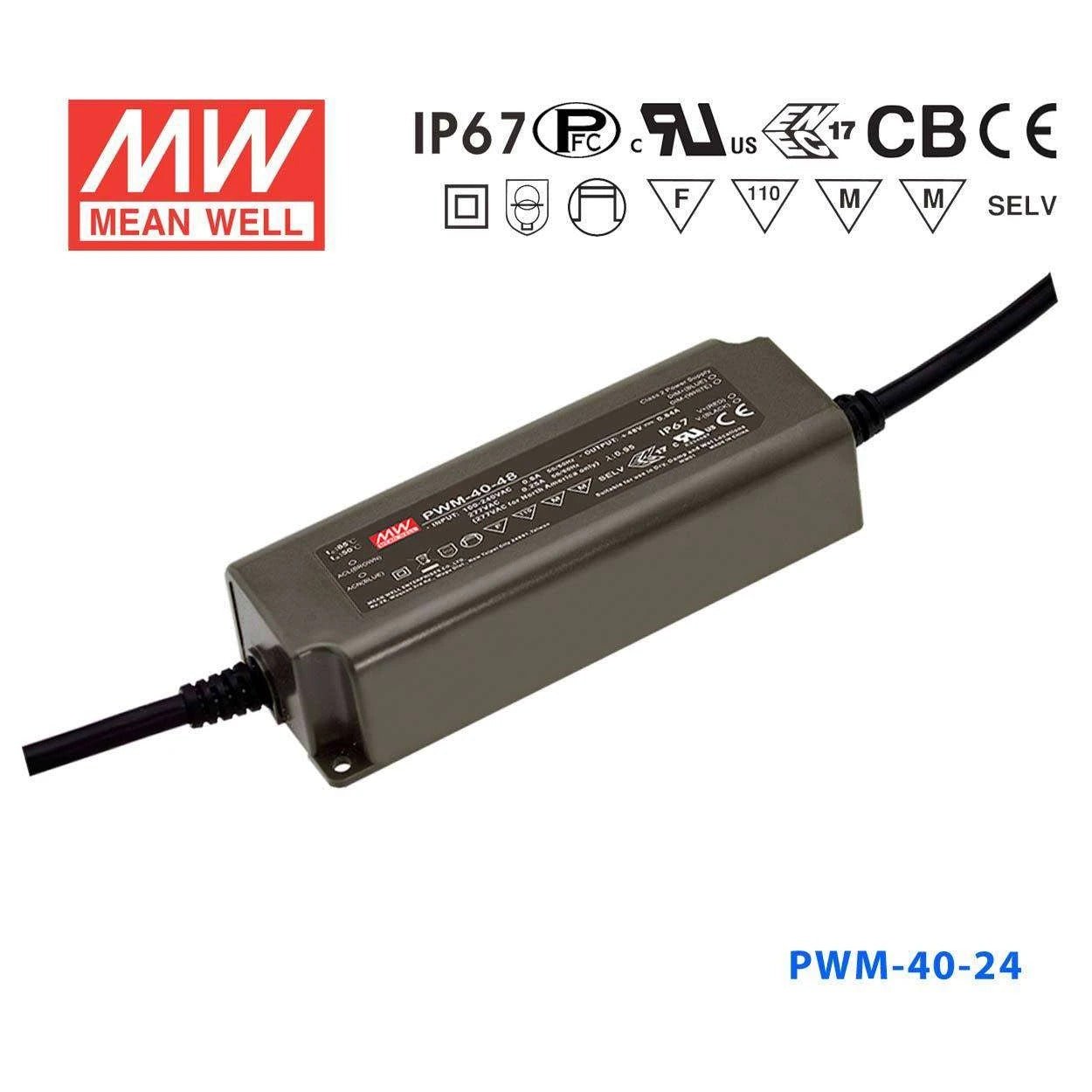

Mean Well PWM-40-24 Power Supply 40W 24V - Dimmable
PWM style output, fully isolated plastic case, IP67, Class II design without FG, built-in 3 in 1 dimming
SKU:
PWM-40-24
$28.40 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-40-24 Power Supply 40W 24V - Dimmable
$28.40 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Constant voltage PWM style output |
| Built-in active PFC function |
| High efficiency up to 91% |
| No load power consumption <0.5W |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully isolated plastic case |
| Fully encapsulated with IP67 level |
| Class 2 power unit |
| Isolation class II, no F.G. |
| Built-in 3 in 1 dimming (dim-to-off) |
| Suitable for dry, damp and wet location |
| Suitable for LED strip lighting |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| Overload protection | 108%~120% hiccup mode, auto-recovery |
| Over voltage protection | Shut down o/p voltage, re-power on to recover |
| Setup, rise, hold up time | 500ms, 80ms, 16ms at full load and 230VAC |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -40~+85ºC (refer to output derating curve) |
| Safety standards | UL8750, CSA C22.2 No.250.13-12,ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved ; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | UL2464 18AWG x2C (30cm)+22AWG x2C (30cm) |
| Dimension (LxWxH) (mm) | 150x 53x 35 |
| Packing | 30pcs / 15.7kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating40 Watt
-
Output Voltage24 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
