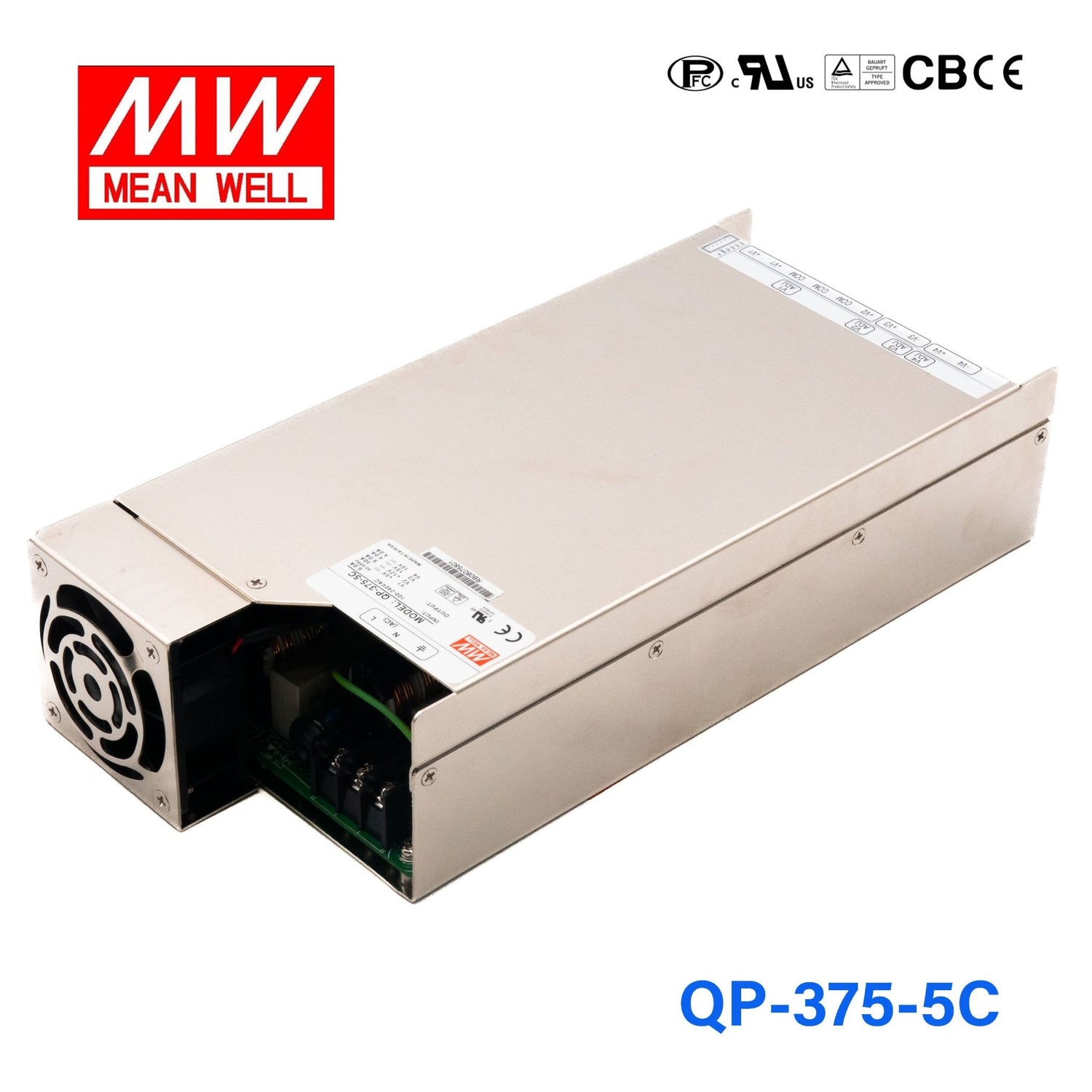

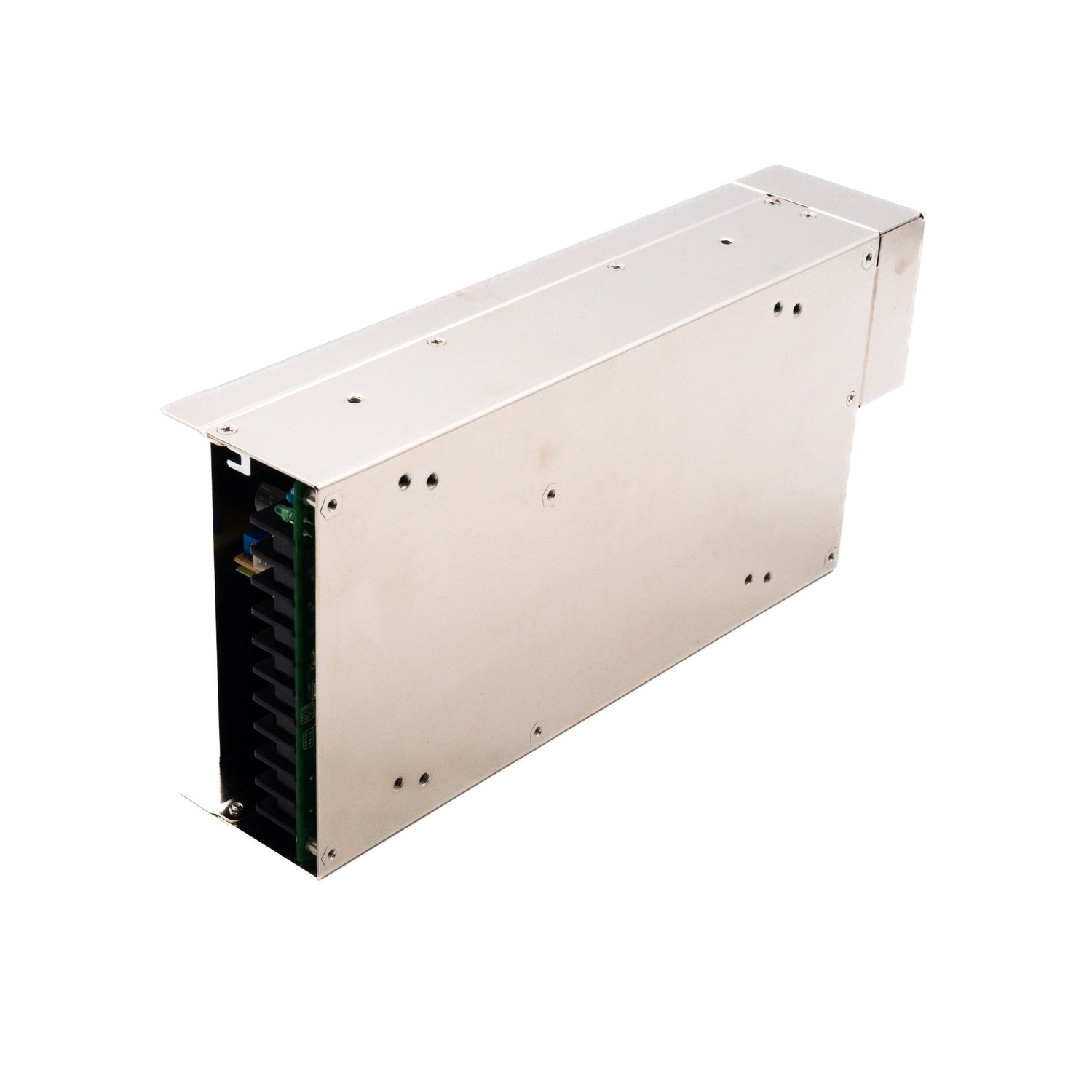

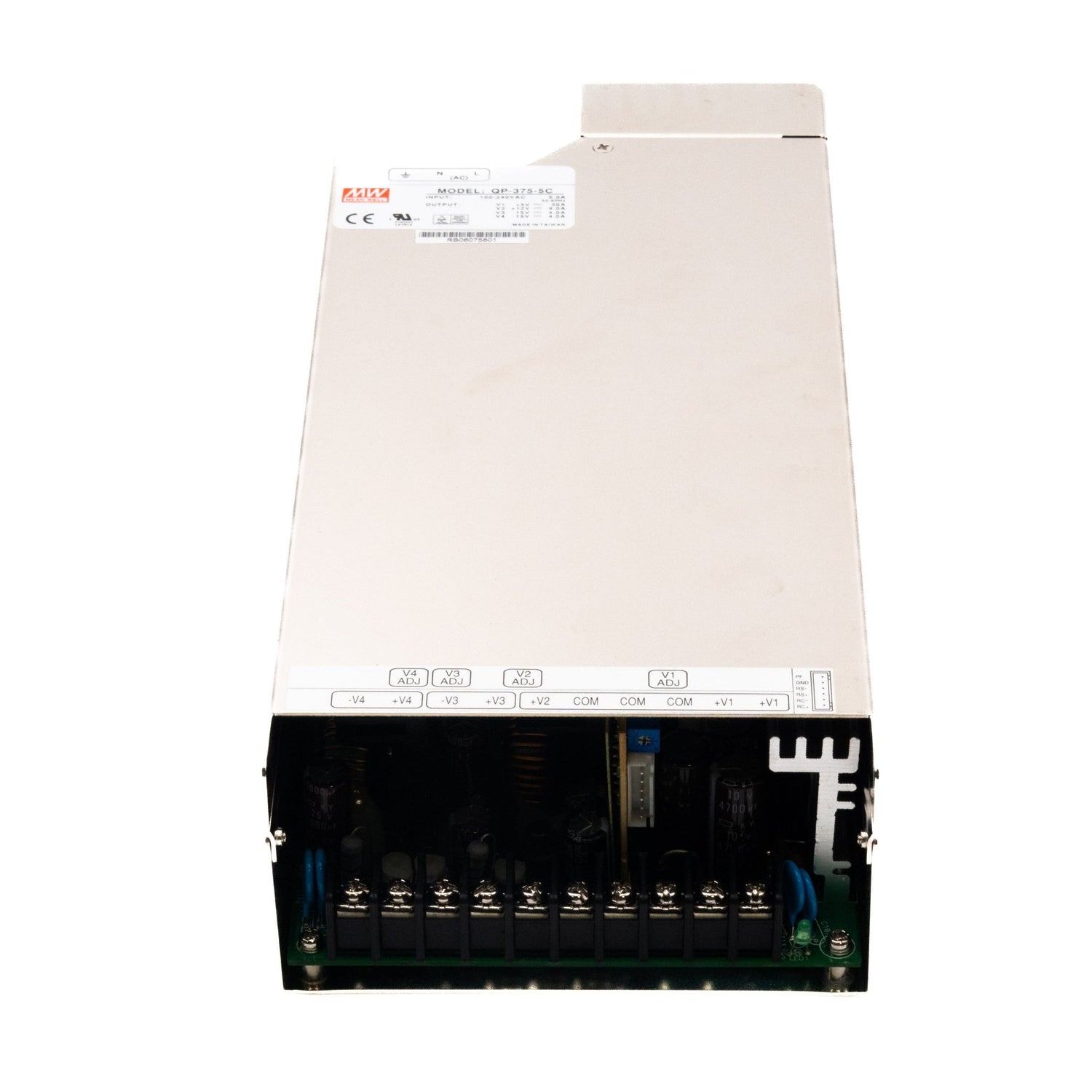

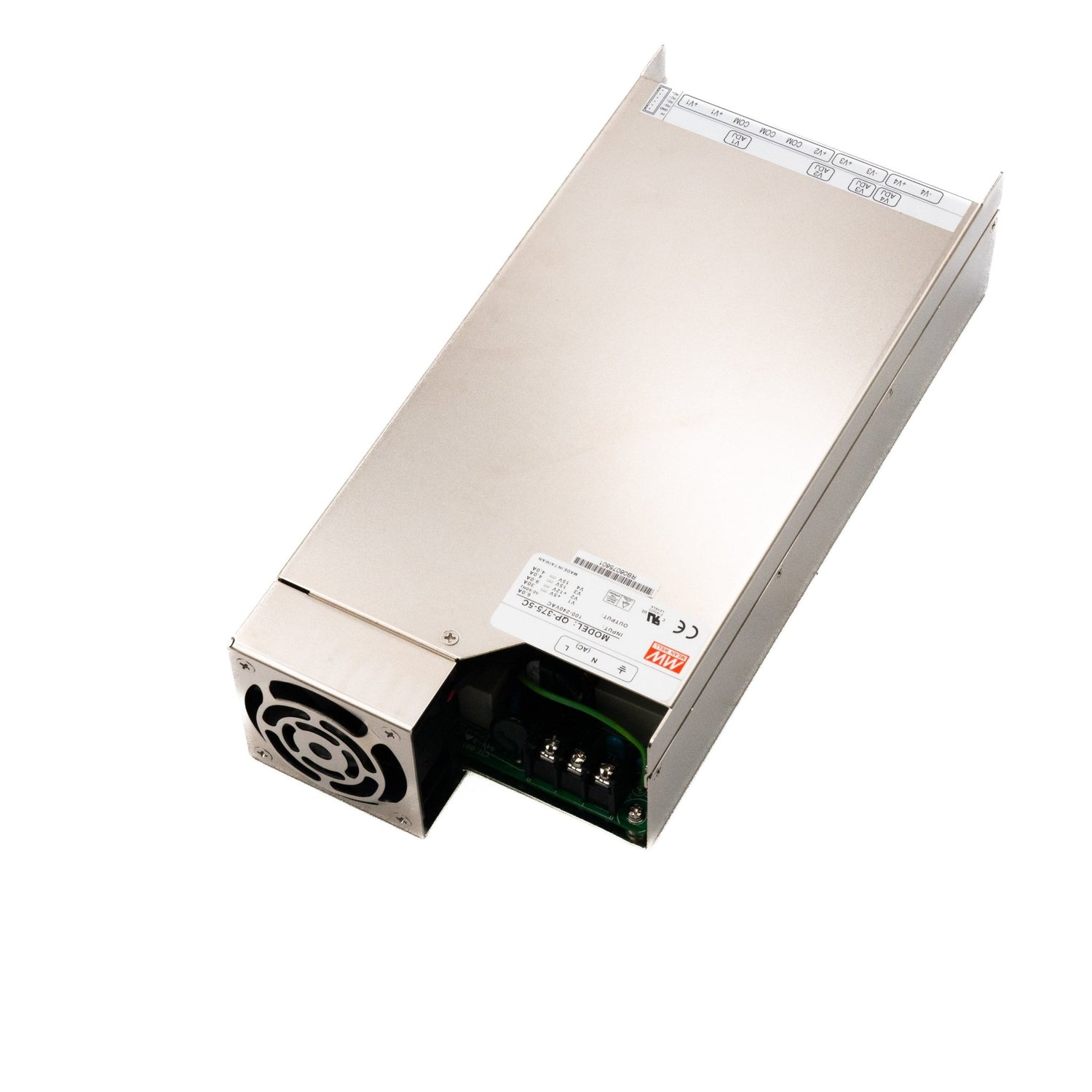

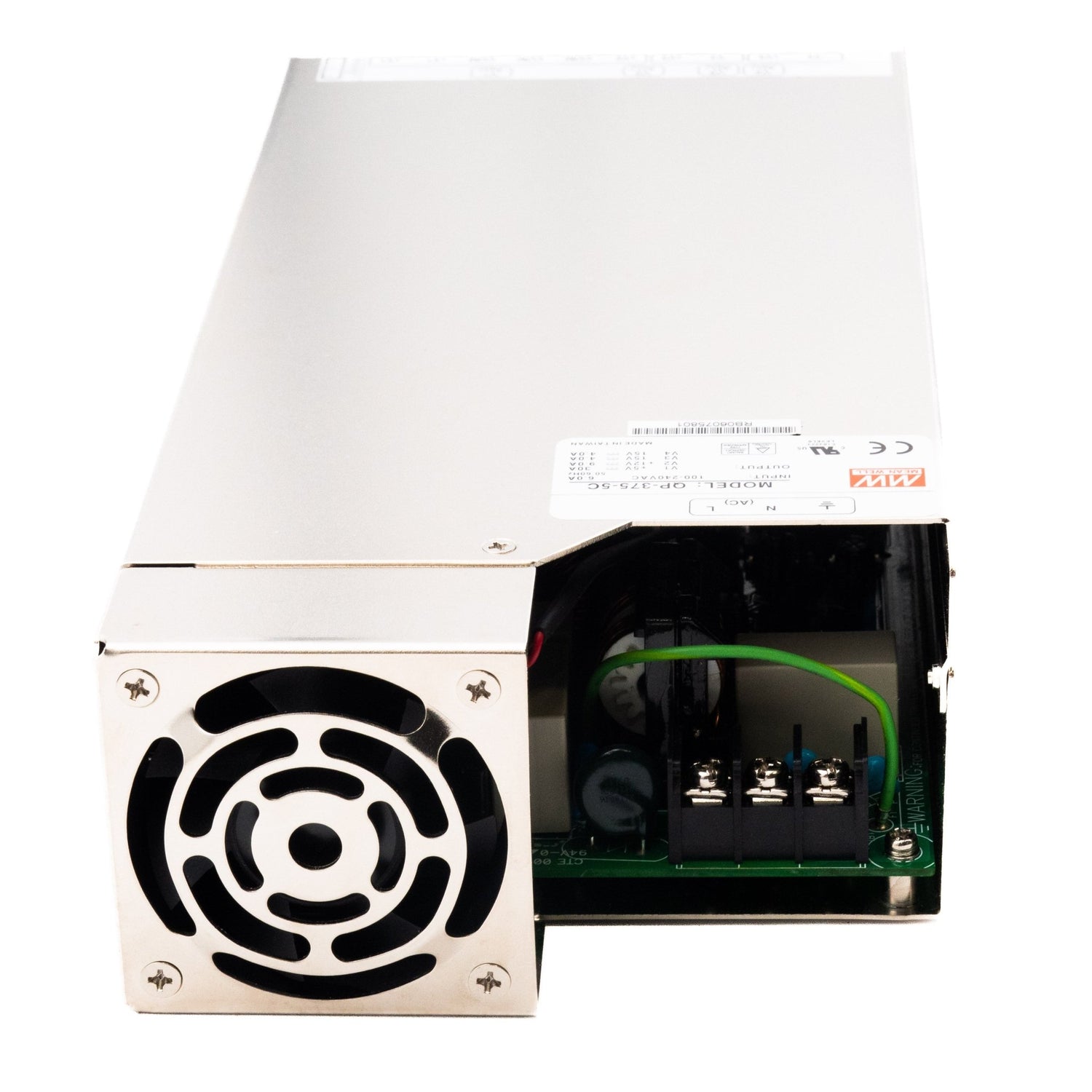

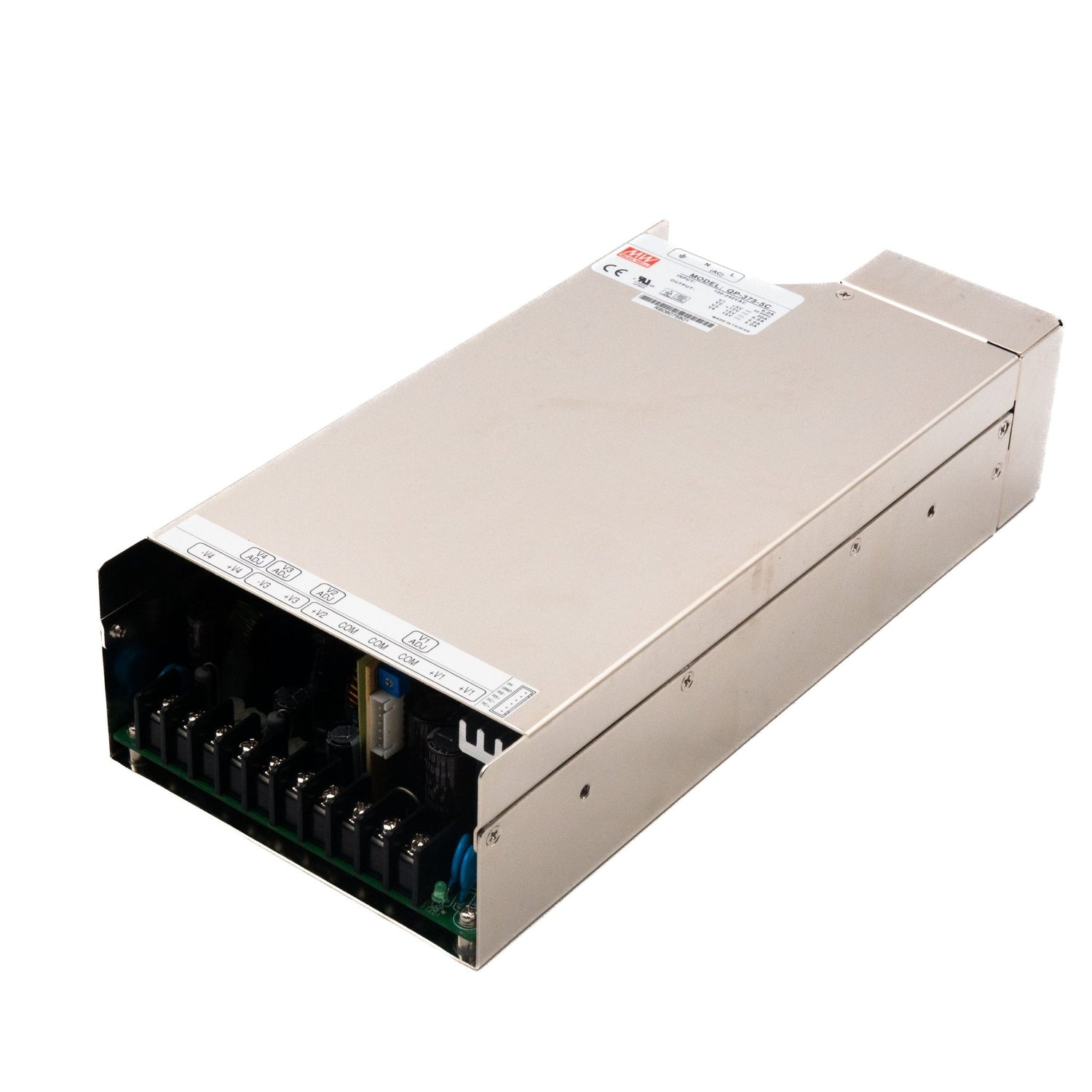

Mean Well QP-375-5C PFC Switching Power Supply 30A
$166.16 USD
Unit price /
Unavailable
Overview
QP-375-5C is the +5V +12V 15V 15V output model of this series: rated current 30A 9A 4A 4A, typical efficiency 77%.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan
- CH3,4 are isolated from other outputs and the polarity can be reversed
- No minimum load requirement for CH2,3,4
- All output can be adjustable from -5~+10%
- With power good and fail signal output
- Built-in remote ON-OFF control
- Fixed switching frequency at 100KHz
- 3 years warranty
Specifications
QP-375-5CSpecifications from the official datasheet (2018-01-04 edition)Download datasheet PDF
OUTPUT
- OUTPUT NUMBER
- CH1 CH2 CH3 CH4
- DC VOLTAGE
- +5V +12V 15V 15V
- RATED CURRENT
- 30A 9A 4A 4A
- CURRENT RANGE
- 3.5 ~ 40A 0 ~ 16A 0 ~ 4A 0 ~ 4A
- RATED POWER(max.)
- 378W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p 150mVp-p 150mVp-p 240mVp-p
- VOLTAGE ADJ. RANGE
- 4.75 ~ 5.5V 11.4 ~ 13.2V 14.3 ~ 16.5V 14.3 ~ 16.5V
- VOLTAGE TOLERANCENote.3
- ±1.0% ±1.0% ±1.0% ±1.0%
- LINE REGULATION
- ±0.5% ±0.5% ±0.5% ±0.5%
- LOAD REGULATION
- ±0.8% ±0.8% ±0.8% ±0.8%
- SETUP, RISE TIME
- 800ms, 50ms at full load
- HOLD UP TIME (Typ.)
- 36ms at full load
INPUT
- VOLTAGE RANGENote.6
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.95/230VAC PF>0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 77%
- AC CURRENT (Typ.)
- 6A/115VAC 3A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 45A
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1:5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION
- POWER GOOD / POWER FAIL(OPTIONAL)
- 10ms/1ms
- REMOTE CONTROL
- RC+/RC-:0 ~ 0.8V POWER ON; 4V ~ 10V POWER OFF
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL60950-1, TUV EN60950-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
OTHERS
- MTBF
- 75.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 280*127*63.5mm (L*W*H)
- PACKING
- 2.4Kg; 6pcs/14.8Kg/0.89CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Peak current can not exceed 60 sec.
- 5. Isolated CH3 & CH4 maybe series connected or can be used as positive or negative outputs.
- 6. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

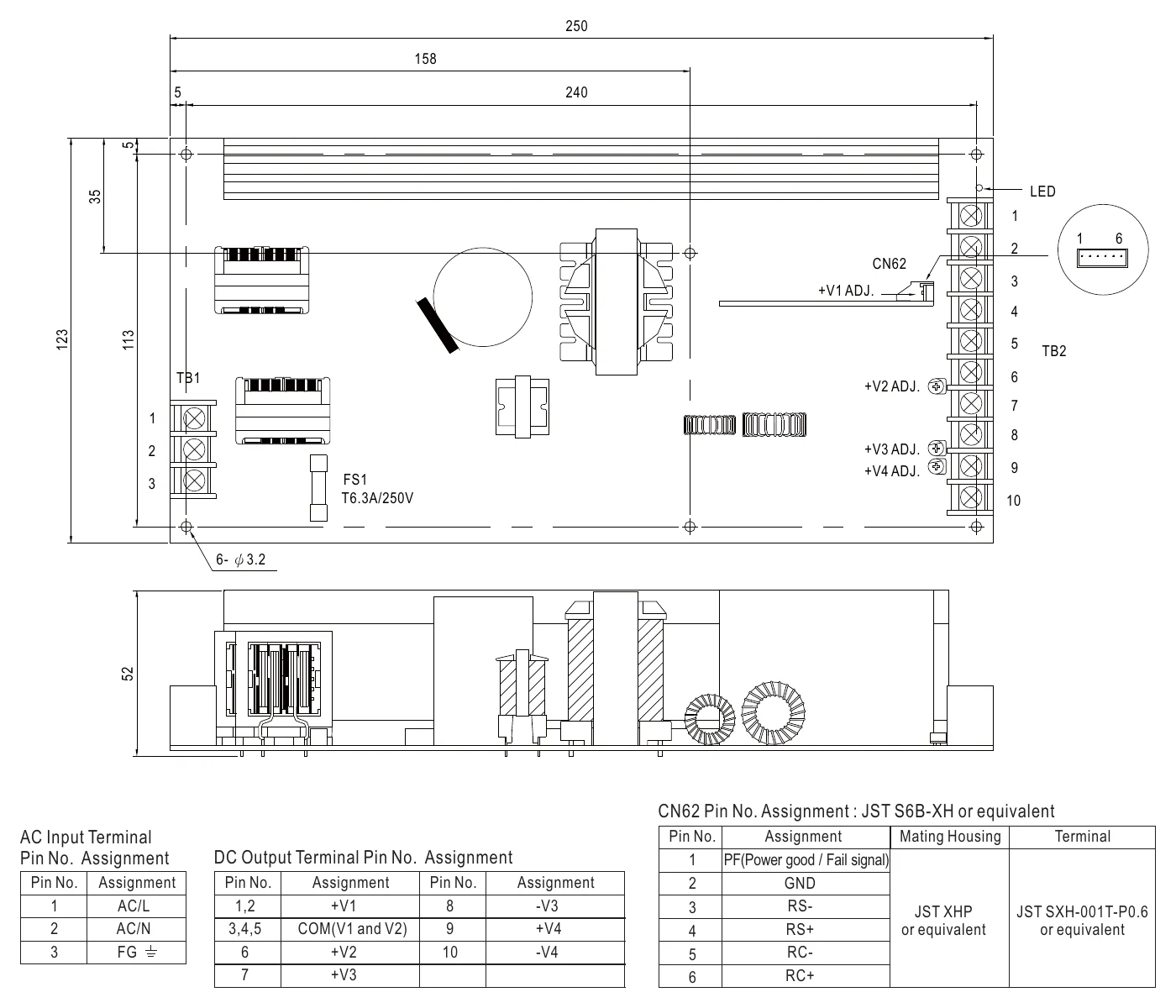

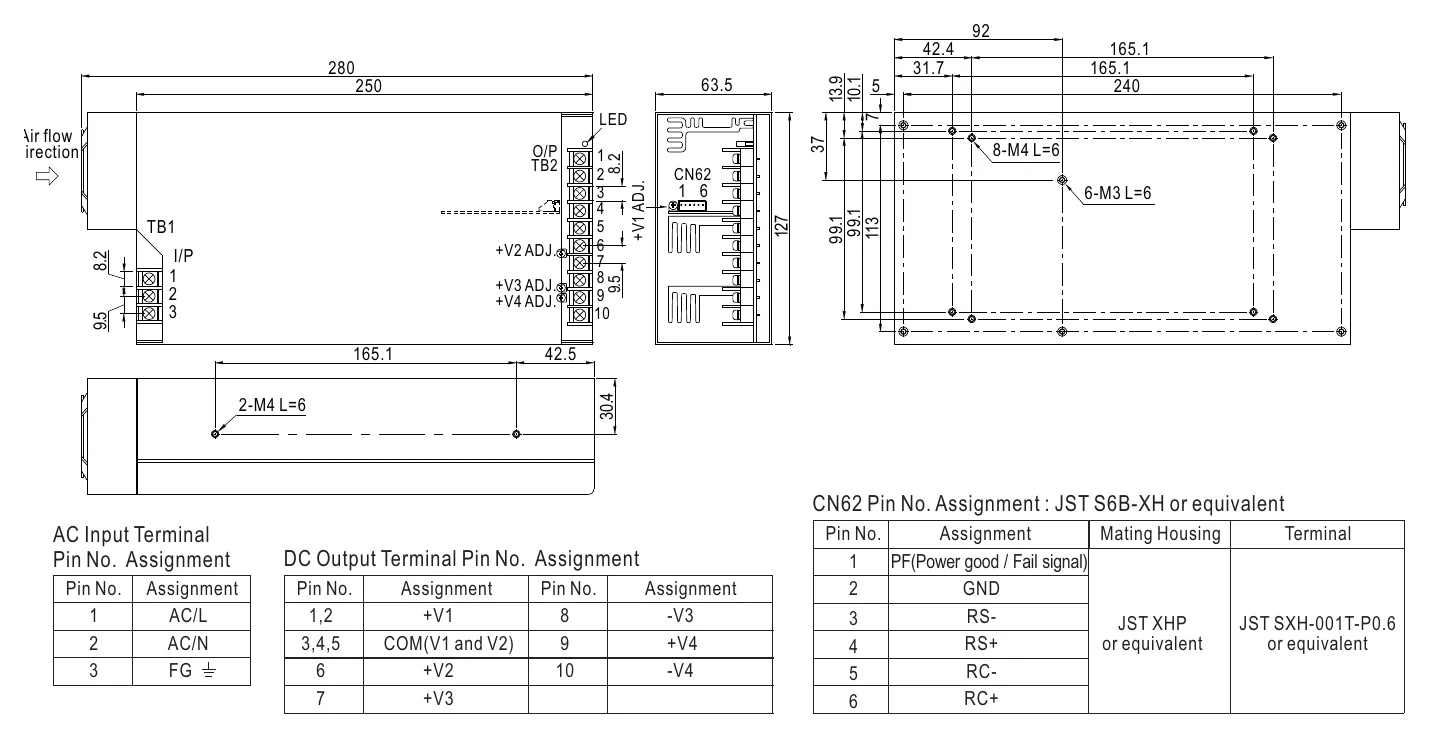

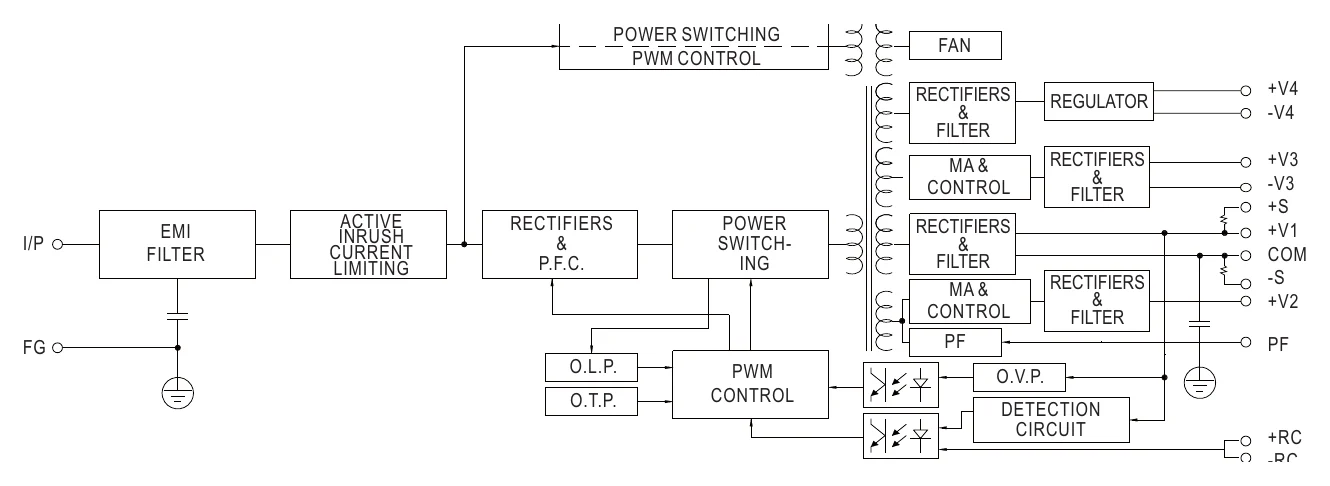

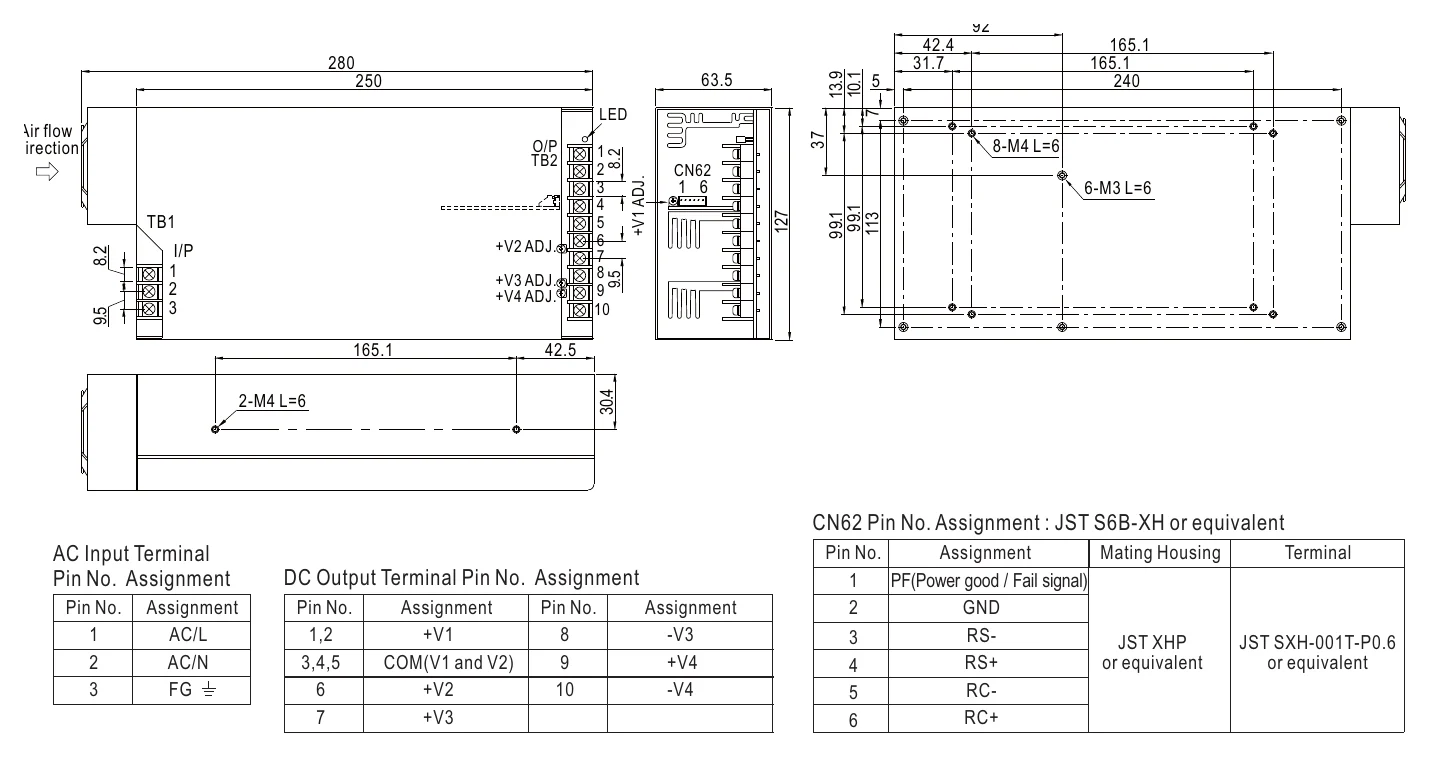

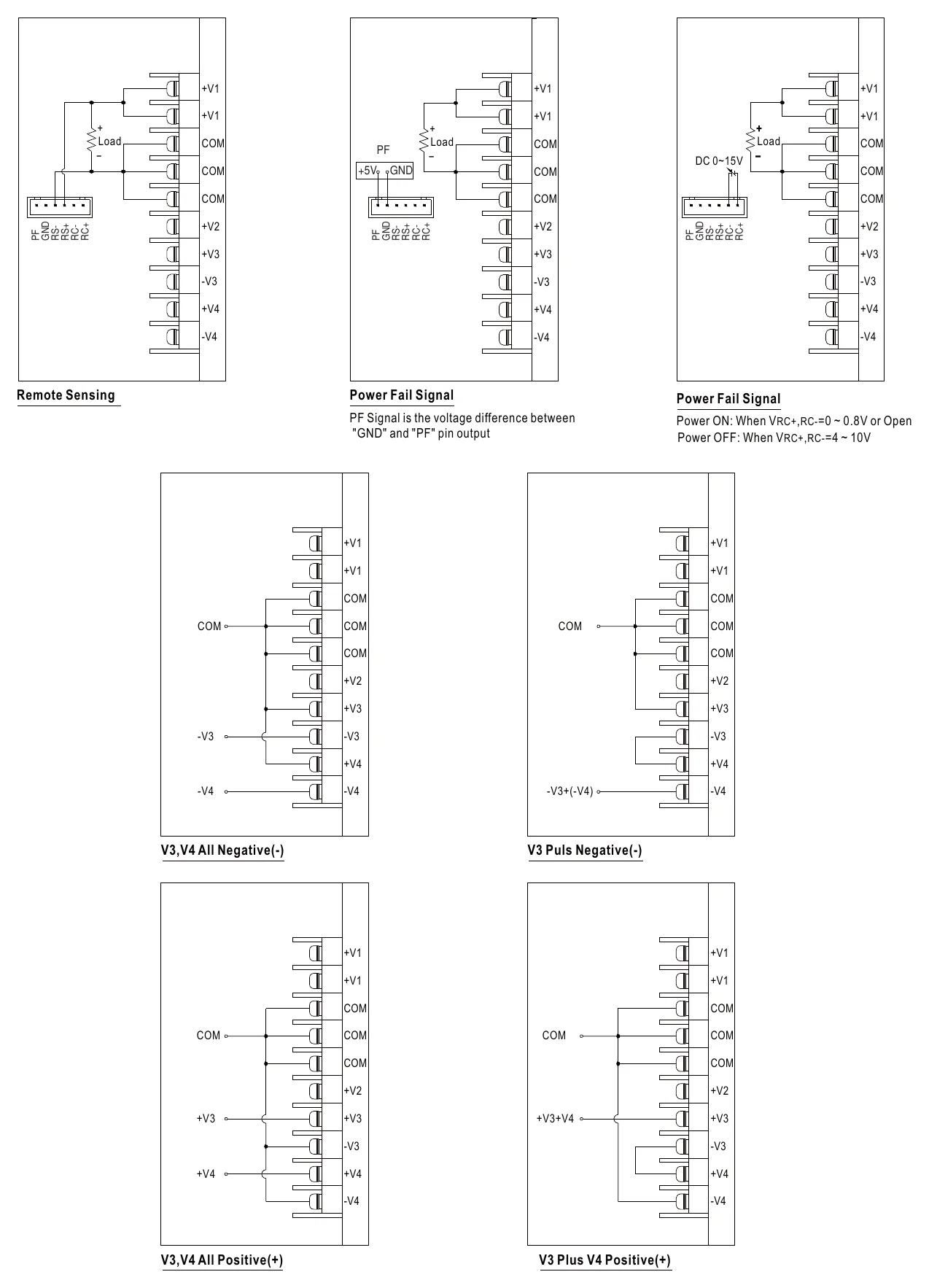

Technical drawings
