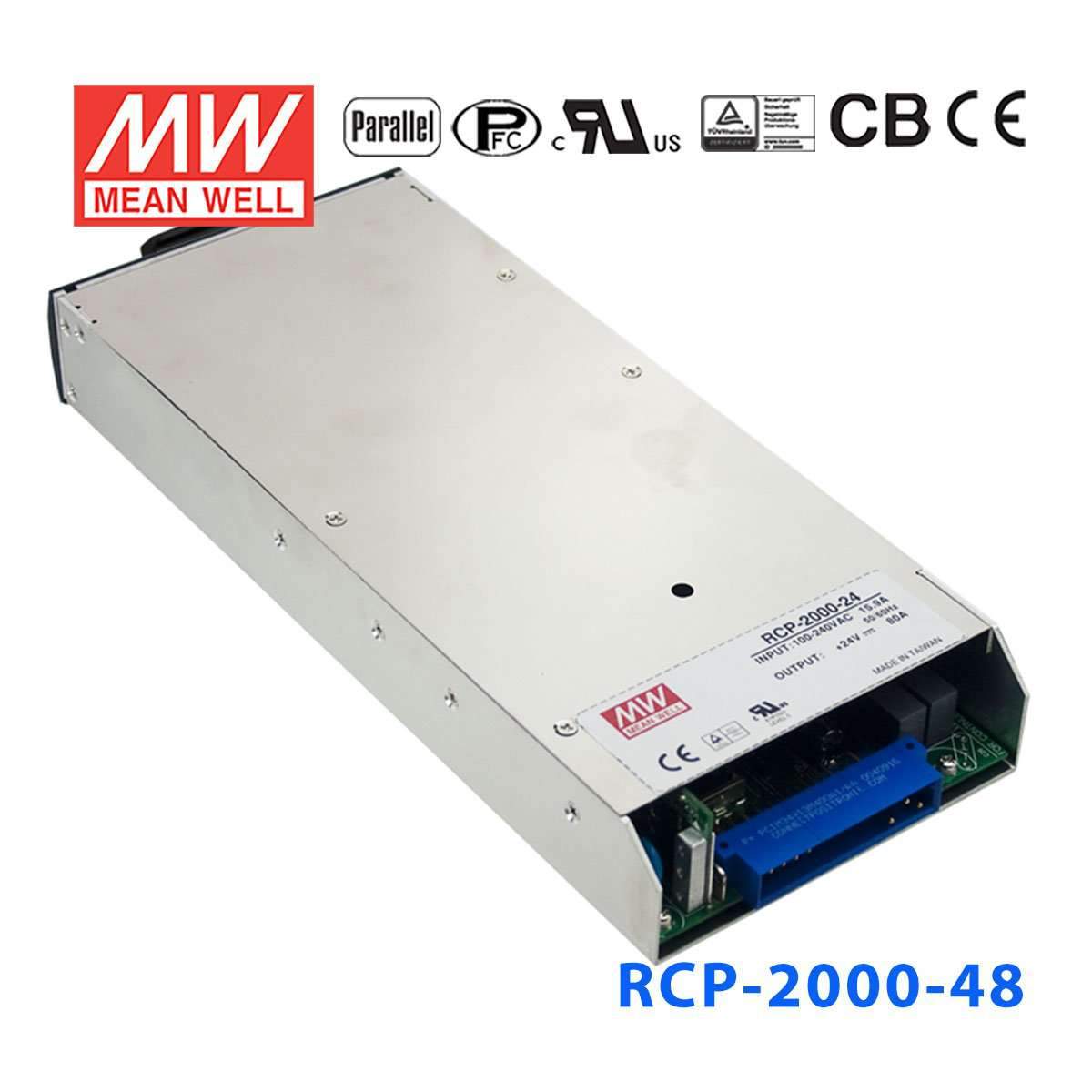

Mean Well RCP-2000-48 power supply 2000W 48V 42A

high efficiency up to 92%, output voltage programmable, active currecnt sharing up to 6000W, support hot swap
$580.42 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Built-in 5V/0.3A, 12V/0.8A auxiliary power
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage Input under voltage / Over temperature
Forced air cooling by built-in DC fan
High power density 21.4W/inch3
1U low profile: 44mm
Withstand 300VAC surge for 5 secs.
Active current sharing up to 6000W (3 units) in one 19"" rack, 3 racks max. can be operated in parallel (up to 9 units)
Remote control for single unit
Built-in remote sense function
Hot-swap operation
Internal OR-ing FET
PMBus serial communication
AC OK and DC OK signal, fan fail, OTP alarm signal
3 years warranty

General Specification

AC input voltage range 90~264VAC
DC adjustment range -12%~+15% rated output voltage
Overload protection 105%~125% constant current limiting, shut off after 5 sec., re-power on to recover
Over voltage protection 120%~145% rated output voltage
Setup, rise, hold up time 1500ms, 60ms, 10ms at full load and 230VAC
Withstand voltage I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1 minute
Working temperature -40~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
Dimension (LxWxH) (mm) 295x 127x 41 mm
Packing 2kg (single unit of RCP-2000); 11.5kg (empty rack)
CASE: 974A

Specifications

  • Brand
    Mean Well
  • Series
    RCP Series
  • Power Rating
    2016 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    42 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    5 Year
  • Length
    11.61 in
  • Width
    5 in
  • Height
    1.61 in
  • Weight
    4.41 lb
