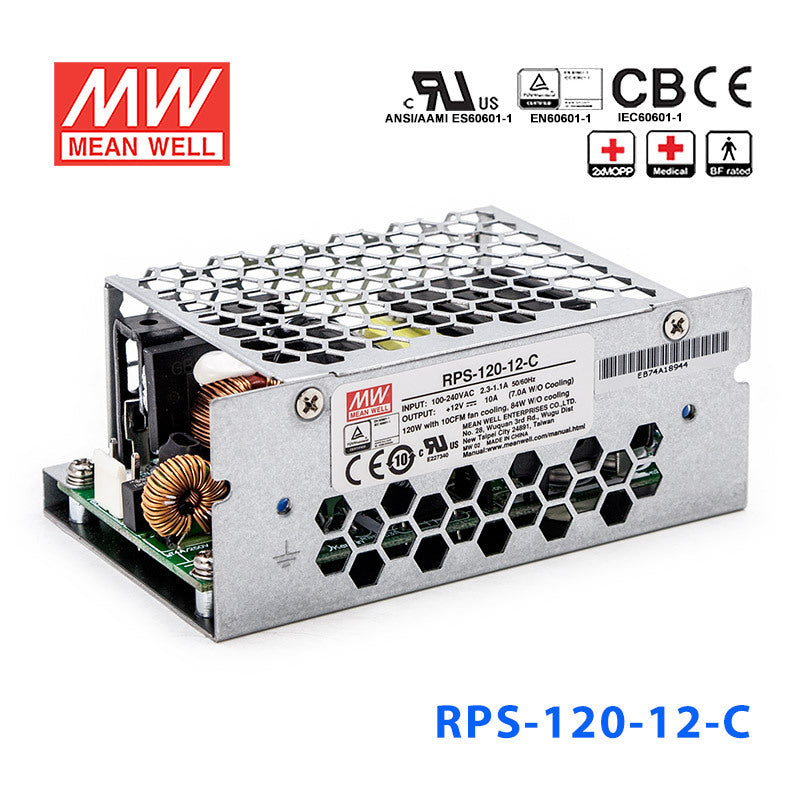

Mean Well RPS-120-12-C Green Power Supply W 12V 10A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-120-12-C Green Power Supply W 12V 10A - Medical Power...
The RPS-120-12 is a 120W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION RESISTANCE IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating84 Watt
-
Output Voltage12 Volt
-
Rated Current10 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.57 in
-
Weight0.53 lb
::specification::
Frequently Asked Questions
Can I use the RPS-120-12-C in a medical device enclosure where touch protection matters?
Yes, this version is a strong fit for medical equipment because it is medical safety approved and built with extremely low leakage current. It provides 12V constant-voltage output at 10A with 84W total power.
Is the RPS-120-12-C suitable for 12V automation, embedded, or industrial electronics?
It is suitable for 12V control and embedded equipment when the load stays within the 12V, 10A, and 84W ratings. The supply accepts 80-264VAC input and is sized at 103.4 × 62.0 × 40.0 mm.
Can the RPS-120-12-C power compact 12V monitoring or communications equipment?
Yes, it can be used for compact 12V equipment in industrial or IT cabinets where a regulated supply is needed. The unit weighs 0.24 kg and keeps no load power consumption below 0.3W.
When would I choose the RPS-120-12-C over the open-frame RPS-120-12?
Both models share the same listed electrical ratings of 84W, 12V, and 10A, along with the same -30°C to +70°C operating range. The difference shown here is the physical package: RPS-120-12 is 101.6 × 50.8 × 29.0 mm and 0.15 kg, while RPS-120-12-C is 103.4 × 62.0 × 40.0 mm and 0.24 kg.
Is the RPS-120-12-C suitable for outdoor use?
No IP rating is listed for this model, so it should be used in protected indoor equipment rather than exposed outdoor locations. Its operating temperature range is -30°C to +70°C, but environmental sealing must come from the enclosure around it.
