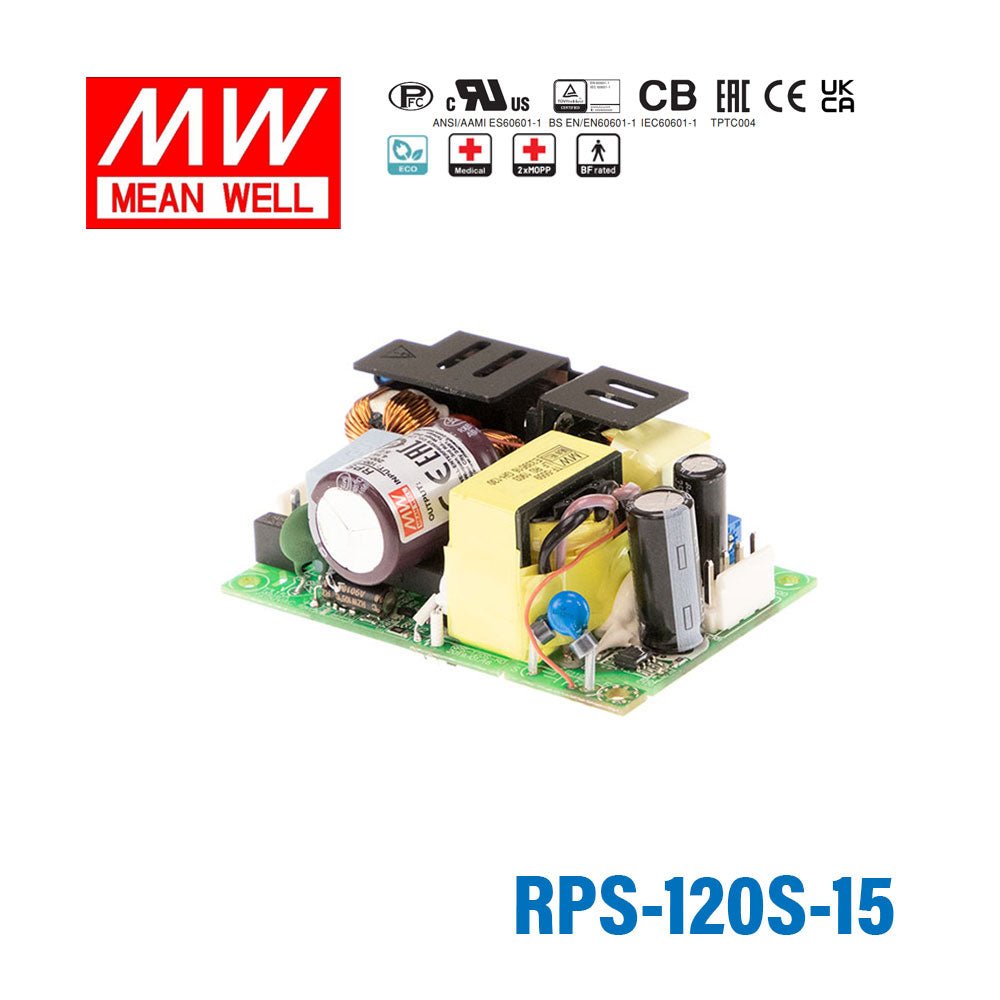

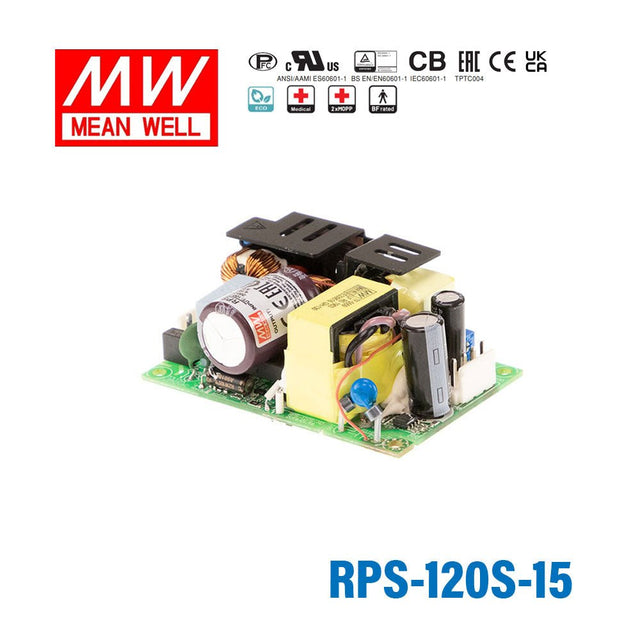

Mean Well RPS-120S-15 Green Power Supply W 15V 7.6A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-120S-15 Green Power Supply W 15V 7.6A - Medical Power...
The RPS-120S is a 120W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+85℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+85℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ISOLATION RESISTANCE IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating114 Watt
-
Output Voltage15 Volt
-
Rated Current7.6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height1.1 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
Can I use the RPS-120S-15 for a 15V automation or industrial control load?
Yes, if the equipment needs constant 15V DC and does not draw more than 7.6A continuously. The unit is rated for 114W and accepts 80-264VAC input, so it works with standard AC-powered industrial equipment.
Is the RPS-120S-15 suitable for 15V medical devices or monitoring equipment?
It is described as a medical power supply and as medical safety approved, with extremely low leakage current. That makes it relevant for 15V equipment requiring up to 7.6A and 114W.
Can this model support loads with short startup peaks?
Yes, this version is specified for 150W peak for 10s. That can help with equipment that briefly draws more than its normal running load, while the continuous rating remains 114W at 15V and 7.6A.
Is the RPS-120S-15 a fit for compact embedded systems?
It is designed in a 3" x 2" compact size and measures 76.2 × 50.8 × 28.0 mm. That allows it to fit into smaller embedded or control equipment while still providing 15V constant voltage output.
Can the RPS-120S-15 be used outdoors or in high-temperature equipment?
The operating temperature range is -30°C to +85°C, so the temperature capability is strong for enclosed equipment in hot or cold conditions. No IP rating is listed in the provided specs, so outdoor suitability is not confirmed by this data.
What are the key output differences across the RPS-120S family?
The RPS-120S group includes RPS-120S-12 at 114W, 12V, 9.5A; RPS-120S-15 at 114W, 15V, 7.6A; RPS-120S-24 at 120W, 24V, 5A; RPS-120S-27 at 119.9W, 27V, 4.44A; and RPS-120S-48 at 120W, 48V, 2.5A. In the nearby standard RPS-120 range, the 15V options are RPS-120-15 and RPS-120-15-C at 84W and 8A.
