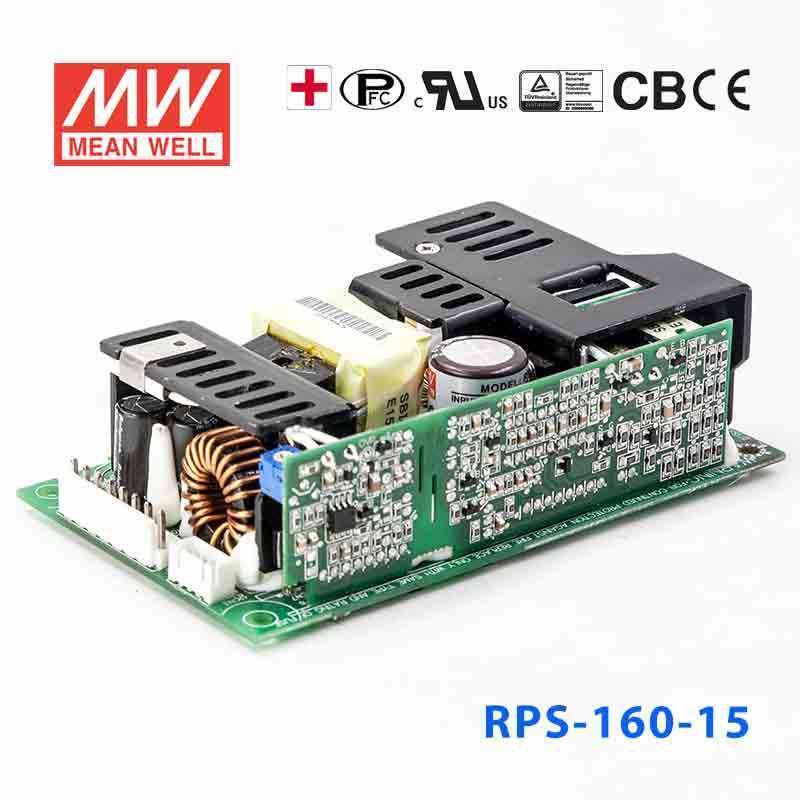

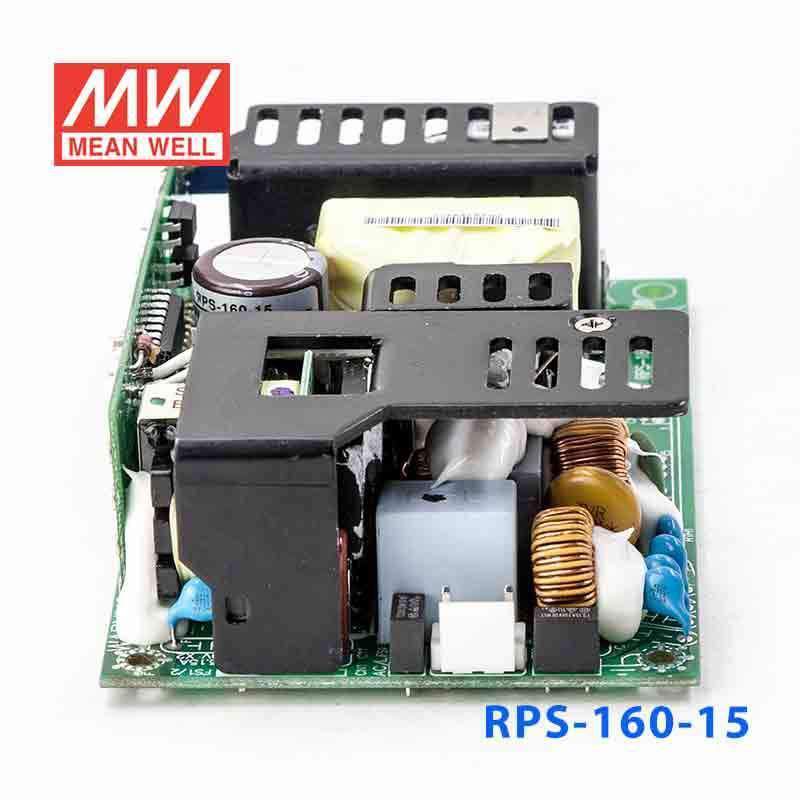

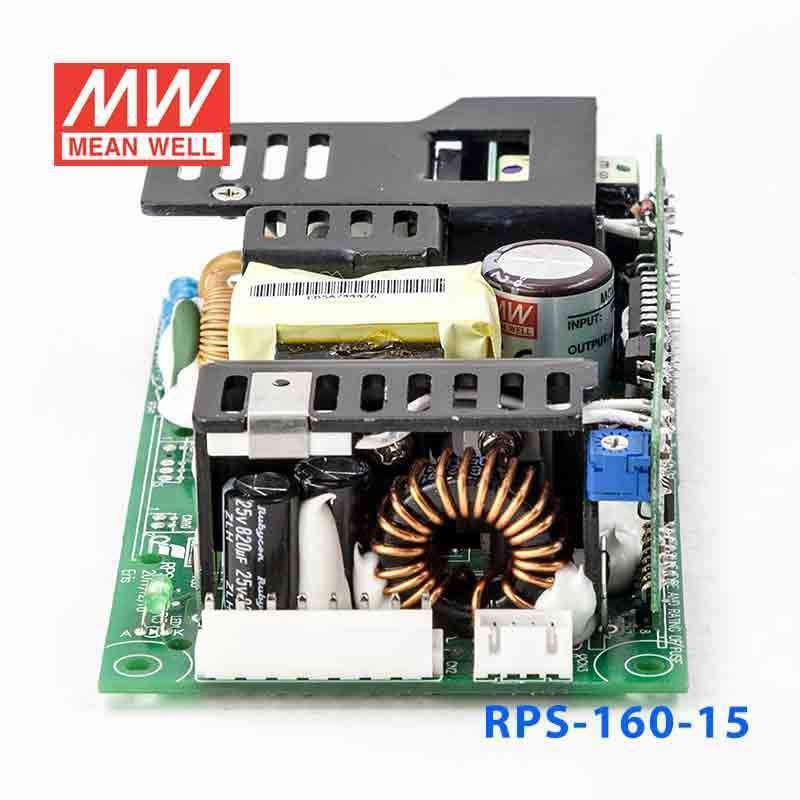

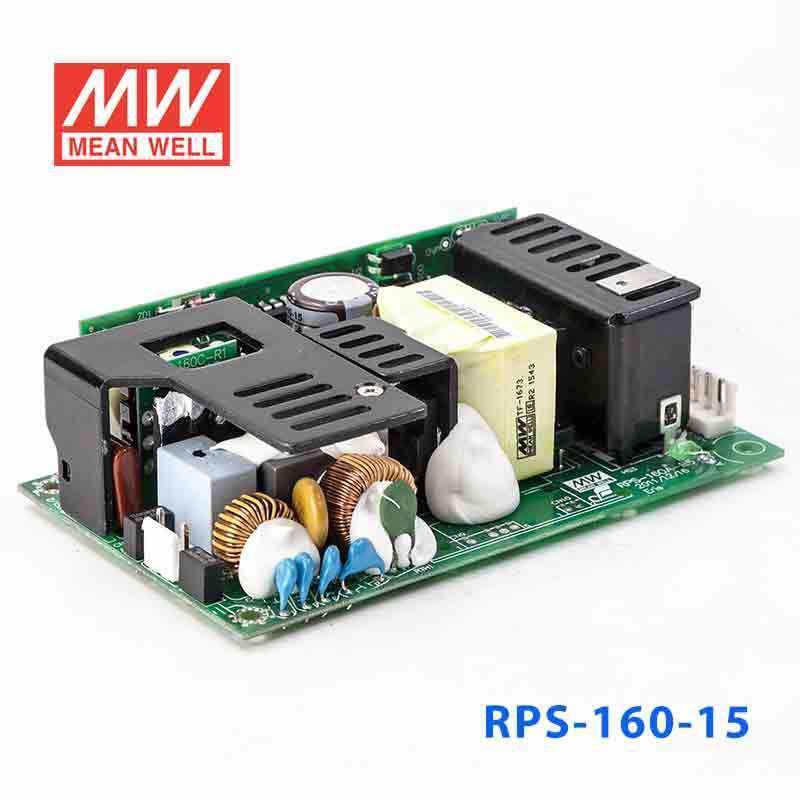

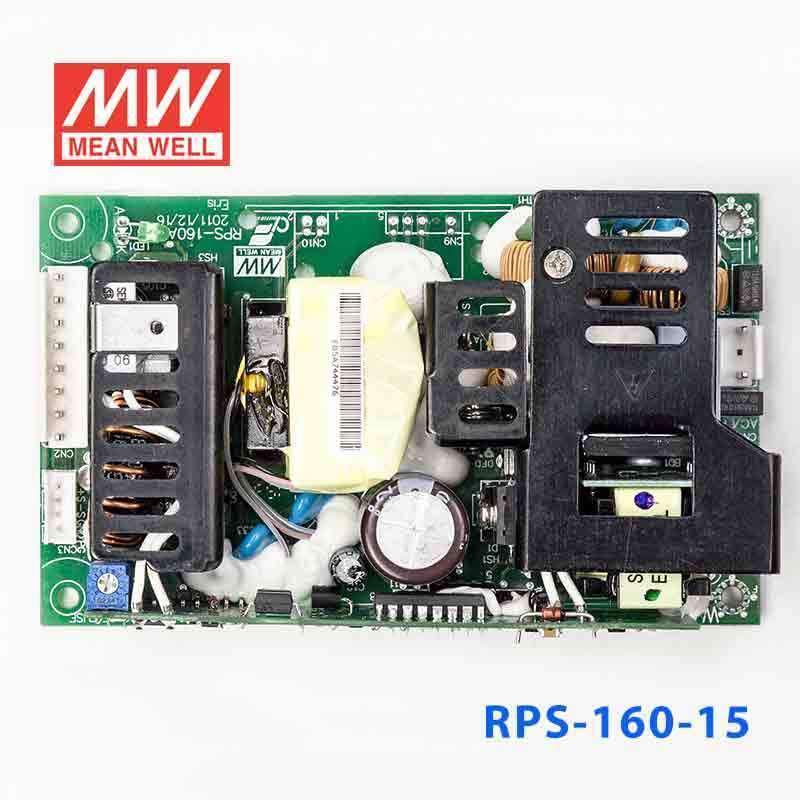

Mean Well RPS-160-15 Green Power Supply W 15V 7.3A - Medical Power Supply

5" x 3" compact size, medical safety approved, no load power consumption < 0.5W
$52.07 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Medical safety approved (2xMOPP)
Protections: Short circuit / Overload / Over voltage / Over Temp.
Built-in active PFC function
Low leakage current <200uA
Free air convection for 110W and 160W with 20.5 CFM forced air
5""x3"" compact size
With power good and fail signal output
Built-in remote sense function for 5~15V
Standby 5V@0.8A (G model)
No load power consumption under 0.75W by PS-ON control (G model)
Suitable for medical & IT applications
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start, 35A at 115VAC, 70A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 105%~135% hiccup mode, auto-recovery
Over voltage protection CH1: 115%~135% shut off, re-power on to recovery
Withstand voltage I/P-O/P: 4kVAC, I/P-FG: 2kVAC, 1 minute
Working temperature -20~+70°C (refer to output derating curve)
Leakage current Less than 200uA at 264VAC
Safety standards ANSI/AAMI ES60601-1, TUV EN60601-1 approved
EMC standards EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160)
Connection 3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH
Setup, rise, hold up time 1800ms, 30ms, 16ms at full load and 230VAC
Dimension (LxWxH) 127x 76.2x 34.6mm

Specifications

  • Brand
    Mean Well
  • Series
    RPS Series
  • Power Rating
    112.5 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    7.3 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CE,cUL,EAC,SHIDE
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    5 in
  • Width
    3 in
  • Height
    1.36 in
  • Weight
    0.71 lb

File Downloads

::specification::
