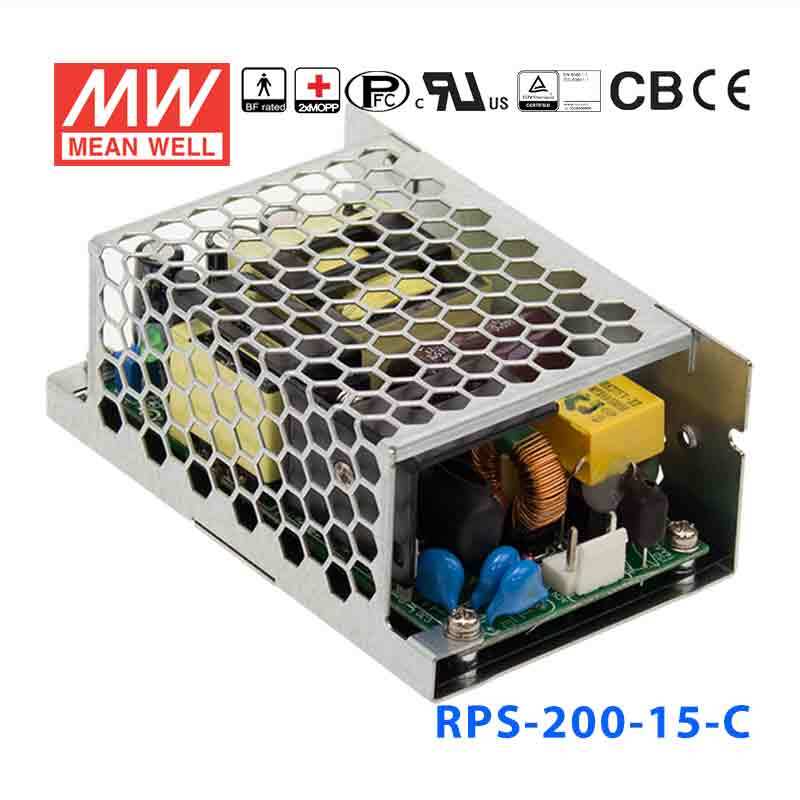

Mean Well RPS-200-15-C Green Power Supply W 15V 9.4A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-200-15-C Green Power Supply W 15V 9.4A - Medical Powe...
The RPS-200-15 is a 200W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating141 Watt
-
Output Voltage15 Volt
-
Rated Current9.4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.57 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
Can I use the RPS-200-15-C to power a 15V industrial control or embedded system?
Yes, if the load requires a constant 15V output and stays within 9.4A and 141W. That makes it suitable for industrial control, embedded, or automation equipment designed for a regulated 15V DC supply. The wide 80-264VAC input also fits facilities that do not use a single fixed AC input standard.
Is the RPS-200-15-C suitable for medical or lab equipment that needs low leakage current?
This model is positioned as a medical power supply and lists medical safety approval plus extreme low leakage current as key features. It provides constant 15V output up to 9.4A and 141W, which can fit medical or laboratory devices built around those electrical requirements. Buyers should still match the equipment's exact 15V and current demand to the supply.
Can this power supply run a 15V HMI, panel PC, or embedded computing device?
It can when the equipment requires 15V constant voltage and the total draw does not exceed 9.4A or 141W. The compact 103.4 x 62.0 x 40.0 mm size also helps where board space is limited. It is a better fit for 15V systems than 12V, 24V, 27V, or 48V equipment.
Is the RPS-200-15-C rated for outdoor or washdown environments?
No IP rating is listed in the provided specs, so it should not be treated as an outdoor or washdown-rated power supply based on this data alone. The operating temperature range is -30C to +70C, which supports demanding temperature conditions, but that is separate from enclosure sealing. In practice, this spec set points to indoor use or use inside a protected enclosure.
How does the RPS-200-15-C compare with other RPS 15V models?
Within the sibling list, the 15V options are RPS-30-15 at 30W and 2A, RPS-45-15 at 45W and 3A, RPS-60-15 at 60W and 4A, RPS-65-15 at 65.1W and 4.34A, RPS-75-15 at 75W and 5A, RPS-120-15 and RPS-120-15-C at 84W and 8A, RPS-120S-15 at 114W and 7.6A, RPS-160-15 at 112.5W and 7.3A, RPS-200-15 and RPS-200-15-C at 141W and 9.4A, RPS-300-15 and RPS-300-15-C at 200W and 13.33A, RPS-400-15 variants at 250.5W and 16.7A, and RPS-500-15 variants from 310.5W to 499.5W with 20.7A to 33.3A. This places the RPS-200-15-C in the mid-to-upper part of the 15V range with the same 141W and 9.4A as the non-C RPS-200-15.
