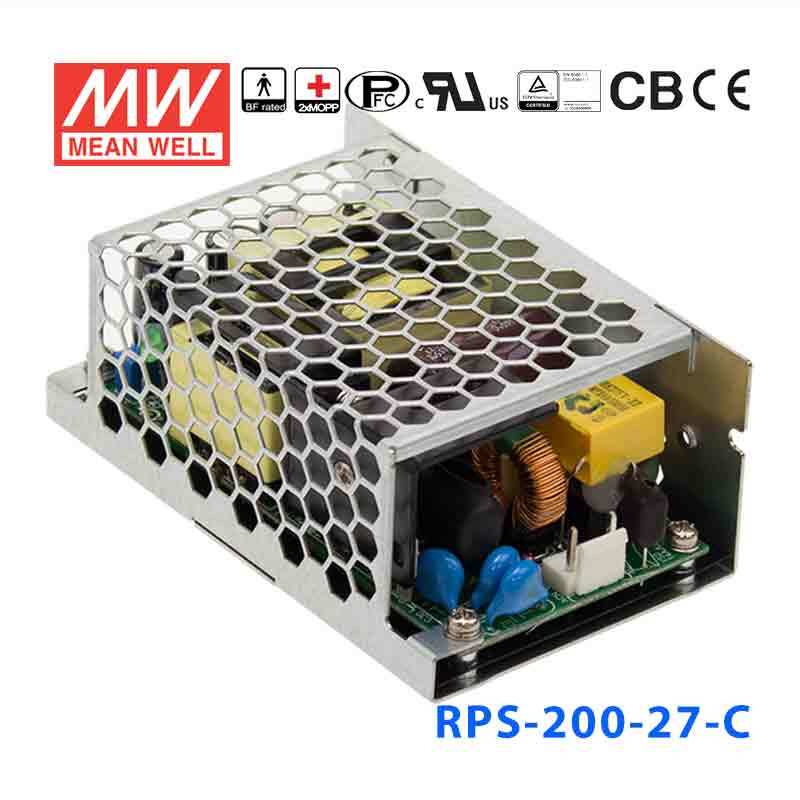

Mean Well RPS-200-27-C Green Power Supply W 27V 5.3A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-200-27-C Green Power Supply W 27V 5.3A - Medical Powe...
The RPS-200-27 is a 200W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating143.1 Watt
-
Output Voltage27 Volt
-
Rated Current5.3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.57 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
Can the RPS-200-27-C be used for a 27V embedded control board or industrial electronics assembly?
Yes, if the assembly requires constant 27V DC and its total draw does not exceed 5.3A or 143.1W. That makes it suitable for embedded or industrial electronics that are specifically designed around a 27V input. The 103.4 x 62.0 x 40.0 mm size can also help where enclosure space is limited.
Is the RPS-200-27-C appropriate for 27V factory automation loads?
It can be appropriate for factory automation equipment that needs constant 27V output and stays within 5.3A and 143.1W. The wide 80-264VAC input is useful in industrial settings where the AC source may vary. Electrical compatibility still depends on the load being a true 27V device.
Can this power supply support a 27V medical or diagnostic system?
This model is sold as a medical power supply and lists medical safety approval with extreme low leakage current. For 27V medical or diagnostic equipment, it can deliver up to 5.3A and 143.1W when the device is designed for constant-voltage input. It should be matched only to equipment whose DC requirement is 27V.
Is the RPS-200-27-C suitable for harsh temperature conditions and outdoor exposure?
The operating temperature range is -30C to +70C, so the unit is rated for a broad temperature span. However, no IP rating is listed, so the specifications do not show that it is sealed for outdoor exposure, rain, or washdown. Based on the provided data, it is better treated as an indoor or enclosed-use power supply.
Where does the RPS-200-27-C sit within the RPS 27V lineup?
Among listed 27V siblings, RPS-120-27 and RPS-120-27-C are 85W and 4.5A, RPS-120S-27 is 119.9W and 4.44A, RPS-200-27 and RPS-200-27-C are 143.1W and 5.3A, RPS-300-27 variants are 200W and 7.4A, RPS-400-27 variants are 251.1W and 9.3A, and RPS-500-27 variants range from 310.5W to 499.5W with 11.5A to 18.5A. The RPS-200-27-C shares the same electrical rating as the non-C RPS-200-27 and sits in the middle of the 27V family range.
