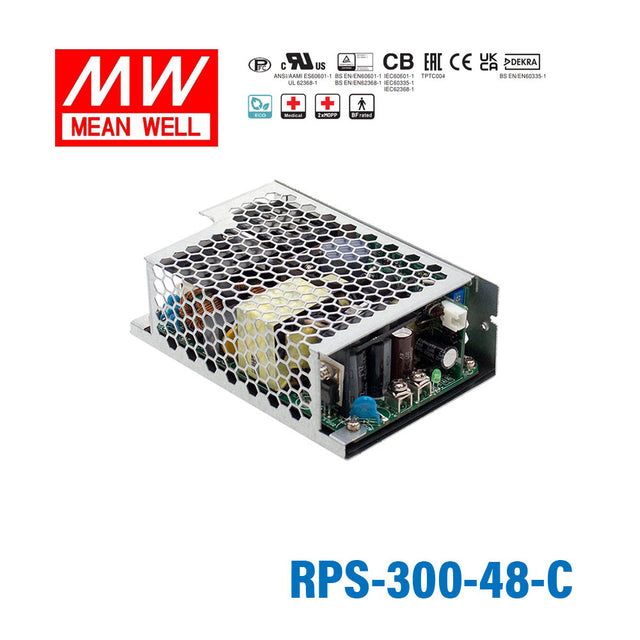

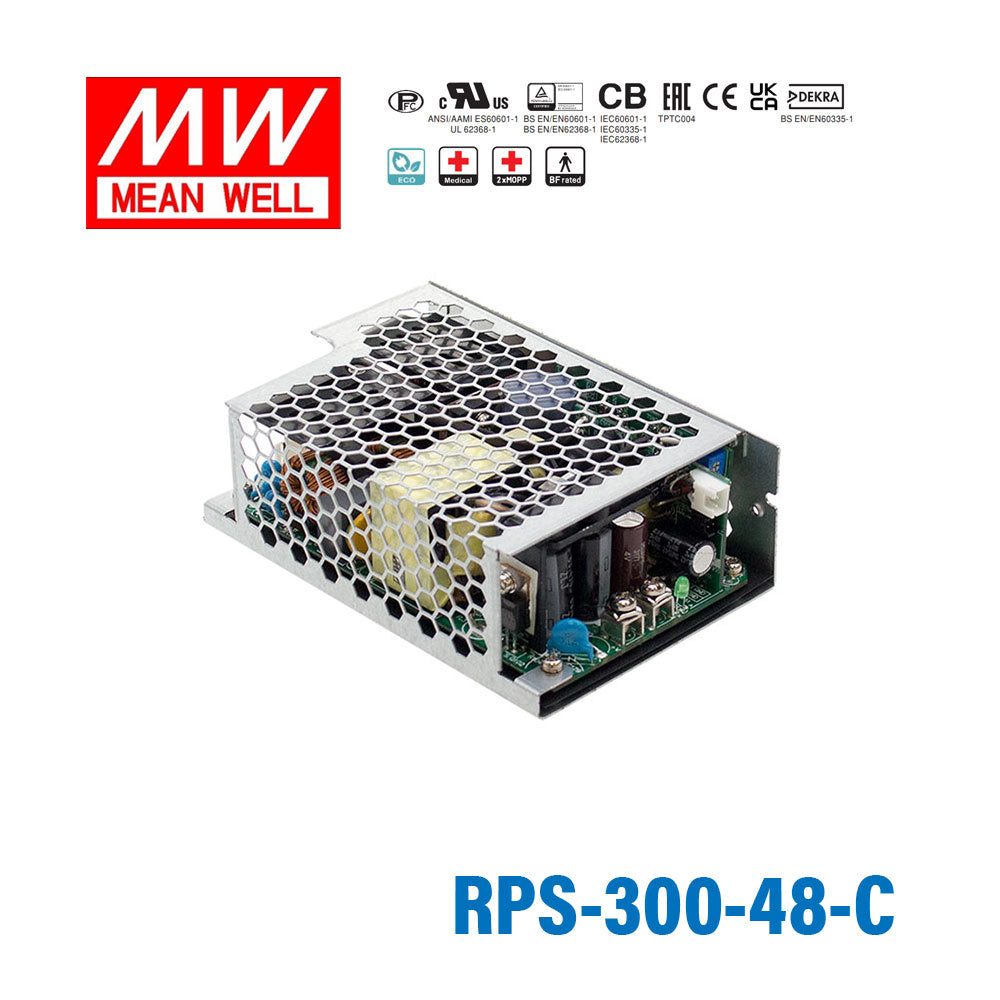

Mean Well RPS-300-48-C Green Power Supply W 48V 4.17A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-300-48-C Green Power Supply W 48V 4.17A - Medical Pow...
The RPS-300-48 is a 300W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, EAC TP TC 004 , UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating200.2 Watt
-
Output Voltage48 Volt
-
Rated Current4.17 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.24 lb
::specification::
Frequently Asked Questions
Can the RPS-300-48-C power a 48V medical device or lab instrument?
Yes, if the device requires a constant 48V DC source and remains within 4.17A and 200.2W. This model is listed as a medical power supply and includes medical safety approval with extreme low leakage current.
Is the RPS-300-48-C a good fit for 48V industrial monitoring or control equipment?
It can be used for 48V industrial monitoring or control equipment that needs constant-voltage output up to 4.17A. The wide 90-264VAC input helps when the same design is used in different AC input environments.
Can I use this for an OEM assembly built around a 48V DC bus?
Yes, provided the OEM assembly is specified for 48V constant voltage and does not exceed 200.2W total load. The unit's dimensions are 130.0 x 86.0 x 43.0 mm, so physical fit should be checked against the enclosure design.
Will the RPS-300-48-C support a 48V automation subsystem in a broad indoor temperature range?
It is rated to operate from -30°C to +70°C, which supports a broad published temperature range for protected equipment environments. The 48V load must still stay within the 4.17A and 200.2W output limit.
How does the RPS-300-48-C compare with other 48V RPS models?
The listed 48V siblings are RPS-120-48 and RPS-120-48-C at 84W and 2.5A, RPS-120S-48 at 120W and 2.5A, RPS-160-48 at 113.4W and 2.3A, RPS-200-48 and RPS-200-48-C at 144W and 3A, RPS-300-48 and RPS-300-48-C at 200.2W and 4.17A, RPS-400-48 variants at 254.4W and 5.3A, and RPS-500-48 variants from 312W at 6.5A up to 499.2W at 10.4A. This version is the 200.2W, 4.17A option in that 48V range.
Can the RPS-300-48-C be used outside or in exposed industrial areas?
No IP rating is shown in the provided specs, so exposed outdoor use is not supported by the published data. The operating temperature range is -30°C to +70°C, but temperature range alone does not indicate weather resistance.
