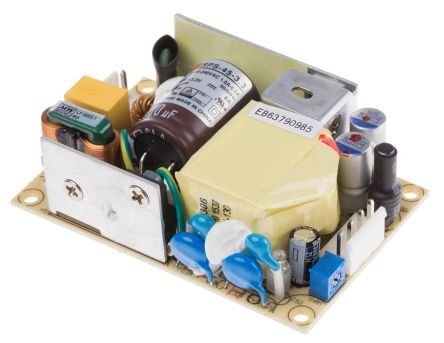

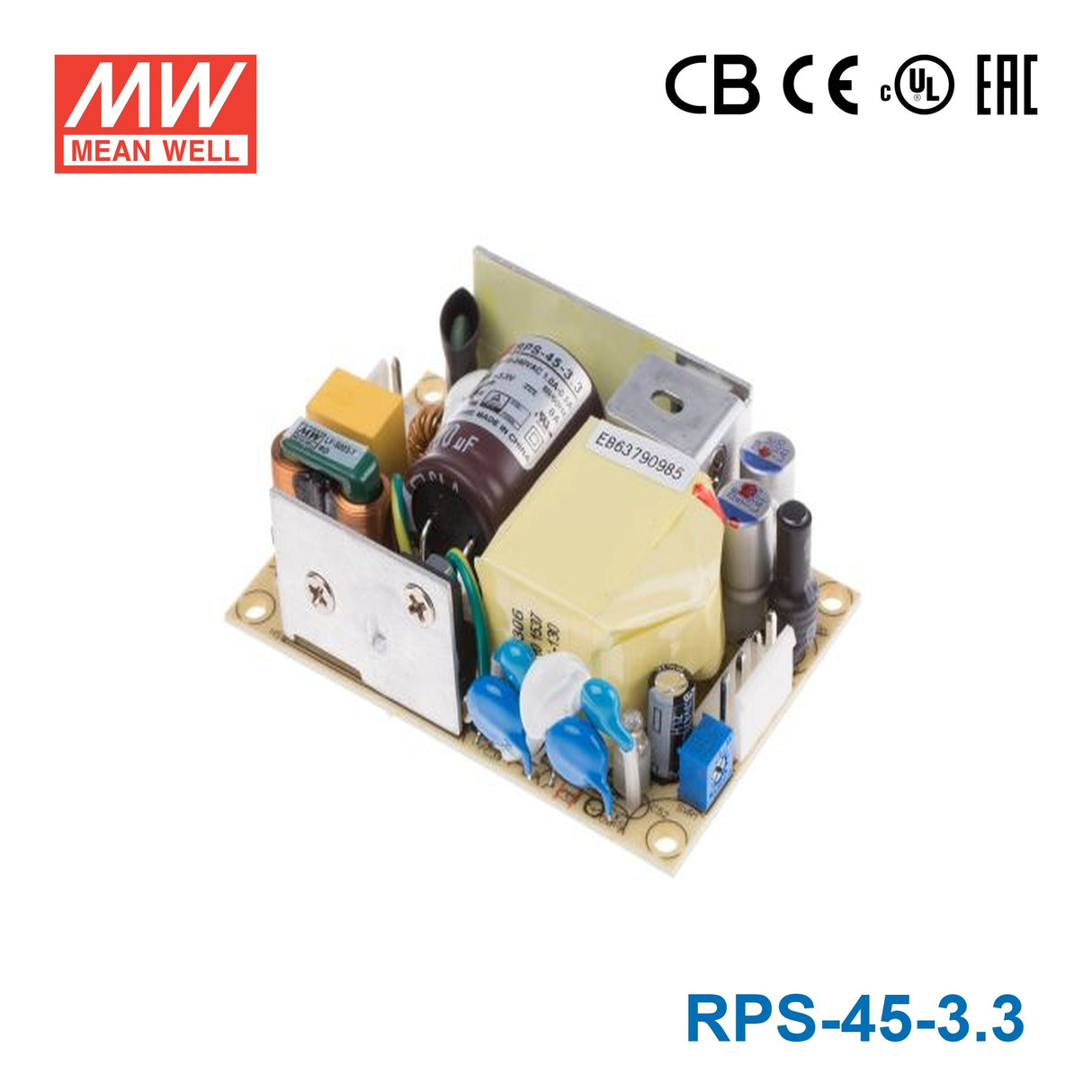

Mean Well RPS-45-3.3 Green Power Supply W 3.3V 8A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-45-3.3 Green Power Supply W 3.3V 8A - Medical Power S...
Description
Description
Features
| 5"x3" compact size |
| 320W convection, 500W force air |
| 550W peak power (3 sec.)/td> |
| Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 |
| MEMI for both Class I & Class II configuration |
| -30~+70°C wide range operating temperature |
| No load power consumption under 0.5W by PS-ON control |
| High efficiency up to 94% |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail, and remote sense |
| Operating altitude up to 4000 meters (Note.5) |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC | 113 ~ 370VDC |
| AC inrush current | COLD START 40A/115VAC 80A/230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 105%~135% hiccup mode, auto-recovery |
| Over-voltage protection | CH1: 115%~135% shut off, re-power on to recovery |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Earth leakage current <220 A/264VAC 50Hz, Touch current < 100 A/264VAC |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160) |
| Connection | 3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH |
| Setup, rise, hold up time | 1000ms, 30ms, 10ms at full load and 230VAC |
| Dimension (LxWxH) | 127 x 76.2 x 41mm | 5 x 3 x 1.61 inch |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating26.4 Watt
-
Output Voltage3.3 Volt
-
Rated Current8 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RPS-45-3.3 for a 3.3V embedded controller or single-board computer inside industrial equipment?
Yes, this model is a constant-voltage 3.3V supply rated for up to 8A and 26.4W. That makes it suitable for 3.3V embedded control hardware as long as the total load stays within those output limits.
Is the RPS-45-3.3 suitable for powering 3.3V logic boards in medical or laboratory devices?
It can fit 3.3V logic and control sections that need a regulated 3.3V output with up to 8A available. This model is medical safety approved and also features extremely low leakage current, which is relevant for medical and lab equipment designs.
Can this 3.3V power supply run low-voltage automation electronics in a compact enclosure?
Yes, it is intended for constant-voltage 3.3V loads and is rated at 26.4W. Its 76.2 x 50.8 x 24.0 mm size and 0.11 kg weight help when space is limited inside compact automation assemblies.
Is the RPS-45-3.3 a good fit for 3.3V sensor hubs or interface boards that need higher current than small board supplies provide?
It is a stronger option when the load needs 3.3V at up to 8A, which is more current than many small board-level supplies provide. Buyers should size the load against the 26.4W maximum output rather than voltage alone.
How does the RPS-45-3.3 compare with other RPS-45 models?
Within the RPS-45 group, the sibling models are RPS-45-5 at 40W, 5V, 8A; RPS-45-7.5 at 40.5W, 7.5V, 5.4A; RPS-45-12 at 45.6W, 12V, 3.8A; RPS-45-15 at 45W, 15V, 3A; RPS-45-24 at 45.6W, 24V, 1.9A; and RPS-45-48 at 45.1W, 48V, 0.94A. The RPS-45-3.3 is the 3.3V version and is rated for 26.4W at 8A.
Can the RPS-45-3.3 be used in outdoor or harsh-temperature locations?
The operating temperature range is -30C to +70C, so it can handle a wide temperature span inside protected equipment. No IP rating is listed, so it is better suited to indoor or enclosed use rather than exposed outdoor locations.
