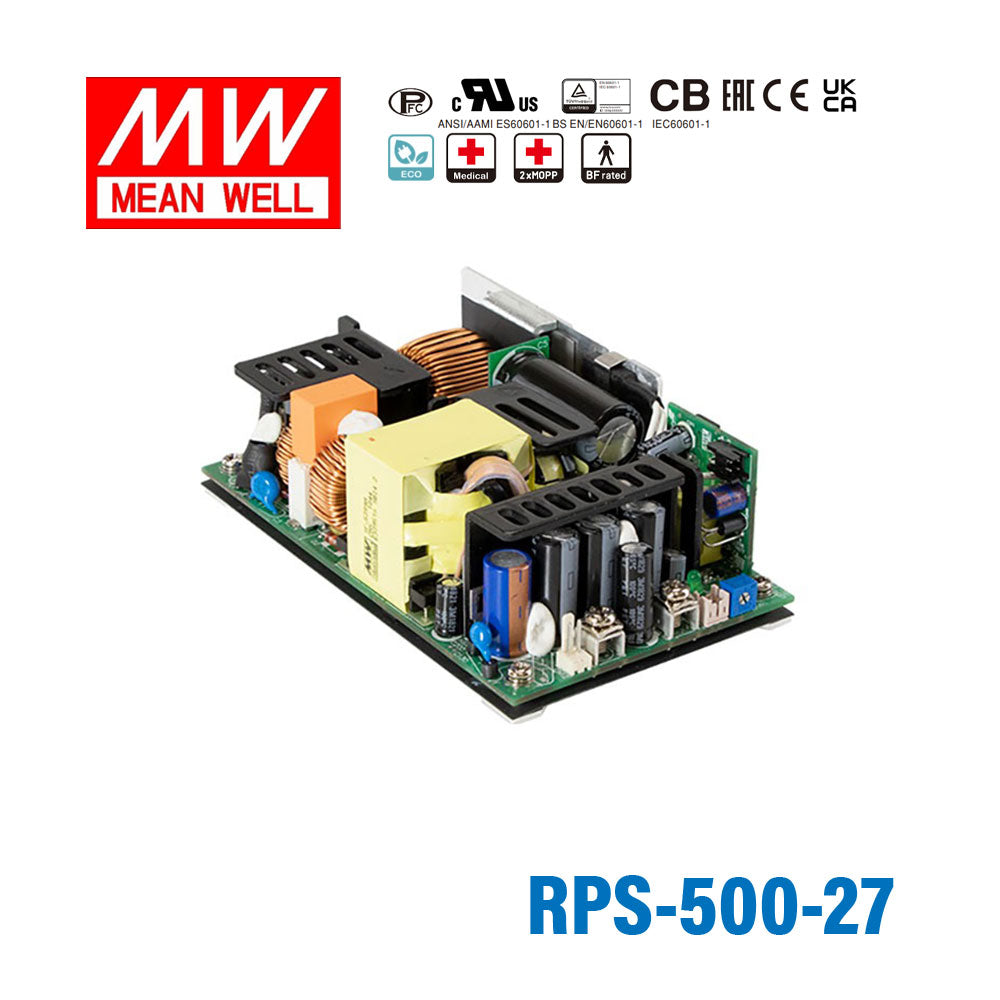

Mean Well RPS-500-27 Green Power Supply W 27V 11.9A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-27 Green Power Supply W 27V 11.9A - Medical Power...
The RPS-500 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating321.3 Watt
-
Output Voltage27 Volt
-
Rated Current11.9 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.61 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the RPS-500-27 for a 27V medical cart or diagnostic device?
Yes, if the equipment requires a constant 27V DC supply and draws no more than 11.9A. This model is rated for 321.3W and is described as medical safety approved with extreme low leakage current, which fits medical equipment power designs.
Is the RPS-500-27 suitable for 27V industrial control or automation equipment?
It can be a fit for industrial or automation systems that need a constant 27V output up to 11.9A. With 321.3W available, it is better suited to higher-load 27V assemblies than lower-power control supplies.
Can this power supply run a 27V embedded system with several DC loads on one power rail?
It is intended for constant-voltage 27V applications and can support a combined load up to 11.9A. That makes it suitable for embedded platforms where the total 27V demand stays within 321.3W.
Is the RPS-500-27 a good choice for a compact 27V OEM device?
It is designed for compact equipment, with dimensions of 127.0 x 76.2 x 41.0 mm and a weight of 0.46 kg. Those specs make it practical for OEM assemblies that need a 27V, 321.3W supply in a relatively small footprint.
How does the RPS-500-27 compare with the other 27V RPS-500 models?
Within the 27V RPS-500 group, the RPS-500-27 is 321.3W at 11.9A, the RPS-500-27-C is 310.5W at 11.5A, and the RPS-500-27-SF and RPS-500-27-TF are both 499.5W at 18.5A. The standard RPS-500-27 is also the smallest and lightest of the four at 127.0 x 76.2 x 41.0 mm and 0.46 kg.
Can the RPS-500-27 be used in outdoor or harsh ambient conditions?
The listed operating temperature is -30C to +70C, so it is built for a wide temperature range. No IP rating is provided in the listed specs, so it is better suited to protected indoor equipment or enclosed systems rather than exposed outdoor locations.
