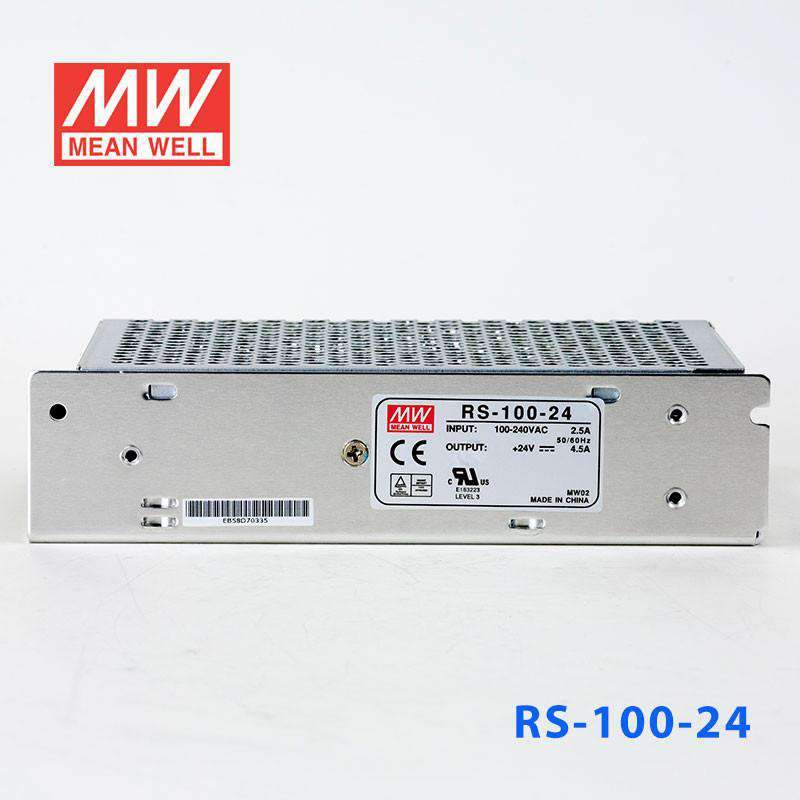

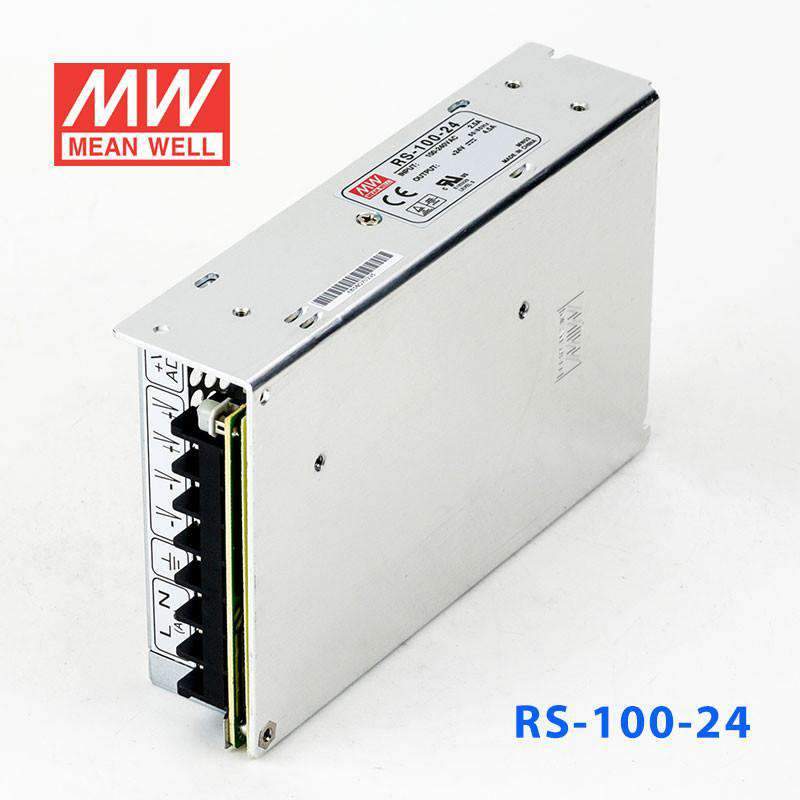

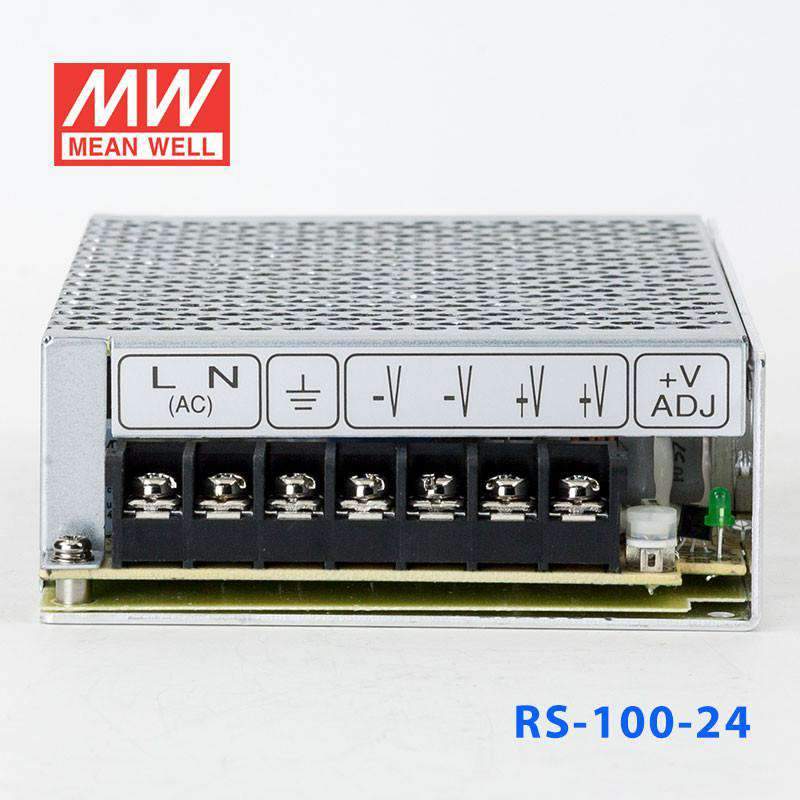

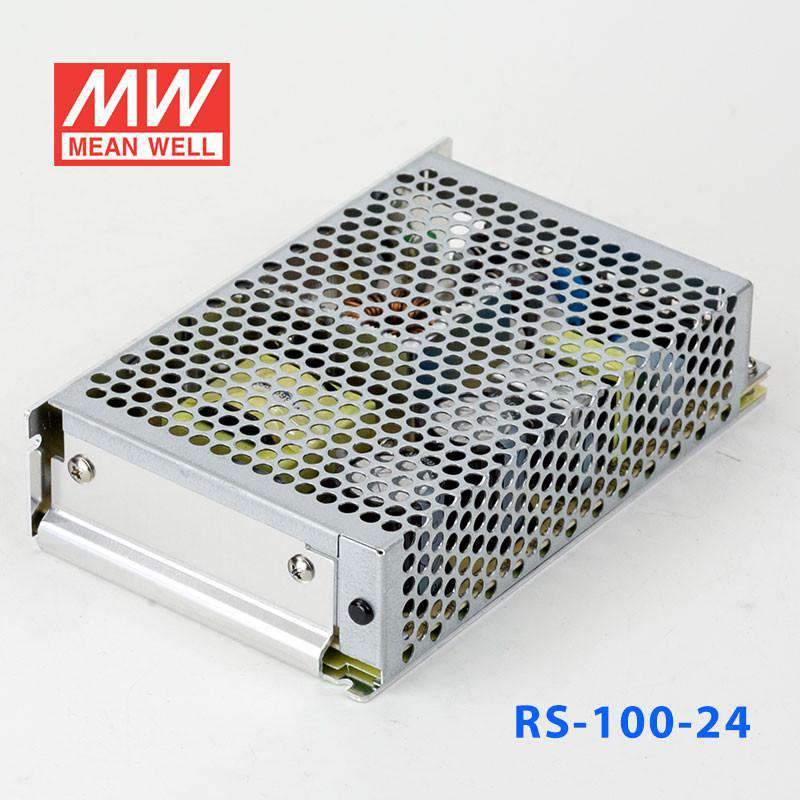

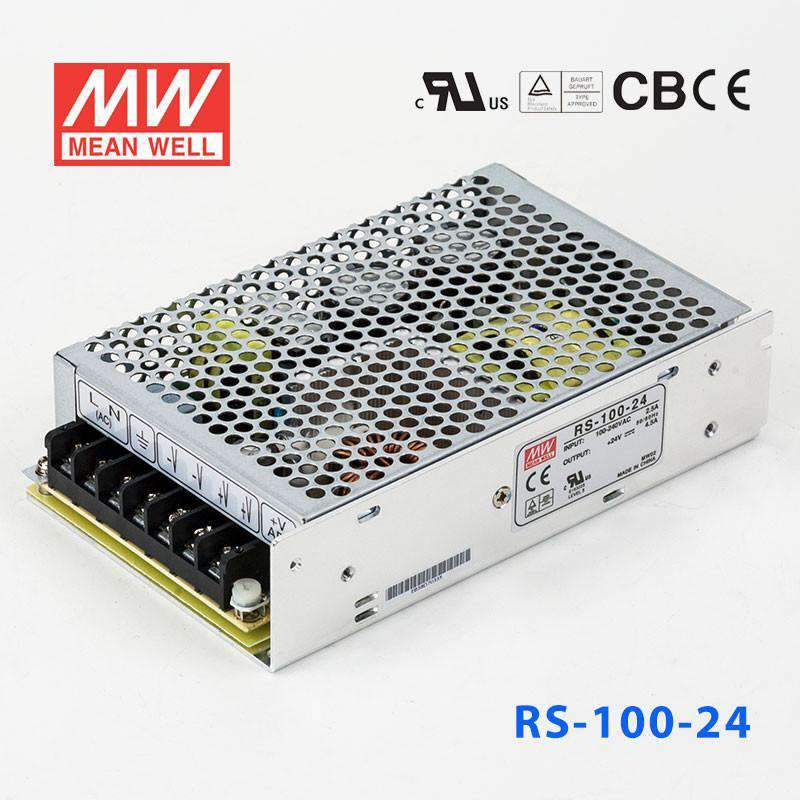

Mean Well RS-100-24 Power Supply 100W 24V
The RS-100 is a Mean Well DIN rail power converter with a 59mm profile (input range: 125~373VDC).
Key Features
- ✓ 59mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 125~373VDC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368 TUV EN62368-~ EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRS Series
-
Power Rating108 Watt
-
Output Voltage24 Volt
-
Rated Current4.5 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.32 lb
::specification::
Frequently Asked Questions
Can I use the RS-100-24 for a 24V PLC, sensor bank, or industrial control load?
Yes, this is a constant-voltage 24V model rated for 4.5A and 108W. It fits enclosed industrial control applications that require a 24V DC rail within those limits.
Is the RS-100-24 appropriate for factory automation equipment that runs on 24V DC?
It is well aligned with automation equipment that uses a 24V constant-voltage bus and draws no more than 4.5A or 108W. The listed certifications include CB, CE, EAC, TÜV, and UL, which can be relevant in industrial equipment selection.
Can this model power 24V industrial networking or embedded devices in a cabinet?
It can support enclosed IT, embedded, or communication devices designed for 24V DC, provided the total load stays within 4.5A. The miniature housing size of 159.0 × 97.0 × 38.0 mm also suits compact cabinet layouts.
Is the RS-100-24 suitable for outdoor installations?
The operating temperature range is listed as -25°C to +70°C, but the provided specs do not include an IP rating. Without a stated ingress-protection rating, the listed data supports use in protected indoor enclosures rather than exposed outdoor mounting.
How does the RS-100-24 compare with the other RS-100 outputs?
In the RS-100 family shown here, RS-100-3.3 is 66W at 3.3V 20A, RS-100-5 is 80W at 5V 16A, RS-100-12 is 102W at 12V 8.5A, RS-100-15 is 105W at 15V 7A, RS-100-24 is 108W at 24V 4.5A, and RS-100-48 is 110.4W at 48V 2.3A. RS-100-12-OB is listed as well, but its output specs are not included in the provided data.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RS-100 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RS-100-5 Power Supply 100W 5V | 80W | 5V | 16A | Indoor | $27.40 | View |
| Mean Well RS-100-48 Power Supply 100W 48V | 110.4W | 48V | 2.3A | Indoor | $27.40 | View |
| Mean Well RS-100-3.3 Power Supply 100W 3.3V | 66W | 3.3V | 20A | Indoor | $27.39 | View |
| Mean Well RS-100-15 Power Supply 100W 15V | 105W | 15V | 7A | Indoor | $24.11 | View |
| Mean Well RS-100-12 Power Supply 100W 12V | 102W | 12V | 8.5A | Indoor | $27.40 | View |
