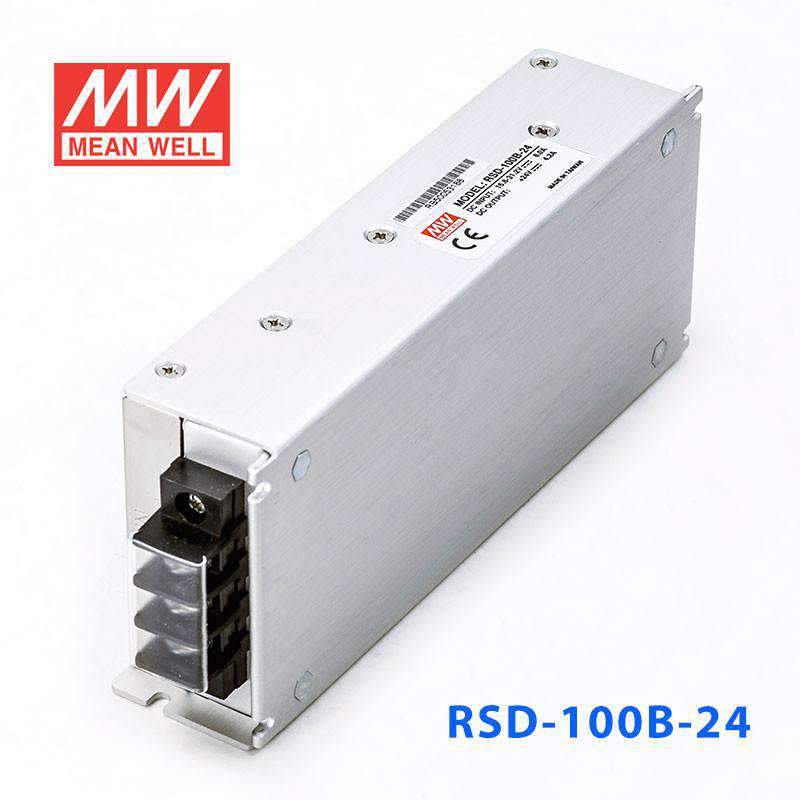

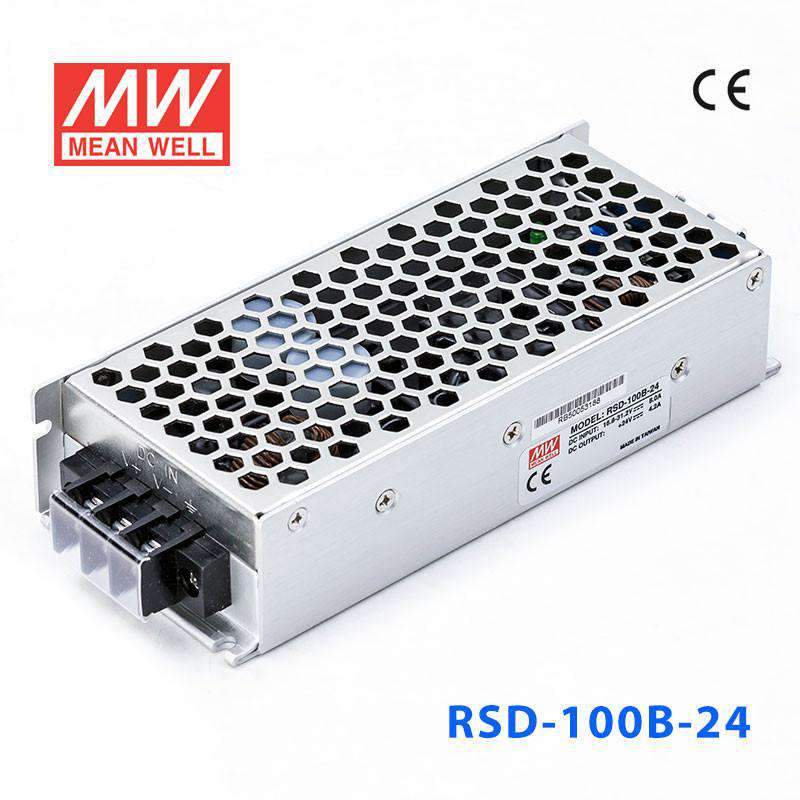

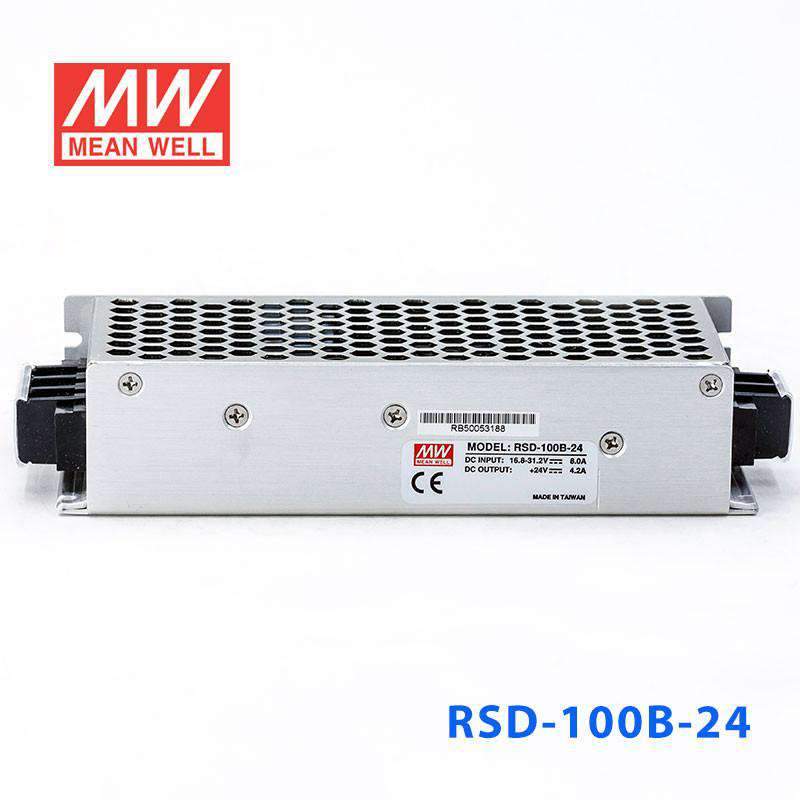

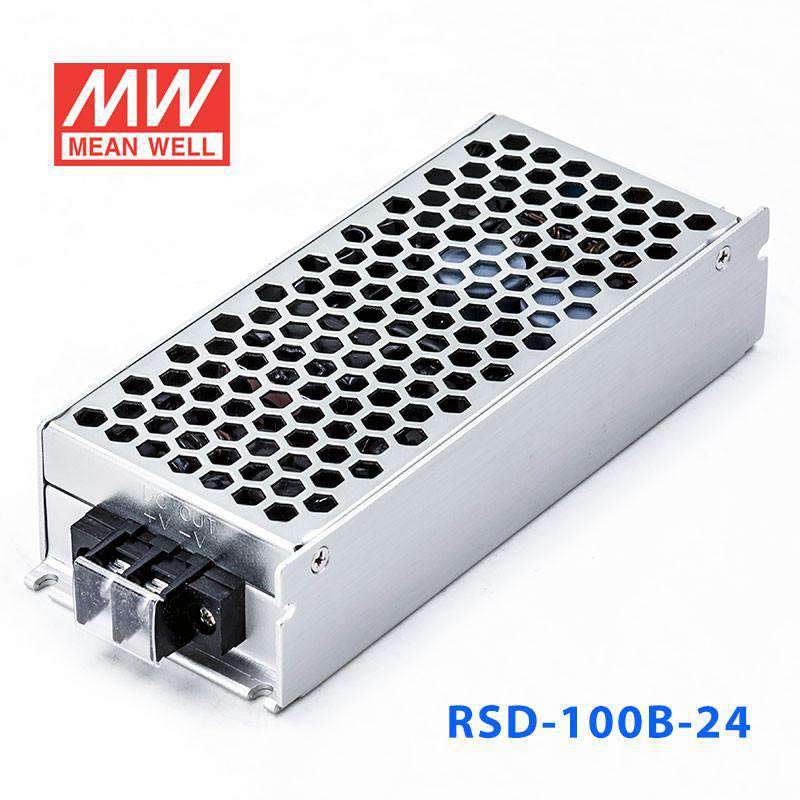

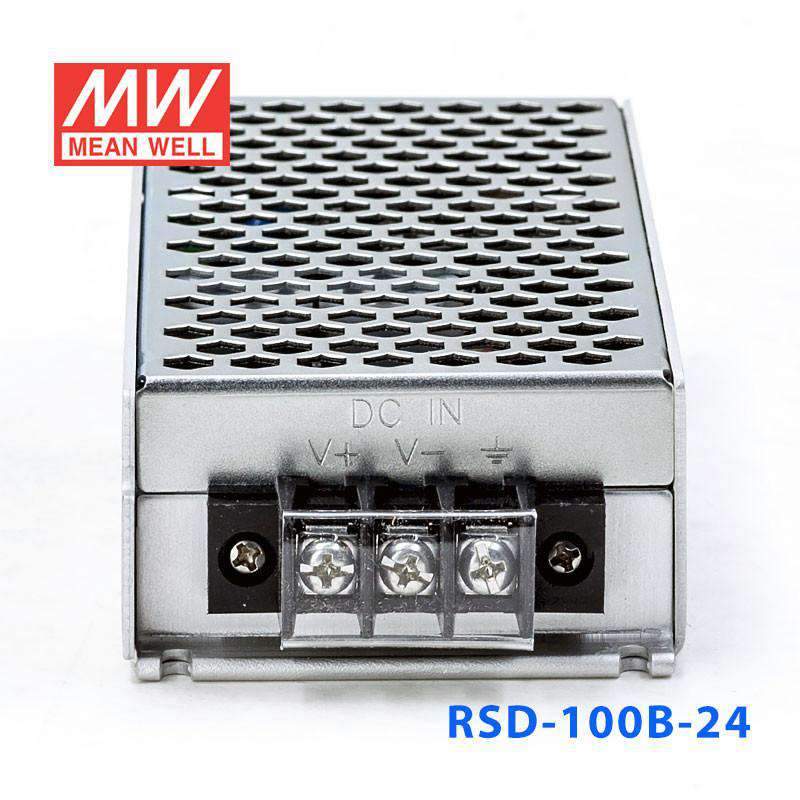

Mean Well RSD-100B-24 DC-DC Converter - 100.8W - 16.8~31.2V in 24V out
miniature size, economical, withstand 5G vibration and 70°C operation
SKU:
RSD-100B-24
$69.21 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Description
Description
Features
Compliance to EN50155 railway standard |
2: 1 wide input range |
4000VDC I / O isolation |
Protections: Short circuit / Overload / Over voltage / Input reverse polarity |
Cooling by free air convection |
Built-in constant current limiting circuit |
1U low profile |
All using 105 ° C long life electrolytic |
Half encapsulated |
100% full load burn-in test |
3 years warranty |
General Specification
Line regulation (max.) | ± 0.5% |
ALoad regulation (max.) | ± 1% |
Overload protection Range | 105% ~ 135% |
Overload protection Type | Constant current limiting, recovers automatically after fault condition is removed |
Over voltage protection | 115% to 135% Shutdown O / P voltage, re-power on to recover |
Withstand voltage | I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute |
Isolation resistance | 100MQ(min.)@500VDC |
Working temperature | -40 ~ + 70°C (refer to output derating curve) |
Safety standards | Meet IEC60950-1 (LVD) |
EMC standards | EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8 |
Railway standard | EN50155 / IEC60571 |
Dimension (LxWxH) (mm) | 161x68x36 |
Packing | 24pcs / 15.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating100.8 Watt
-
Output Voltage24 Volt
-
Rated Current4.2 Ampere
-
Input Voltage16.8V~31.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.68 in
-
Height1.42 in
-
Weight1.24 lb
