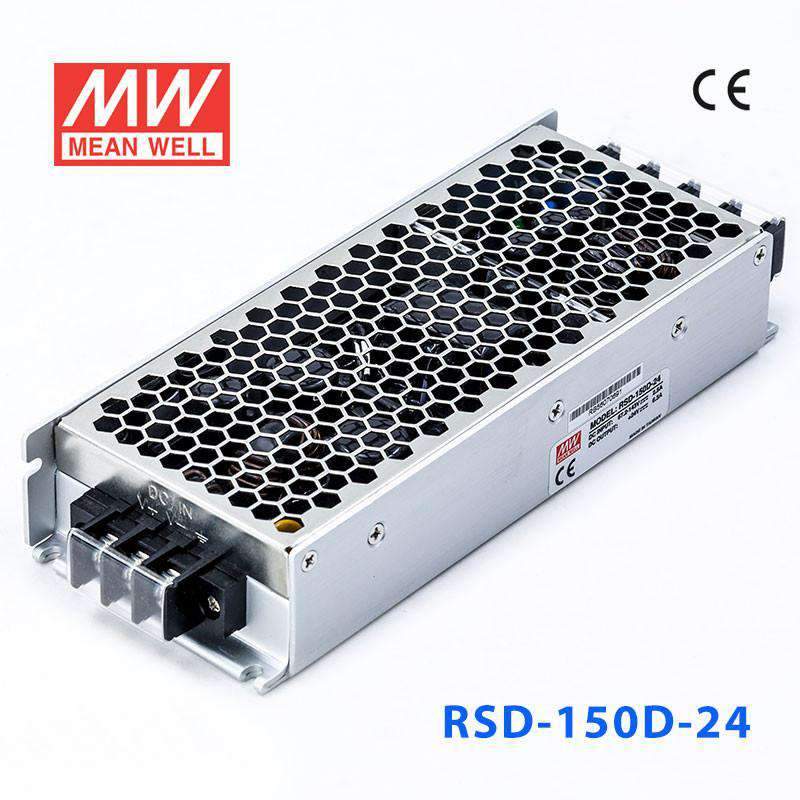

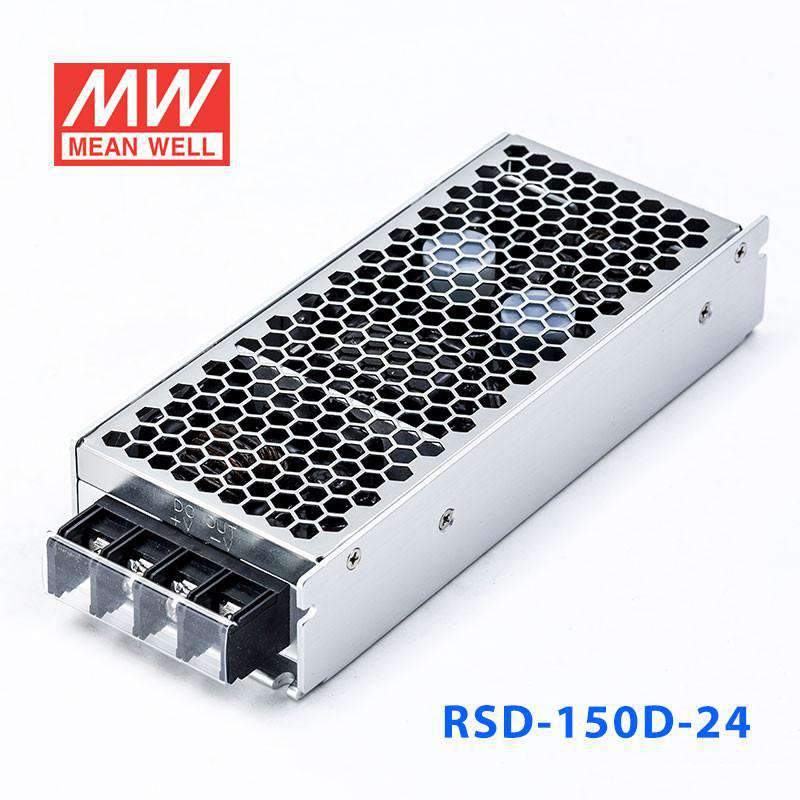

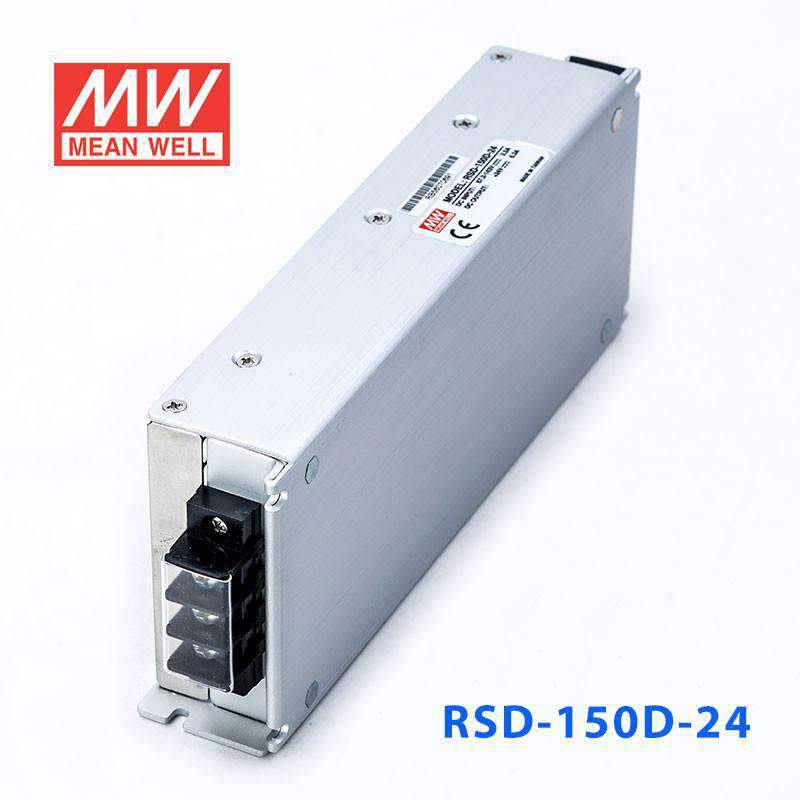

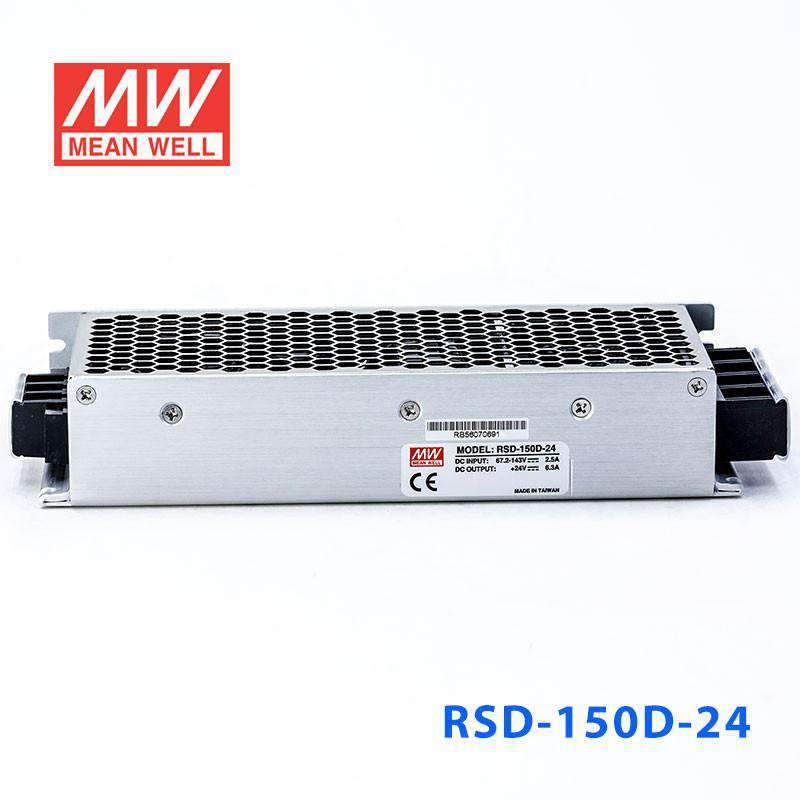

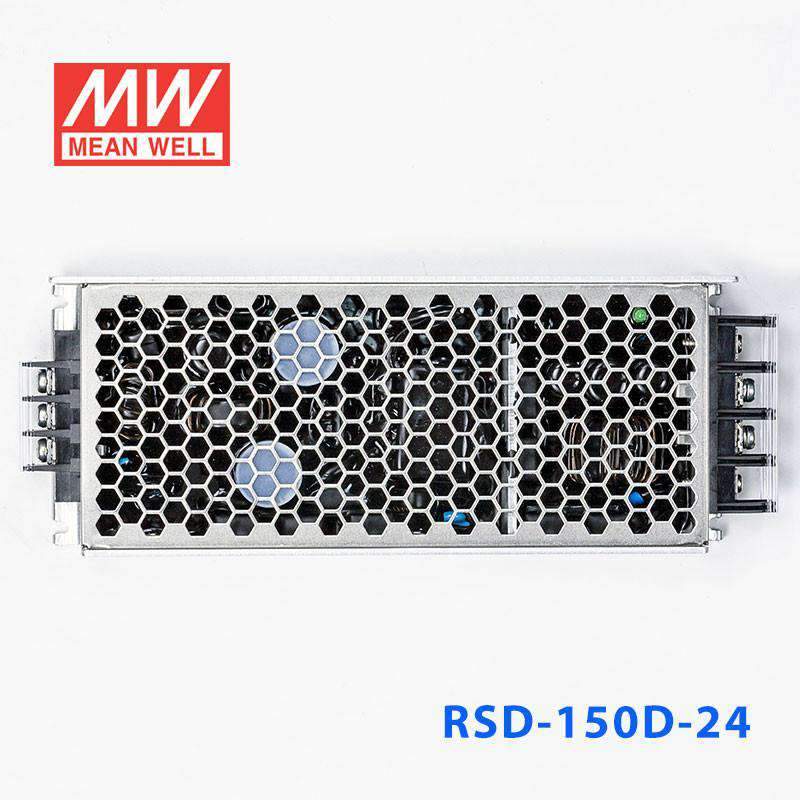

Mean Well RSD-150D-24 DC-DC Converter - 151.2W - 67.2~143V in 24V out

miniature size, economical, withstand 5G vibration and 70°C operation

SKU:

RSD-150D-24

$88.00 USD ~~$88.31~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Compliance to EN50155 railway standard

2: 1 wide input range

4000VDC I / O isolation

Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.

Cooling by free air convection

Built-in constant current limiting circuit

1U low profile

All using 105 ° C long life electrolytic

Half encapsulated

100% full load burn-in test

3 years warranty

General Specification

Line regulation (max.)	± 0.5%
ALoad regulation (max.)	± 1%
Overload protection Range	105% ~ 135%
Overload protection Type	Constant current limiting, recovers automatically after fault condition is removed
Over voltage protection	115% to 135% Shutdown O / P voltage, re-power on to recover
Withstand voltage	I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute
Isolation resistance	100MQ(min.)@500VDC
Working temperature	-40 ~ + 70°C (refer to output derating curve)
Safety standards	Meet IEC60950-1 (LVD)
EMC standards	EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8
Railway standard	EN50155 / IEC60571
Dimension (LxWxH) (mm)	189x77x36
Packing	15pcs / 13kg

Specifications

Brand

Mean Well
Series

RSD Series
Power Rating

151.2 Watt
Output Voltage

24 Volt
Rated Current

6.3 Ampere
Input Voltage

67.2V~143V
No of Output

2
Dimming Control

None
Standards Met

CB,CE,EAC,EMC,RCM
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

7.44 in
Width

3.03 in
Height

1.42 in
Weight

1.76 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the RSD-150D-24 for 24V PLC or industrial I/O systems on a 67.2 to 143V DC source?

Yes, it provides a constant 24V output from a 67.2 to 143V input range. With 6.3A output current and a 151.2W rating, it fits regulated 24V automation loads within that power range.

Is the RSD-150D-24 appropriate for 24V monitoring, control, or communications hardware on higher-voltage DC buses?

It is intended for applications where the source voltage is in the 67.2 to 143V range but the equipment needs a stable 24V output. The 24V constant voltage design and 6.3A capacity make it relevant for many industrial electronics and control subsystems.

Can this model be used in compact mobile or vehicle-based 24V control assemblies?

It can be a fit where the input voltage matches 67.2 to 143V and the load requires 24V at up to 6.3A. The 189.0 x 77.0 x 36.0 mm dimensions, 0.8 kg weight, and 5G vibration specification are useful in space-constrained equipment exposed to motion.

How well does the RSD-150D-24 handle temperature extremes or exposed conditions?

The unit is rated for -40°C to +85°C operation and includes a 70°C operation feature, so temperature capability is broad. Because no IP rating is listed, it is best used in protected enclosures rather than directly exposed outdoor locations.

How does the RSD-150D-24 compare with the 5V and 12V versions in the same family?

The RSD-150D-24 is rated at 151.2W with a 24V output and 6.3A output current. In the same RSD-150D range, the RSD-150D-12 is 150W, 12V, and 12.5A, while the RSD-150D-5 is 150W, 5V, and 30A.
