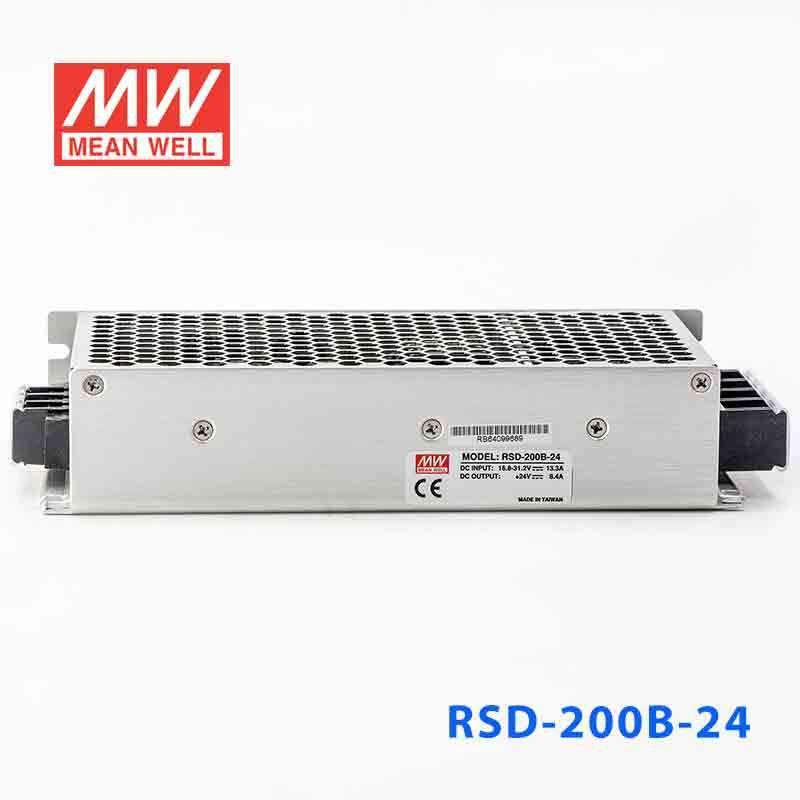

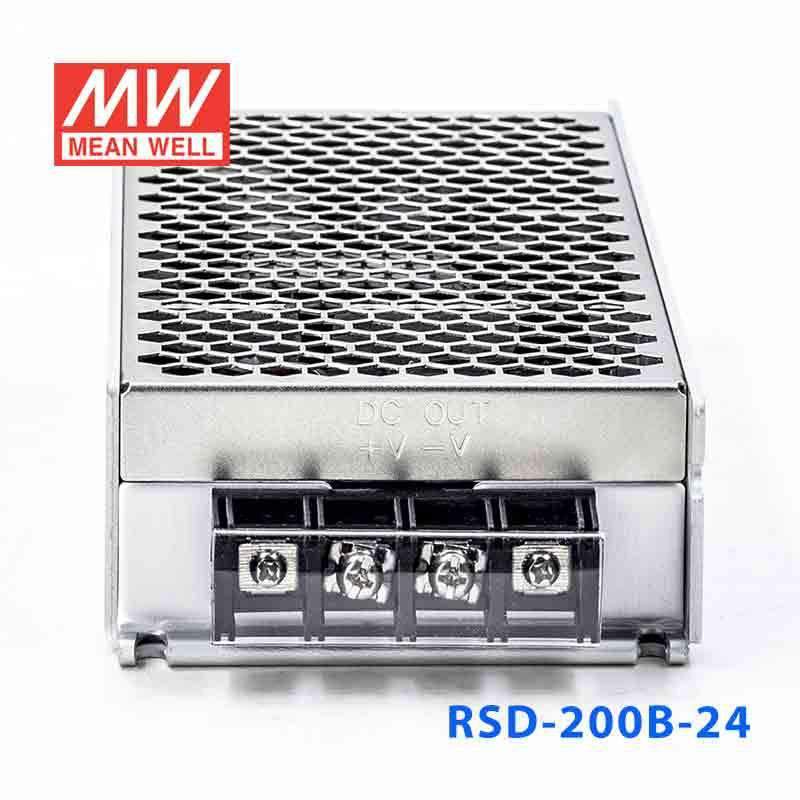

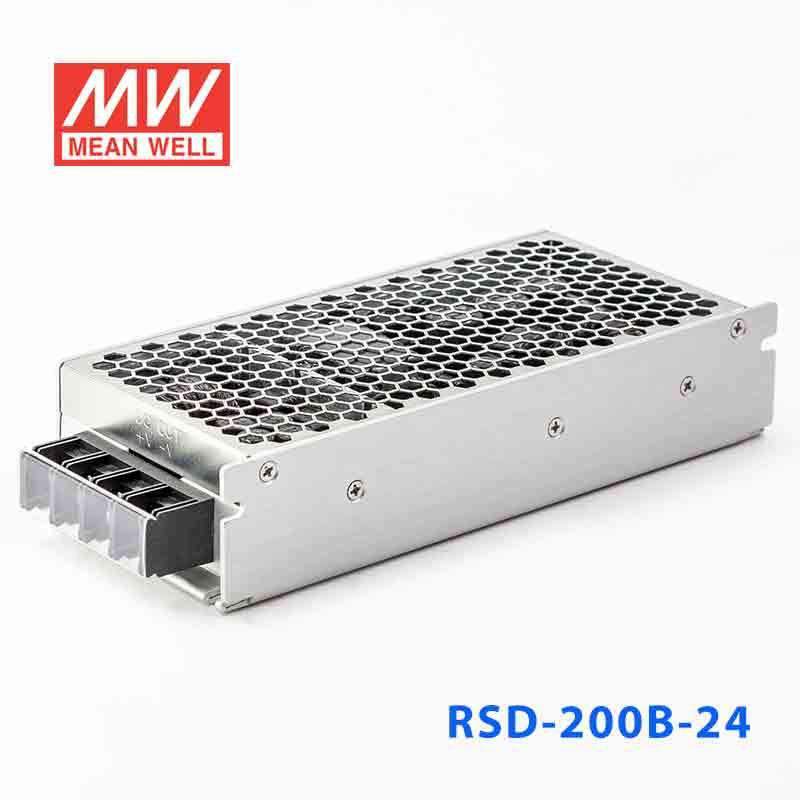

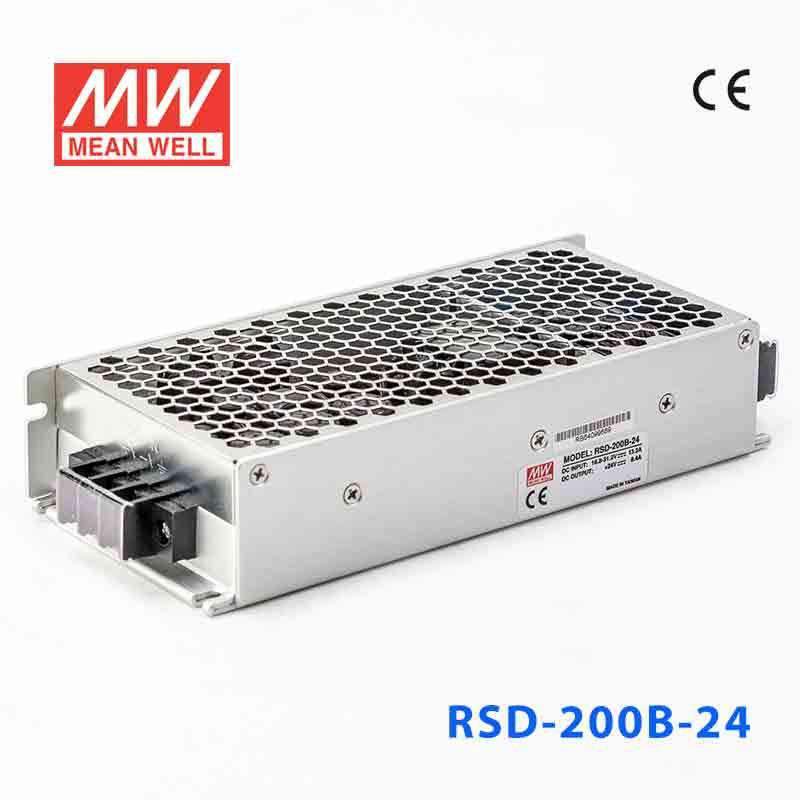

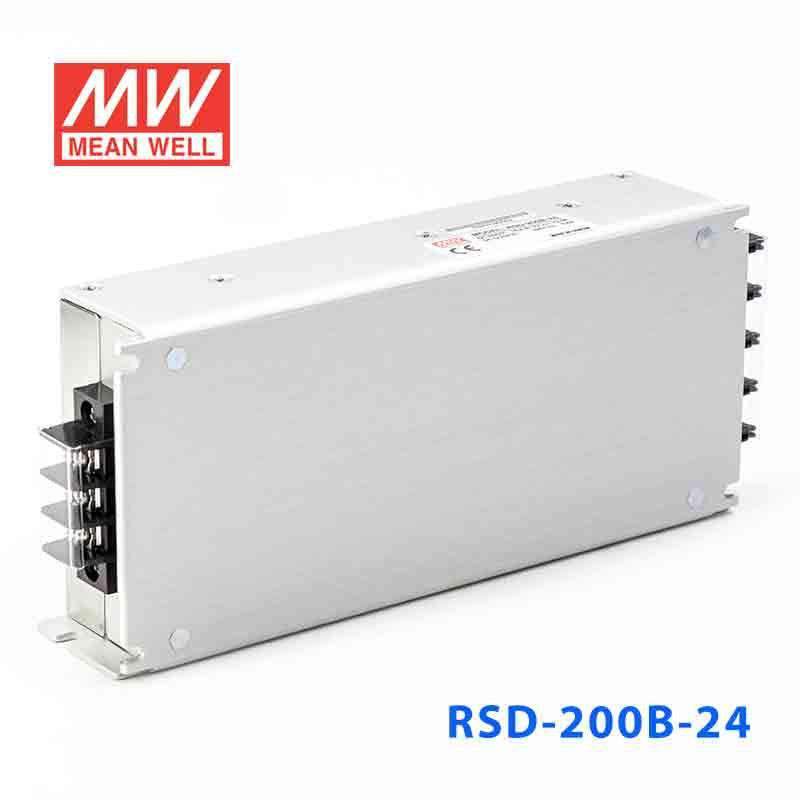

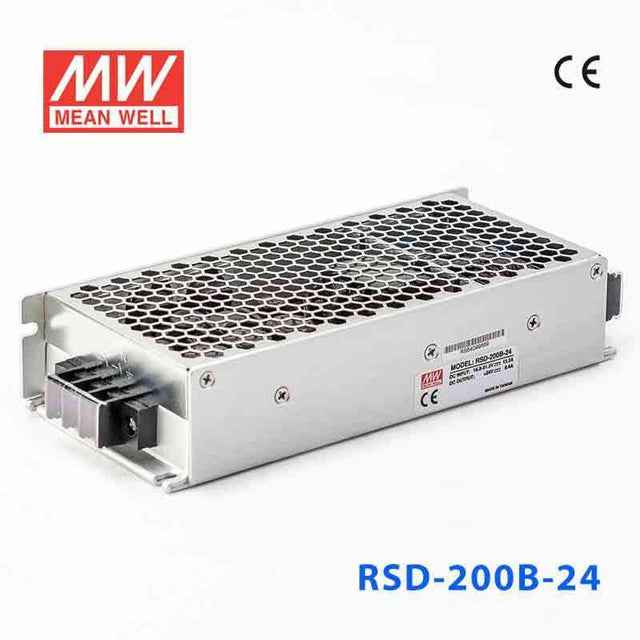

Mean Well RSD-200B-24 DC-DC Converter - 201.6W - 16.8~31.2V in 24V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-200B-24 DC-DC Converter - 201.6W - 16.8~31.2V in 24V out
The RSD-200B is a 200W Mean Well power converter (input range: 16.8~31.2VDC).
Key Features
- ✓ Input voltage range: 16.8~31.2VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: IEC61373 5000 meters UL 62368-1, IEC 62368-1 AS/NZS 62368-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating201.6 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage16.8V~31.2V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length7.52 in
-
Width3.39 in
-
Height1.57 in
-
Weight2.07 lb
::specification::
Frequently Asked Questions
Can I use the RSD-200B-24 to power 24V PLCs or industrial I/O modules from a low-voltage DC source?
Yes, it provides constant-voltage 24V output and is rated for up to 8.4A and 201.6W. Its input range is 16 to 31V, so it is suited to stepping that source range up to a regulated 24V rail.
Is this converter suitable for 24V sensors, relays, and automation accessories in equipment that already has a 24V-class battery source?
It can be used for 24V control and automation loads when the total demand stays within 8.4A and 201.6W. The 16 to 31V input range makes it appropriate for systems where the source voltage varies within that band.
Can the RSD-200B-24 support 24V embedded or industrial communication hardware in mobile systems?
It can be a fit for 24V embedded and communication equipment that needs a regulated 24V output up to 8.4A. The published operating range of -40°C to +85°C and the 5G vibration feature are relevant for mobile and industrial duty conditions.
Is the RSD-200B-24 appropriate for compact industrial cabinets with limited space?
Its dimensions are 191.0 × 86.0 × 40.0 mm, so it is relatively compact for a 201.6W converter. That makes it useful where cabinet layout matters but 24V power at up to 8.4A is still required.
What are the differences between the RSD-200B-24 and the other RSD-200B models?
The RSD-200B-12 is rated 200.4W at 12V and 16.7A, the RSD-200B-24 is rated 201.6W at 24V and 8.4A, and the RSD-200B-48 is rated 201.6W at 48V and 4.2A. The key difference is the available output voltage and the matching output current.
Can this 24V converter be used in very cold or high-heat industrial environments?
The stated operating temperature range is -40°C to +85°C, which supports both low-temperature and high-temperature operation. No IP rating is listed in the provided specs, so exposed outdoor use depends on the protection provided by the final enclosure.
