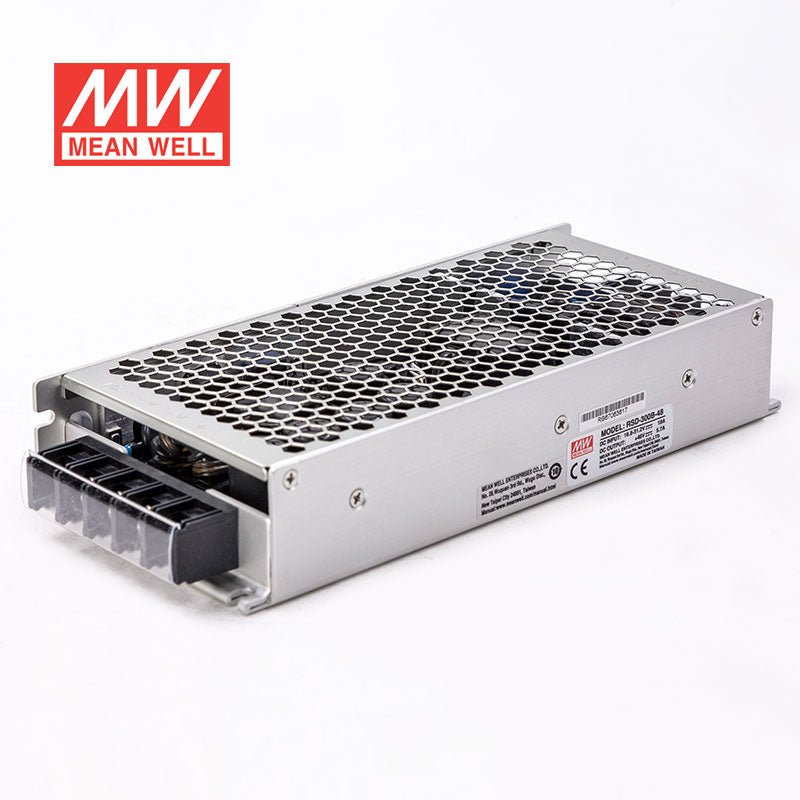

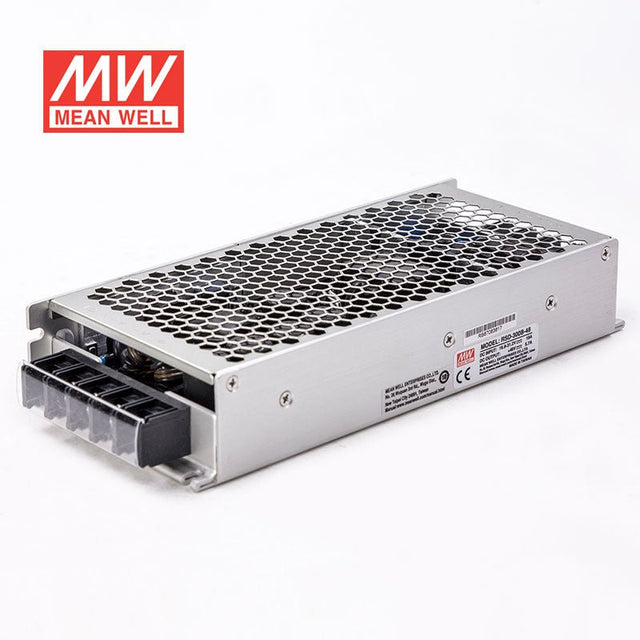

Mean Well RSD-300B-48 DC-DC Converter - 200.4W - 16.8~31.2V in 48V out
miniature size, economical, withstand 5G vibration and 70°C operation
$128.50 USD
Unit price /
Unavailable
Shipping calculated at checkout.
Notify me when it's back in stock
|
Your order will be processed within 24 hours
Mean Well RSD-300B-48 DC-DC Converter - 200.4W - 16.8~31.2V in 48V out
$128.50 USD
Unit price /
Unavailable
Description
Description
Features
| Compliance with BS EN/EN50155 and BS EN/EN45545-2 railway standard |
| 2:1 wide input range |
| Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp. |
| 4000VDC I / O isolation |
| Cooling by free air convection |
| Half encapsulated |
| The built-in constant current limiting circuit |
| 1U low profile |
| All using 105°C long life electrolytic |
| LED indicator for power on |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| Line regulation (max.) | ± 0.5% |
| Load regulation (max.) | ± 1% |
| Overload protection Range | 105% ~ 135% |
| Overload protection Type | Constant current limiting recovers automatically after the fault condition is removed |
| Over-voltage protection | 115% to 135% Shutdown O / P voltage, re-power on to recover |
| Withstand voltage | I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
| Working temperature | -40 ~ + 55°C (refer to output derating curve) |
| Safety standards | IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 |
| EMC standards | EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8 |
| Railway standard | EN50155 / IEC60571 |
| Dimension (LxWxH) (mm) | 216 x 96.5 x 40mm |
| Packing | 1.19Kg ; 12pcs/15.3Kg/0.97CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating200.4 Watt
-
Output Voltage48 Volt
-
Rated Current5.7 Ampere
-
Input Voltage16.8V~31.2V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length8.5 in
-
Width3.8 in
-
Height1.57 in
-
Weight2.62 lb
