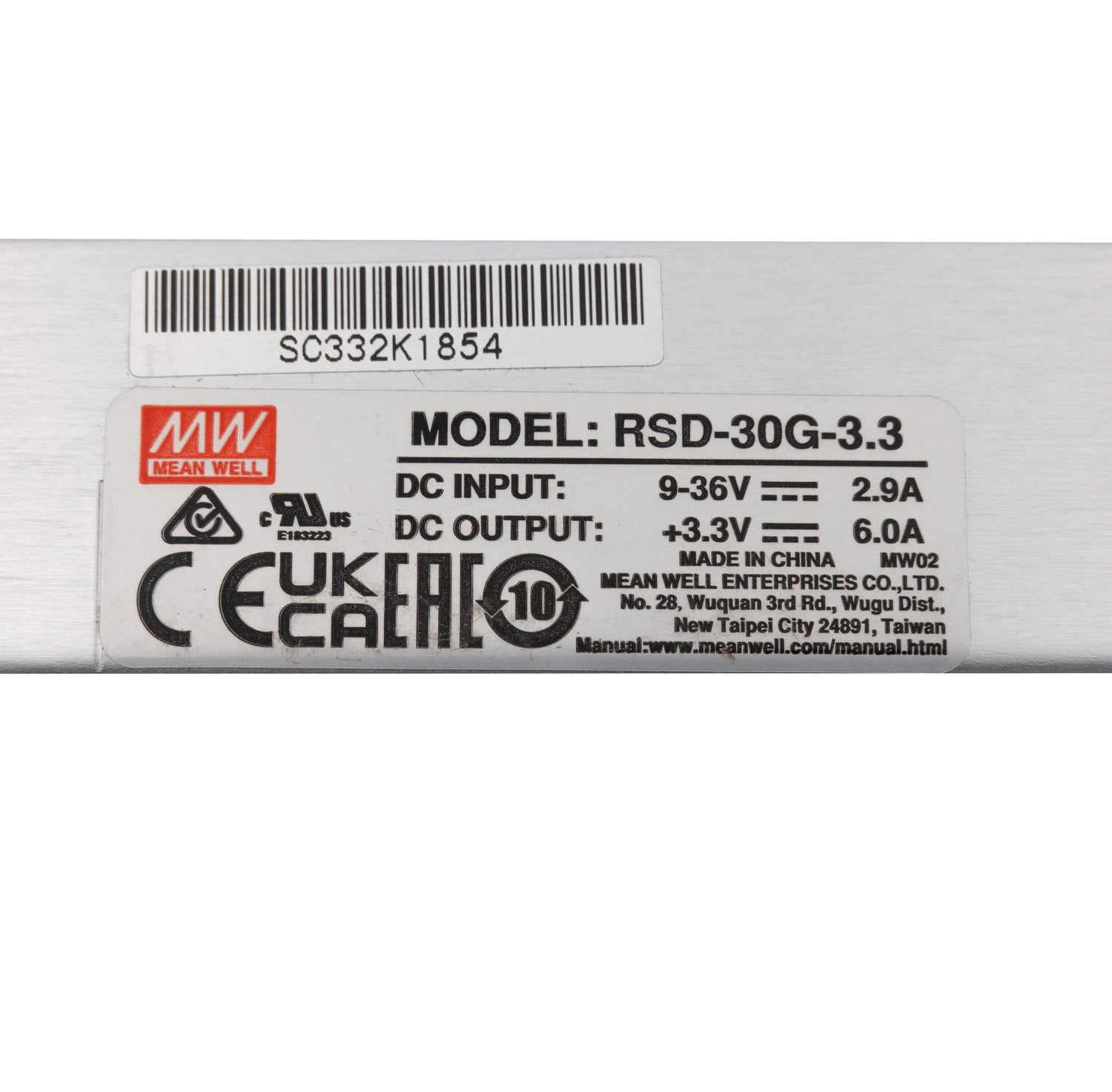

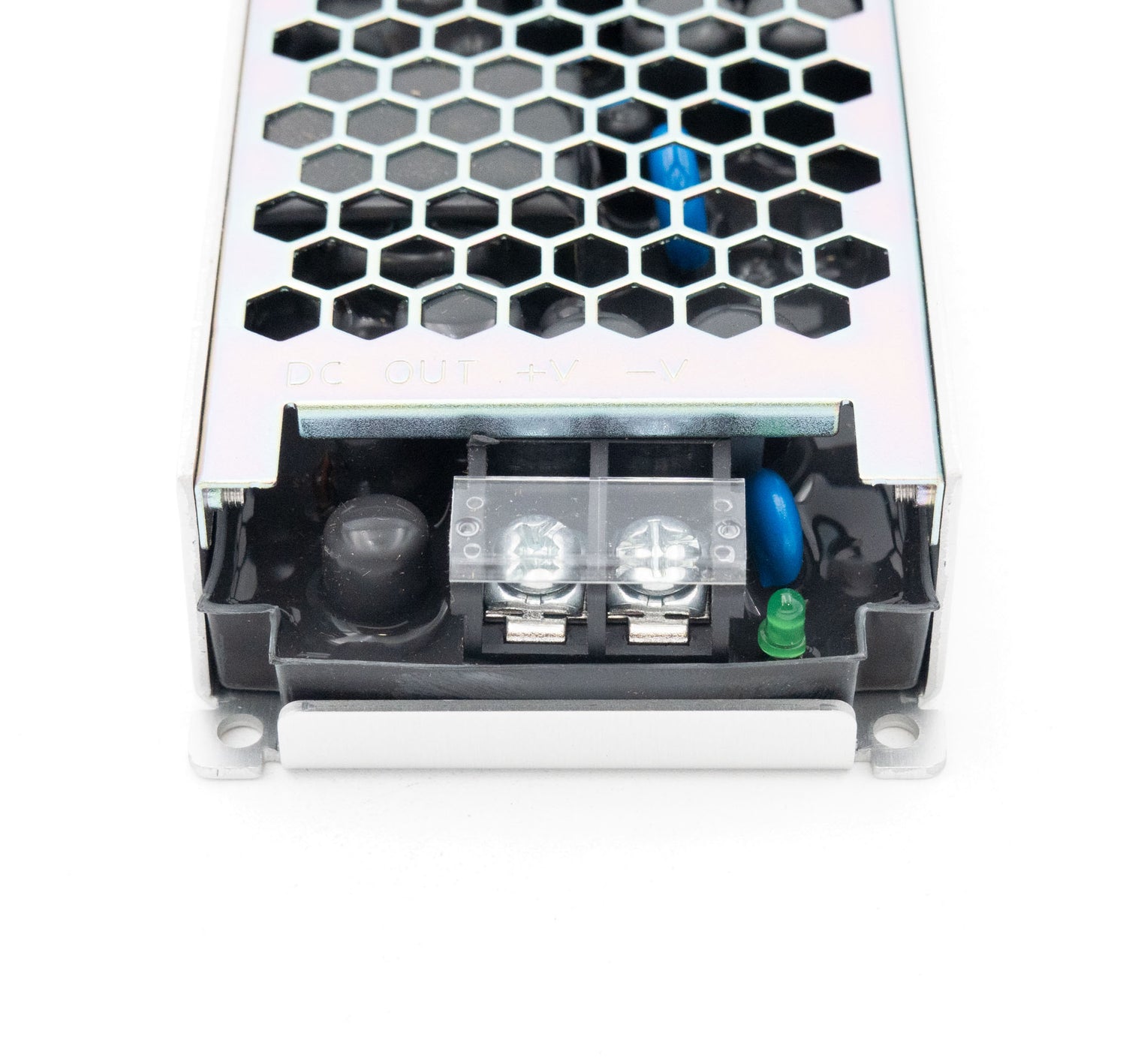

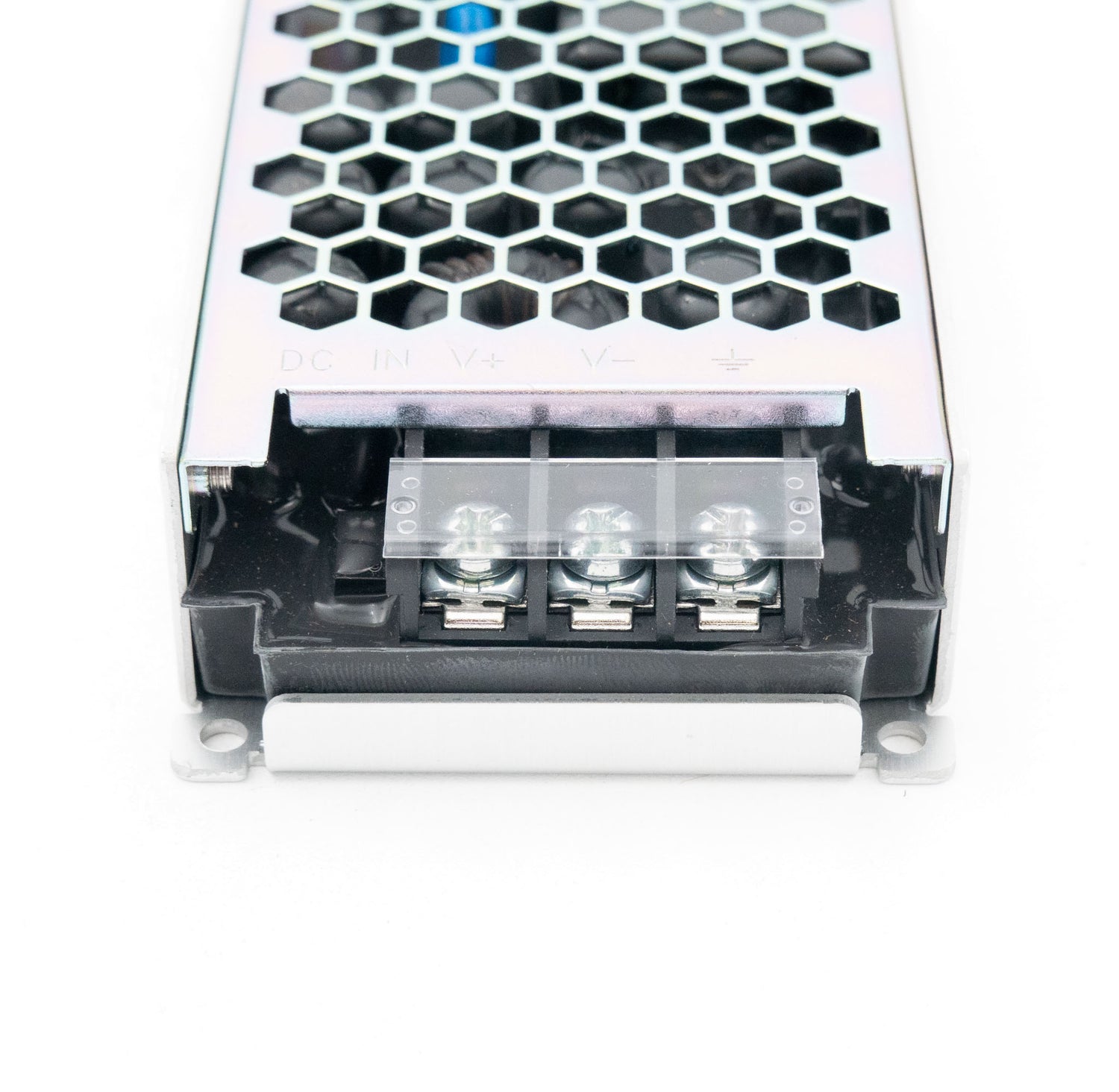

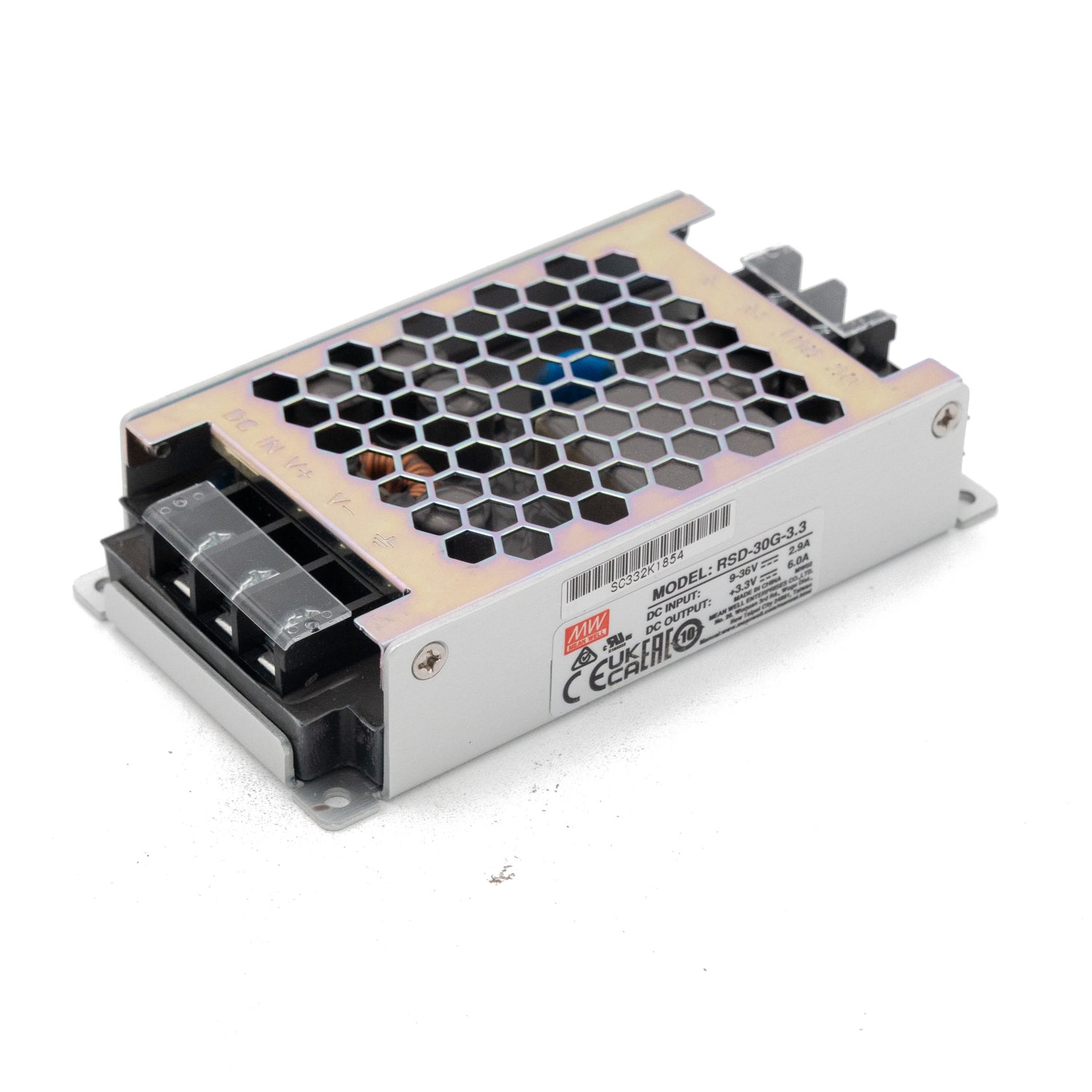

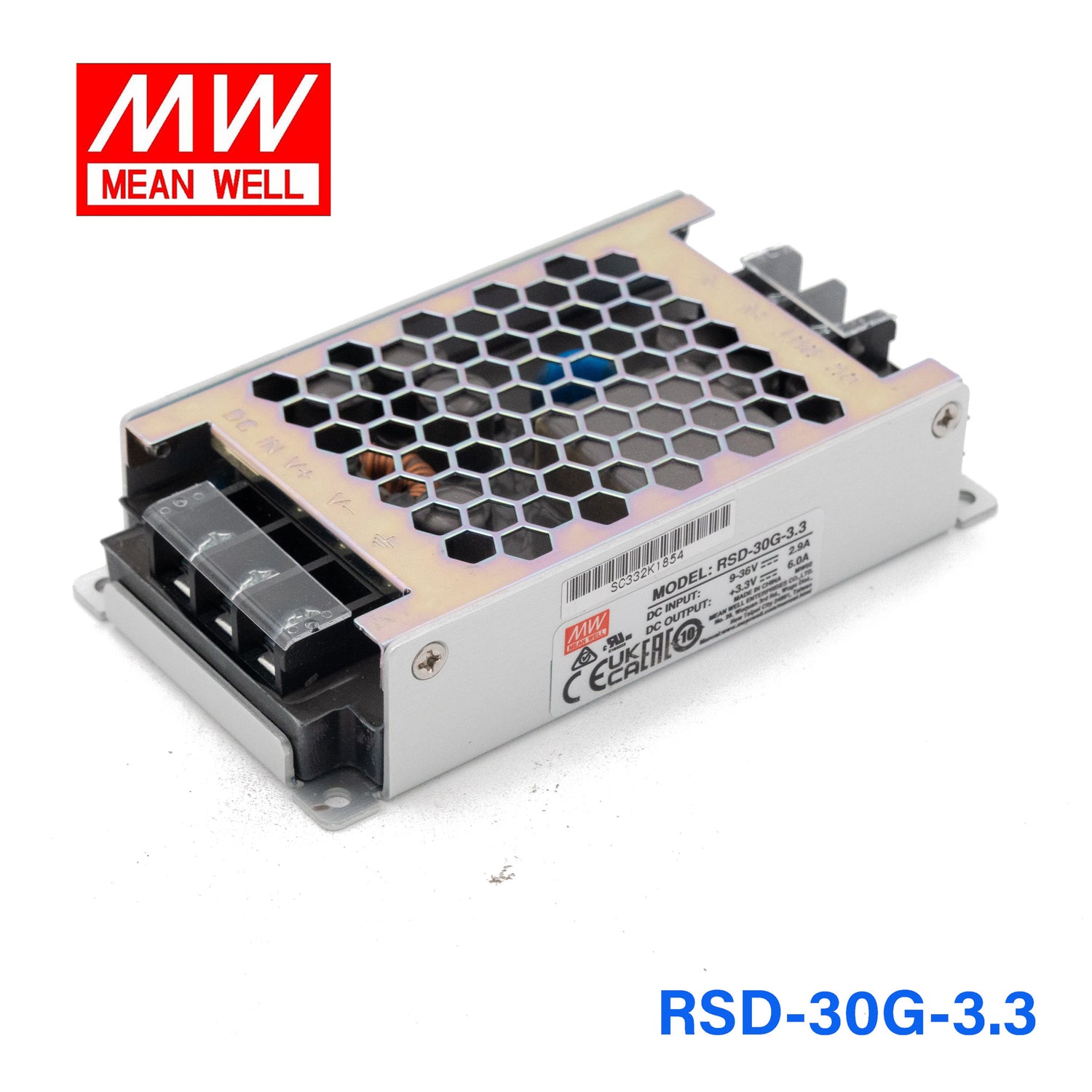

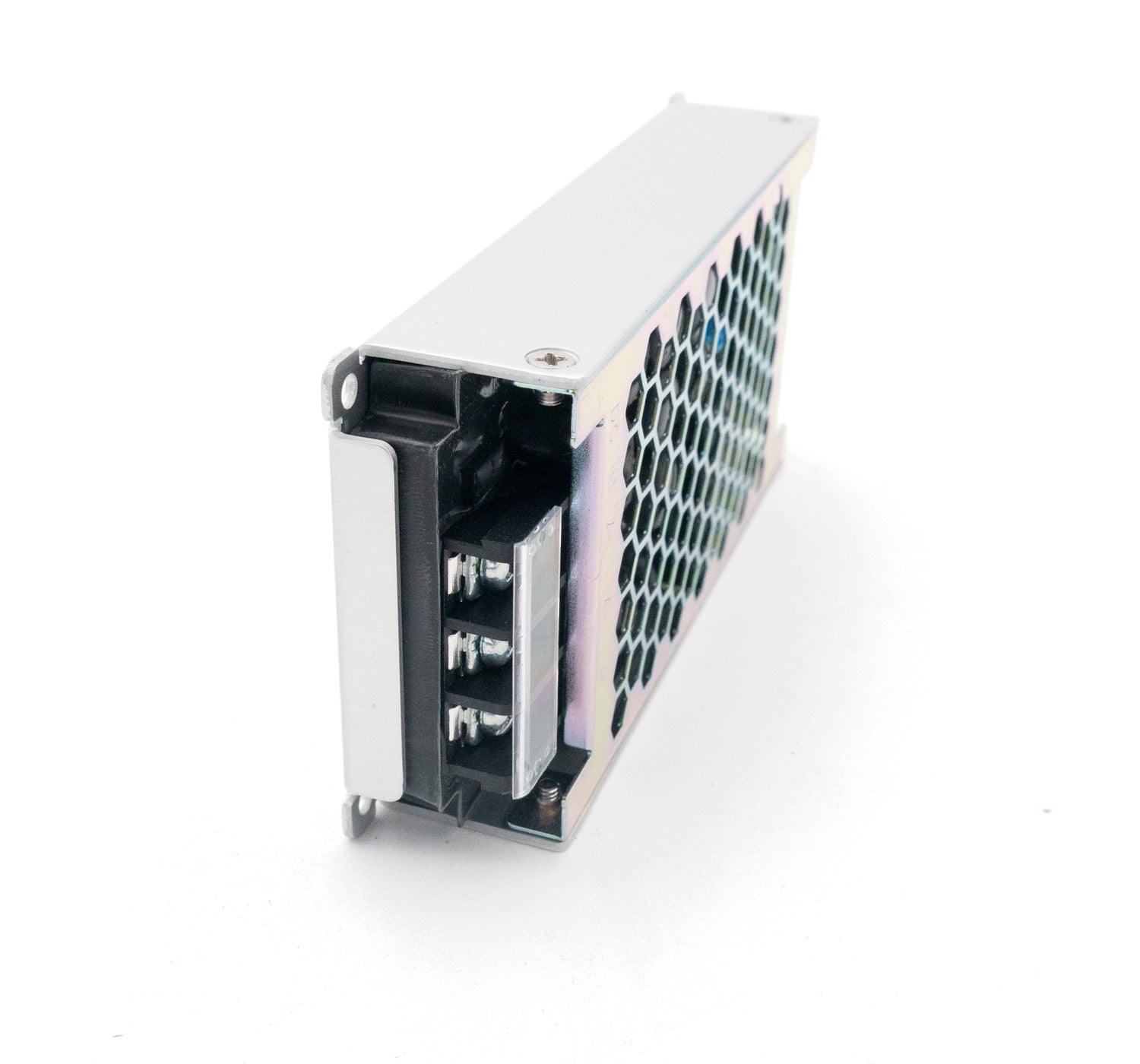

Mean Well RSD-30G-3.3 DC-DC Converter - 19.8W - 9~36V in 3.3V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-30G-3.3 DC-DC Converter - 19.8W - 9~36V in 3.3V out
Description
Description
The RSD-30G is a 30W Mean Well power converter (input range: 9~36VDC).
Key Features
- ✓ Input voltage range: 9~36VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating19.8 Watt
-
Output Voltage3.3 Volt
-
Rated Current6 Ampere
-
Input Voltage9V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.45 in
-
Width2.36 in
-
Height0.98 in
-
Weight0.55 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RSD-30G-3.3 to power 3.3V embedded boards or industrial logic circuits?
Yes, it is appropriate for 3.3V constant-voltage electronics when the total load stays within 19.8W and 6A. That makes it relevant for embedded control boards, logic sections, and other low-voltage electronics that need regulated 3.3V output.
Is this a good fit for 3.3V automation electronics powered from a 9-36VAC source?
It can be a fit when the source is within 9-36VAC and the downstream 3.3V load remains at or below 19.8W. The 6A output current is useful for low-voltage electronics that need higher current at 3.3V.
Can the RSD-30G-3.3 be used in mobile or rugged embedded equipment?
Yes, for 3.3V loads up to 19.8W and 6A, it is positioned for embedded equipment use. The specified 5G vibration resistance and -40°C to +70°C operating temperature range support more demanding equipment conditions.
Does the RSD-30G-3.3 support outdoor installation?
The temperature range is specified as -40°C to +70°C, so thermal capability is defined. However, no IP rating is listed in the provided specs, so exposed outdoor or washdown use is not confirmed here.
