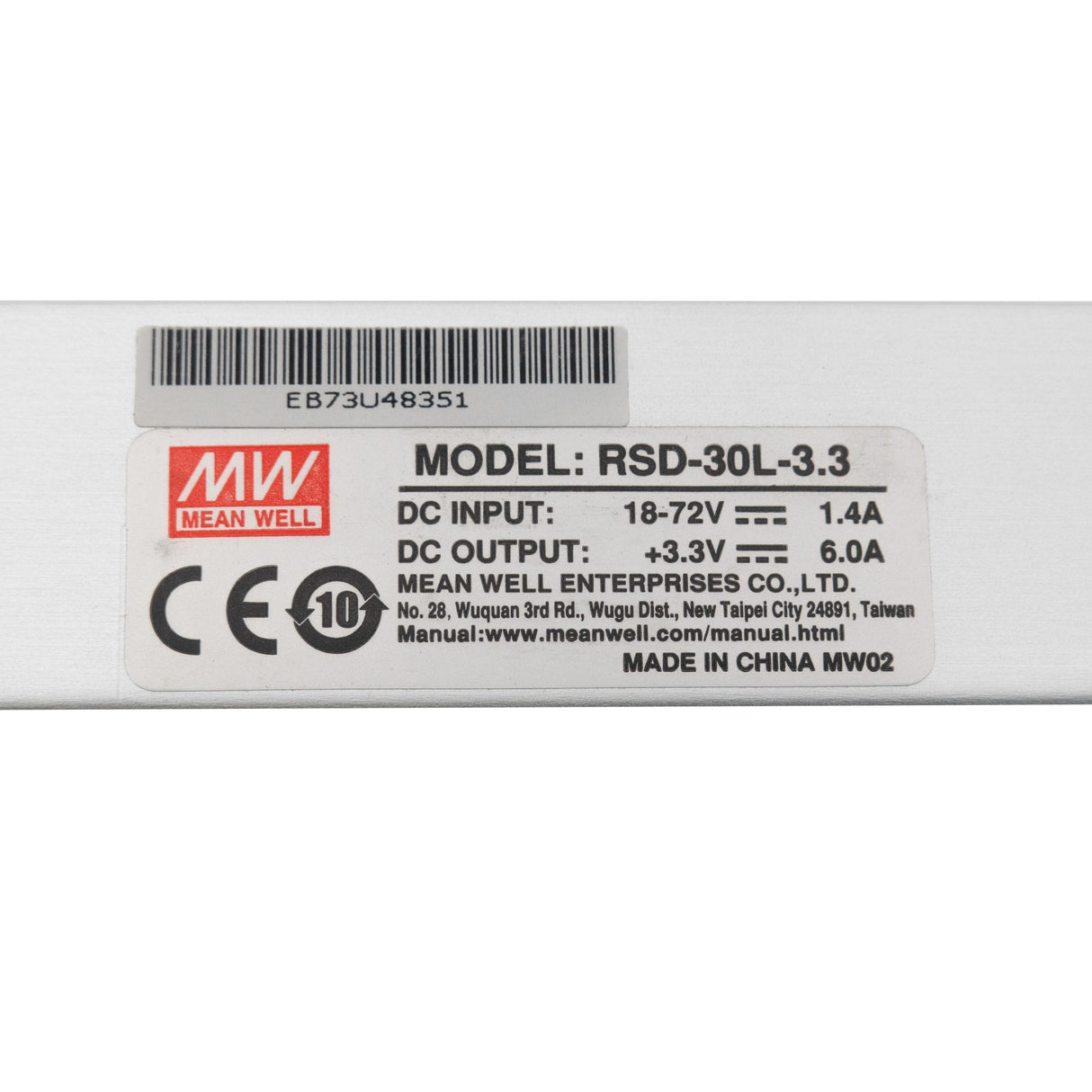

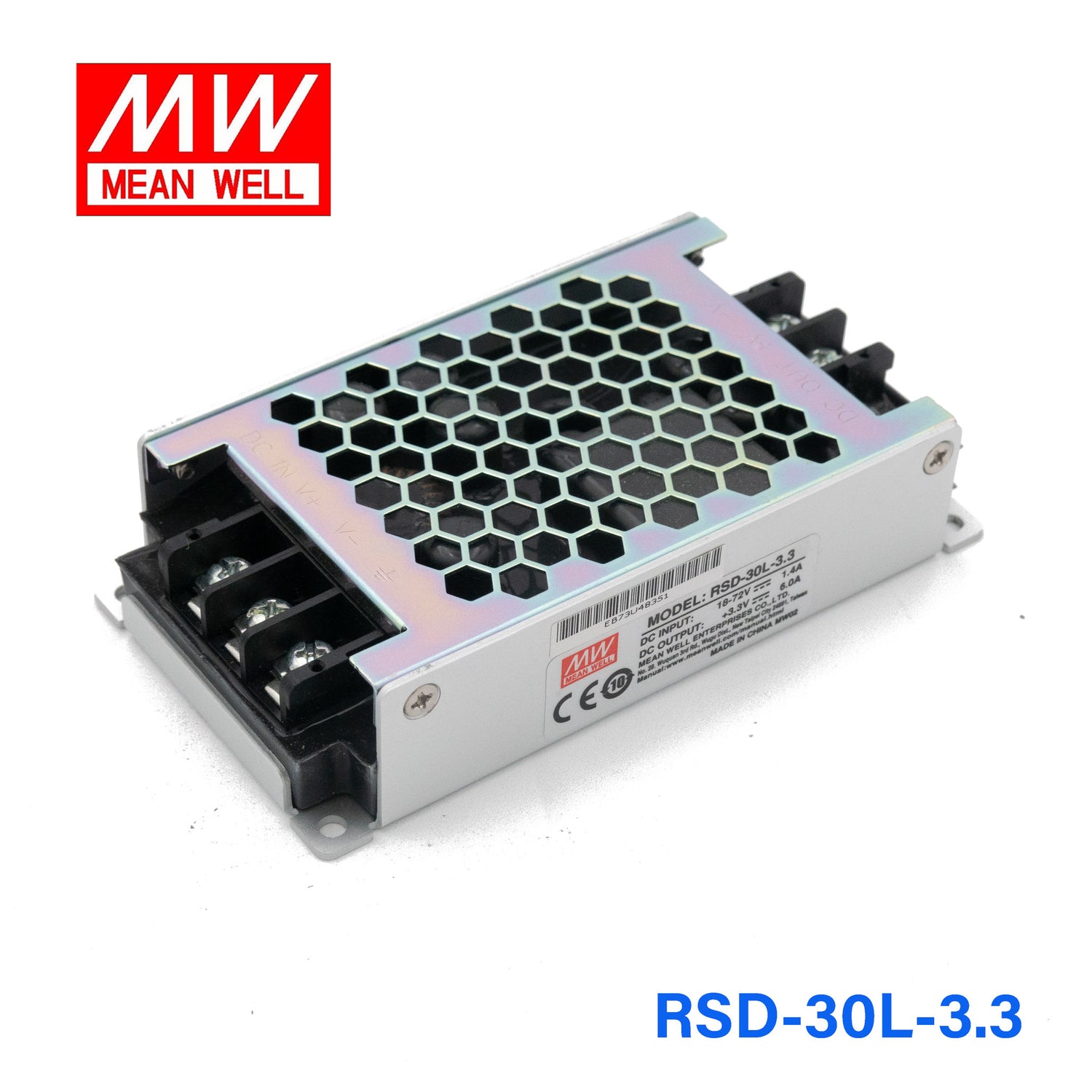

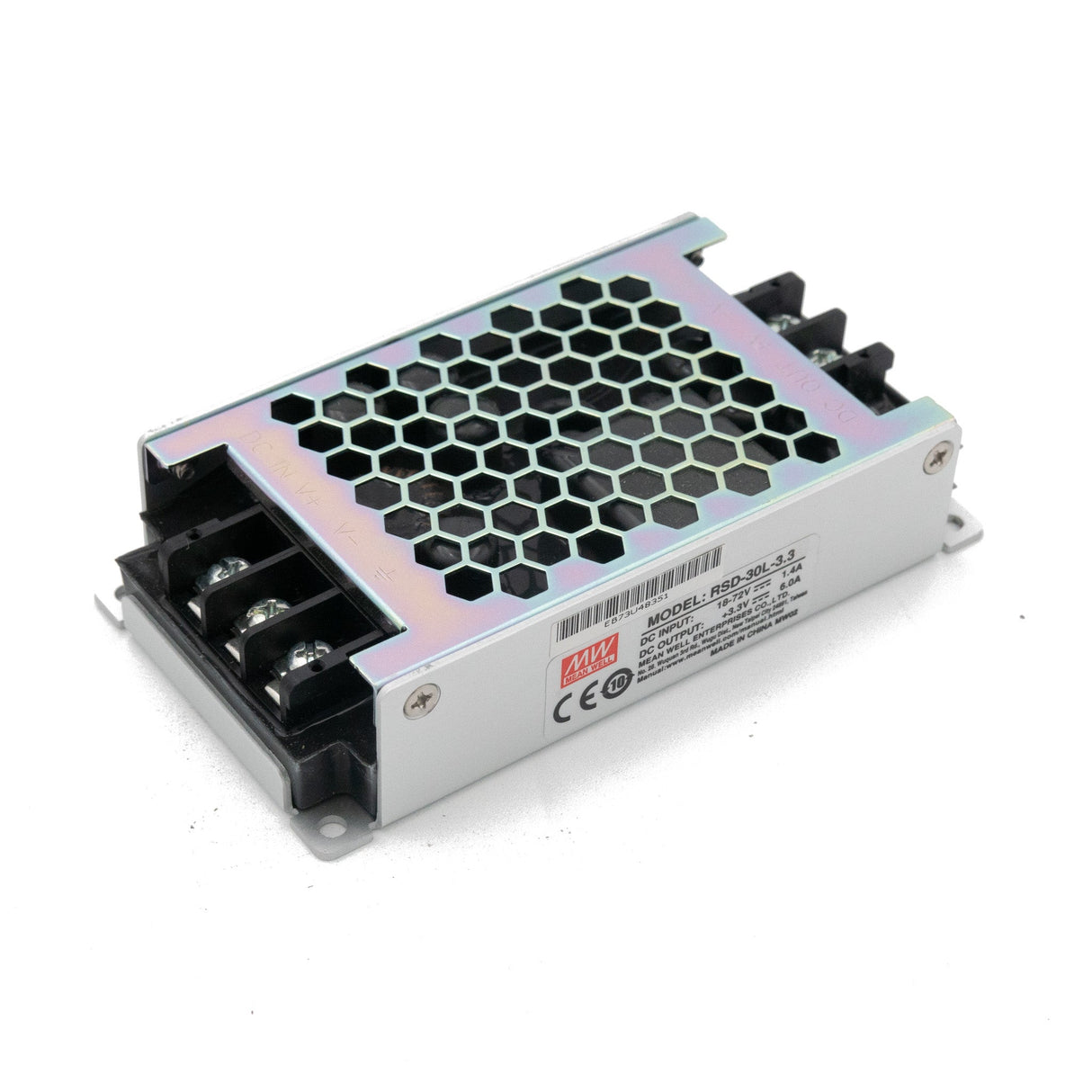

Mean Well RSD-30L-3.3 DC-DC Converter - 19.8W - 18~72V in 3.3V out

miniature size, economical, withstand 5G vibration and 70°C operation

SKU:

RSD-30L-3.3

$31.61 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Compliance with BS EN/EN50155 and BS EN/EN45545-2 railway standard

Ultra compact and 1U low profile(25mm

4:1 wide input range

No minimum load required

Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.

4000VDC I / O isolation

Half encapsulated, cooling by free air convection

-40~+70℃ wide working temperature

The built-in constant current limiting circuit

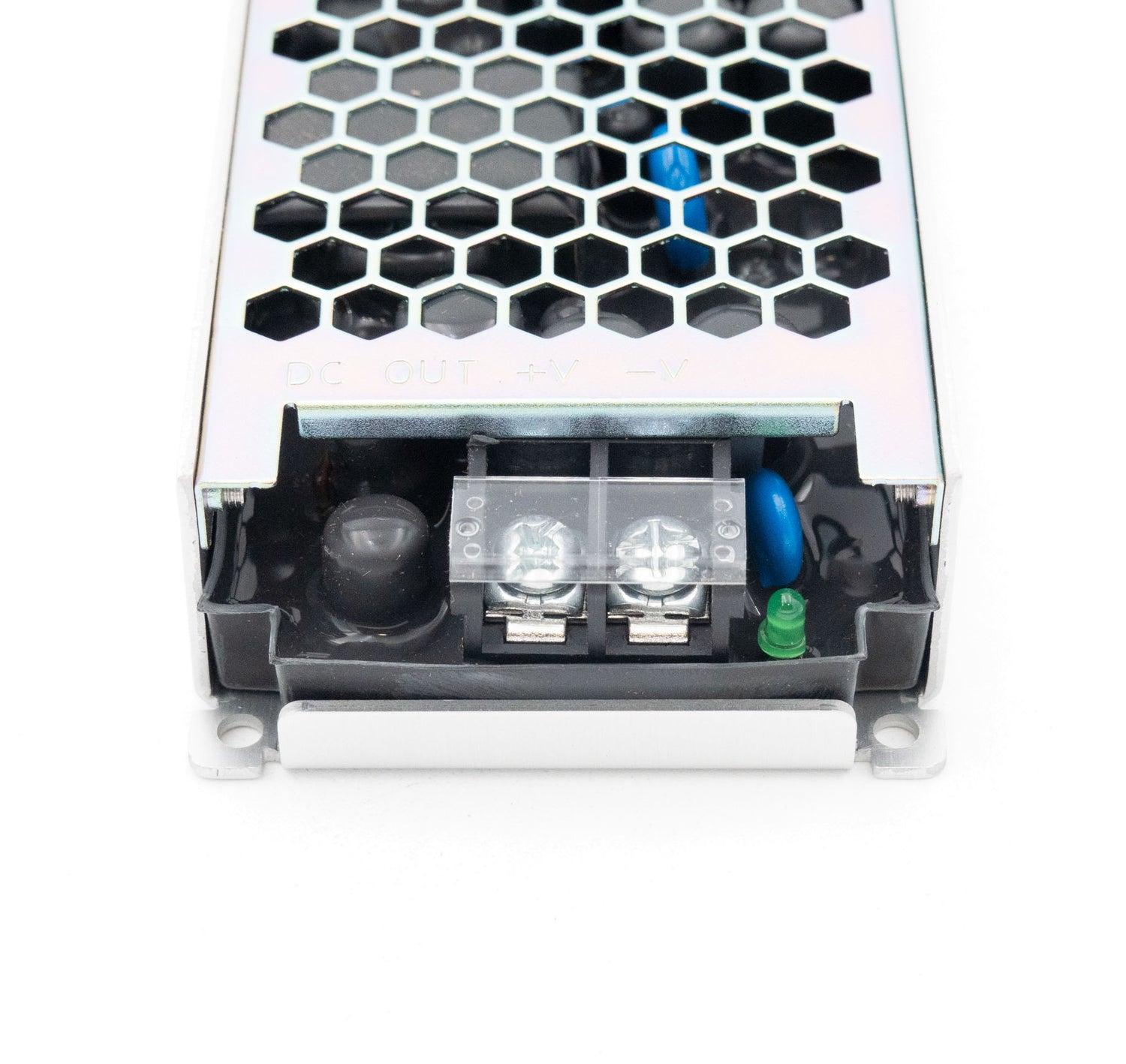

LED indicator for power on

100% full load burn-in test

3 years warranty

General Specification

Line regulation (max.)	± 0.5%
Load regulation (max.)	± 0.5%
Overload protection Range	105% ~ 135%
Overload protection Type	Constant current limiting recovers automatically after the fault condition is removed
Over-voltage protection	115% to 135% Shutdown O / P voltage, re-power on to recover
Withstand voltage	I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature	-40 ~ + 85°C (refer to output derating curve)
Safety standards	IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
EMC standards	EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8
Railway standard	EN50155 / IEC60571
Dimension (LxWxH) (mm)	113 x 60 x 25mm
Packing	0.25Kg; 56pcs/15Kg/0.81CUFT

Specifications

Brand

Mean Well
Series

RSD Series
Power Rating

19.8 Watt
Output Voltage

3.3 Volt
Rated Current

6 Ampere
Input Voltage

18V~72V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,EMC,RCM
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

4.45 in
Width

2.36 in
Height

0.98 in
Weight

0.55 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the RSD-30L-3.3 for 3.3V embedded controllers, logic boards, or industrial communication electronics?

This converter is intended for constant-voltage 3.3V loads and can supply up to 6A, with a total power rating of 19.8W. That makes it suitable for 3.3V embedded electronics that need higher current at low voltage. Its 18-72V input range also suits systems fed from a wide DC source.

Is this a fit for powering 3.3V processors or FPGA-based control boards from a higher-voltage DC source?

It can be used where the equipment needs a fixed 3.3V output and stays within 6A and 19.8W. The constant-voltage output is aligned with boards that expect a regulated 3.3V rail. It is not a higher-power option, so the load has to stay within the published 19.8W limit.

Can the RSD-30L-3.3 be used in compact industrial or transportation electronics with vibration?

The converter is described as miniature in size at 113.0 x 60.0 x 25.0 mm and 0.25 kg, which helps in compact equipment. Its features also specify 5G vibration resistance, which supports use in moving or vibration-prone systems. The electrical fit still depends on needing 3.3V at up to 6A.

Will this converter handle cold or hot control cabinet conditions?

The operating temperature range is -40C to +70C, so it is specified for both low-temperature and elevated-temperature environments. No IP rating is listed in the provided specs, so the data does not confirm outdoor exposure or direct moisture resistance. It is best matched to protected installations where the temperature range is the main concern.

What are the differences between the RSD-30L-3.3 and the other RSD-30L output versions?

The RSD-30L-3.3 is rated at 19.8W with 3.3V output at 6A. The other listed RSD-30L versions are RSD-30L-5 at 30W, 5V, 6A, RSD-30L-12 at 30W, 12V, 2.5A, and RSD-30L-24 at 30W, 24V, 1.25A. In the provided data, they share the same 113.0 x 60.0 x 25.0 mm dimensions and 0.25 kg weight.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well RSD-30L-24 DC-DC Converter - 30W - 18~72V in 24V out	30W	24V	1.25A	Indoor	$31.61	View
Mean Well RSD-30L-5 DC-DC Converter - 30W - 18~72V in 5V out	30W	5V	6A	Indoor	$31.61	View
Mean Well RSD-30L-12 DC-DC Converter - 30W - 18~72V in 12V out	30W	12V	2.5A	Indoor	$31.61	View
