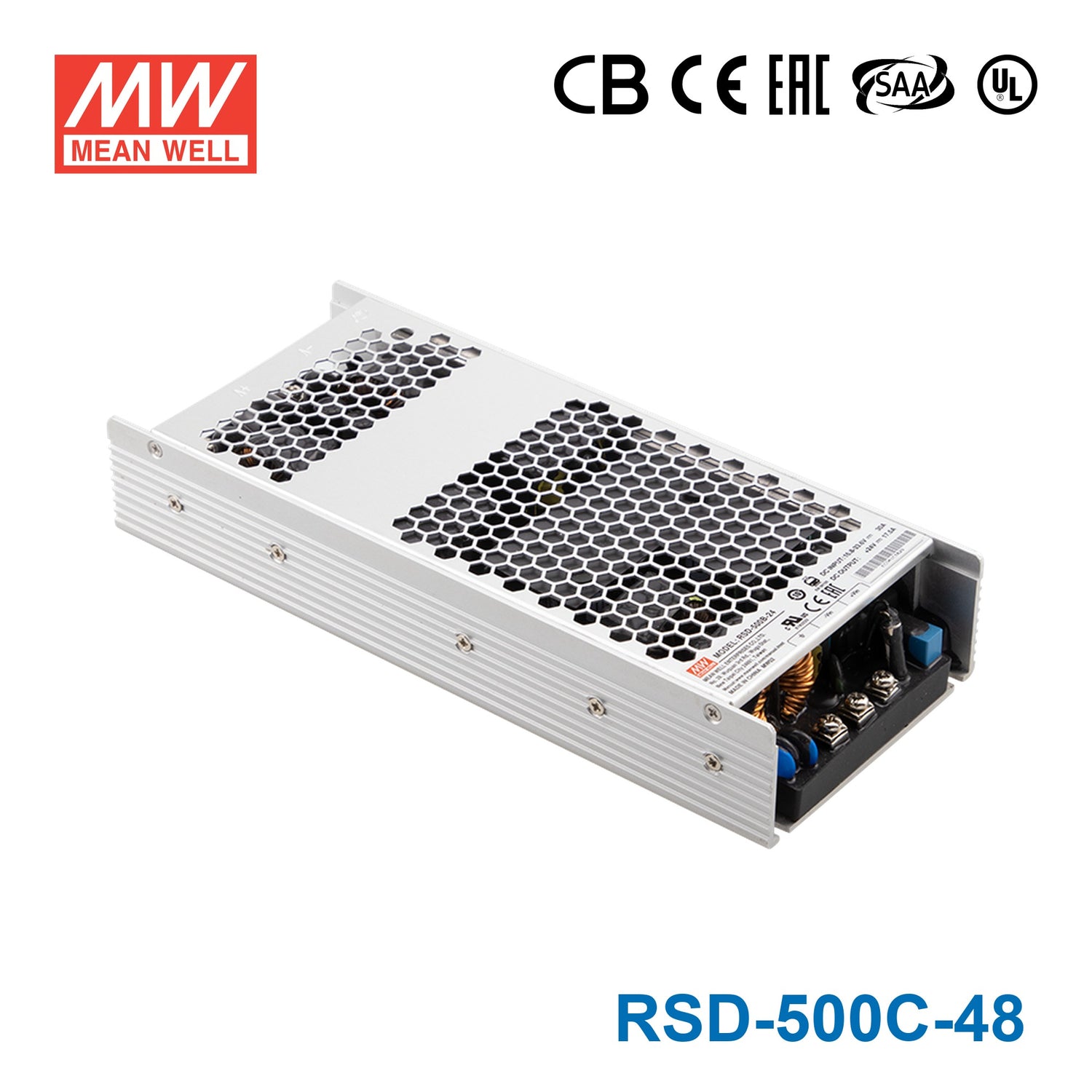

Mean Well RSD-500C-48 DC-DC Converter - 460.8W 33.6-67.2V DC in 48V out

miniature size, economical, withstand 5G vibration and 70°C operation
$227.80 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Compliance with BS EN/EN50155 and BS EN/EN45545-2 railway standard
1U low profile(25mm
2:1 wide input range
Fanless design, half encapsulated, cooling by free air convection
-40~+80℃ wide operating temperature
DC output adjustable
Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.
4000VDC I / O isolation
Half encapsulated, cooling by free air convection
Operating altitude up to 5000 meters (Note.5)
LED indicator for power on
3 years warranty

General Specification

Line regulation (max.) ± 0.5%
Load regulation (max.) ± 1.0%
Overload protection Range 105% ~ 135%
Overload protection Type Constant current limiting 105~135% rated output power with auto-recovery
Over-voltage protection 115% to 135% Shutdown O / P voltage, re-power on to recover
Withstand voltage I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature -40 ~ + 80°C (refer to output derating curve)
Safety standards UL62368-1, IEC 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
EMC standards EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8
Railway standard EN50155 / IEC60571
Dimension (LxWxH) (mm) 237 x 100 x 41mm
Packing 1.45Kg;10pcs/15.5Kg/0.8CUFT

Specifications

  • Brand
    Mean Well
  • Series
    RSD Series
  • Power Rating
    460.8 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    9.6 Ampere
  • Input Voltage
    33.6V~67.2V
  • No of Output
    1
  • Dimming Control
    Built-in Potentiometer
  • Standards Met
    CB,CE,EAC,SAA,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~80°C
  • Warranty
    3 Year
  • Length
    9.33 in
  • Width
    3.94 in
  • Height
    1.61 in
  • Weight
    3.2 lb
