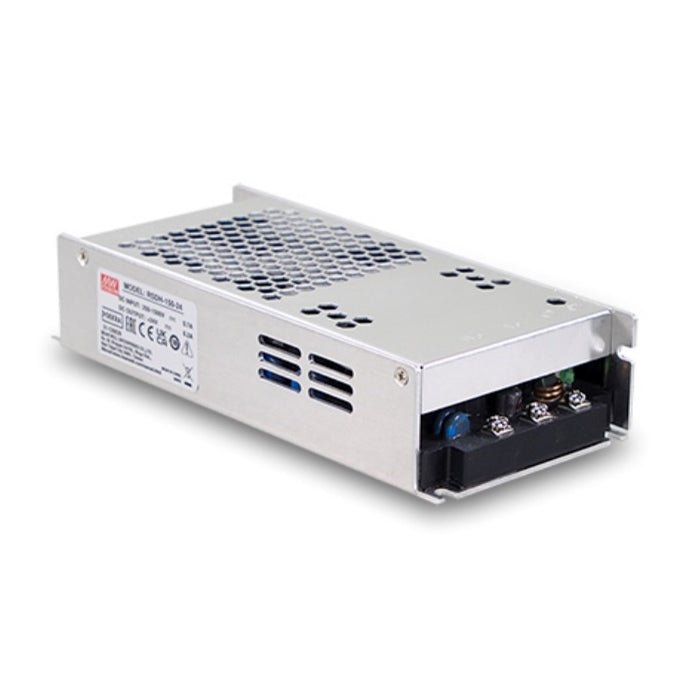

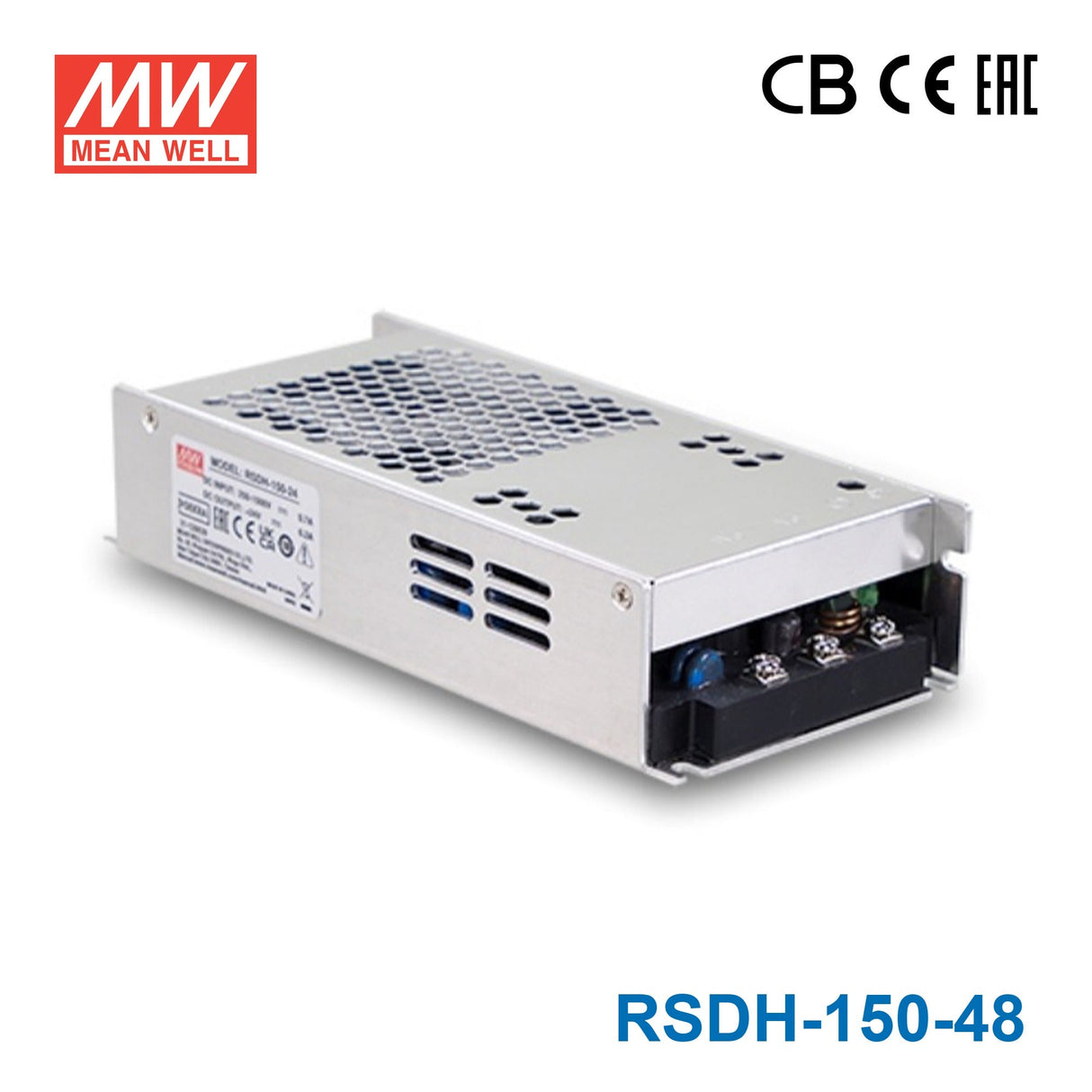

Mean Well RSDH-150-48 Ultra Wide Input DC-DC Converter, 250V-1500VDC Input, 48V Output
250~1500VDC 6:1 ultra-wide input range, 4KVAC I/O high isolation, fanless design, half encapsulated, 1U low profile-41mm
SKU:
RSDH-150-48
$87.53 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSDH-150-48 Ultra Wide Input DC-DC Converter, 250V-1500VD...
$87.53 USD
Unit price /
Unavailable
Description
Description
Features
| 250-1500Vdc 6:1 ultra-wide iput range |
| Withstand 1700Vdc surge input for 10 seconds |
| Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input rverse Polarity |
| Fanless design, fully encapsulated, cooling by free iar convection |
| Over voltage category II |
| -40~+80°C ultra-wide operating temperature (>+50°C derating |
| Operating altitude up to 5000 meters |
| DC output voltage adjustable(12~25V, 24~29V, 30~36V, 48~58V) |
| 1U low profile 41mm |
| 3 years warranty |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSDH Series
-
Power Rating150 Watt
-
Output Voltage48 Volt
-
Rated Current3.12 Ampere
-
Input Voltage250V~1500V
-
No of Output1
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length7.52 in
-
Width3.39 in
-
Height1.61 in
-
Weight1.79 lb
