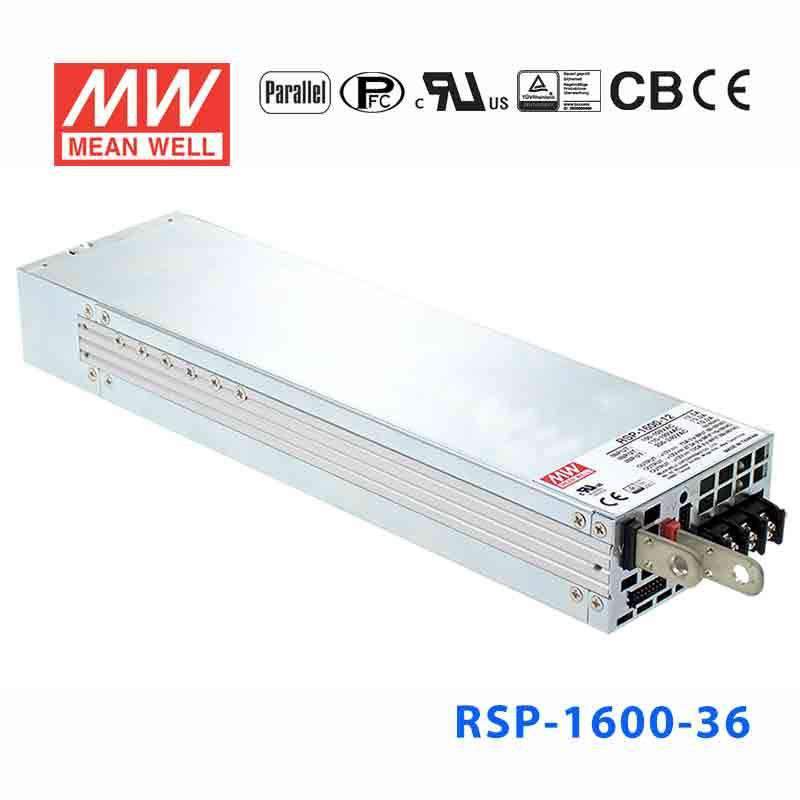

Mean Well RSP-1600-36 Power Supply 1602W 36V

Name: Mean Well RSP-1600-36 Power Supply 1602W 36V
Brand: Mean Well
SKU: RSP-1600-36
Price: 436.87 USD
Availability: InStock

built-in active PFC, high efficiency up to 93%, active current sharing(5+1)

$436.87 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range(Withstand 300VAC surge input for 5 seconds)

Built-in active PFC function

High efficiency up to 93%

Forced air cooling by built-in DC fan

Output voltage and constant current level programmable

Active current sharing up to 9600W (5+1)

Built-in remote ON-OFF control / remote sense / auxiliary power /DC OK signal /OTP alarm signal

Protections:Short circuit/ Overload / Over voltage / Over temperature

Optional PMBus or CANBus protocol

5 years warranty

General Specification

AC input voltage range	90~264VAC ; 127~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
Overload protection	105%~115% Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover
Over temperature protection	Shut down o/p voltage, recovers automatically after temperature goes down
Setup, rise, hold up time	1500ms,60ms,16ms at full load
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-30~+70ºC(refer to output derating curve)
Safety standards	UL60950-1,TUV EN60950-1 approved
EMC standards	EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3, EN61000-6-2
Connection input	3P/10mm pitch terminal block with cover
Dimension (LxWxH) (mm)	300x85x 41mm
Packing	6pcs / 13.6kg

Specifications

Brand

Mean Well
Series

RSP Series
Power Rating

1602 Watt
Output Voltage

36 Volt
Rated Current

44.5 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

BSMI,CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

11.81 in
Width

3.35 in
Height

1.61 in
Weight

4.63 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

Universal AC input / Full range(Withstand 300VAC surge input for 5 seconds)

Built-in active PFC function

High efficiency up to 93%

Forced air cooling by built-in DC fan

Output voltage and constant current level programmable

Active current sharing up to 9600W (5+1)

Built-in remote ON-OFF control / remote sense / auxiliary power /DC OK signal /OTP alarm signal

Protections:Short circuit/ Overload / Over voltage / Over temperature

Optional PMBus or CANBus protocol

5 years warranty

General Specification

AC input voltage range

90~264VAC ; 127~370VDC

AC inrush current (max.)

Cold start, 35A at 230VAC

Overload protection

105%~115% Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover

Over temperature protection

Shut down o/p voltage, recovers automatically after temperature goes down

Setup, rise, hold up time

1500ms,60ms,16ms at full load

Withstand voltage

I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC

Working temperature

-30~+70ºC(refer to output derating curve)

Safety standards

UL60950-1,TUV EN60950-1 approved

EMC standards

EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3, EN61000-6-2

Connection input

3P/10mm pitch terminal block with cover

Dimension (LxWxH) (mm)

300x85x 41mm

Packing

6pcs / 13.6kg
