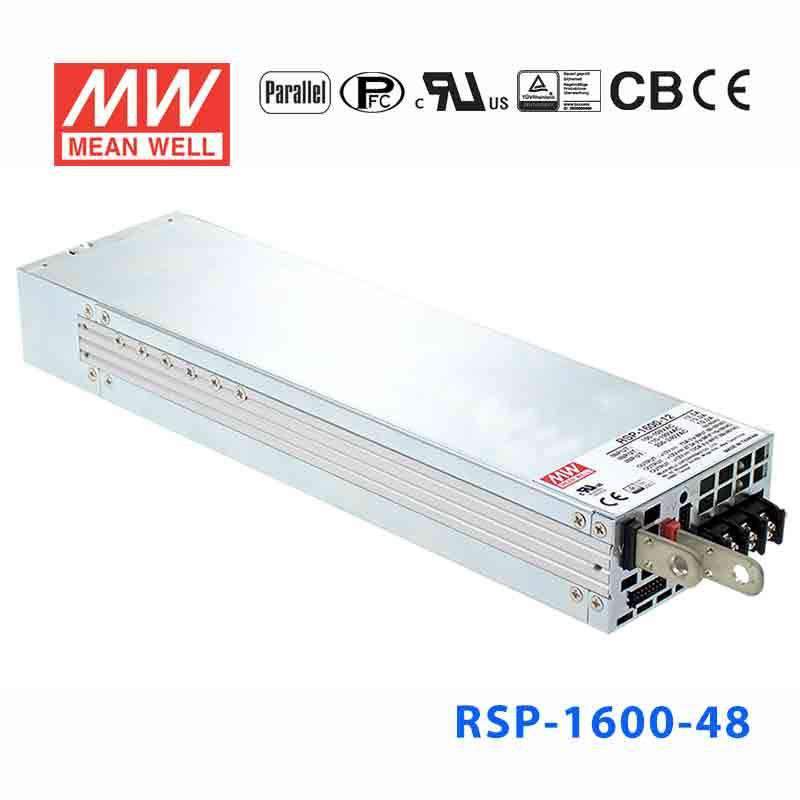

Mean Well RSP-1600-48 Power Supply 1608W 48V
built-in active PFC, high efficiency up to 93%, active current sharing(5+1)
9% off
SKU:
RSP-1600-48
$397.08 USD
$436.87
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-1600-48 Power Supply 1608W 48V
$397.08 USD
$436.87
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range(Withstand 300VAC surge input for 5 seconds) |
| Built-in active PFC function |
| High efficiency up to 93% |
| Forced air cooling by built-in DC fan |
| Output voltage and constant current level programmable |
| Active current sharing up to 9600W (5+1) |
|
Built-in remote ON-OFF control / remote sense / auxiliary power /DC OK signal /OTP alarm signal
|
| Protections:Short circuit/ Overload / Over voltage / Over temperature |
| Optional PMBus or CANBus protocol |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC ; 127~370VDC |
| AC inrush current (max.) | Cold start, 35A at 230VAC |
| Overload protection | 105%~115% Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover |
| Over temperature protection | Shut down o/p voltage, recovers automatically after temperature goes down |
| Setup, rise, hold up time | 1500ms,60ms,16ms at full load |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -30~+70ºC(refer to output derating curve) |
| Safety standards | UL60950-1,TUV EN60950-1 approved |
| EMC standards |
EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3, EN61000-6-2 |
| Connection input | 3P/10mm pitch terminal block with cover |
| Dimension (LxWxH) (mm) | 300x85x 41mm |
| Packing | 6pcs / 13.6kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating1608 Watt
-
Output Voltage48 Volt
-
Rated Current33.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length11.81 in
-
Width3.35 in
-
Height1.61 in
-
Weight4.63 lb
