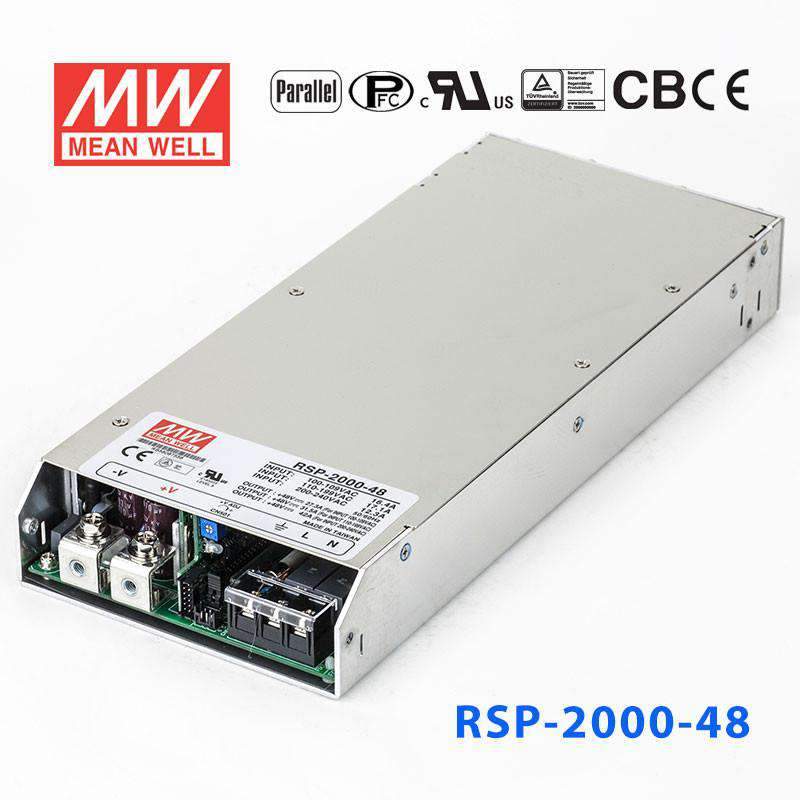

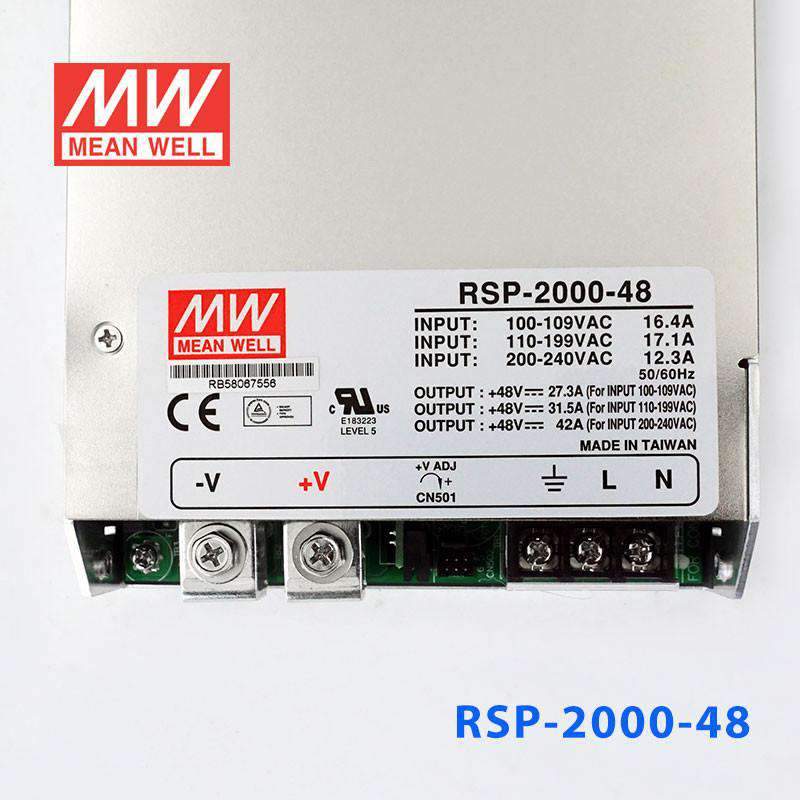

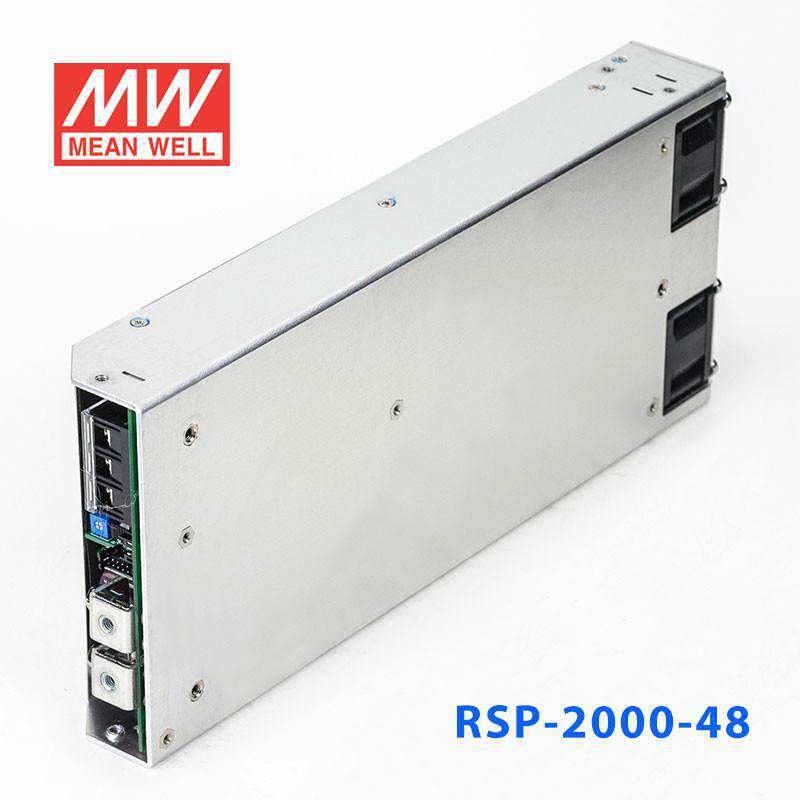

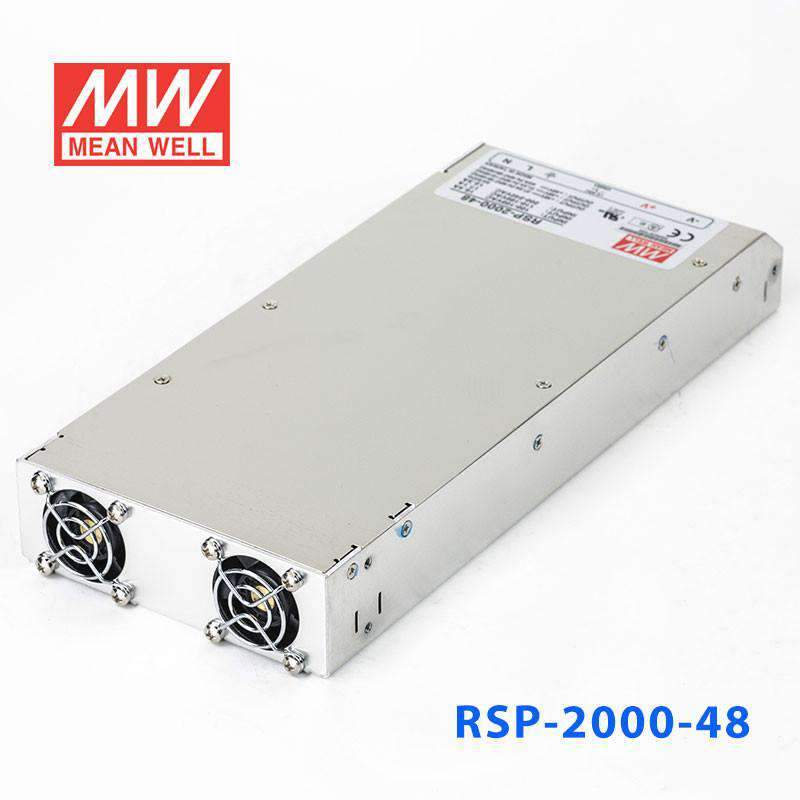

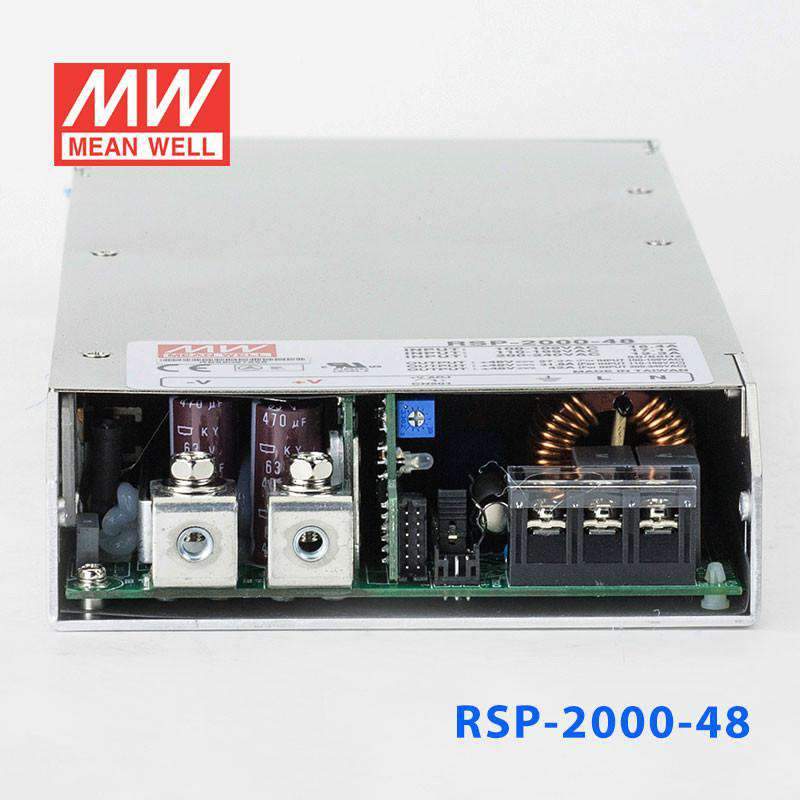

Mean Well RSP-2000-48 Power Supply 2016W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-2000-48 Power Supply 2016W 48V
Description
Description
The RSP-2000 is a 2000W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Current sharing up to 8000W (parallel units)
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating2016 Watt
-
Output Voltage48 Volt
-
Rated Current42 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.3 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What industrial applications is the RSP-2000-48 suited for?
The RSP-2000-48 delivers 2016W at 48V with a 42A output, making it well-suited for powering DC motor drives, industrial automation controllers, and high-density server rack infrastructure. Its -35°C to +70°C operating range supports demanding factory and data center environments.
Is the RSP-2000-48 rated for operation in cold environments?
Yes. The RSP-2000-48 operates from -35°C to +70°C, one of the widest temperature ranges in the RSP series. It is intended for indoor enclosed installations and carries certifications including UL, CE, TÜV, CB, BSMI, and EAC.
How does the RSP-2000-48 compare to the RSP-2400-48 and RSP-3000-48?
Within the 48V RSP line, the RSP-2000-48 provides 2016W and 42A from a 90-264VAC input, while the RSP-2400-48 steps up to 2400W and 50A and the RSP-3000-48 reaches 3000W and 62.5A — both requiring a 180-264VAC input. The RSP-2000-48 is the only one of the three that accepts the full 90-264VAC range, making it the more flexible choice where wide-range AC input is needed.
Does the RSP-2000-48 support paralleling for higher current output?
Yes. The RSP-2000-48 features active current sharing, rated for up to 3+1 units in parallel. This allows system designers to scale output current beyond the single-unit 42A rating while using a built-in N+1 redundancy configuration.
What is the efficiency of the RSP-2000-48?
The RSP-2000-48 achieves efficiency up to 92% and includes built-in active PFC. The unit weighs 1.95 kg and measures 295.0 × 127.0 × 41.0 mm, making it a compact choice for high-wattage 48V applications.
Other RSP-2000 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-2000-24 Power Supply 1920W 24V | 1920W | 24V | 80A | Indoor | $410.01 | View |
