Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

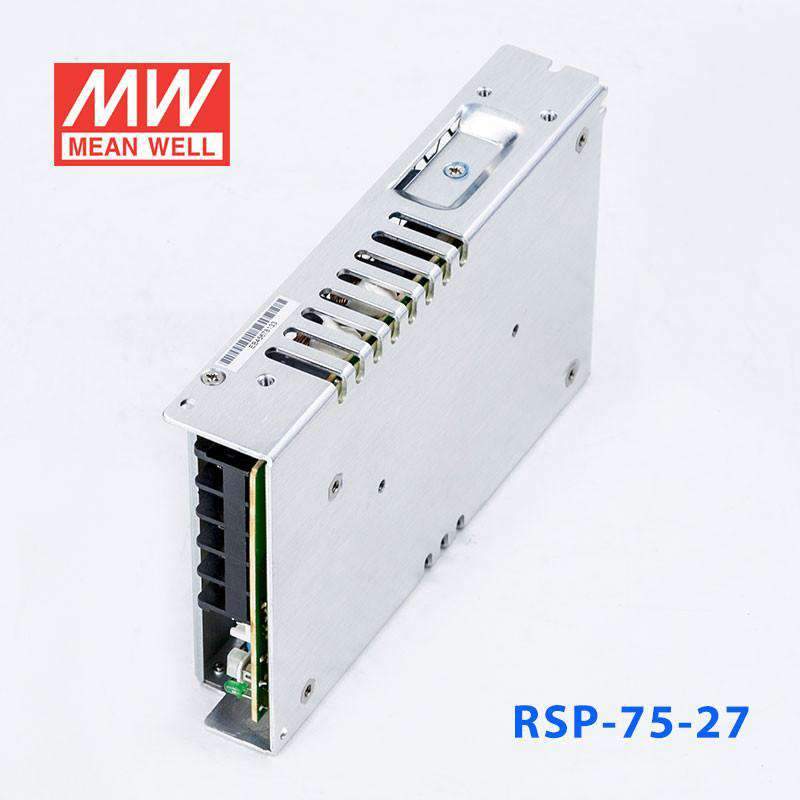

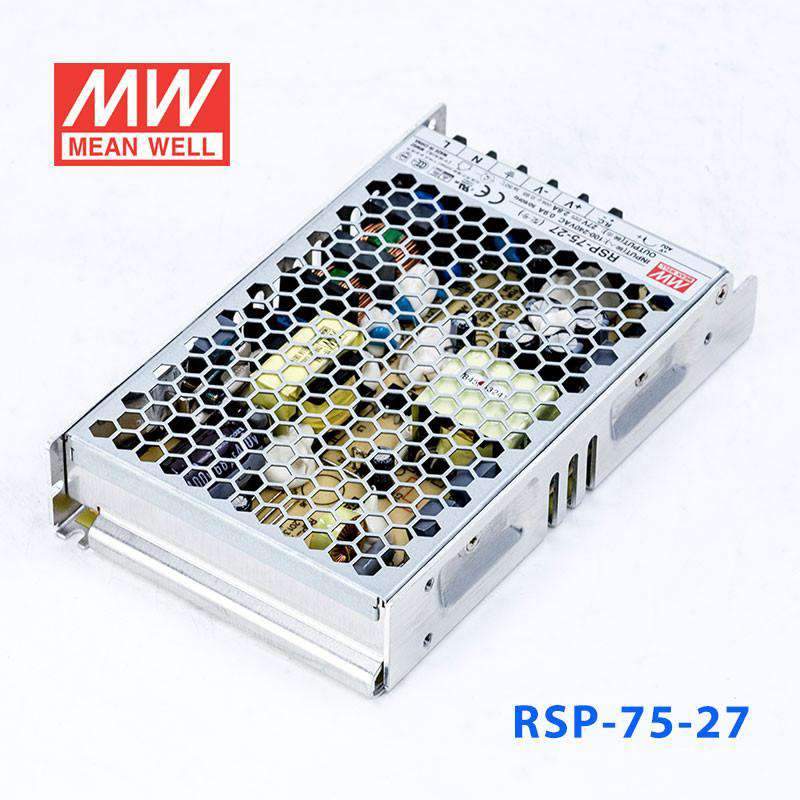

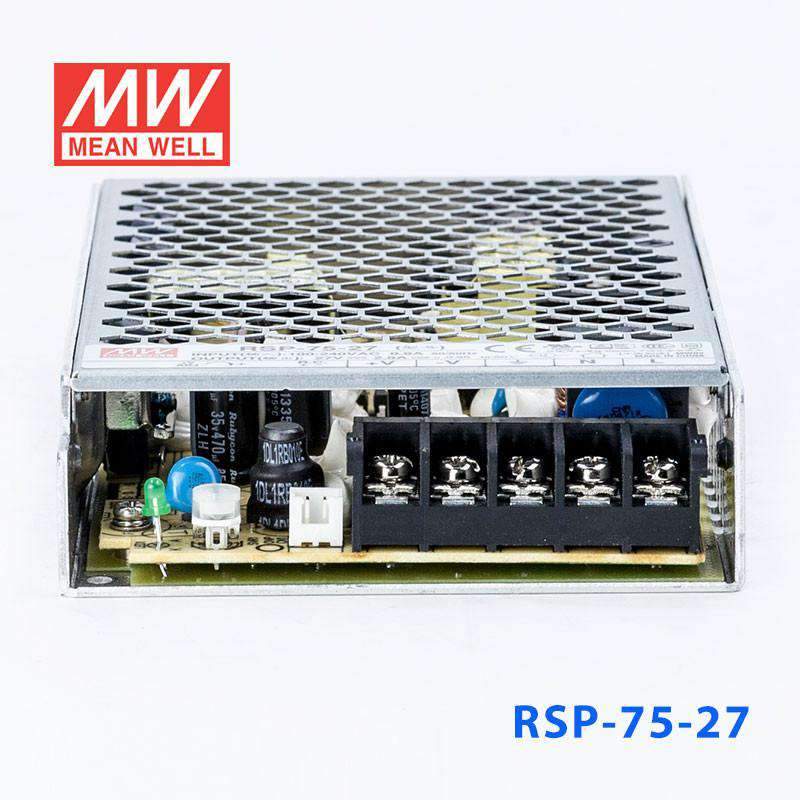

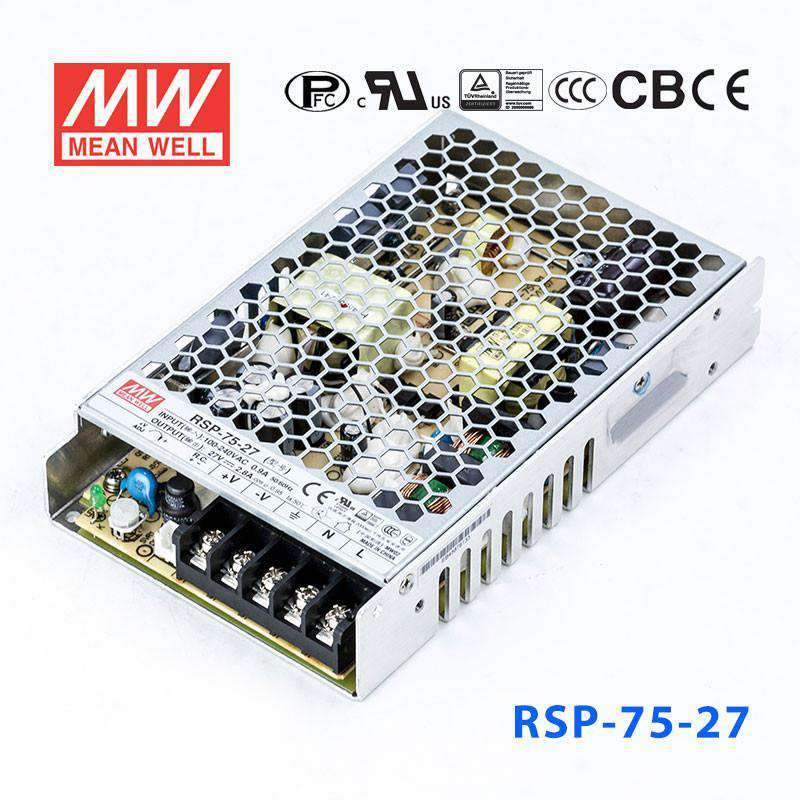

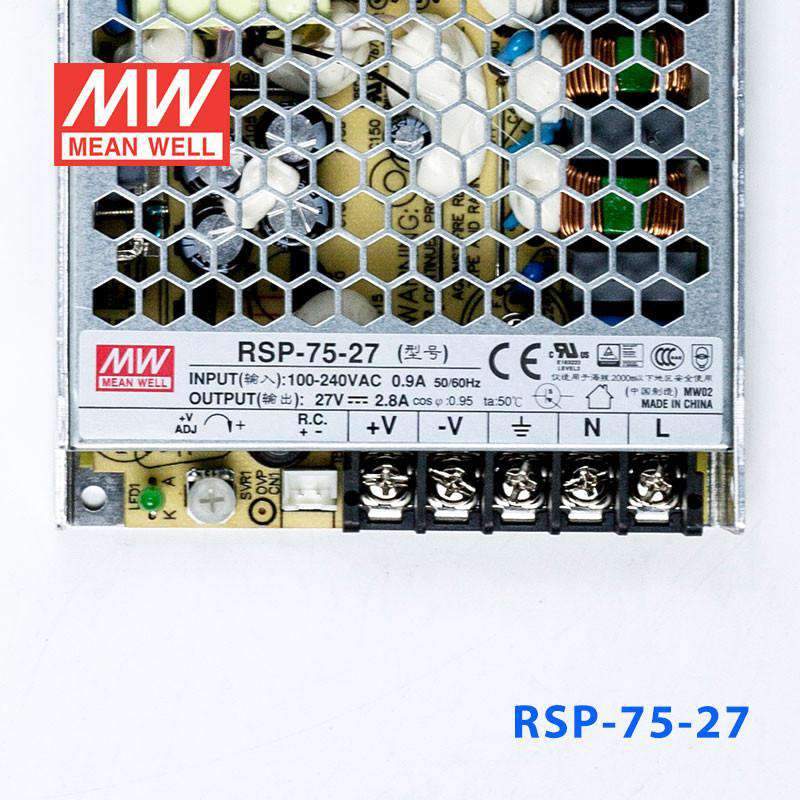

Mean Well RSP-75-27 Power Supply 75W 27V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating75.6 Watt
-
Output Voltage27 Volt
-
Rated Current2.8 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.97 lb
::specification::
Frequently Asked Questions
What is the RSP-75-27 suited for in embedded or industrial systems?
The RSP-75-27 delivers 27V at 2.8A (75.6W), appropriate for powering small motion control modules, specialty field instruments, and embedded subsystems operating on a 24-28V nominal bus. Its compact 159.0 × 97.0 × 30.0 mm form factor suits panel and DIN-rail enclosures.
Can the RSP-75-27 operate in cold indoor environments?
The RSP-75-27 operates from -25°C to +70°C. It is rated for indoor enclosed use and holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications.
How does the RSP-75-27 compare to the RSP-75-24 and RSP-75-48?
All three share the 159.0 × 97.0 × 30.0 mm chassis and 85-264VAC input. The RSP-75-24 provides 76.8W at 3.2A, the RSP-75-27 provides 75.6W at 2.8A, and the RSP-75-48 provides 76.8W at 1.6A. Power output is similar; current decreases as voltage increases.
What is the rated output power of the RSP-75-27?
The RSP-75-27 is rated at 75.6W (27V × 2.8A). It weighs 0.44 kg and includes a 3-year warranty. Built-in active PFC is included.
