Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

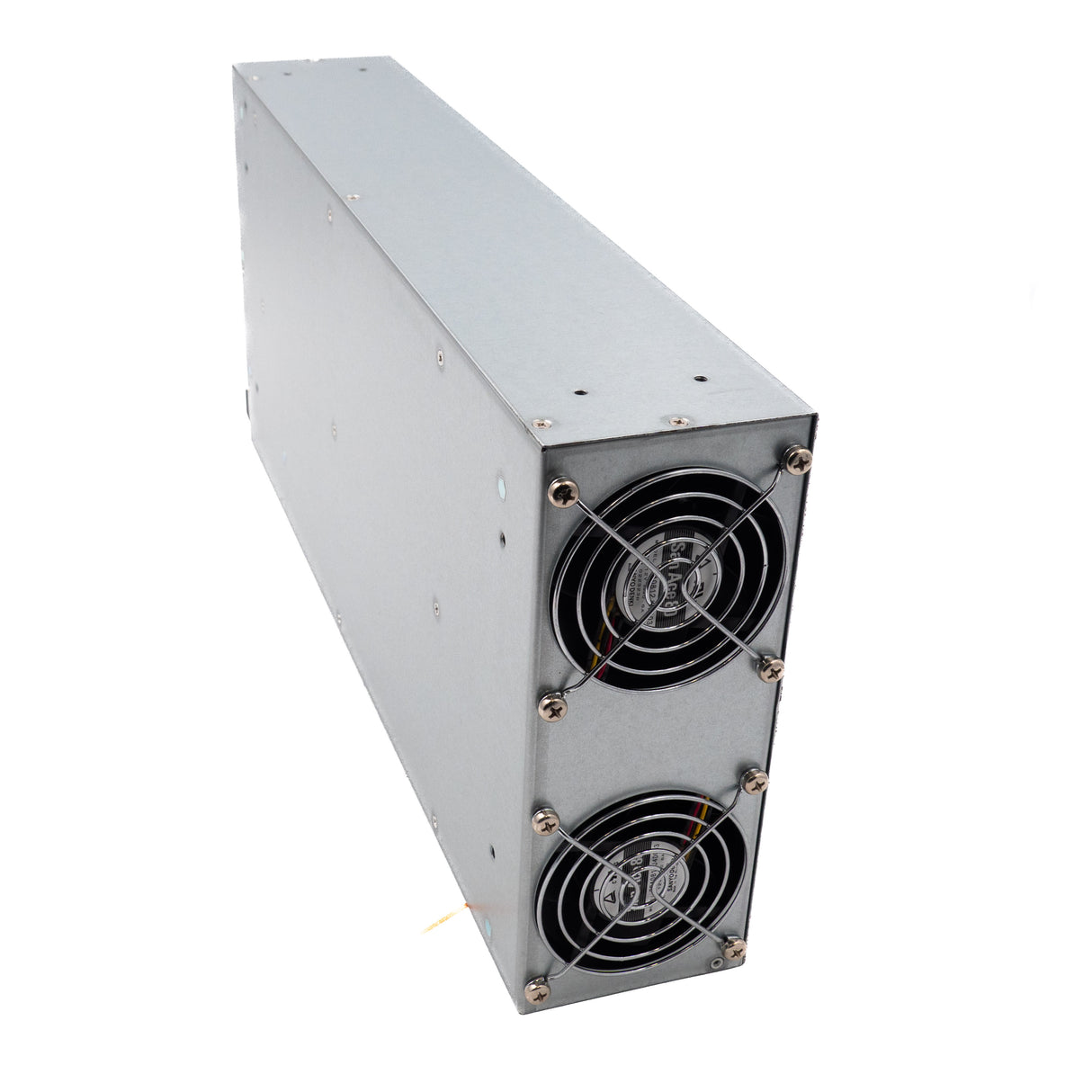

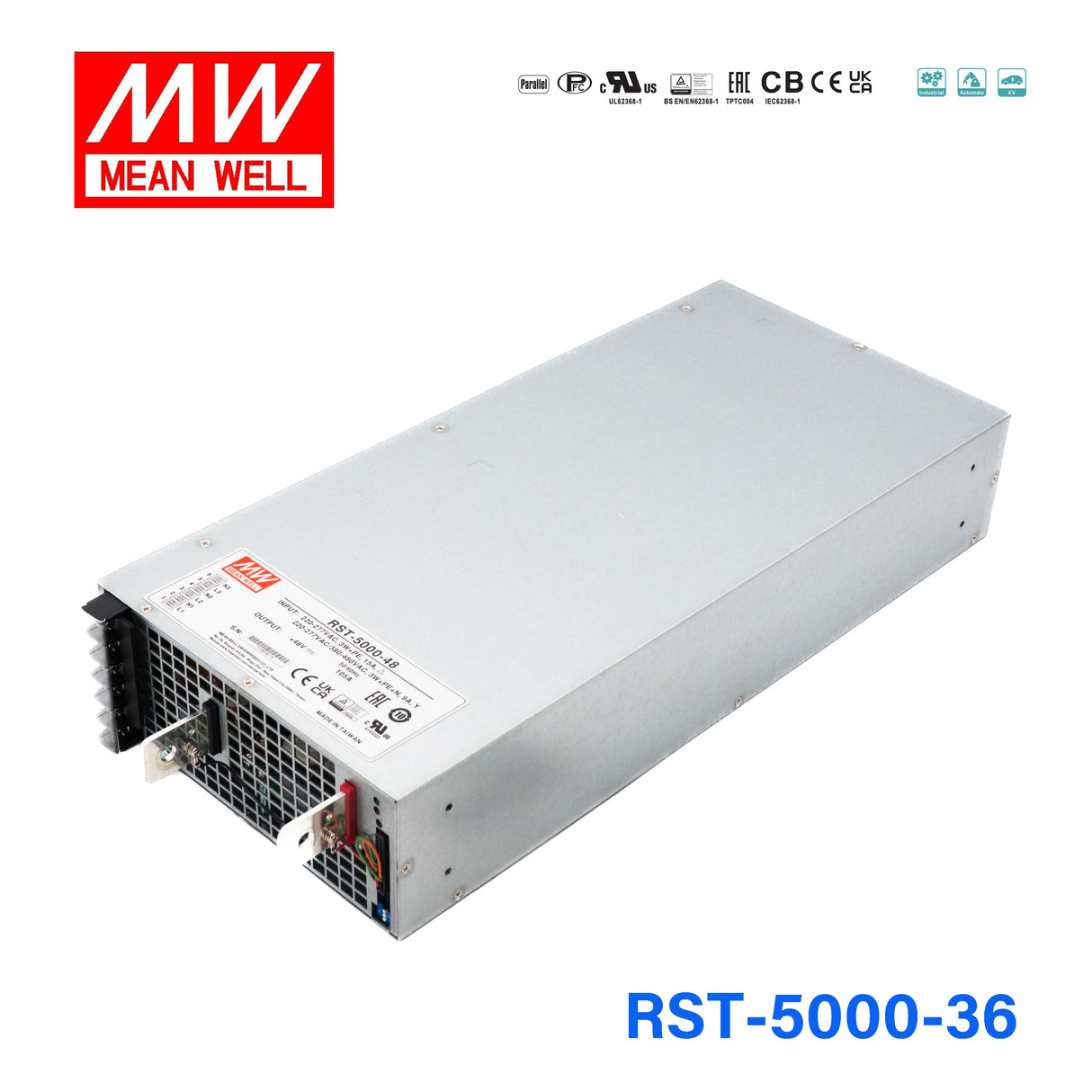

Mean Well RST-5000-36 Power Supply 4968W 36V
high efficiency up to 90.5%, output voltage and constant current level programmable, active current sharing up to 20000W(3+1)
$1,550.07 USD
Unit price /
Unavailable
Shipping calculated at checkout.
Notify me when it's back in stock
|
Your order will be processed within 24 hours
Mean Well RST-5000-36 Power Supply 4968W 36V
$1,550.07 USD
Unit price /
Unavailable
Description
Description
Features
| 3 3-wire/ 196~305VAC or 3 4-wire/ Y 340~530VAC wide input range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over Temp. / Fan alarm |
| High efficiency up to 91% |
| Built-in fan speed control |
| Vo can be trimmed 20~110% by 1~5.5VDC external control signal |
| Io can be trimmed 20~100% by 1~5VDC external control signal |
| Current sharing up to 4 units |
| Built-in remote sense and ON/OFF control |
| Built-in 12V/0.1A auxiliary power |
| Alarm signal output |
| 5 years warranty |
General Specification
| AC input voltage range | 3 3-wire/ 196~305VAC or 3 4-wire/ Y 340~530VAC |
| DC adjustment range | -2%~+20% rated output voltage |
| AC inrush current | Cold start, 50A at 230VAC/ or 400VAC/Y |
| Overload protection | 100%~110% constant current limiting, auto-recovery (can adjust to delay shut down) |
| Over voltage protection | 125%~140% shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Setup, rise, hold up time | 3000ms, 80ms, 16ms at full load |
| Safety standards | Design refer to UL60950-1, TUV EN60950-1 |
| EMC standards | Design refer to EN55022 class A, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |
| Dimension (LxWxH) | 480x 210x 83.5 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesRST Series
-
Power Rating4968 Watt
-
Output Voltage36 Volt
-
Rated Current138 Ampere
-
Input Voltage196V~530V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length18.11 in
-
Width8.31 in
-
Height3.29 in
-
Weight22.05 lb
