Mean Well

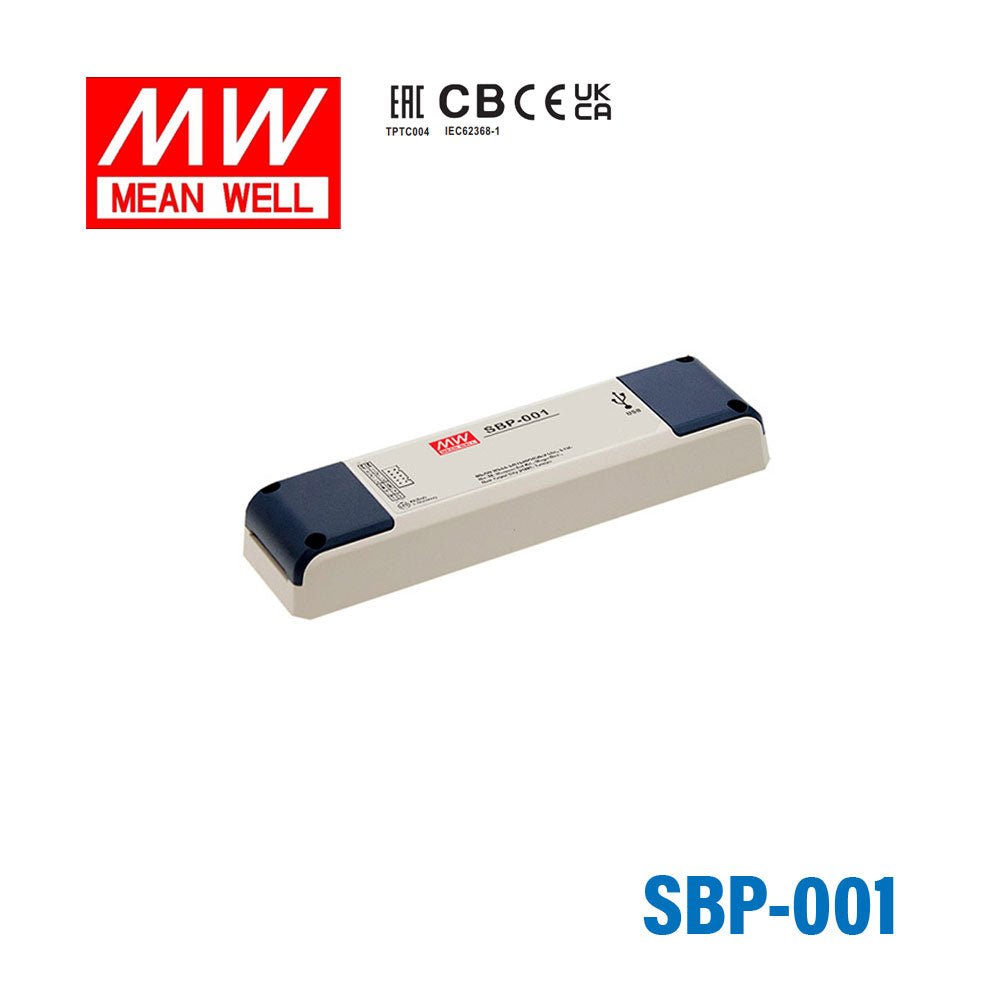

Mean Well SBP-001 Smart Battery Charging Programmer

suitable for models: ENC-120/240/320NPB-450/750/1200/1700DRS-240/480HEP-1000/2300RGB/RCB-1600DBU/DBR-3200
SKU SBP-001
$53.54 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

SBP-001 is a programmer, particularly for MEAN WELL's various programmable battery charger models to program the parameters of charging curves, such as constant current (CC), constant voltage (CV), float voltage (FV) and tapper current (TC), tapper current(TC) and so on, to accommodate the diversified battfor simplicity and convenience, users can easily configure MEAN WELL's intelligent battery chargersery specification in industry. With the design accounting with SBP-001 programmer and the computer; all of the setups are able to be finished easily by the means of the specific software.

Features

  • For MEAN WELL's intelligent battery chargers, Charging curve programmable suitable for models: ENC-120/240/360 NPB-450/750/1200/1700 DRS-240/480 HEP-1000,HEP-2300-55 RPB/RCB-1600 DBU/DBR-3200
  • Simple connection and configuration
  • No need of battery or AC power
  • LED status indicator
  • Communication cables of SBP#1,SBP#2,SBP#3,SBP#4 included (USB cable Type A - Mini USB is not included)

Specifications

SBP-001Specifications from the official datasheet (2024-11-22 edition)

FUNCTION

COMM. PC INTERFACE
Mini USB
COMM. PROGRAMMING INTERFACE
PMBus, CANBus, UART
LED INDICATOR
Green: 3.3V interface Orange: 5V interface
PROGRAMMING VOLT.
5V and 3.3V, for programming purpose only. Total 0.5W(max.)

ENVIRONMENT

WORKING TEMP.
0~ +40℃
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-10 ~ +50℃, 10 ~ 95% RH non-condensing
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
IEC62368-1 CB, EAC TP TC 004 approved
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-1(BS EN/EN50082-2), light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
3103.9K hrs min. Telcordia SR-332 (Bellcore) ; 312.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
165*46*23mm (L*W*H)
PACKING
0.12Kg; 84pcs/11Kgs/1.81CUFT

Technical drawings

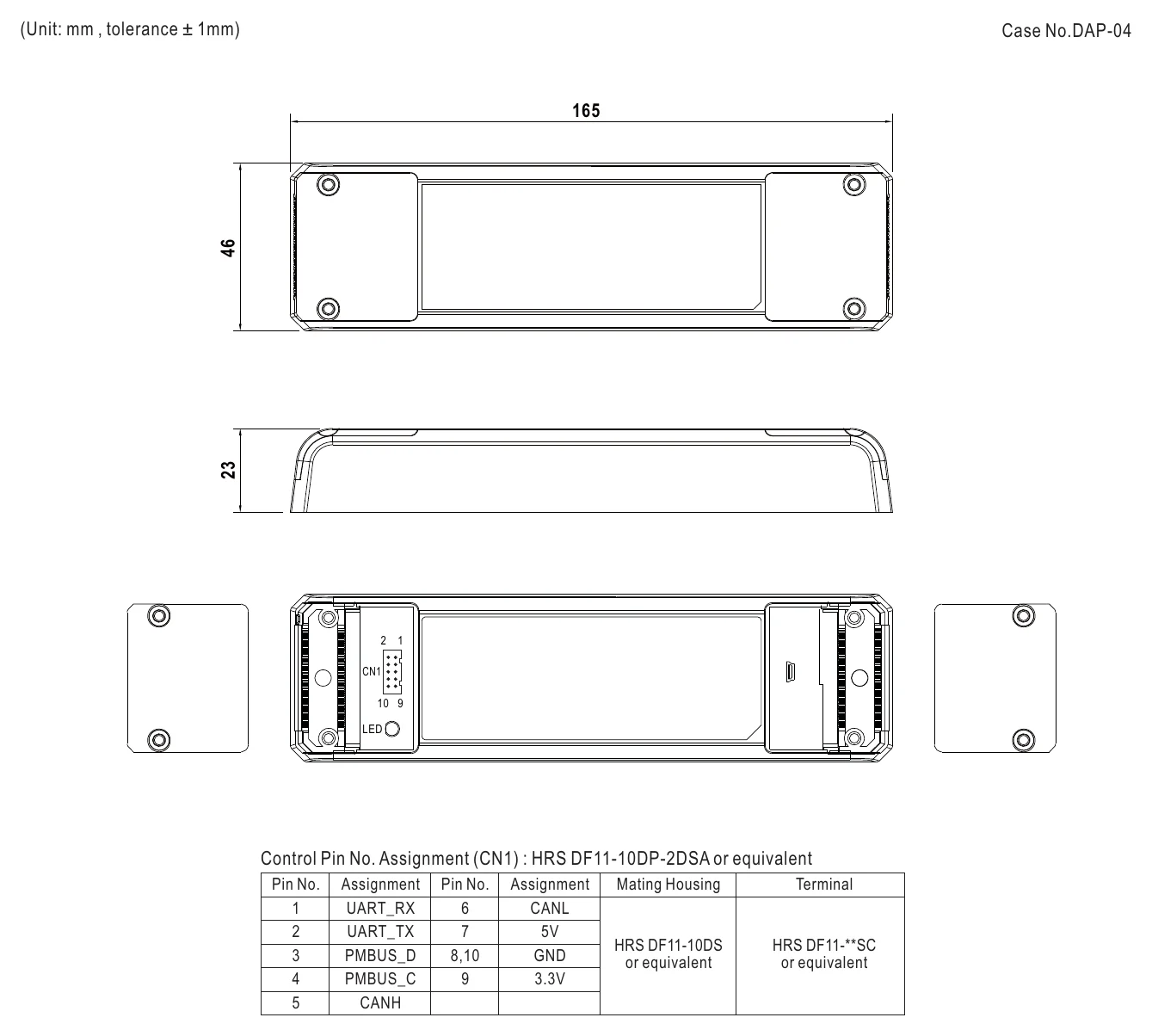

SBP-001 Mechanical Specification
Mechanical Specification

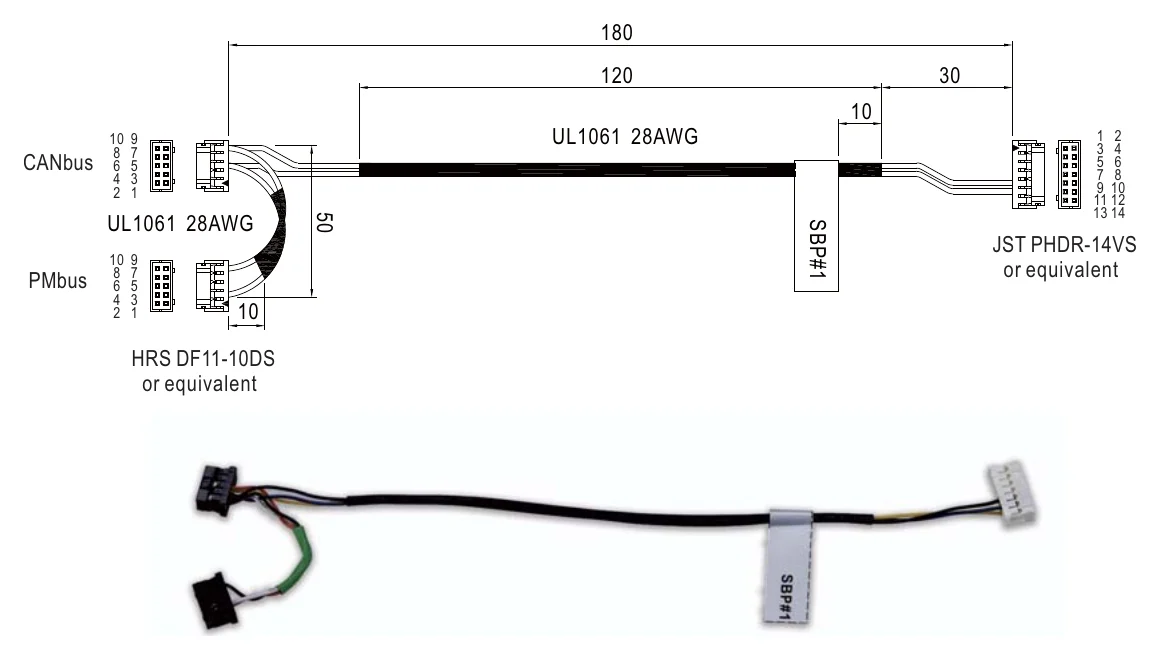

SBP-001 SBP#1
SBP#1

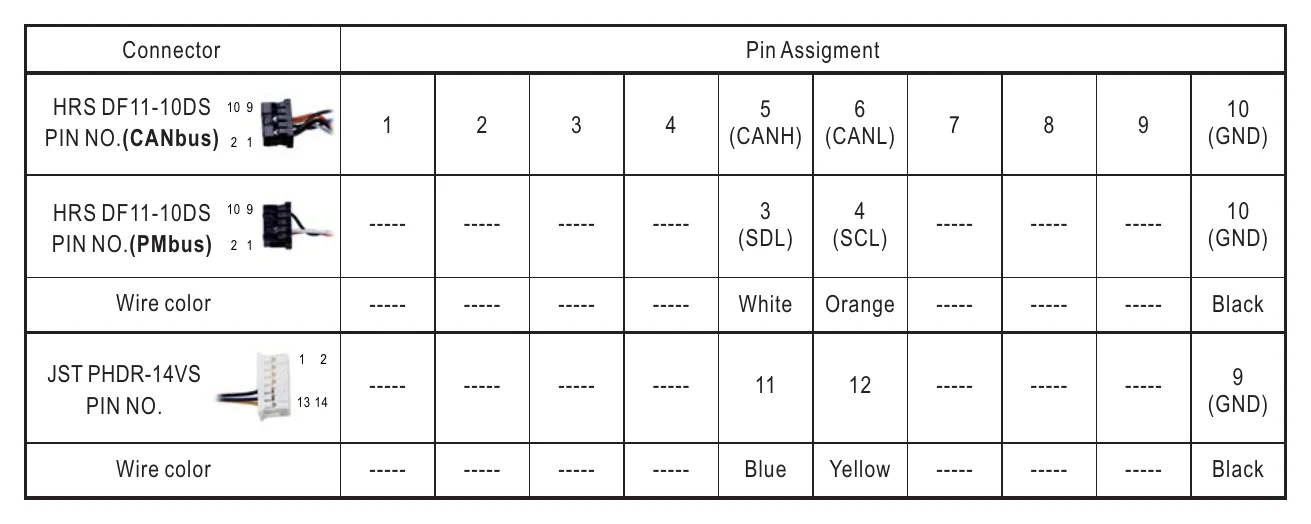

SBP-001 SBP#1 (2)
SBP#1 (2)

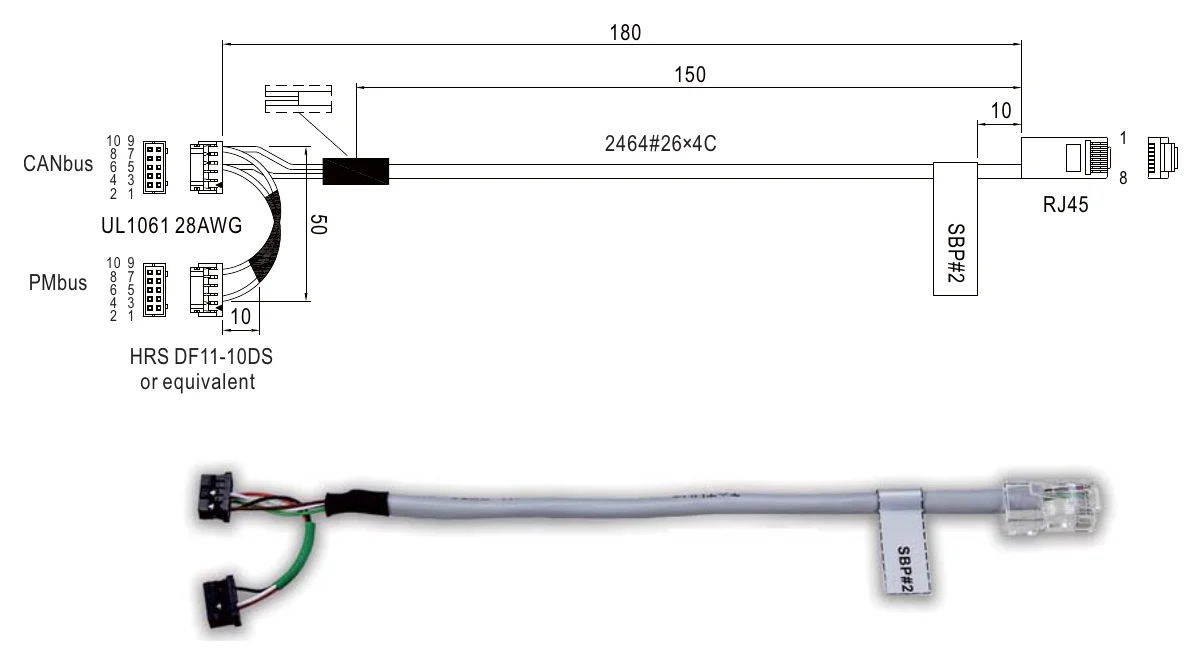

SBP-001 SBP#2
SBP#2

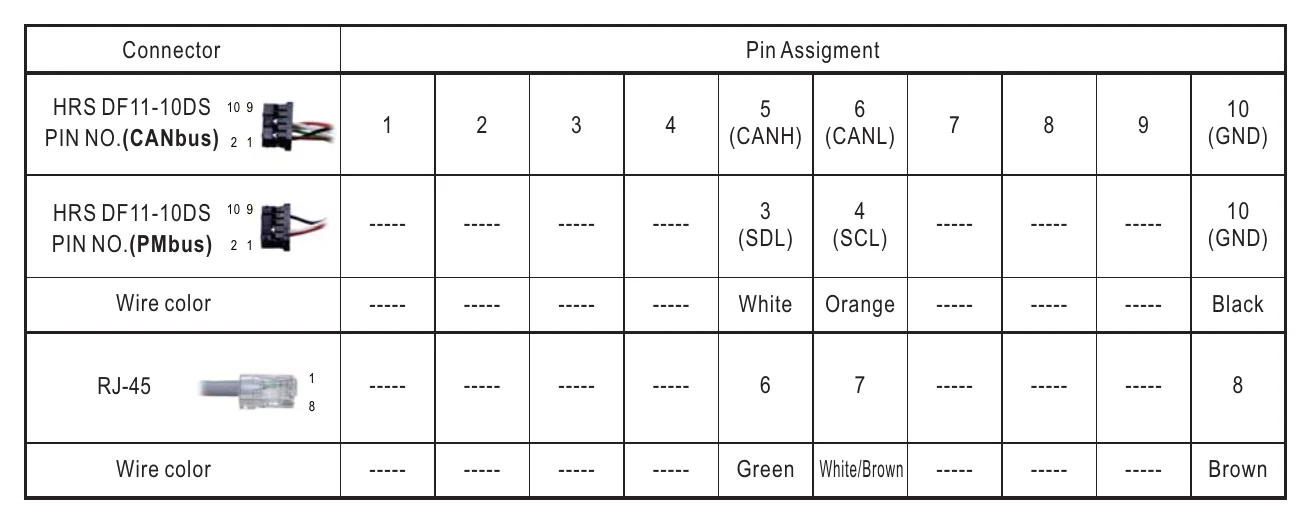

SBP-001 SBP#2 (2)
SBP#2 (2)

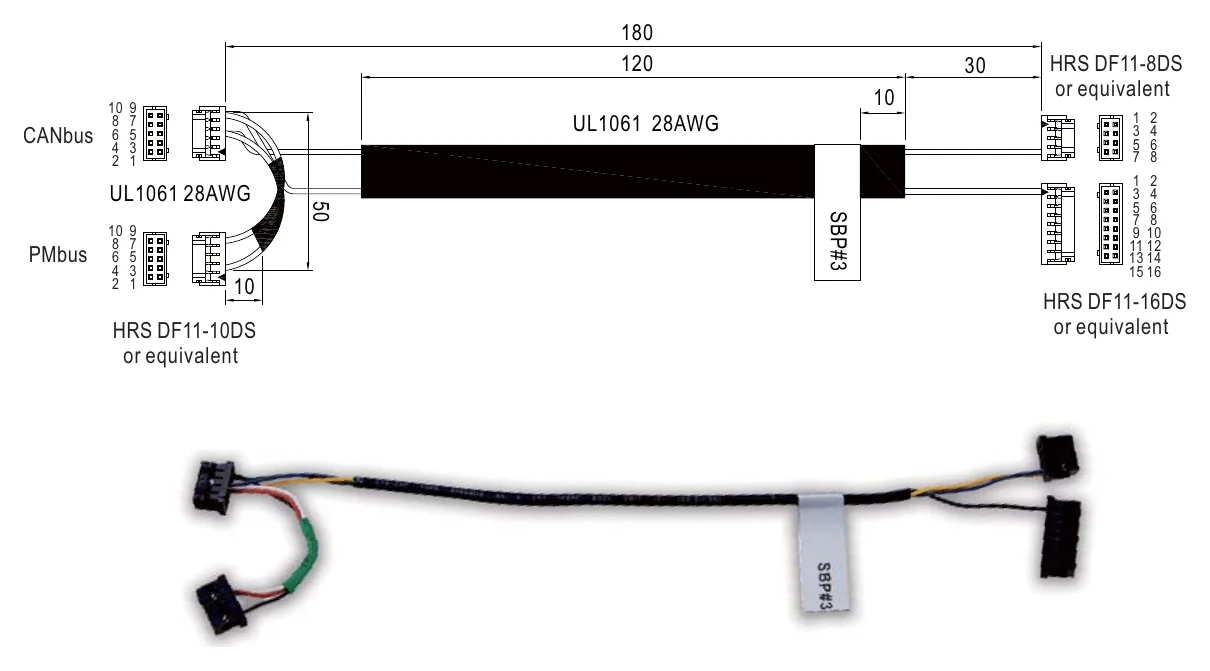

SBP-001 SBP#3
SBP#3

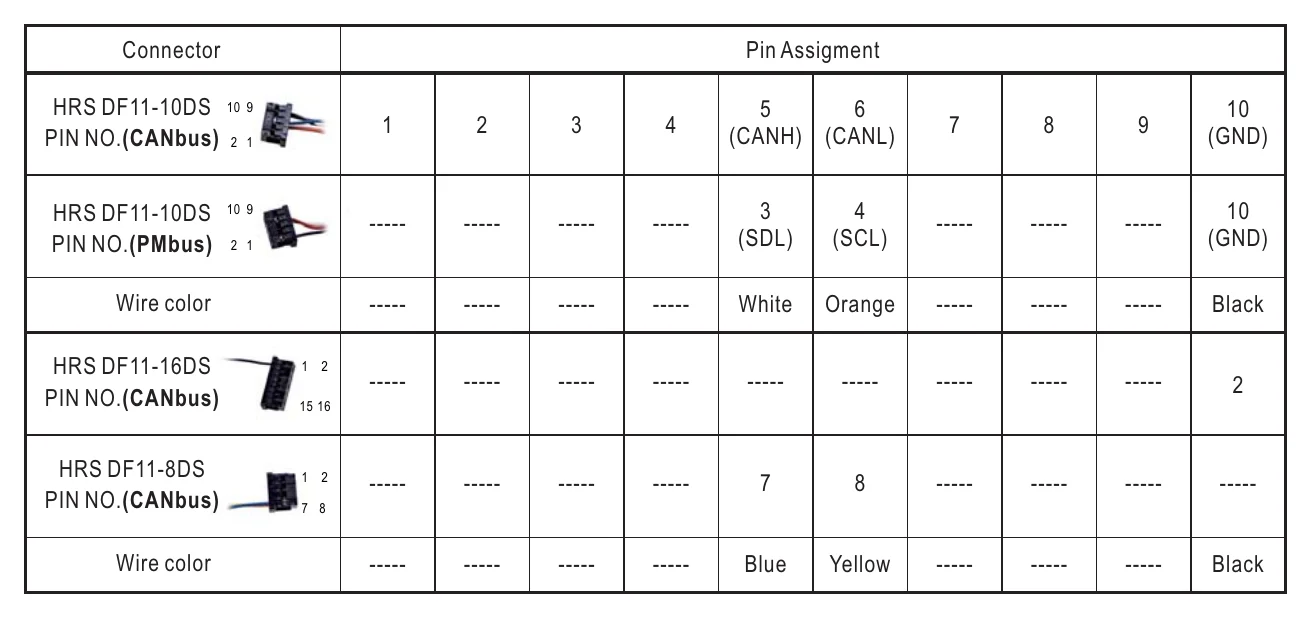

SBP-001 SBP#3 (2)
SBP#3 (2)

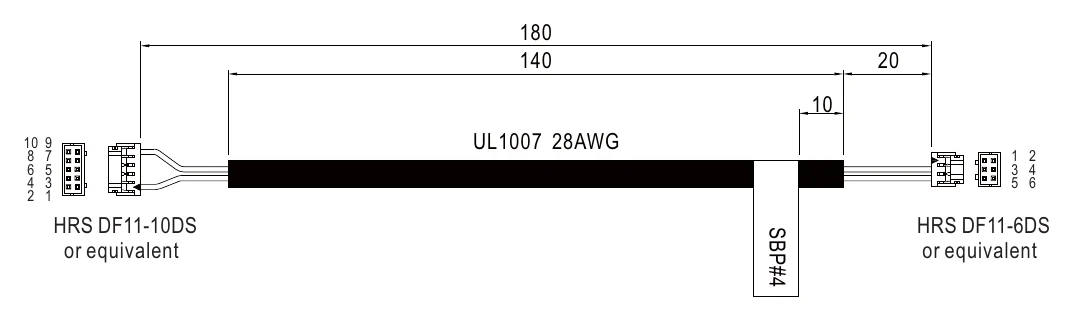

SBP-001 SBP#4
SBP#4

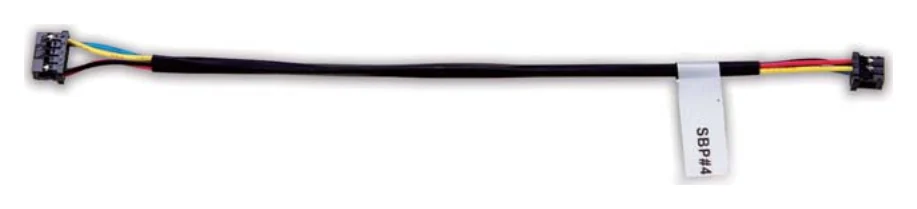

SBP-001 SBP#4 (2)
SBP#4 (2)

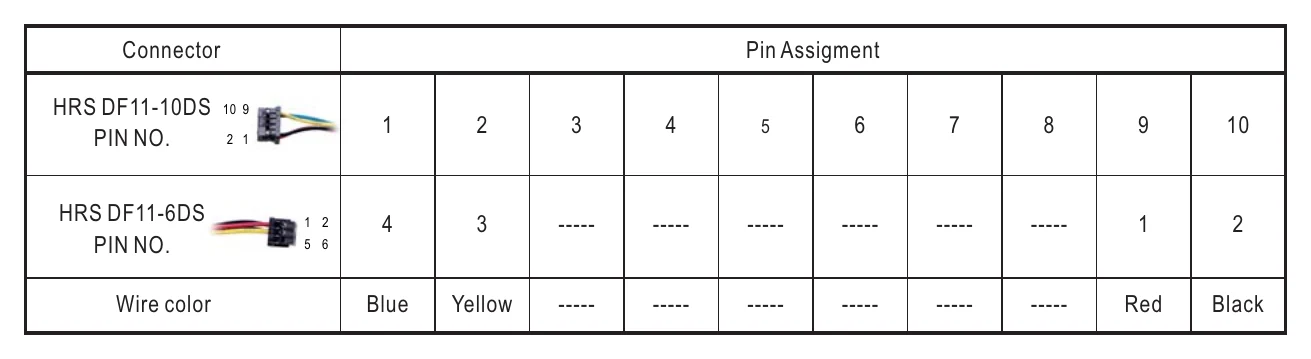

SBP-001 SBP#4 (3)
SBP#4 (3)

Downloads

FAQ

What is the Mean Well SBP-001 used for?

The SBP-001 is a smart battery charging programmer made for MEAN WELL intelligent battery chargers. It is intended for configuration and programming tasks rather than serving as a charger itself.

Which communication interfaces does the SBP-001 support?

This model provides a Mini USB PC interface and supports PMBus, CANBus, and UART on the programming side. That makes it suitable for working with compatible MEAN WELL intelligent charger platforms that use those communication standards.

Does the SBP-001 require battery or AC power to operate?

No. The product description states that no battery or AC power is required for the SBP-001 itself.

What accessories are included with the SBP-001?

The SBP-001 includes communication cables identified as SBP#1, SBP#2, SBP#3, and SBP#4. A USB cable from Type A to Mini USB is specifically noted as not included.

What do the LED indicators on the SBP-001 show?

The unit has an LED status indicator with green for the 3.3V interface and orange for the 5V interface. This gives a quick visual reference for interface status during use.

What operating temperature range is specified for the SBP-001?

The specified operating temperature range is 0°C to 40°C. Buyers should use it within that ambient range to stay within the listed product specification.
