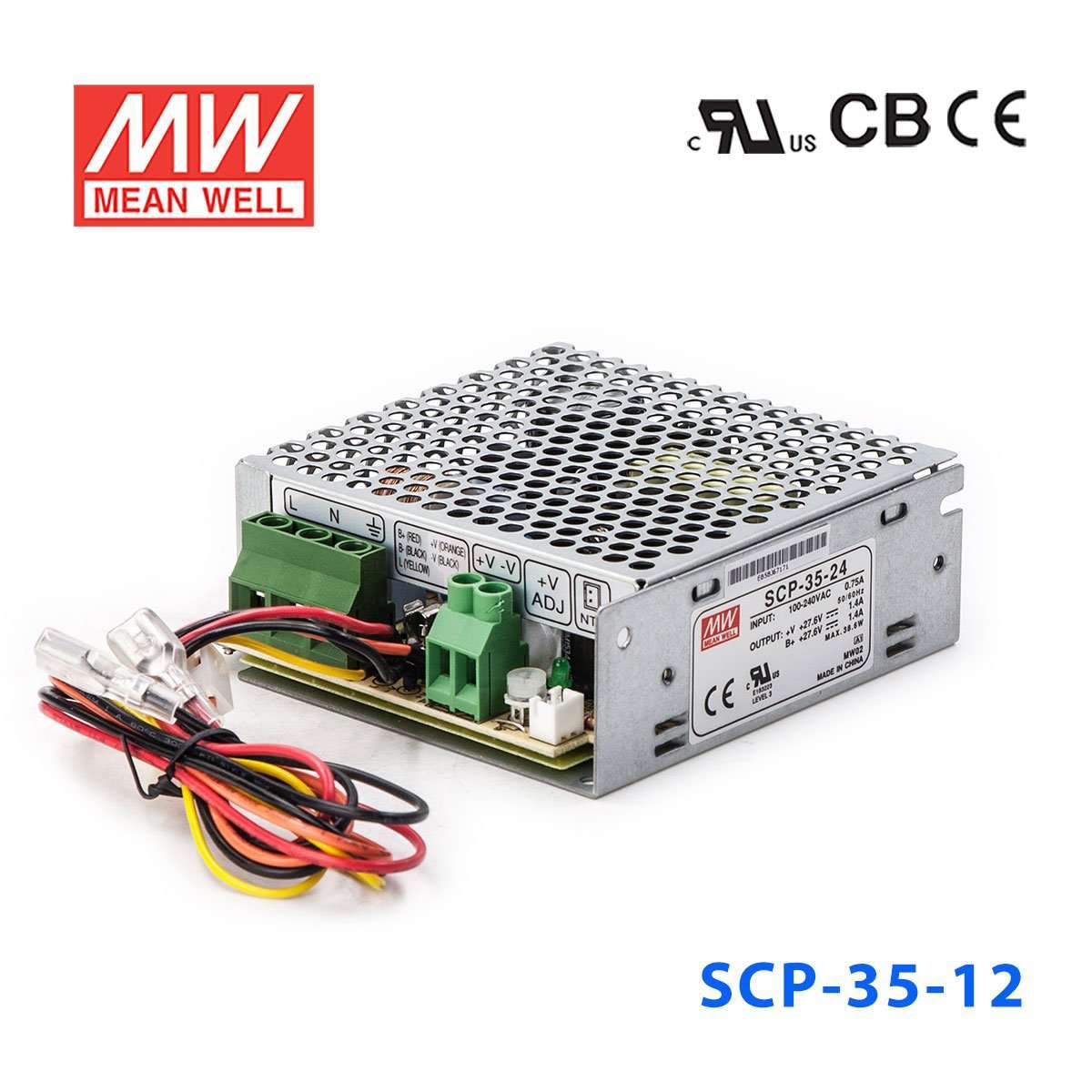

Mean Well SCP-35-12 Power supply 35.9W 13.8V 2.6A

built-in temperature compensation function, no load power consumption
$20.43 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
LED indicator for power on
No load power consumption <0.75W
Protections: Short circuit / Over current / Over voltage / Battery polarity (by fuse)
Temperature compensation function (by external thermistor)
Cooling by free air convection
100% full load burn-in test
2 years warranty

General Specification

AC input voltage range 85~264VAC/ 120~370VDC
AC inrush current Cold start, 45A
DC adjustment range 95%~115% rated output voltage
Overload protection 120%~165%, hiccup mode, auto-recovery
Over voltage protection 120%~140%, rated output voltage
Withstand voltage I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, 1minute
Working temperature -20~+60°C (refer to output derating curve)
Safety standards UL60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1
Connection I/P: 3 poles, O/P: 2 poles screw terminal
Packing 0.37kg ; 45pcs / 17.7kg / 1CUFT
Dimension (LxWxH) (mm) 99x 97x 36 mm
Setup, rise, hold up time 500ms, 30ms, 50ms at full load and 230VAC

Specifications

  • Brand
    Mean Well
  • Series
    SCP Series
  • Power Rating
    35.9 Watt
  • Output Voltage
    13.8 Volt
  • Rated Current
    2.6 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~60°C
  • Warranty
    2 Year
  • Length
    3.9 in
  • Width
    3.82 in
  • Height
    1.42 in
  • Weight
    0.82 lb
