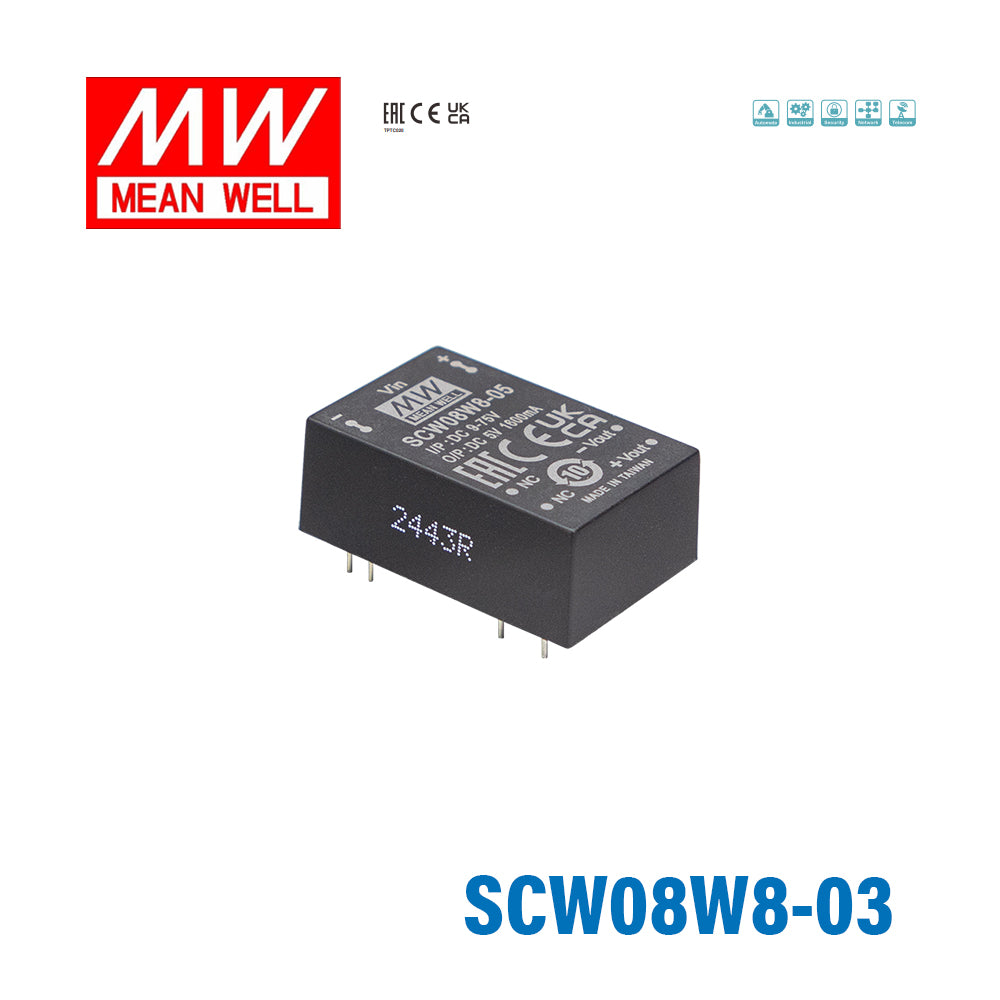

Mean Well SCW08W8-03 DC-DC Converter - 8W 9~75V DC in 3.3V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SCW08W8-03 DC-DC Converter - 8W 9~75V DC in 3.3V out
Key Features

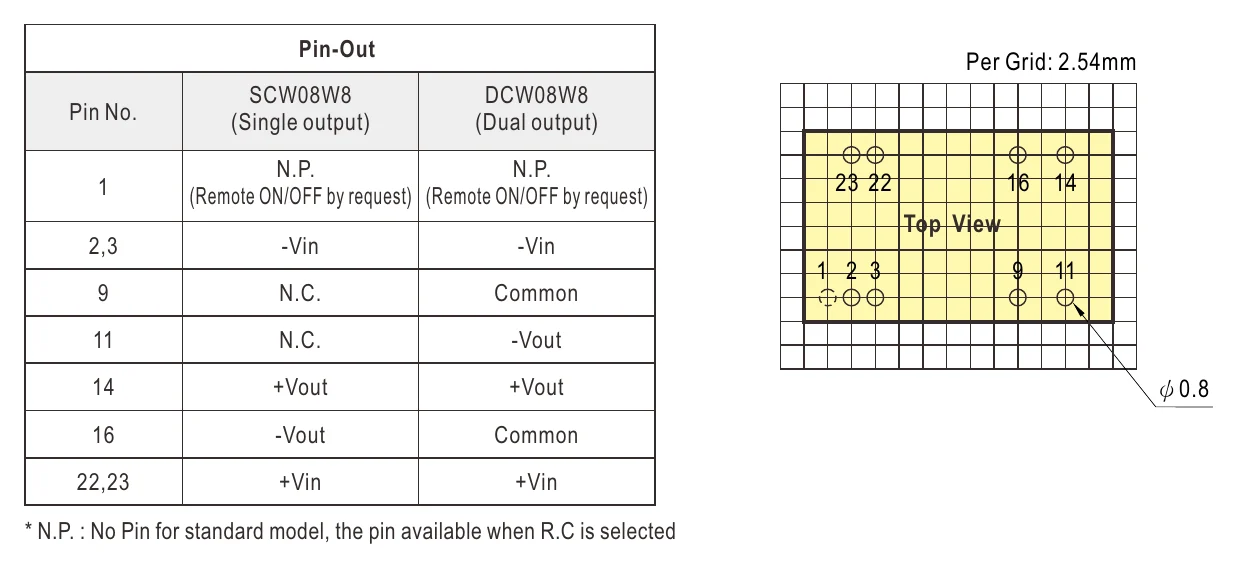

- ✓DIP24 package with industry standard pinout
- ✓8:1(9-75Vdc) ultra-wide input range
- ✓Operating temperature range -40 - +90℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 86%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating8 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-

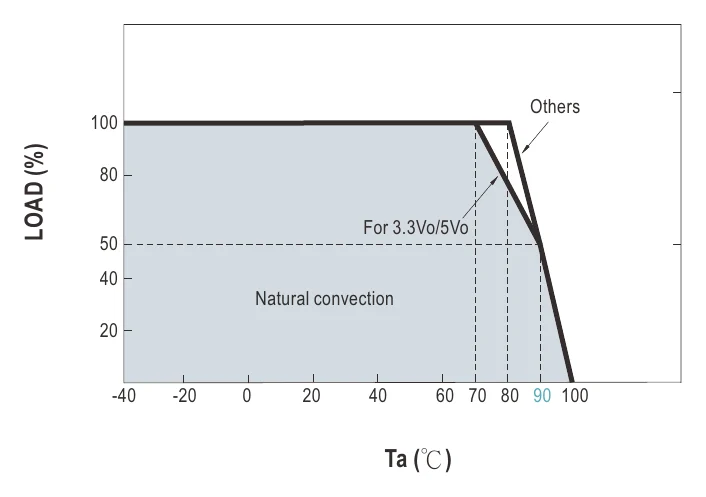

Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
