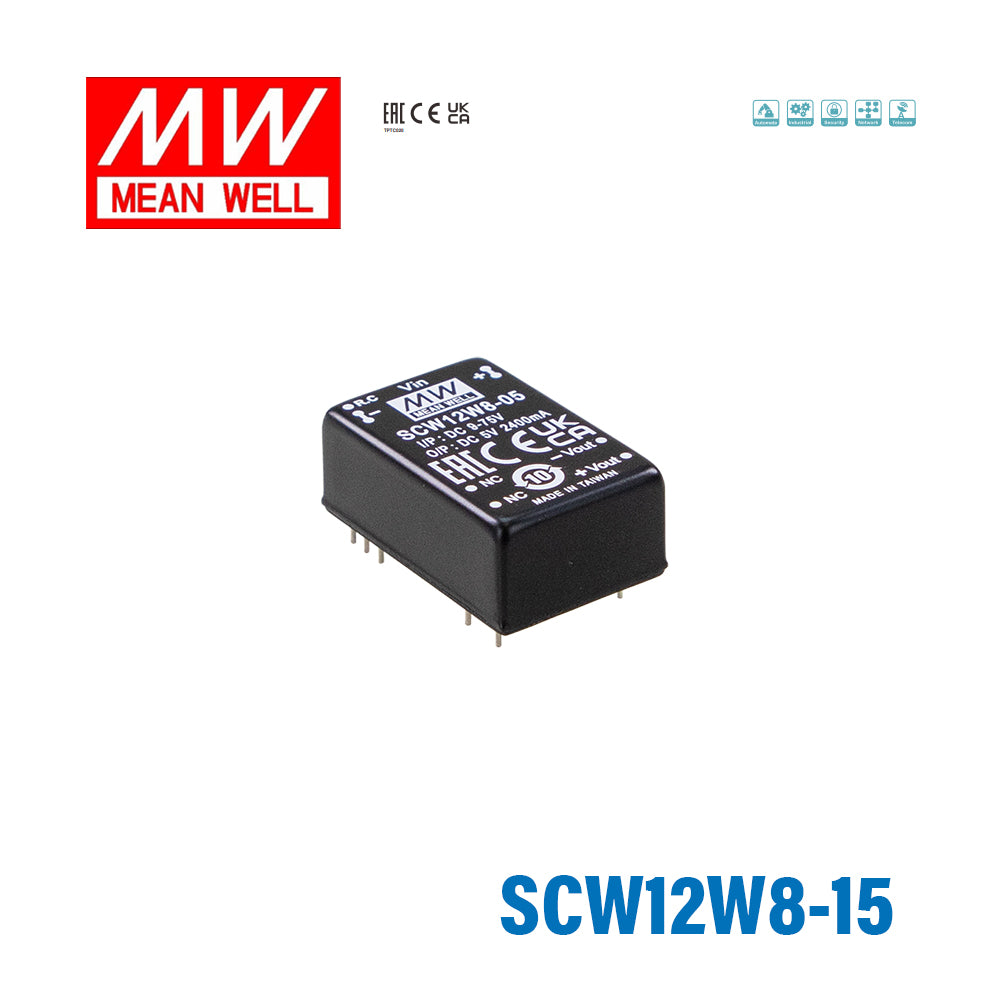

Mean Well SCW12W8-15 DC-DC Converter - 12W 9~75V DC in 15V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SCW12W8-15 DC-DC Converter - 12W 9~75V DC in 15V out
Key Features

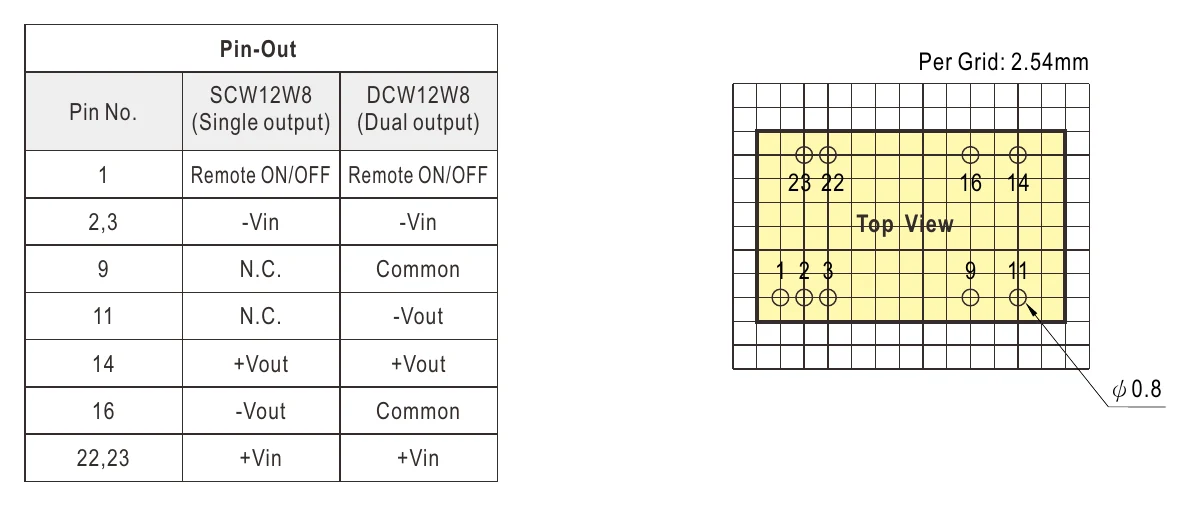

- ✓DIP24 package with industry standard pinout
- ✓8:1(9-75Vdc) ultra-wide input range
- ✓Operating temperature range -40 - +85℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 87%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating12 Watt
-
Output Voltage15 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
What is the Mean Well SCW12W8-15 designed for?
The SCW12W8-15 is a 12W isolated DC-DC converter module for stepping a wide DC input down to a regulated 15V output. It is aimed at embedded, industrial, and OEM equipment where a compact DIP24 package and broad input tolerance are important.
What input voltage range does the SCW12W8-15 support?
This model accepts an ultra-wide 9 to 75V DC input range. That allows one part number to cover nominal 12V, 24V, 36V, 48V, and 72V DC system ranges, which can simplify product selection across mixed-platform equipment.
Is the SCW12W8-15 an isolated DC-DC converter?
Yes. The SCW12W8-15 provides 3KV DC input-to-output isolation, which is useful in equipment that needs electrical separation between the input side and the regulated 15V output side. That makes it a stronger fit for industrial and control applications than a non-isolated module.
Can the SCW12W8-15 operate in harsh temperature conditions?

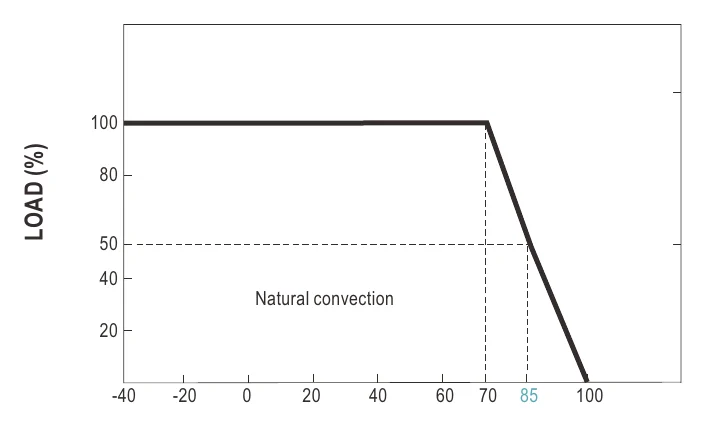

This model is rated for operation from -40°C to +85°C. That wide temperature range makes it suitable for equipment exposed to cold starts, hot enclosures, or other demanding industrial environments, provided the overall system design stays within the product's ratings.
Does the SCW12W8-15 require a minimum load to regulate properly?
No. Mean Well specifies that the SCW12W8-15 does not require a minimum load, so it can be used in systems where the downstream demand may be very light or intermittent. That can be useful in control, monitoring, and standby-power applications.
What protection features are included in the SCW12W8-15?
The SCW12W8-15 includes short circuit protection with continuous behavior, plus overload, over voltage, and UVLO protection. These built-in protections help improve robustness in demanding equipment and reduce the need to rely only on external protective measures.
How does the SCW12W8-15 help with EMC-conscious designs?

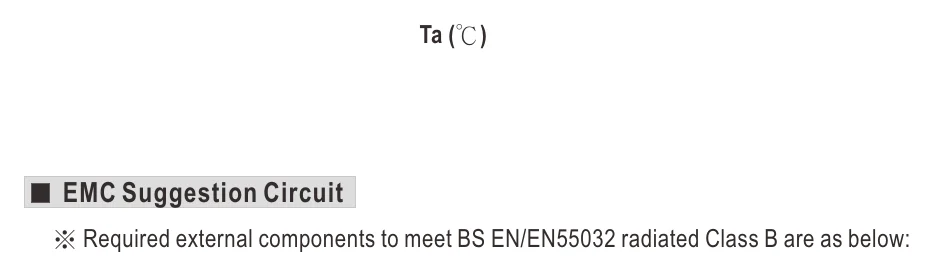

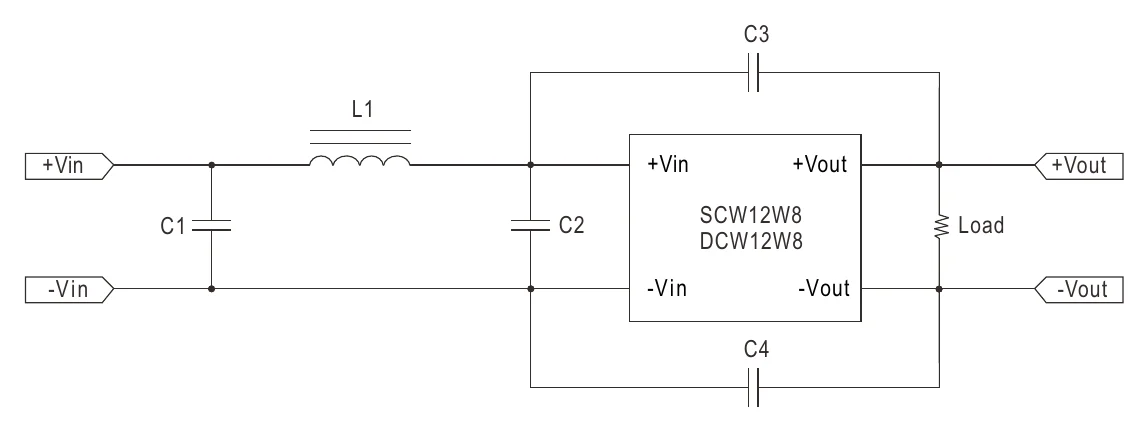

Mean Well states this model complies with BS EN/EN55032 radiated Class A without additional components. For B2B equipment builders, that can make it a more attractive option when compared with modules that need extra external parts just to reach the same radiated-emissions target.
