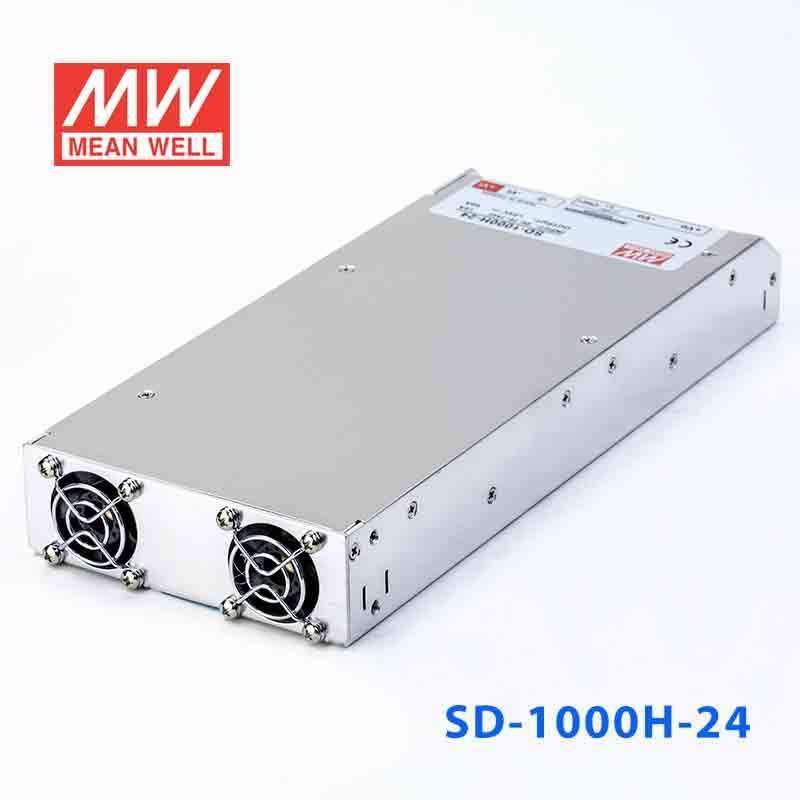

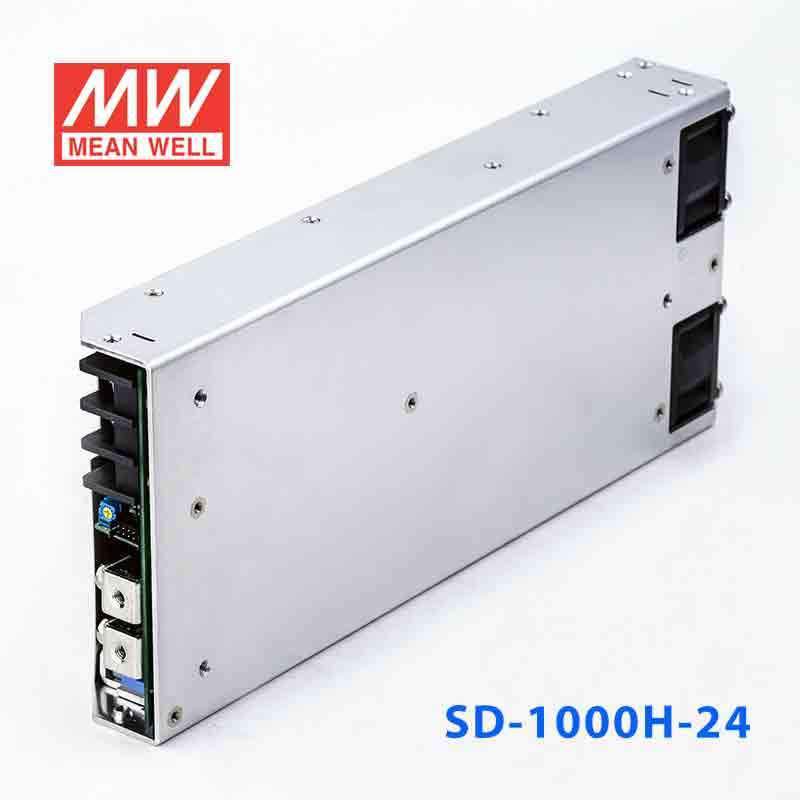

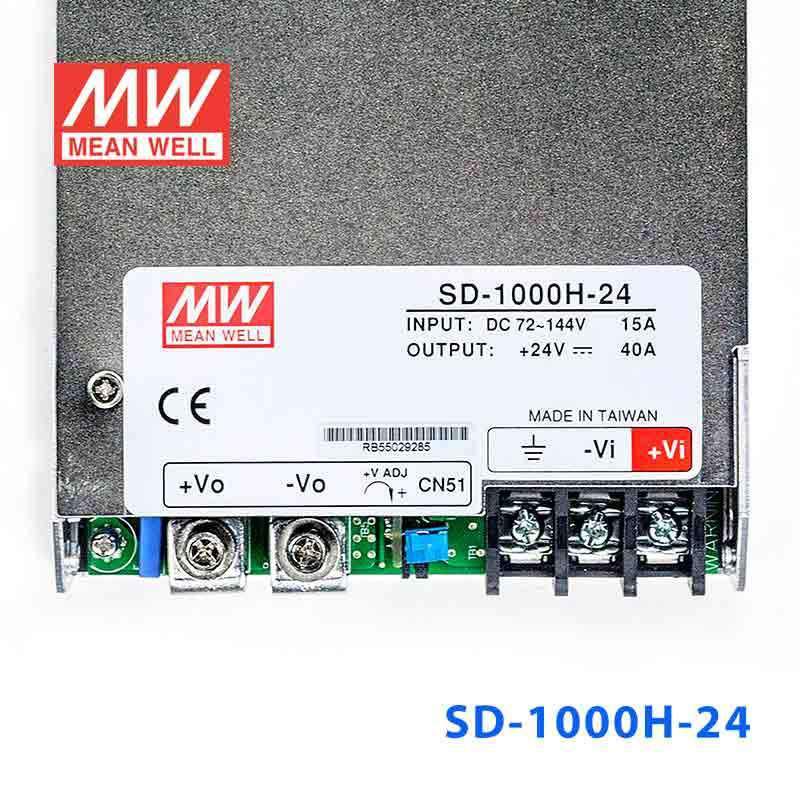

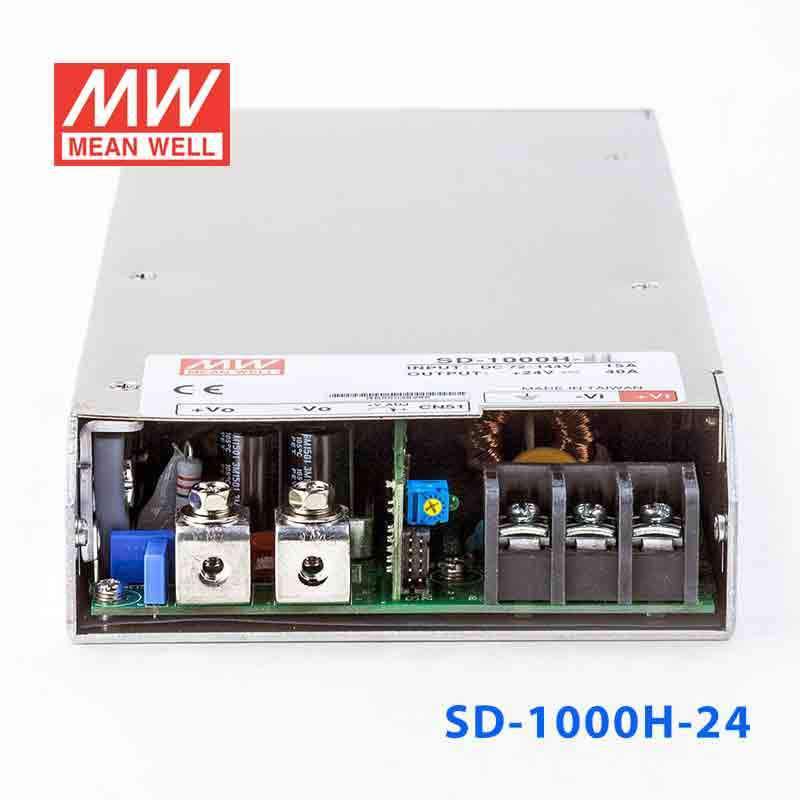

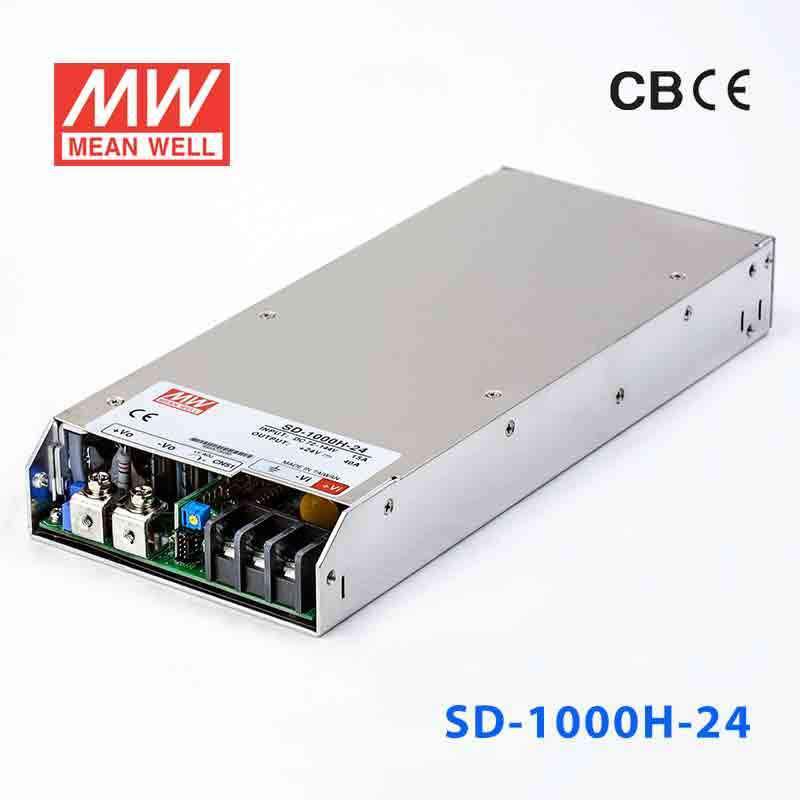

Mean Well SD-1000H-24 DC-DC Converter - 980W - 72~144V in 24V out 40A
1.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-1000H-24 DC-DC Converter - 980W - 72~144V in 24V out 40A
The SD-1000H is a 1000W Mean Well power converter (input range: 72~144VDC).
Key Features
- ✓ Input voltage range: 72~144VDC
- ✓ DC output voltage adjustable ±10%
- ✓ 2KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Remote ON/OFF control
- ✓ Safety approvals: IEC62368-1 CB EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating960 Watt
-
Output Voltage24 Volt
-
Rated Current40 Ampere
-
Input Voltage72V~144V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetEAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.28 lb
::specification::
Frequently Asked Questions
Can I use the SD-1000H-24 for 24V PLC, relay, and automation equipment?
Yes, this model provides a constant-voltage 24V output from a 72-144V input range, which fits many industrial automation power architectures. Its 960W rating and 40A output current support substantially larger 24V loads than smaller DC-DC converters.
Is the SD-1000H-24 suitable for powering 24V control panels from a high-voltage DC source?
It is designed for exactly that type of conversion when the source is within 72-144V and the load requires regulated 24V DC. With up to 40A output and a 1U low-profile form factor, it is a practical option for higher-power enclosed panel or rack systems.
Can this converter run 24V industrial networking or embedded systems with remote monitoring needs?
It can fit 24V industrial or embedded equipment where the total demand stays within 960W and 40A. The built-in remote ON/OFF control, remote sense, and 12V/0.25A auxiliary output are relevant in monitored equipment platforms.
How does the SD-1000H-24 compare with the other 1000-series DC-DC models?
Among the listed high-power siblings, SD-1000H-12 and SD-1000L-12 are 720W models at 12V and 60A, SD-1000H-24 and SD-1000L-24 are 960W models at 24V and 40A, and SD-1000H-48 and SD-1000L-48 are 1008W models at 48V and 21A. This SD-1000H-24 version specifically combines a 72-144V input range with a 24V, 40A output.
Is the SD-1000H-24 rated for outdoor use or temperature extremes?
The specified operating temperature range is -20°C to +60°C. No IP rating is listed, so the product data here supports temperature evaluation but does not state outdoor enclosure protection.
