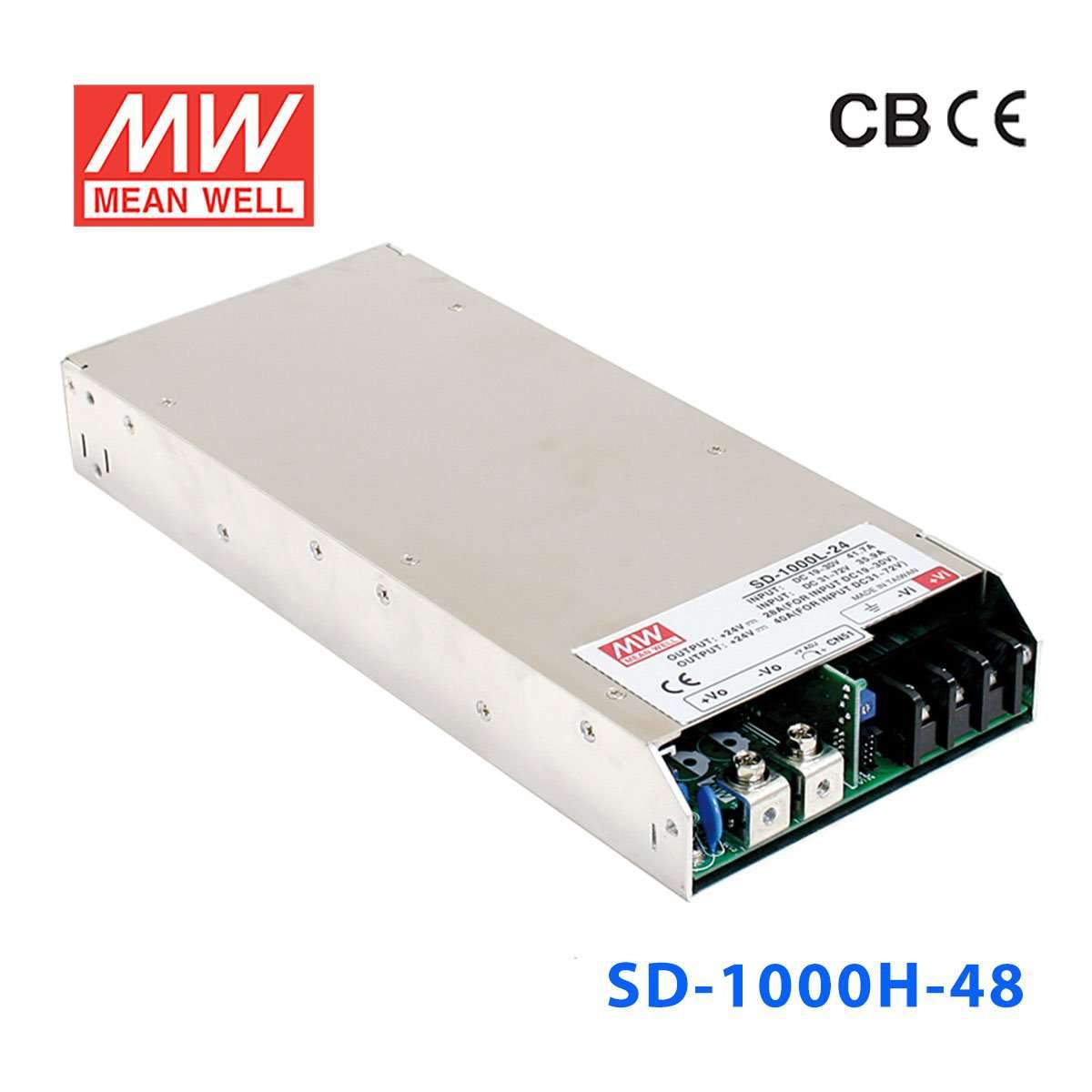

Mean Well SD-1000H-48 DC-DC Converter - 1000W - 72~144V in 48V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-1000H-48 DC-DC Converter - 1000W - 72~144V in 48V out
Description
Description
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating1008 Watt
-
Output Voltage48 Volt
-
Rated Current21 Ampere
-
Input Voltage72V~144V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.28 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SD-1000H-48 for 48V telecom or network power systems?
Yes, this model is a constant-voltage 48V converter with a 72-144V input range, which aligns with many 48V DC system architectures. Its 1008W output rating and 21A maximum output current suit higher-power 48V equipment loads.
Is the SD-1000H-48 suitable for industrial 48V automation or motion-control subsystems?
It can be used where the source voltage is within 72-144V and the downstream equipment requires regulated 48V DC. The 1008W capacity and 21A output make it appropriate for heavier 48V loads than smaller automation converters.
Can this converter support 48V IT or communications equipment in a rack-mounted setup?
Yes, the 1U low-profile design is relevant for rack or cabinet integration where a 48V DC rail is required. The output is 48V at up to 21A, and the feature set includes remote ON/OFF control, remote sense, and a 12V/0.25A auxiliary output.
How does the SD-1000H-48 differ from the other SD-1000H and SD-1000L models?
The listed high-power siblings split into 12V at 60A and 720W, 24V at 40A and 960W, and 48V at 21A and 1008W across both H and L versions. The SD-1000H-48 is the 48V, 21A, 1008W member of the H-input group with a 72-144V input range.
Can the SD-1000H-48 be used outdoors or in demanding temperature conditions?
Its operating temperature range is listed as -20°C to +60°C, so the temperature capability is defined within those limits. No IP rating appears in the provided specs, so this page does not indicate outdoor sealing or water ingress protection.
